Nikolaus Mayer

Let’s build a Raytracer

Sommercampus 2019
Technische Fakultät
Universität Freiburg

Why this course?

Fact: Computer graphics are awesome
Fact: OpenGL is a mess (of user friendliness)
Fact: Blender is mostly a black box

my own opinion: you can never fully understand something which you have never made yourself

consequence: one should develop one's own renderer

this course wants to be the next best thing

Overview

Introduction
0. An empty image
1. Heaven and earth
2. Triangles
3. Raytracing
4. Ray energy
5. Spheres
6. Light
7. Shadows
8. Random stuff

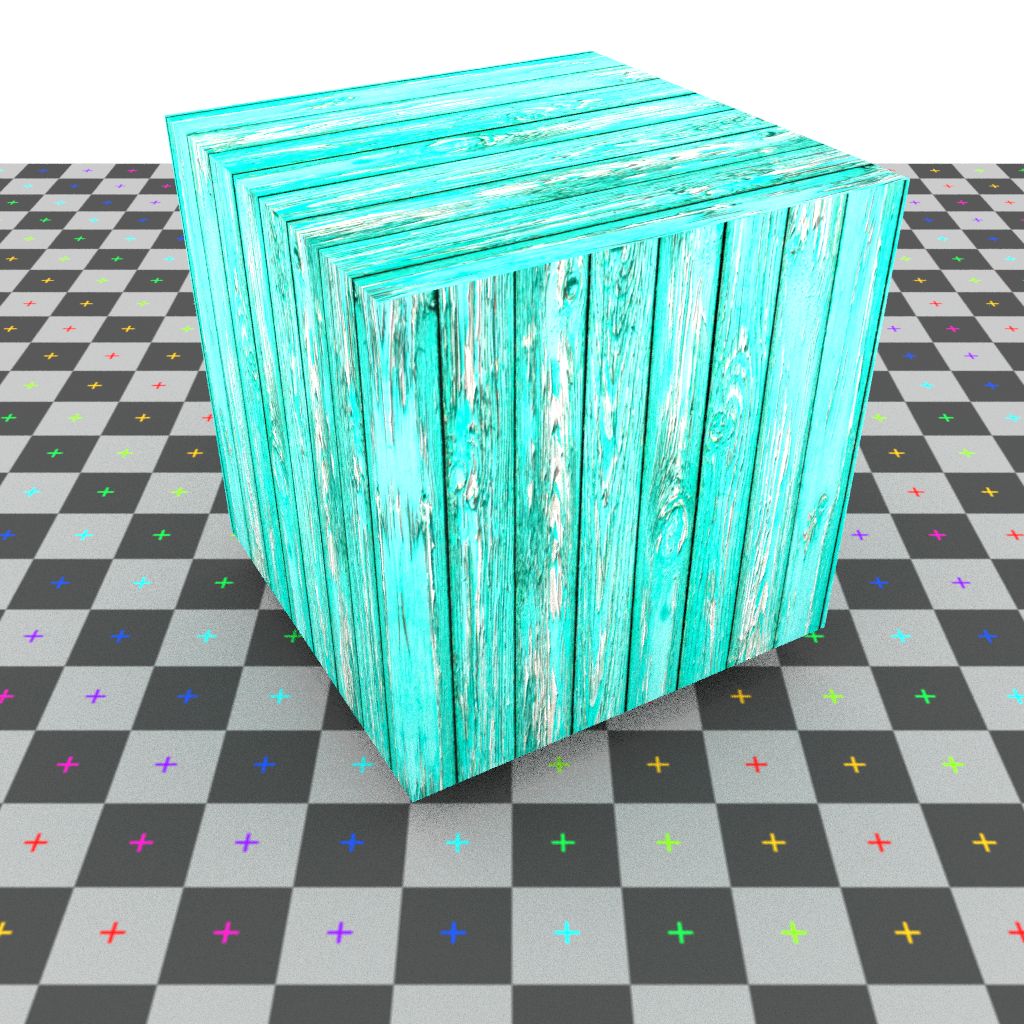

9. Textures

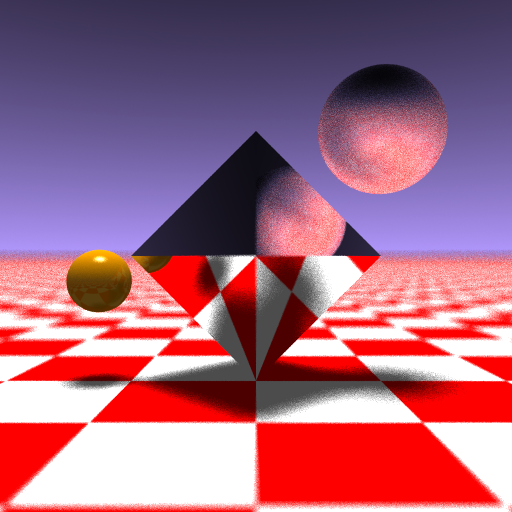

█. Bonus: ████████

Introduction

"Computer graphics"

Generating images from model knowledge

Introduction

Raytracing vs Rasterization

Rasterization: step-by-step pipeline, whole image is processed in each step

Introduction

Raytracing vs Rasterization

Raytracing: pixel-by-pixel, each pixel complete on its own

Introduction

Raytracing vs Rasterization

Rasterization:

ultra-optimized hardware (GPUs)
ultra-optimized engines and tools (OpenGL)
(thanks to that) fast
many effects need tricks or post-processing

Raytracing:

reflections, depth-of-field etc. are "all inclusive"
can be physically correct
is used for simulations
(also special hardware (Nvidia RTX, AMD RDNA(?)))

both are active research areas!

Introduction

Course structure

split into individual "levels", each with

motivation
content (with theory)
coding session
inspirational ideas

Level 0 — An empty image

#0 An empty image

What is an image?

an ordered collection of pixels

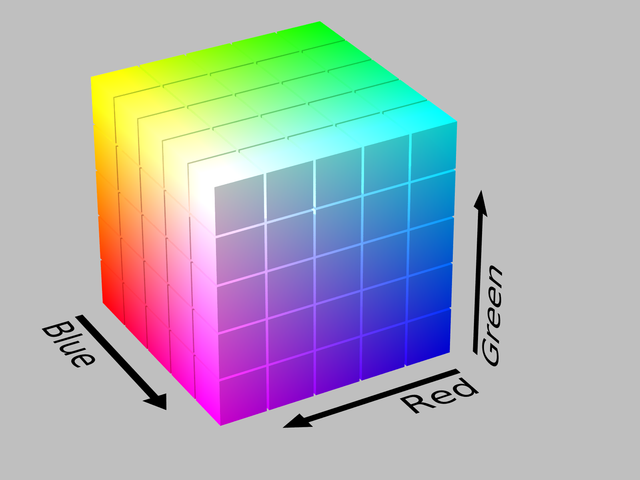

pixel are triples (Red-Green-Blue)
integer numbers 0–255 per color
16.7 million colors!!!1

#0 An empty image

The PPM image format

"Portable PixMap"
the simplest possible format
(no compression, very inefficient)
3 colors (RGB) per pixel
Header: P3 WIDTH HEIGHT MAXIMUM
in our case: P3 512 512 255
P3 means "ASCII-PPM" → human readable \Ü/
P3 512 512 255 255 0 0 255 0 0 255 0 0 [...]
P6 512 512 255 ÿ^@^@ÿ^@^@ÿ^@^@[...] (binary PPM)
left-to-right, top-to-bottom, separation by spaces

#0 An empty image

The code basis

std::ofstream outfile("img.ppm");
outfile << "P3 512 512 255";

for(int y = 0; y < 512; ++y) {    /// Rows
  for(int x = 0; x < 512; ++x) {  /// Columns
    outfile << " " << 255
            << " " << 0
            << " " << 0;
  }
}

512 · 512 = 262144 red pixels
(we could write << " 255 0 0" instead)

#0 An empty image

Hack time

Dummy image

#0 An empty image

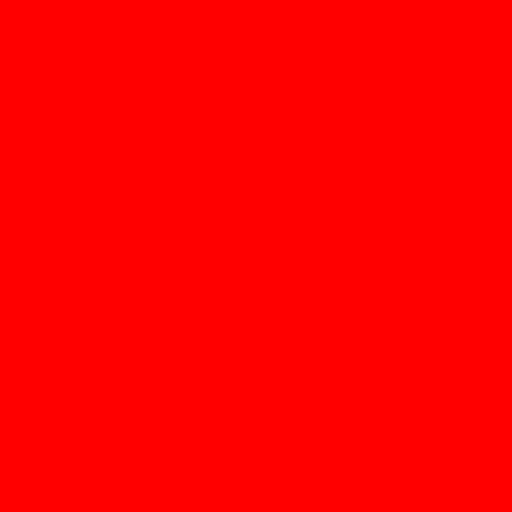

Result

#0 An empty image

Debugging

Loop conditions (< / ≤)
file size: $ du --bytes img.ppm

"P3 512 512 255" = 14 bytes header
" 255 0 0" = 8 bytes per pixel (ASCII: 1 byte/character)
→ 14 + 8 · (512 · 512) = 2097166 bytes
file contents: $ head -c 100 img.ppm

P3 512 512 255 255 0 0 255 0 0 255 0 0 ...

Level 1 — Heaven and earth

#1 Heaven and earth

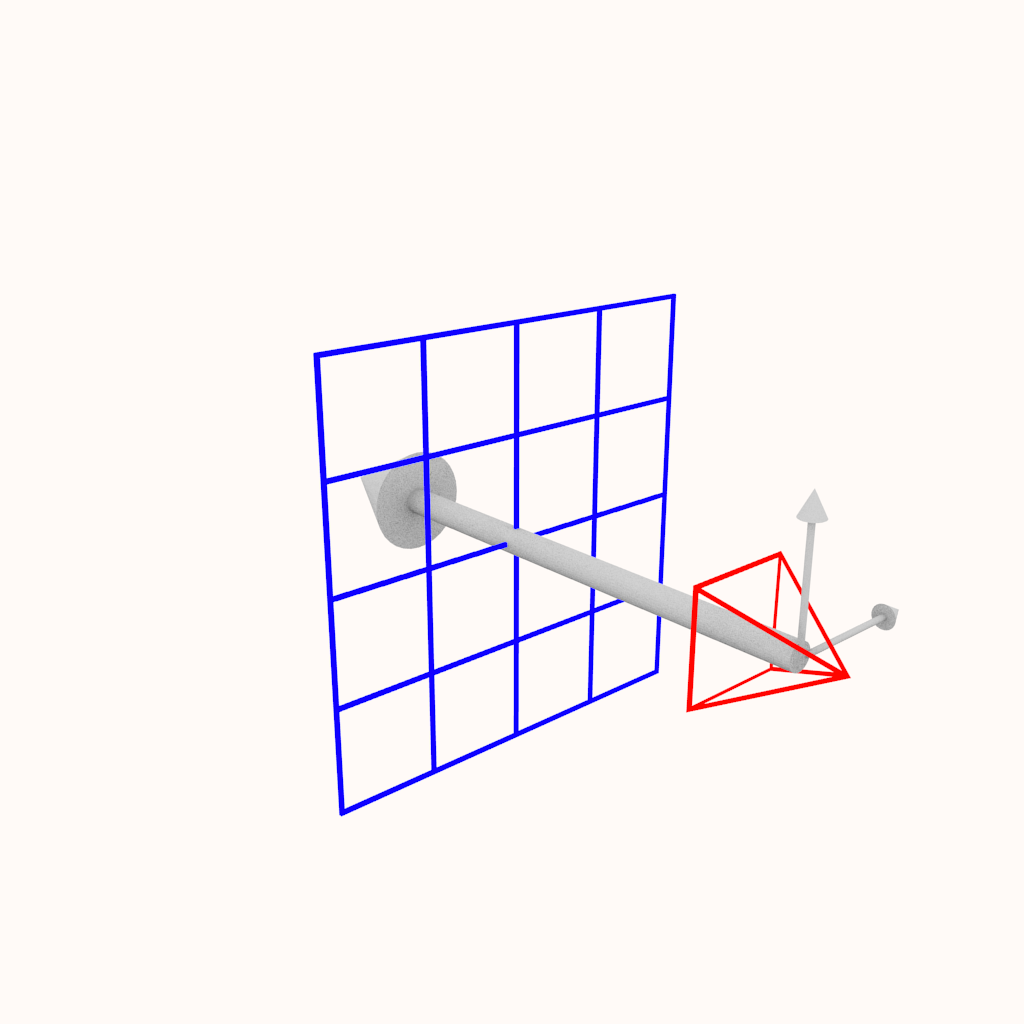

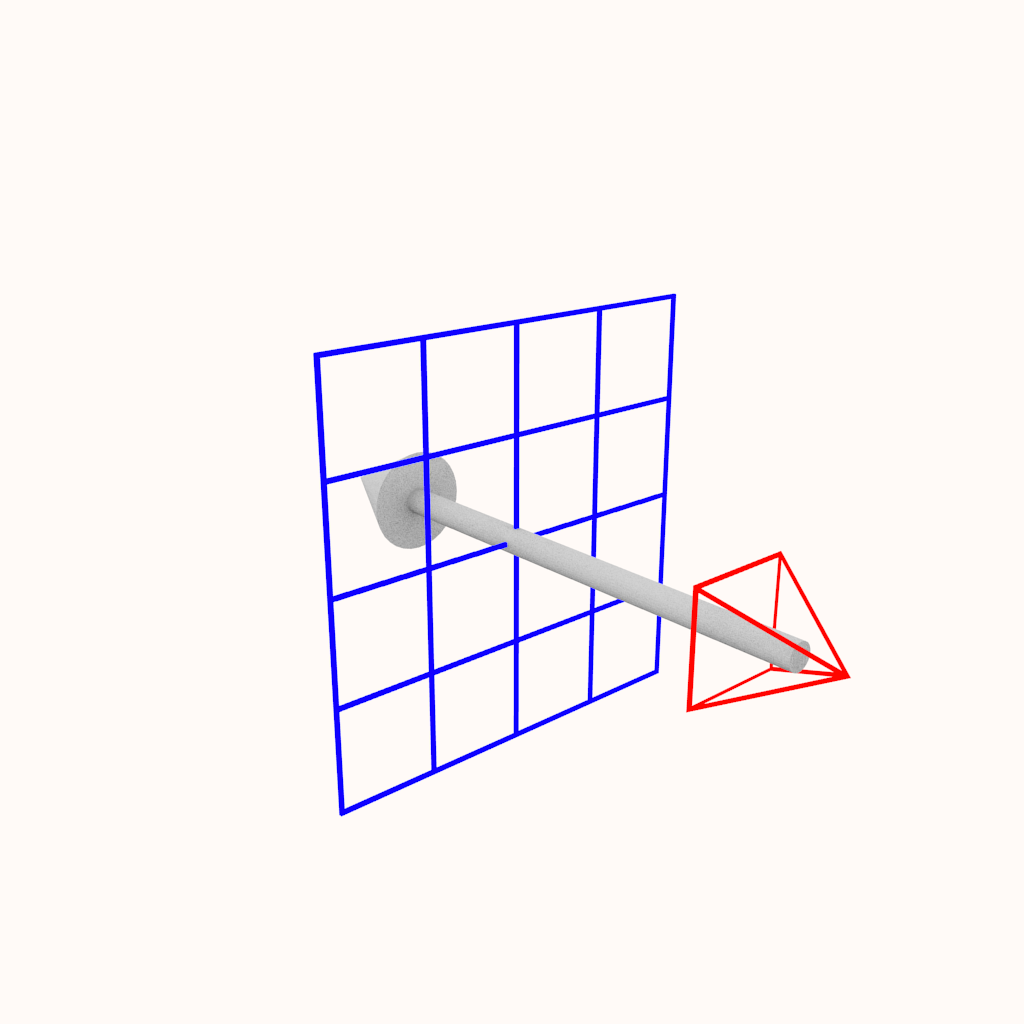

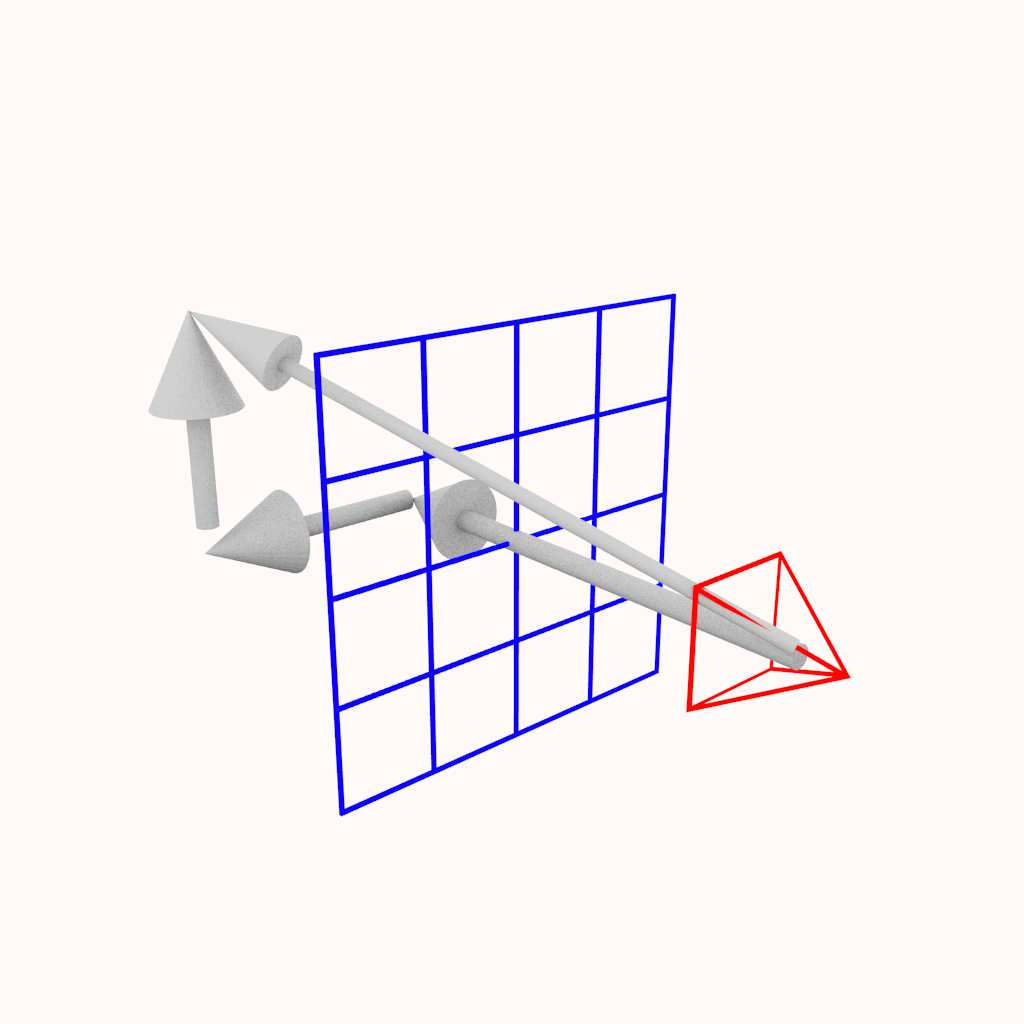

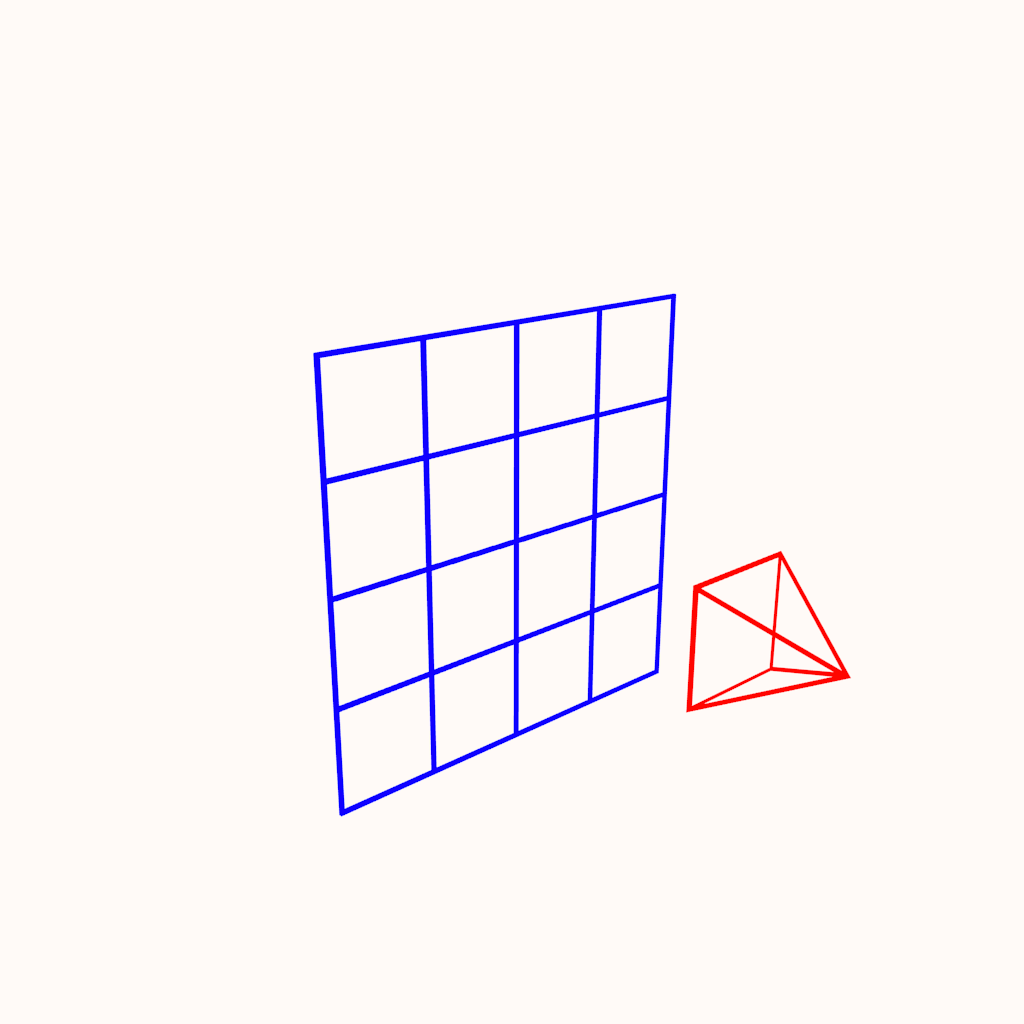

What is a camera?

assumption: pinhole cam
(no lens effects)
attributes:

projection center
viewing direction
"focal length" (=zoom)
image width/height

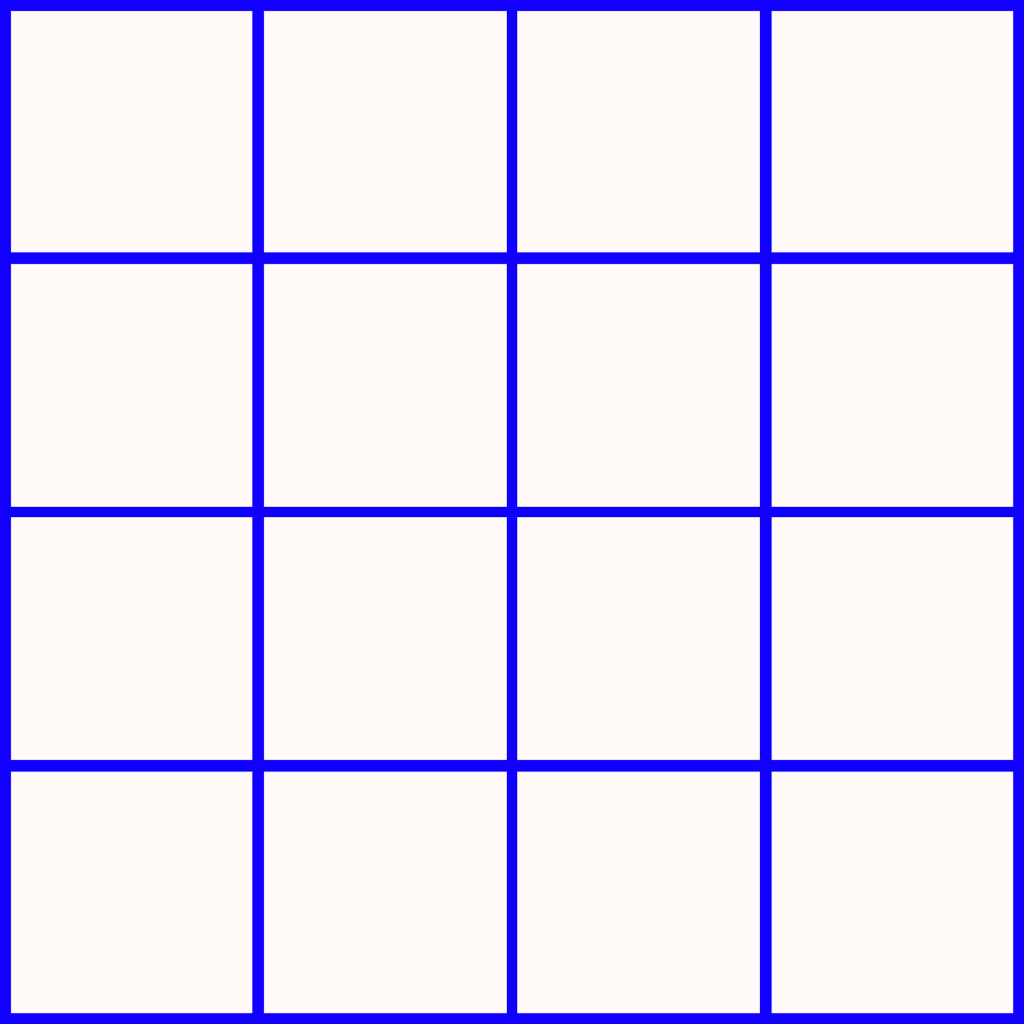

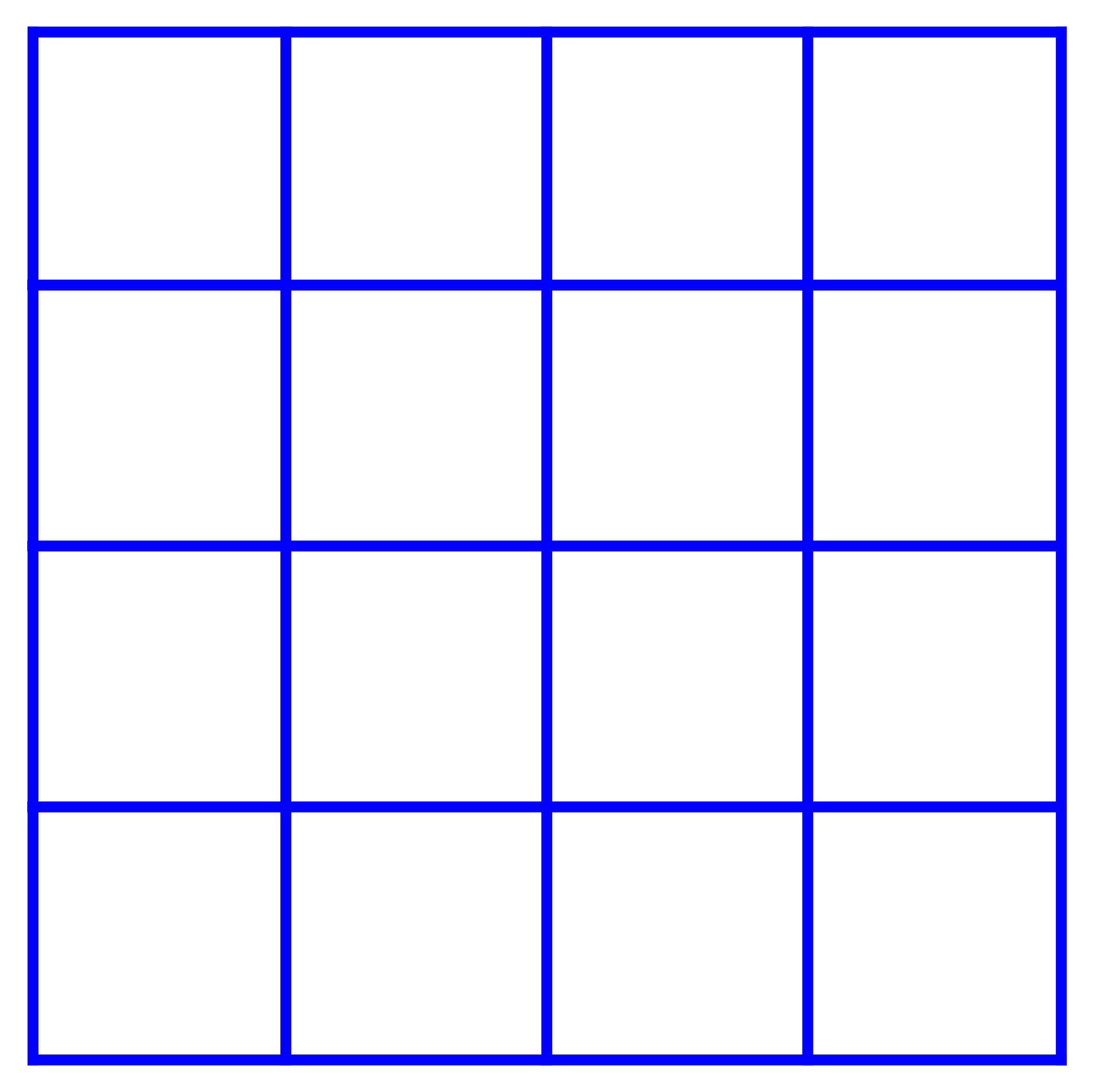

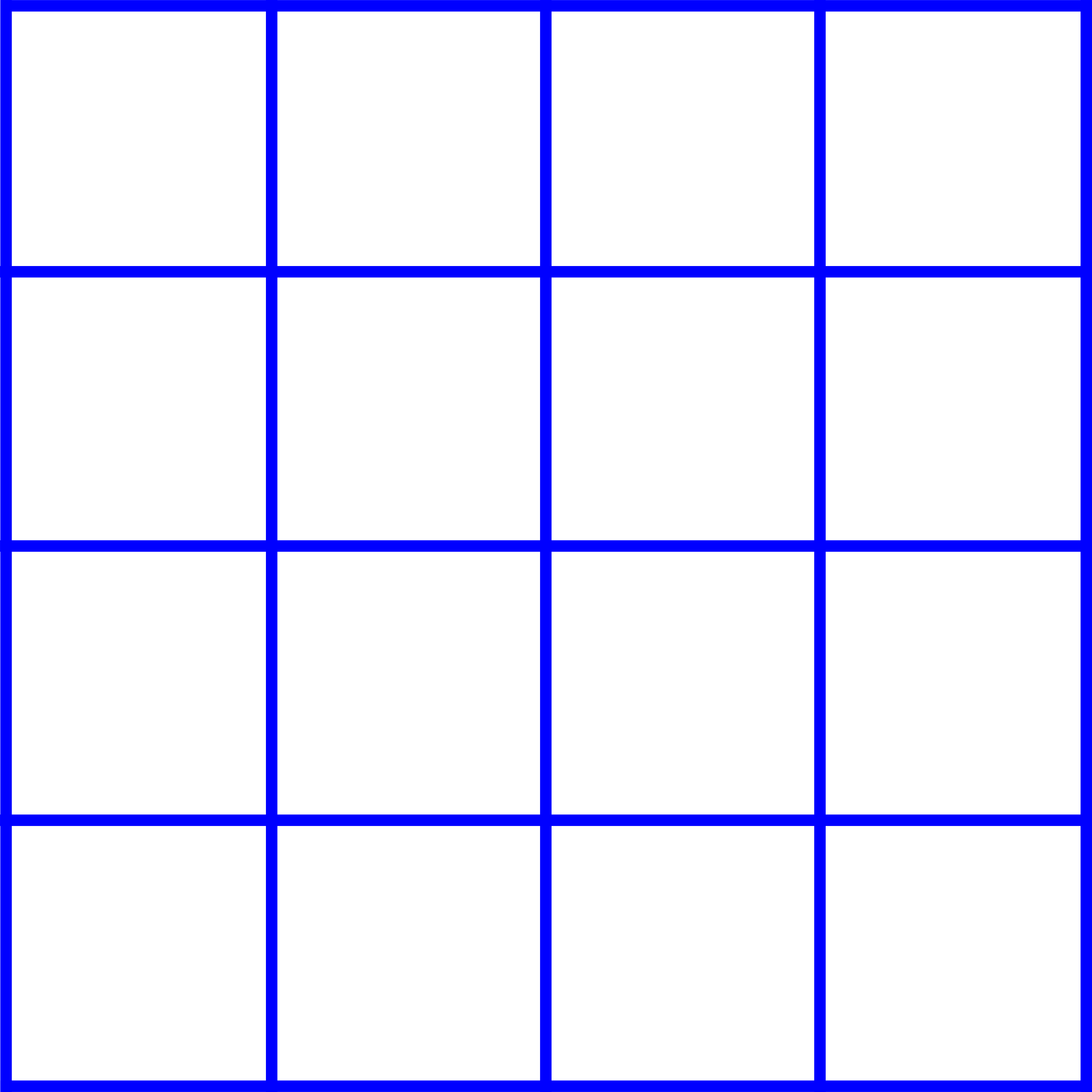

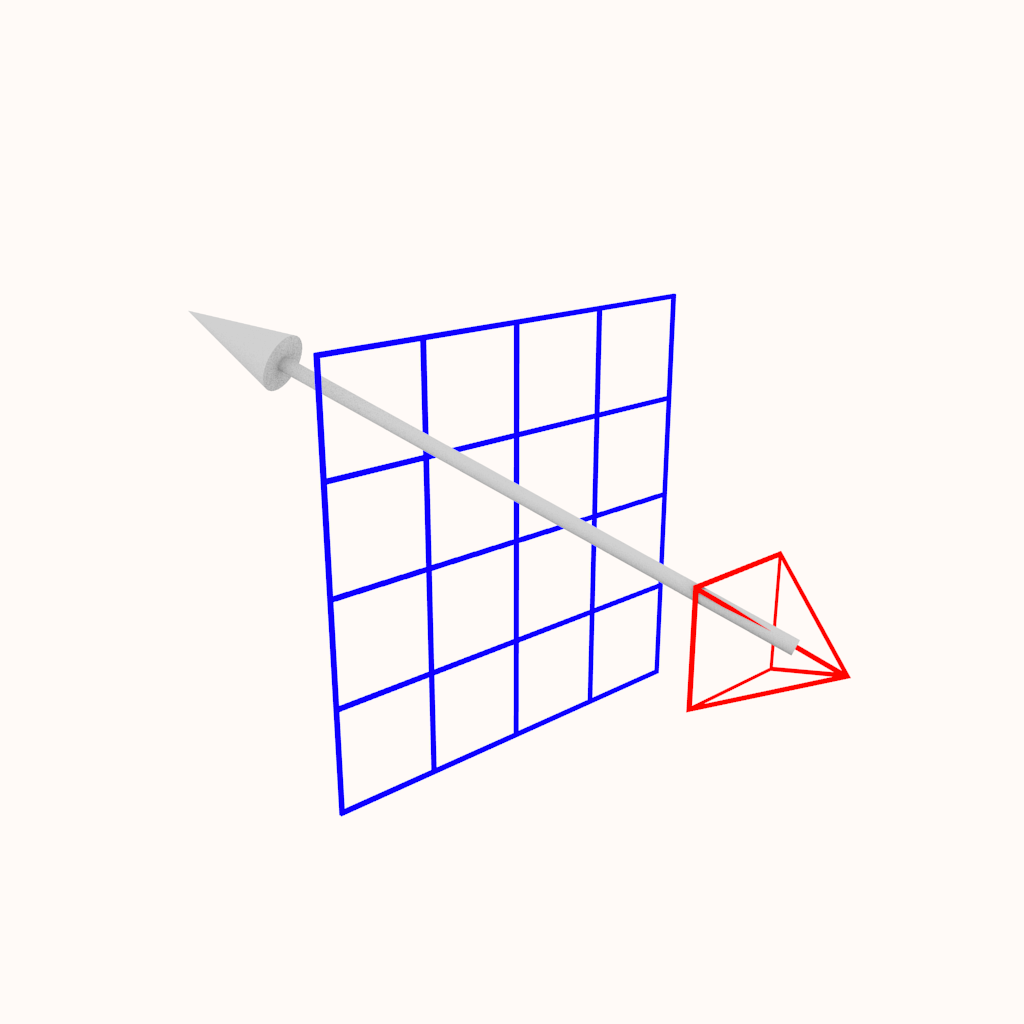

assumption: 4×4 pixels

#1 Heaven and earth

World coordinate system

Z axis in viewing direction
together with X/Y: coordinate base
here: left-hand system
X RIGHTWARDS
Y UPWARDS
Z FORWARDS

the system does not matter, but
one has to make a choice
and then be consistent

#1 Heaven and earth

Making rays

Z axis in viewing direction
together with X/Y: coordinate base
here: left-hand system

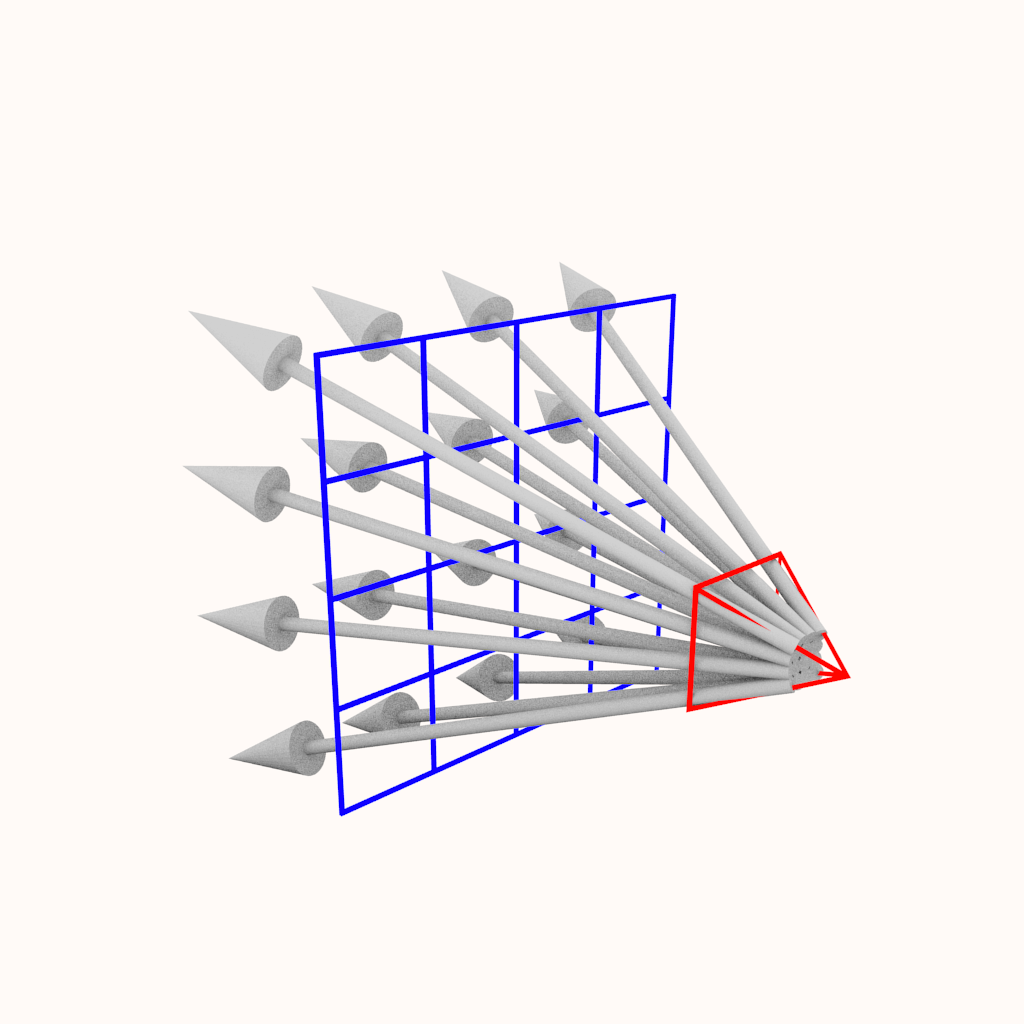

ray = 3D vector
ray = vector chain
ratio of lengths X/Y to Z determines zoom
always normalize all rays to length 1.0!

#1 Heaven and earth

Hack time

Vector class

#1 Heaven and earth

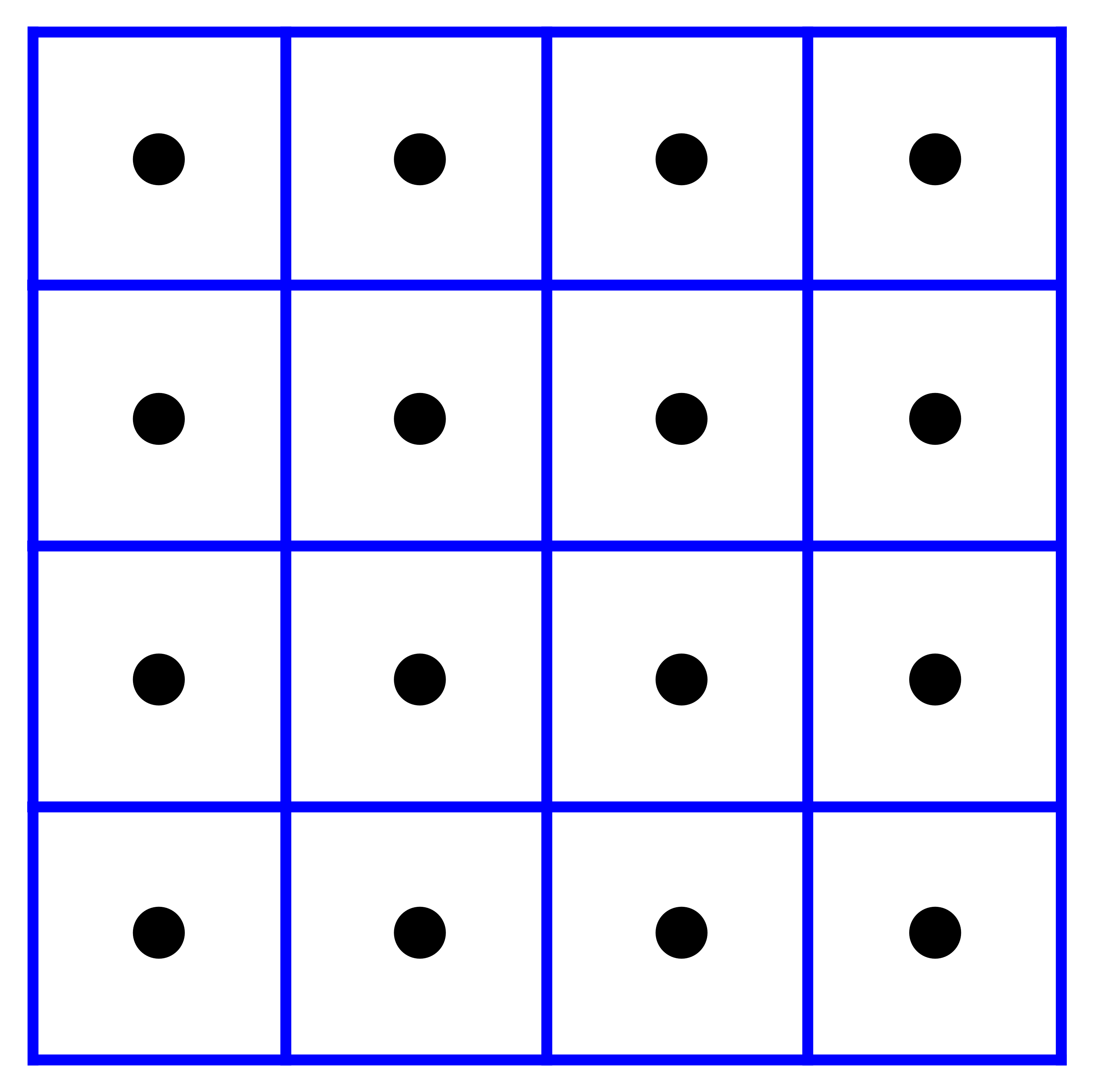

Pixel offset

two conditions

1. rays go through pixel centers
2. (0,0) is in the image center

here: width, height even
(0,2,4,... and not 1,3,5,...)
→ integer coordinates are wrong!

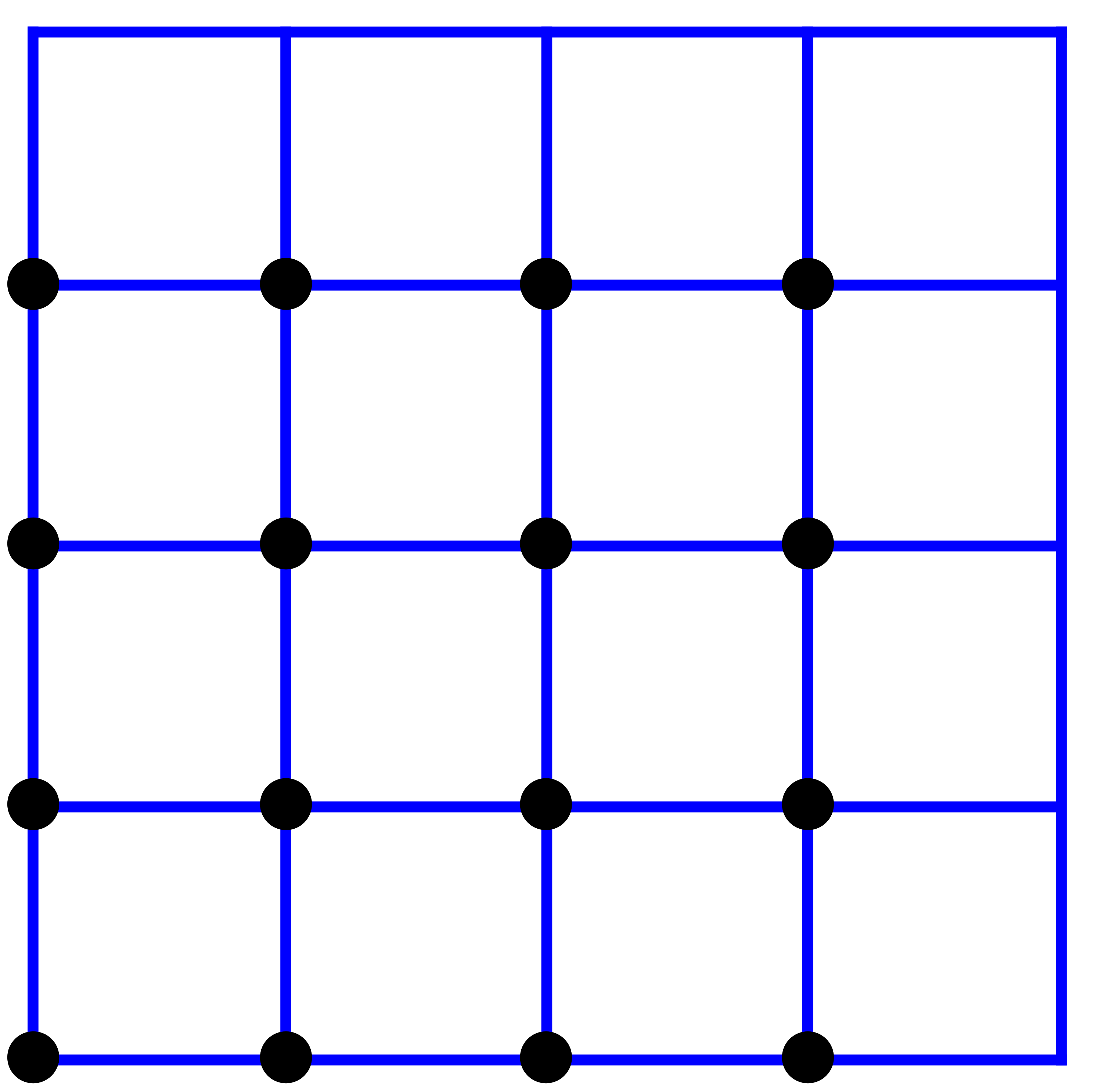

pixel centers (0.5,0.5), (0.5,1.5), ...

#1 Heaven and earth

Pixel offset

up to now:


for(int y = 0; y < 512; ++y) {    /// Rows
  for(int x = 0; x < 512; ++x) {  /// Columns
    ...

from now on: pixel centers with correct coordinates


for(int y = 256; y >= -255; --y) {    /// Rows
  for(int x = -255; x <= 256; ++x) {  /// Columns
    ...
    ...(x - 0.5)...
    ...(y - 0.5)...
    ...

#1 Heaven and earth

Hack time

Ray construction

#1 Heaven and earth

Above and below

camera is "level"
(for more we would need rotation matrices)
infinite ground plane, Y=0
camera not at Y=0!
ray hits ground if

... ray.y < 0 !

ray hits sky if

... ray.y ≥ 0 !

#1 Heaven and earth

Hack time

Ground and sky

#1 Heaven and earth

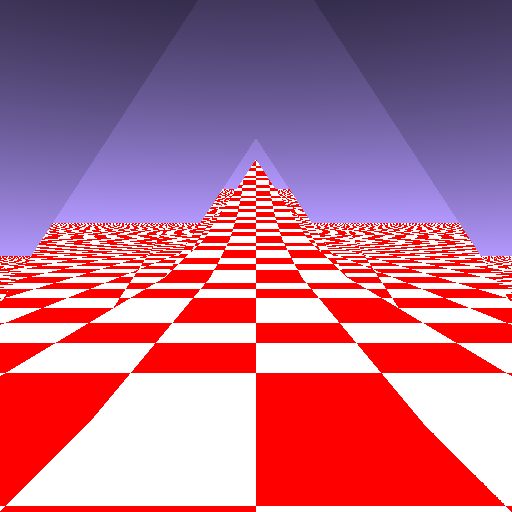

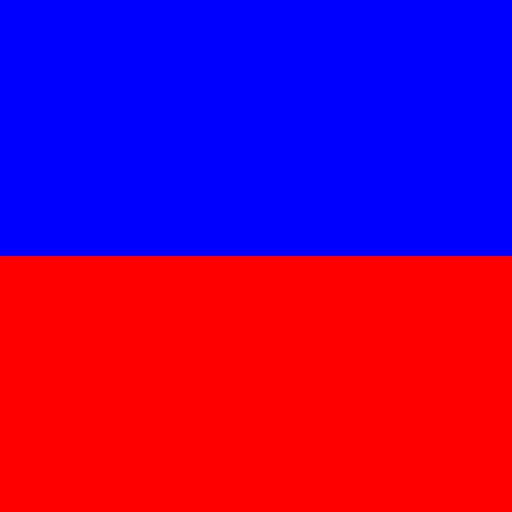

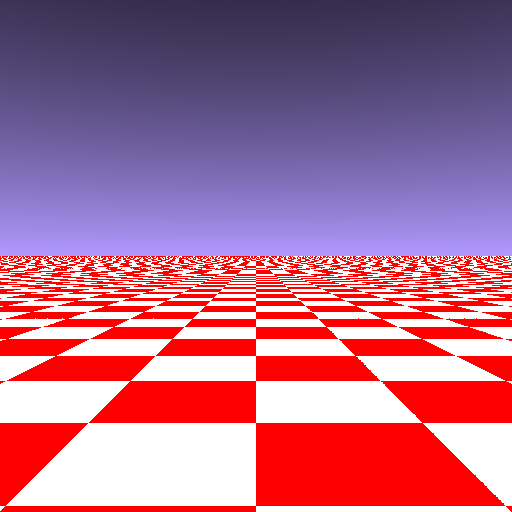

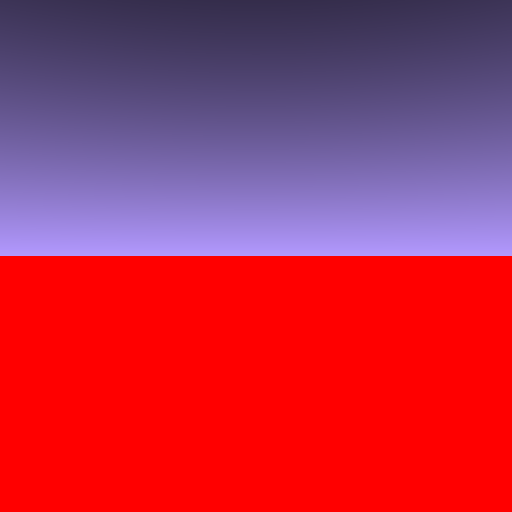

Result

#1 Heaven and earth

Debugging

Coordinate system vectors
Vector::operator+, Vector::operator*

#1 Heaven and earth

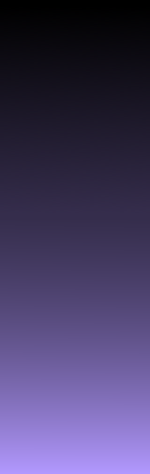

Heaven 2.0

old sky color: constant
new sky color: depending on ray angle

horizontal: blue-ish
vertical: black
(totally up to you!)

horizontal: ray.y = 0, vertical: ray.y = 1
interpolation between color and black:
[color] * std::pow(1-ray_direction.y,2)

#1 Heaven and earth

Hack time

Heaven 2.0

#1 Heaven and earth

Result

#1 Heaven and earth

Earth 2.0

just red is boring
no sense of space

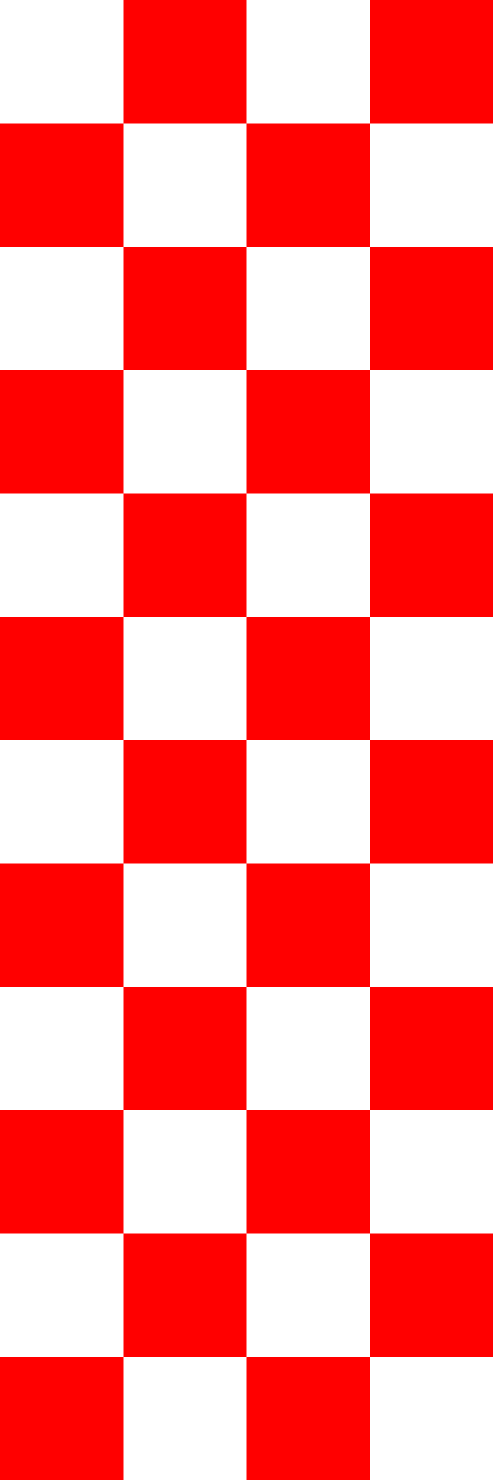

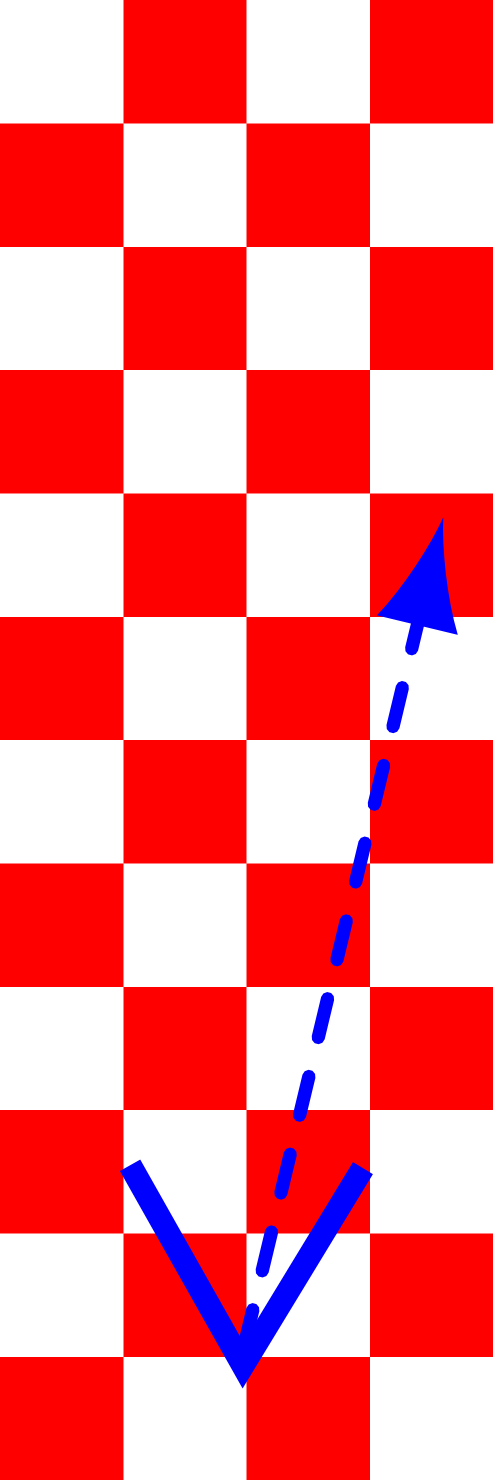

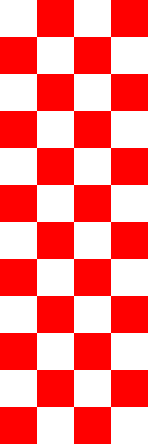

new ground: checkerboard
ground coordinate determines color
→ we need the "observed" point
→ intersection ray-ground
Y = 0 = camera.y + distance · ray.y
one equation, one unknown → \Ü/
distance := -camera.y / ray.y

#1 Heaven and earth

Earth 2.0

distance := -camera.y / ray.y
X := camera.x + distance · ray.x
Z := camera.z + distance · ray.z

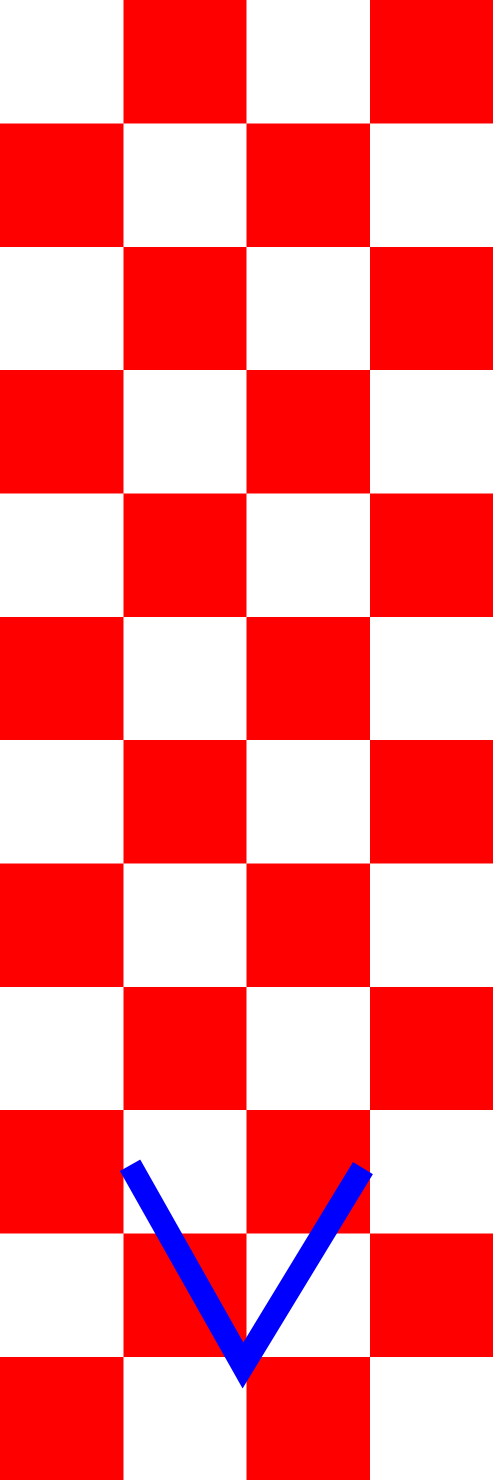

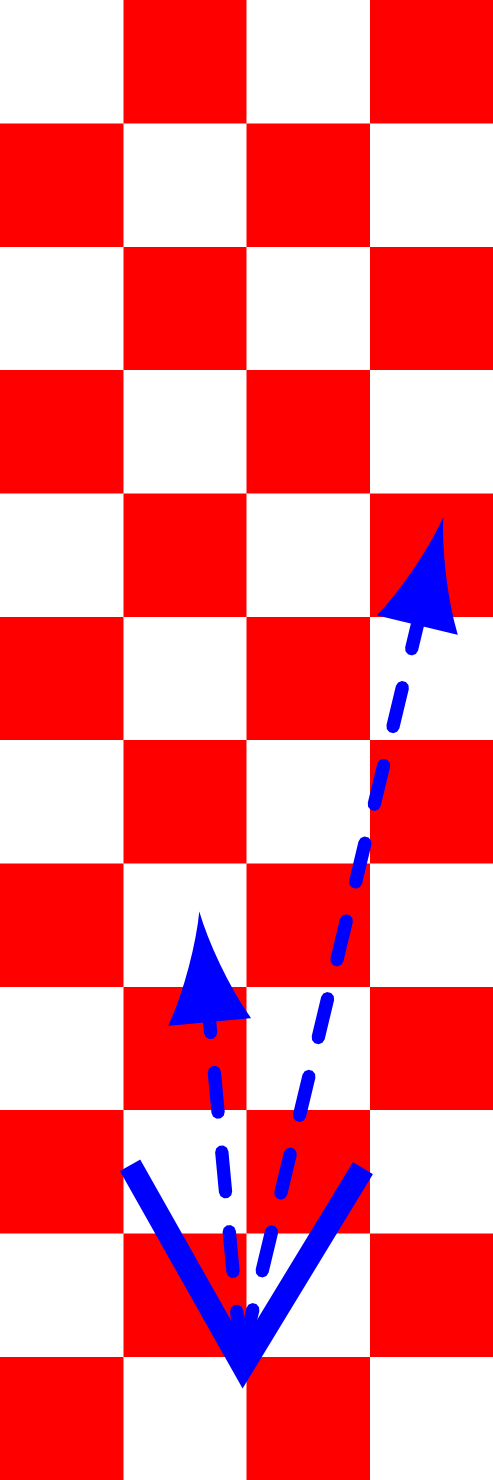

checkerboard: X and Z both odd/even

#1 Heaven and earth

Hack time

Earth 2.0

#1 Heaven and earth

Result

#1 Heaven and earth

Debugging

coordinate system vectors
ray length normalization
std::abs on negative numbers!
(int)std::abs(std::floor(...))%2
ray hits ground if (and only if) ray.y < 0

Level 2 — Triangles

#2 Triangles

Why triangles

the base of most polygons
(polygons are the base of computer graphics)
easy to compute
besides...

#2 Triangles

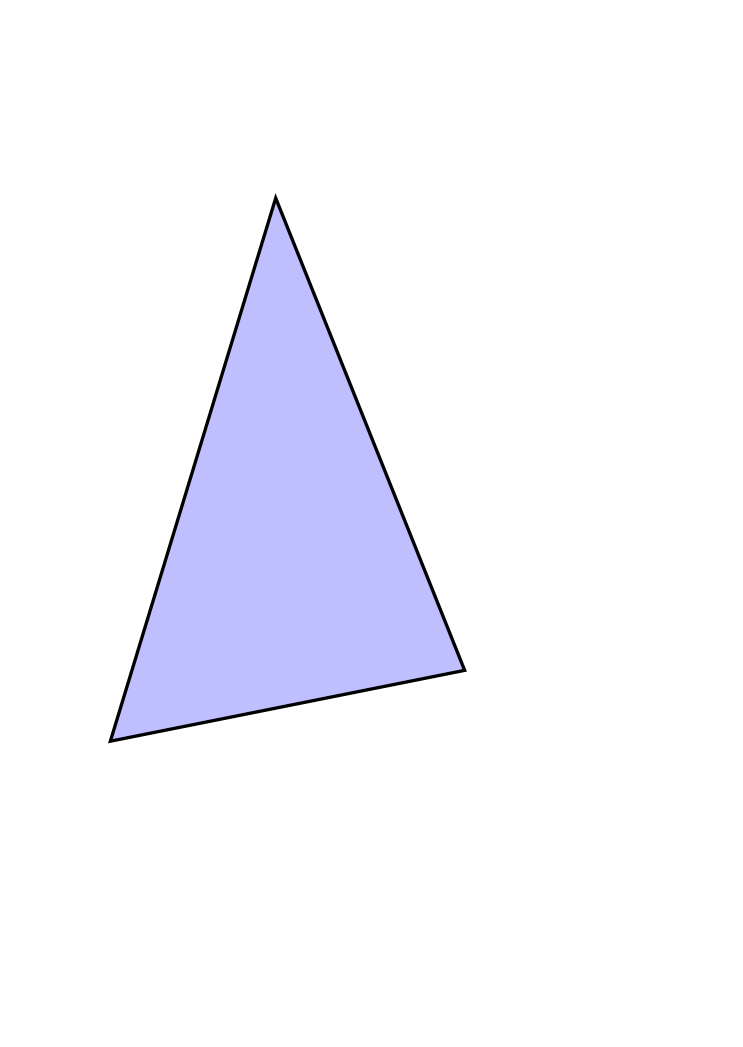

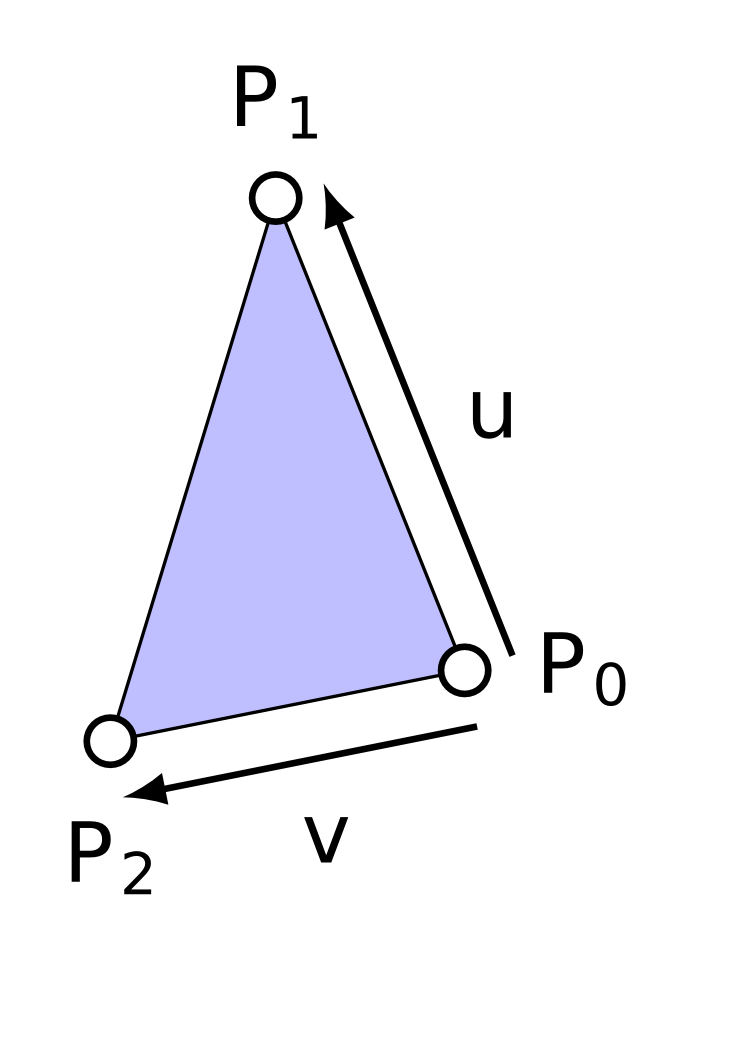

What is a triangle?

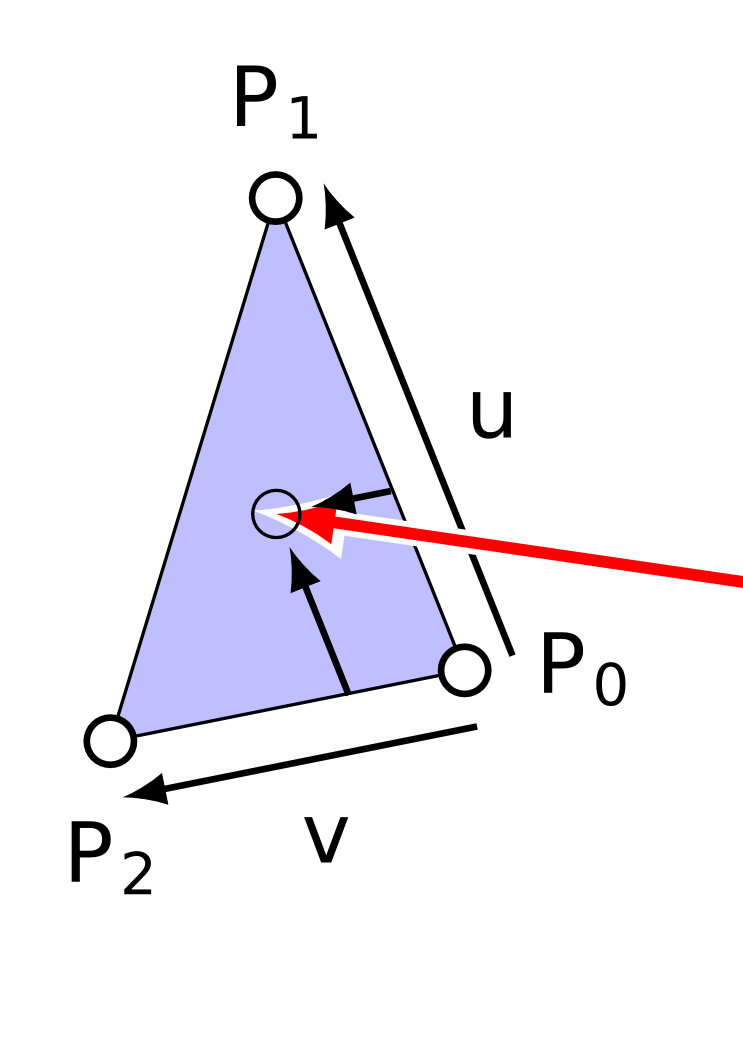

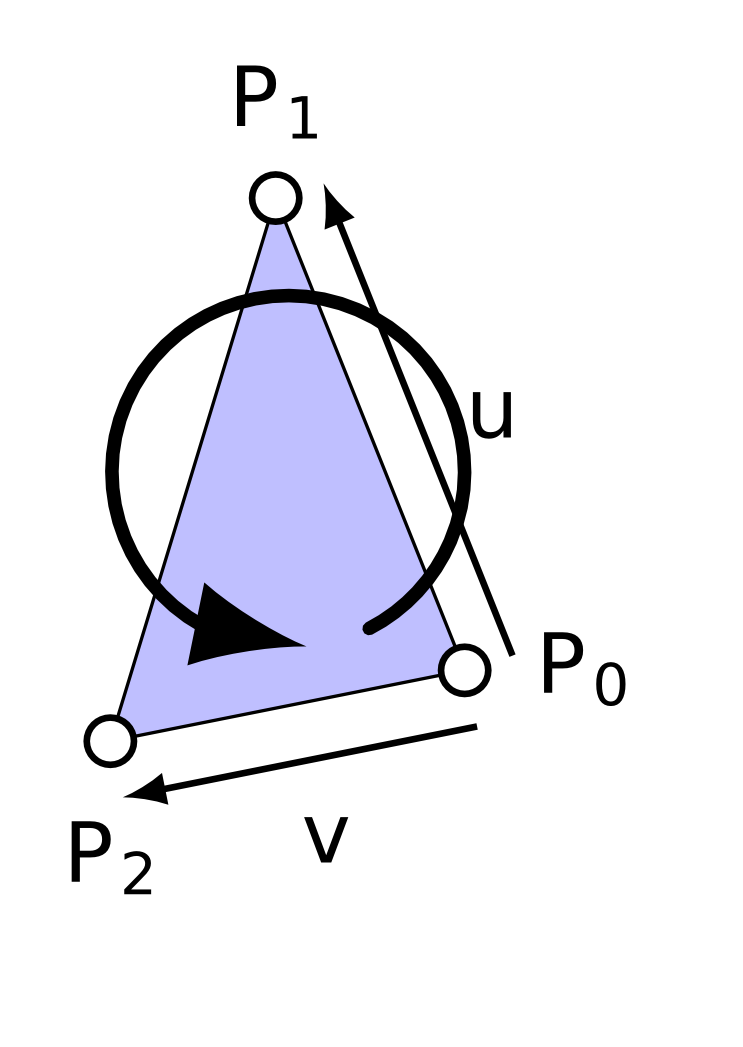

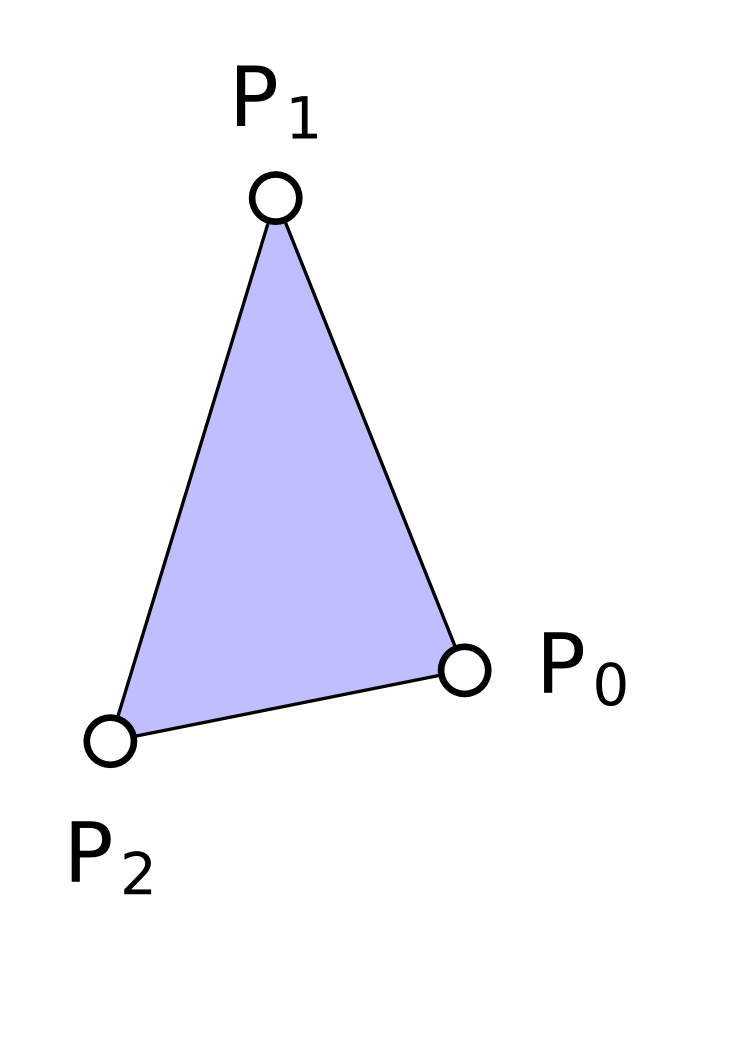

defined by 3 corners/vertices $$P_0, P_1, P_2$$
spanned by 2 vectors $\mathbf{u}$, $\mathbf{v}$: $$\mathbf{u} = P_1 - P_0$$ $$\mathbf{v} = P_2 - P_0$$
triangle area: points $\{p_i\}$ $$p_i = P_0 + u\cdot\mathbf{u} + v\cdot\mathbf{v}$$ for which it holds that $$0 ≤ u,v ≤ 1$$ $$u + v ≤ 1$$
(equivalent form:) $$p_i = (1-u-v)\cdot P_0 + u\cdot P_1 + v\cdot P_2$$

#2 Triangles

Intersection ray/triangle

camera center $\mathbf{O}$, ray direction $\mathbf{R}$, distance $d$
$P_{0} + u\cdot\mathbf{u} + v\cdot\mathbf{v} = \mathbf{O} + d\cdot\mathbf{R}$
→ linear equation system $$P_{0,x} + u\cdot\mathbf{u}_x + v\cdot\mathbf{v}_x = \mathbf{O}_x + d\cdot\mathbf{R}_x$$ $$P_{0,y} + u\cdot\mathbf{u}_y + v\cdot\mathbf{v}_y = \mathbf{O}_y + d\cdot\mathbf{R}_y$$ $$P_{0,z} + u\cdot\mathbf{u}_z + v\cdot\mathbf{v}_z = \mathbf{O}_z + d\cdot\mathbf{R}_z$$
rearranged: $$0 = P_{0,x} + u\cdot\mathbf{u}_x + v\cdot\mathbf{v}_x - \mathbf{O}_x - d\cdot\mathbf{R}_x$$ $$0 = P_{0,y} + u\cdot\mathbf{u}_y + v\cdot\mathbf{v}_y - \mathbf{O}_y - d\cdot\mathbf{R}_y$$ $$0 = P_{0,z} + u\cdot\mathbf{u}_z + v\cdot\mathbf{v}_z - \mathbf{O}_z - d\cdot\mathbf{R}_z$$
3 equations, 3 unknowns → \Ü/
but so much work... ಥ_ಥ

#2 Triangles

Lazy solving

SymPy can do symbolic math

from sympy import var, solve
pox,poy,poz,ux,uy,uz,vx,vy,vz,ox,oy,oz,rx,ry,rz,u,v,d =
  var('pox poy poz ux uy uz vx vy vz ox oy oz rx ry rz u v d')
E1 = pox + u*ux + v*vx - ox - d*rx
E2 = poy + u*uy + v*vy - oy - d*ry
E3 = poz + u*uz + v*vz - oz - d*rz
solutions = solve([E1,E2,E3],[u,v,d])
print(solutions)

{u: [...], v: [...], d: [...]}

not pretty but correct¯\_(ツ)_/¯

#2 Triangles

Normal vectors

we want to distinguish front and back
→ we need the normal vector $\mathbf{n}$
(also later for other things)
cross product and left-hand rule: $$\mathbf{n} := \mathbf{v} \times \mathbf{u}$$
consequence: vertex order matters!
→ our triangles are defined CCW
(counterclockwise)
(looking at it from its "front")

$$\begin{pmatrix}\mathbf{a}_x \\ \mathbf{a}_y \\ \mathbf{a}_z\end{pmatrix} \times \begin{pmatrix}\mathbf{b}_x \\ \mathbf{b}_y \\ \mathbf{b}_z \end{pmatrix}$$ $$=$$ $$\begin{pmatrix} \mathbf{a}_y\mathbf{b}_z - \mathbf{a}_z\mathbf{b}_y \\ \mathbf{a}_z\mathbf{b}_x - \mathbf{a}_x\mathbf{b}_z \\ \mathbf{a}_x\mathbf{b}_y - \mathbf{a}_y\mathbf{b}_x \end{pmatrix}$$

#2 Triangles

Back-face culling

normal vector determines front side
(more important for rasterization than for raytracing)

#2 Triangles

Back-face culling

normal vector determines front side
(more important for rasterization than for raytracing)
scalar product

$$\begin{pmatrix}\mathbf{a}_x \\ \mathbf{a}_y \\ \mathbf{a}_z\end{pmatrix} \cdot \begin{pmatrix}\mathbf{b}_x \\ \mathbf{b}_y \\ \mathbf{b}_z \end{pmatrix} = \mathbf{a}_x\mathbf{b}_x + \mathbf{a}_y\mathbf{b}_y + \mathbf{a}_z\mathbf{b}_z $$

ray "sees" triangle if and only if

$$\mathbf{n}\cdot\mathbf{R} < 0$$

#2 Triangles

Implementation

abstract Object class for traceable objects
an Object does its own intersection test
depth test (only render the nearest object)
objects have a color
ray does not hit any object? → we already have that!
all scene objects → std::vector<Object*>

#2 Triangles

Hack time

Object class, triangles

#2 Triangles

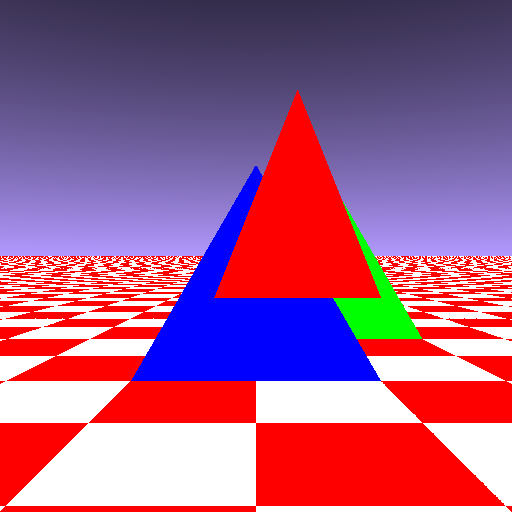

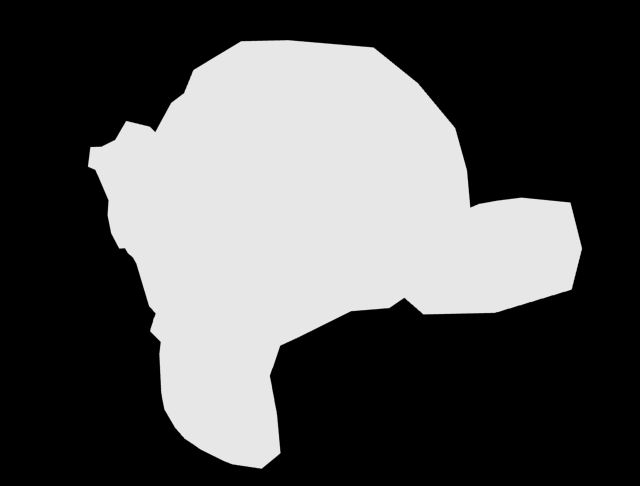

Result

#2 Triangles

Debugging

CCW vertices
$\mathbf{n} := \mathbf{v}\times\mathbf{u}$ and $\mathbf{n}\cdot\mathbf{R} < 0$
depth test (smaller depth → object closer)
only positive depths!

Level 3 — Raytracing

#3 Raytracing

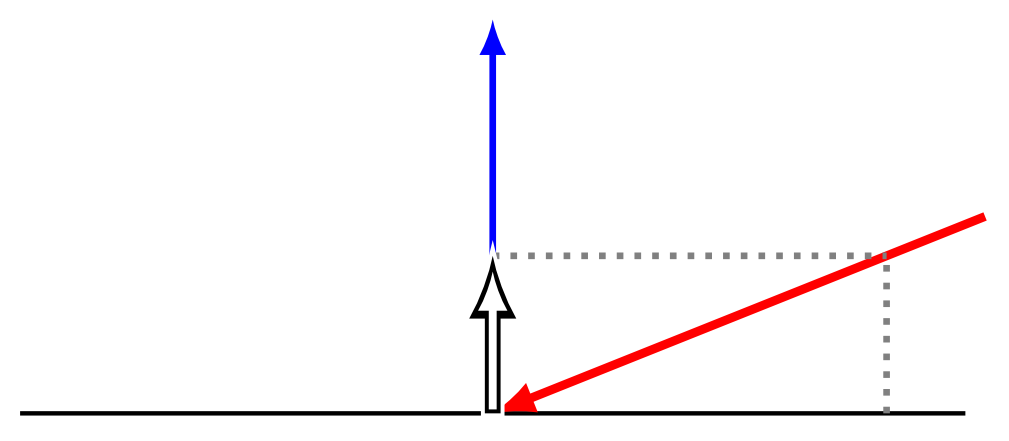

Ray reflection

monochromatic objects are boring
reflections are the strong point of raytracing
problem: given object and incoming ray, find the outgoing ray
easy solution via geometric construction

#3 Raytracing

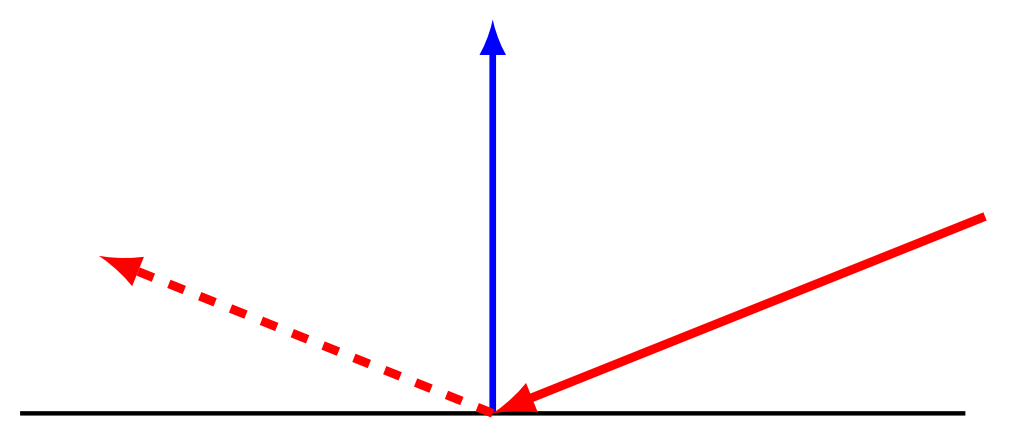

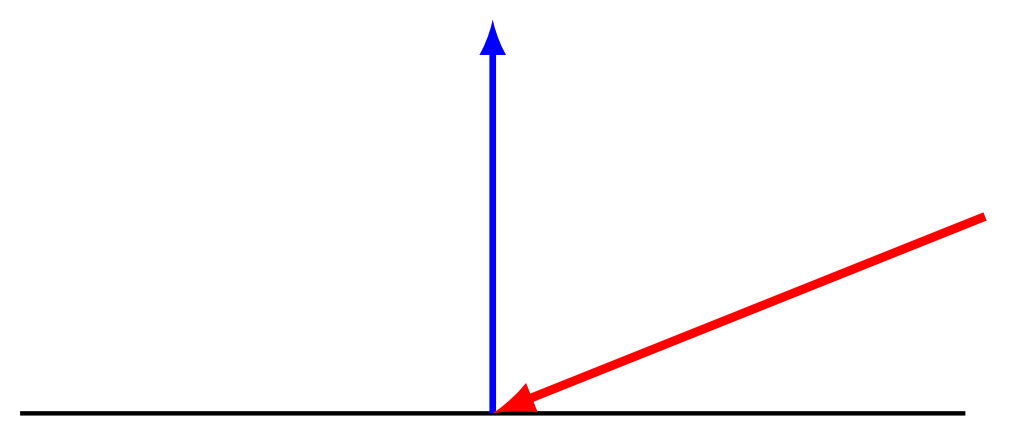

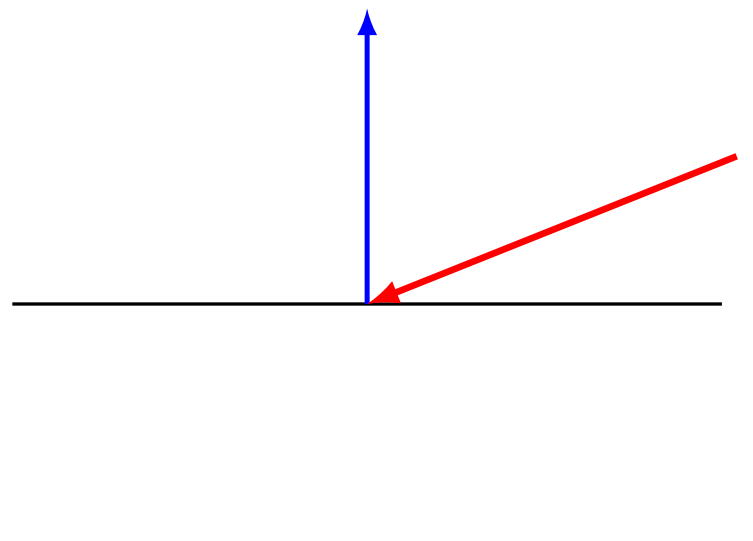

Ray reflection

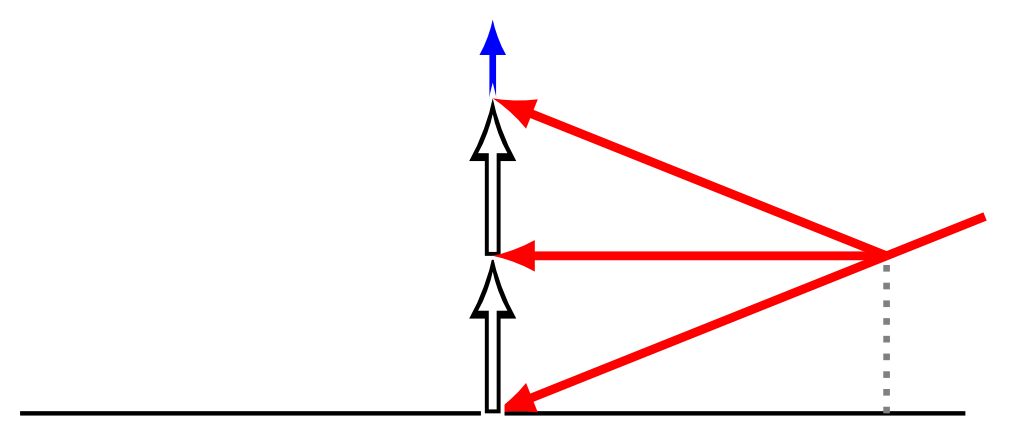

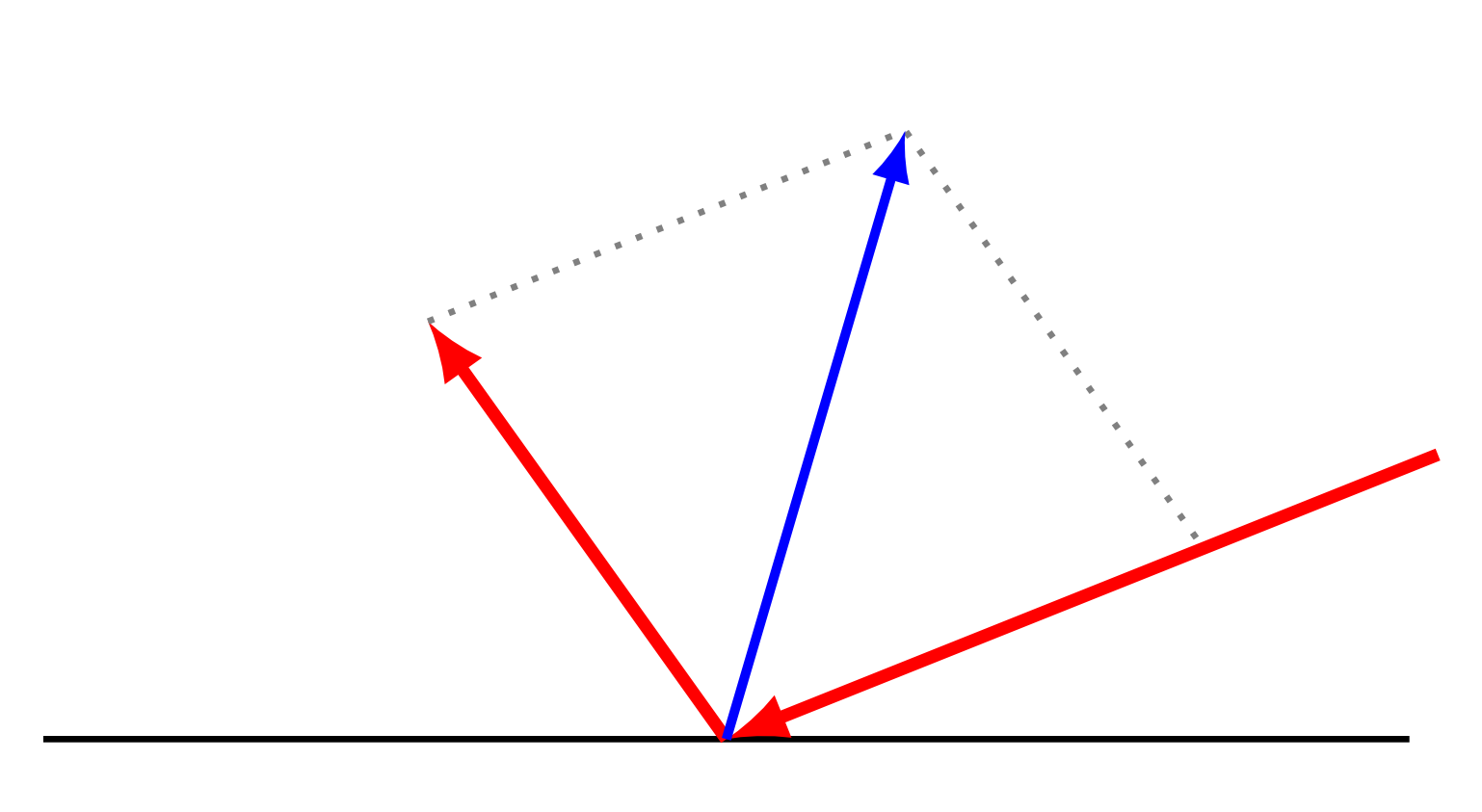

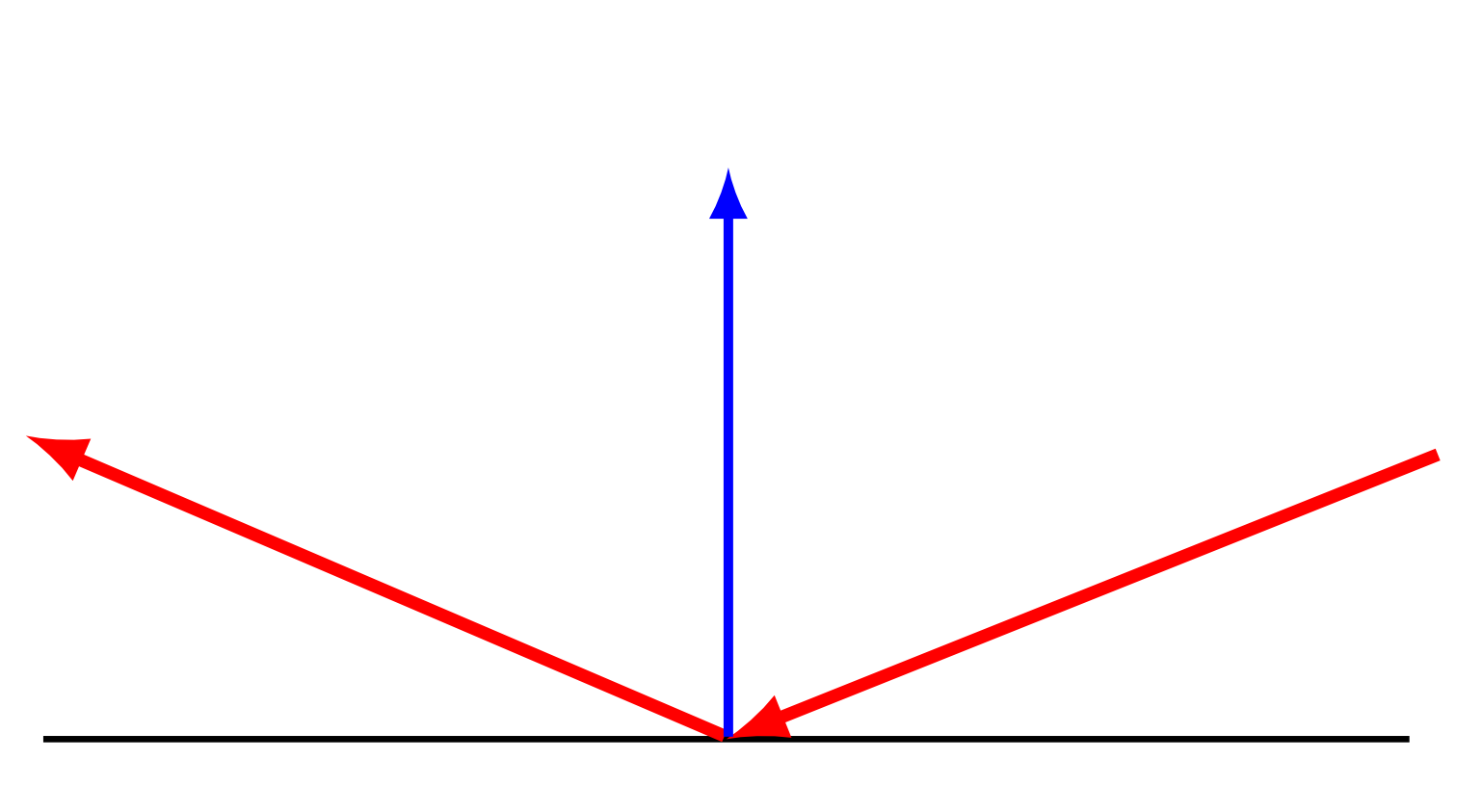

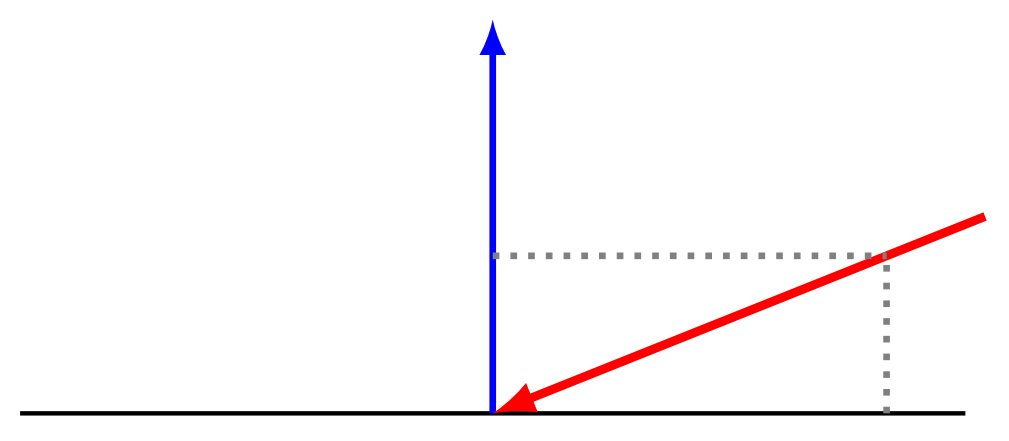

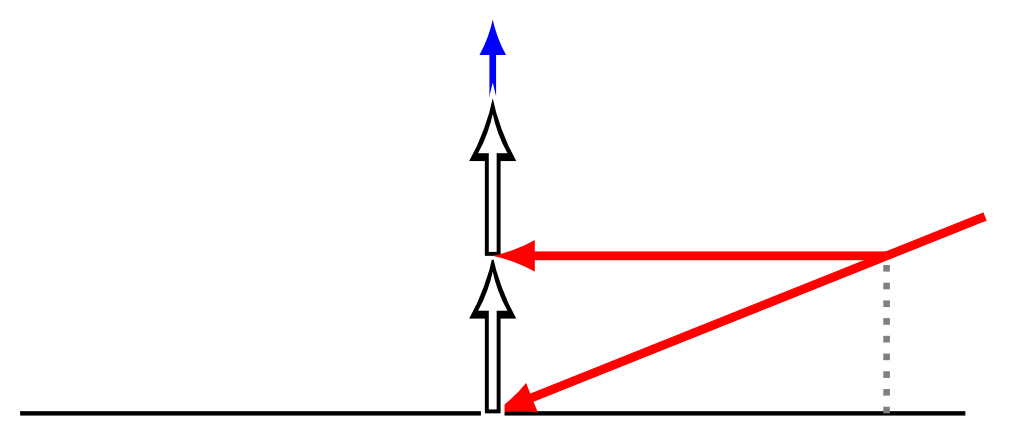

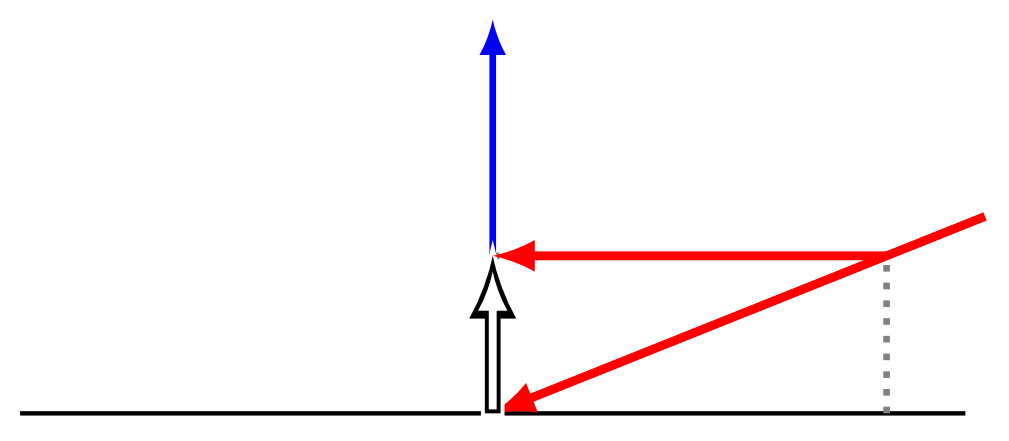

important vector: $\mathbf{n}\cdot\left(\mathbf{n}\cdot\left(-\mathbf{R}\right)\right)$
$\mathbf{n}\cdot\left(-\mathbf{R}\right)$ is the length of the projection of $\mathbf{-R}$ onto $\mathbf{n}$
scalar product $\mathbf{n}\cdot\left(-\mathbf{R}\right)$ is a scalar (not a vector!)
we need a vector in direction of $\mathbf{n}$
→ scalar multiplikation ith $\mathbf{n}$ = scaling of $\mathbf{n}$

#3 Raytracing

Implementation

#3 Raytracing

Hack time

Ray reflection

#3 Raytracing

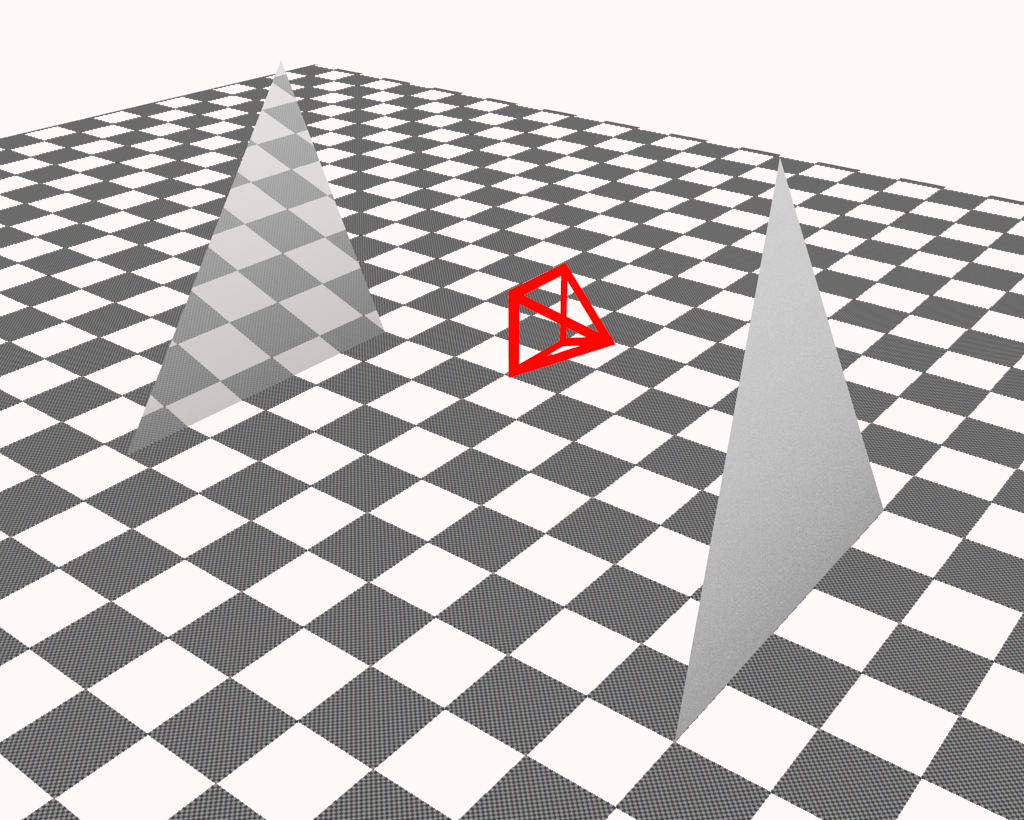

Result

#3 Raytracing

Debugging

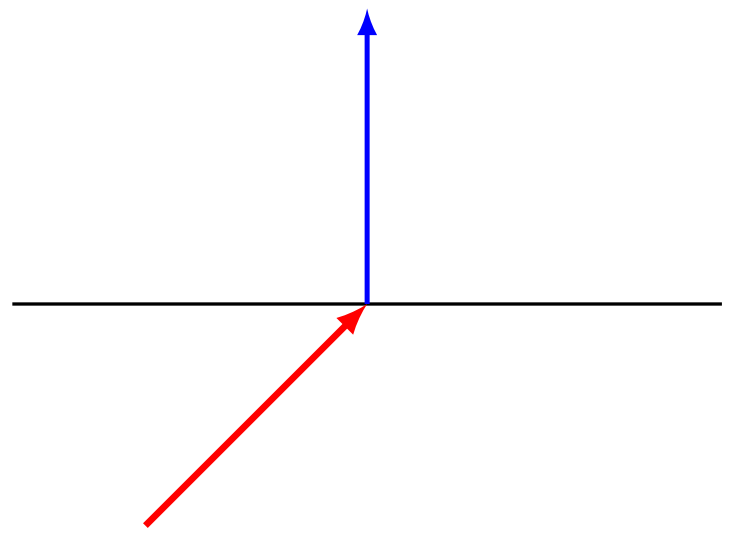

"CCW" depends on viewing angle
Back-face culling
triangles' tops leaning towards camera
max_hit_bounces limits visibility

Level 4 — Light transport

#4 Light transport

Reflection and object color

perfect mirrors are boring
materials have different reflectivities

#4 Light transport

Mixing colors

our materials have a reflectivity
a ray sees many colors on its journey
the final pixel color is a mixture
(preliminary formulation, no lighting)

#4 Light transport

Hack time

Mixing colors

#4 Light transport

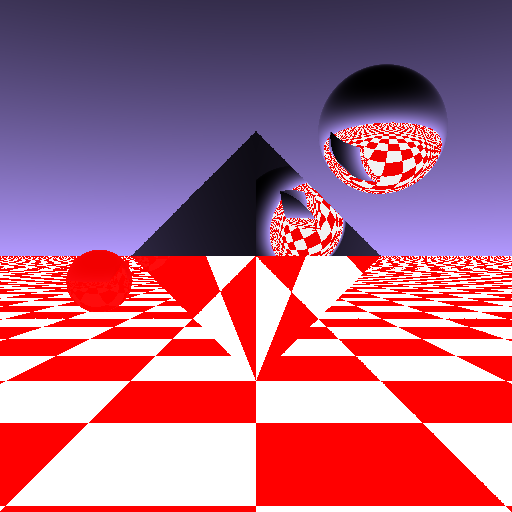

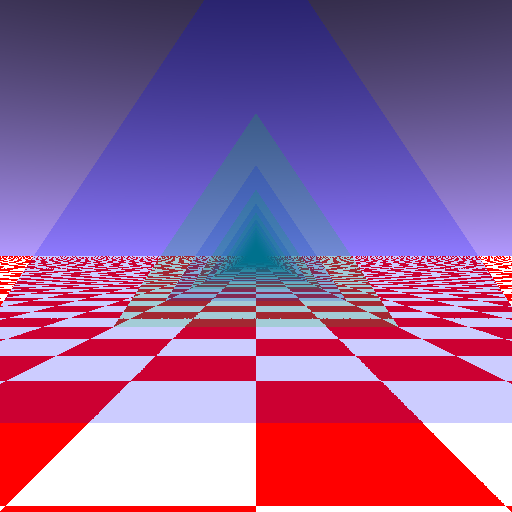

Result

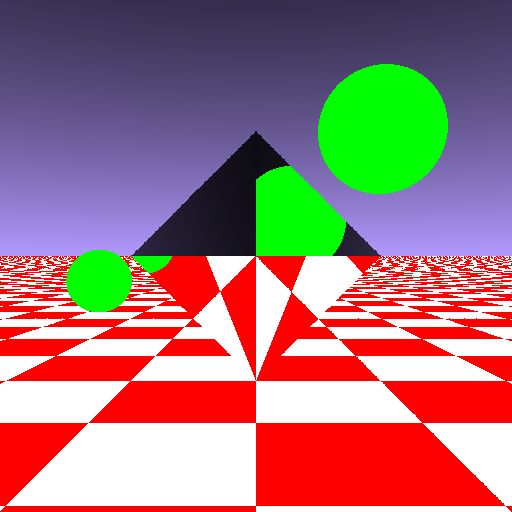

Level 5 — Spheres

#5 Spheres

Parametrized shapes

polygons allow for arbitrary geometry

#5 Spheres

Parametrized shapes

polygons allow for arbitrary geometry
but complexity needs many polygons

#5 Spheres

Parametrized shapes

polygons allow for arbitrary geometry
but complexity needs many polygons

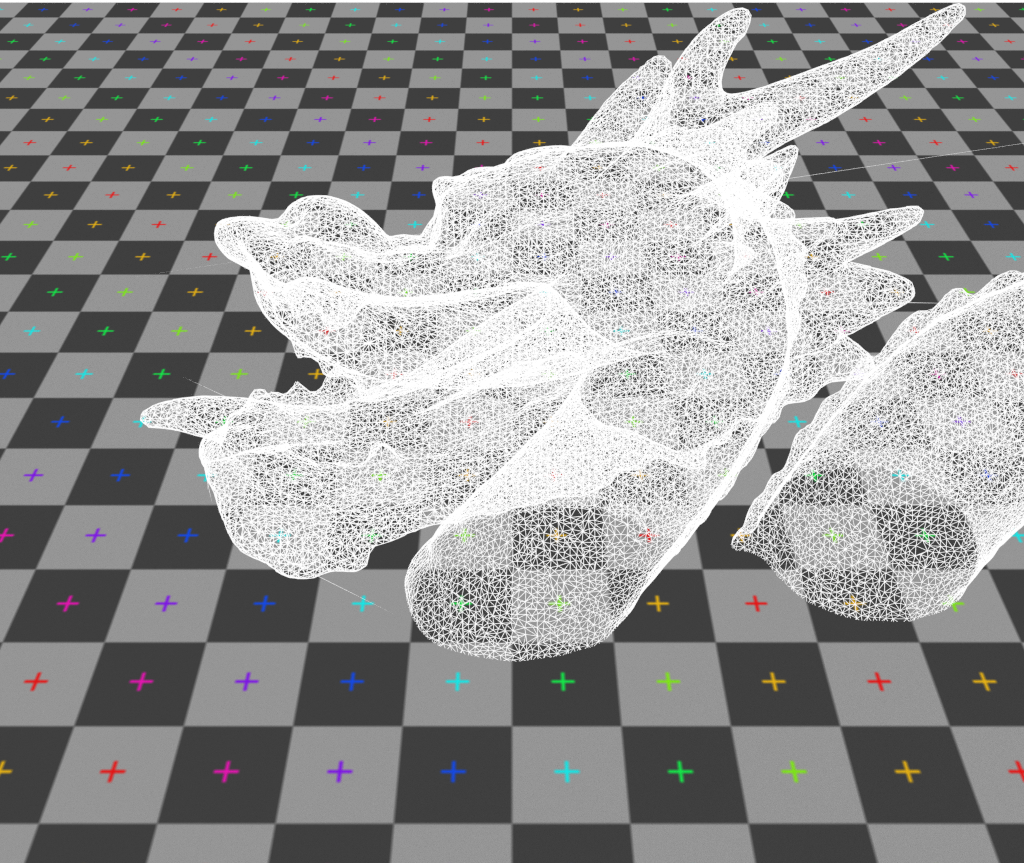

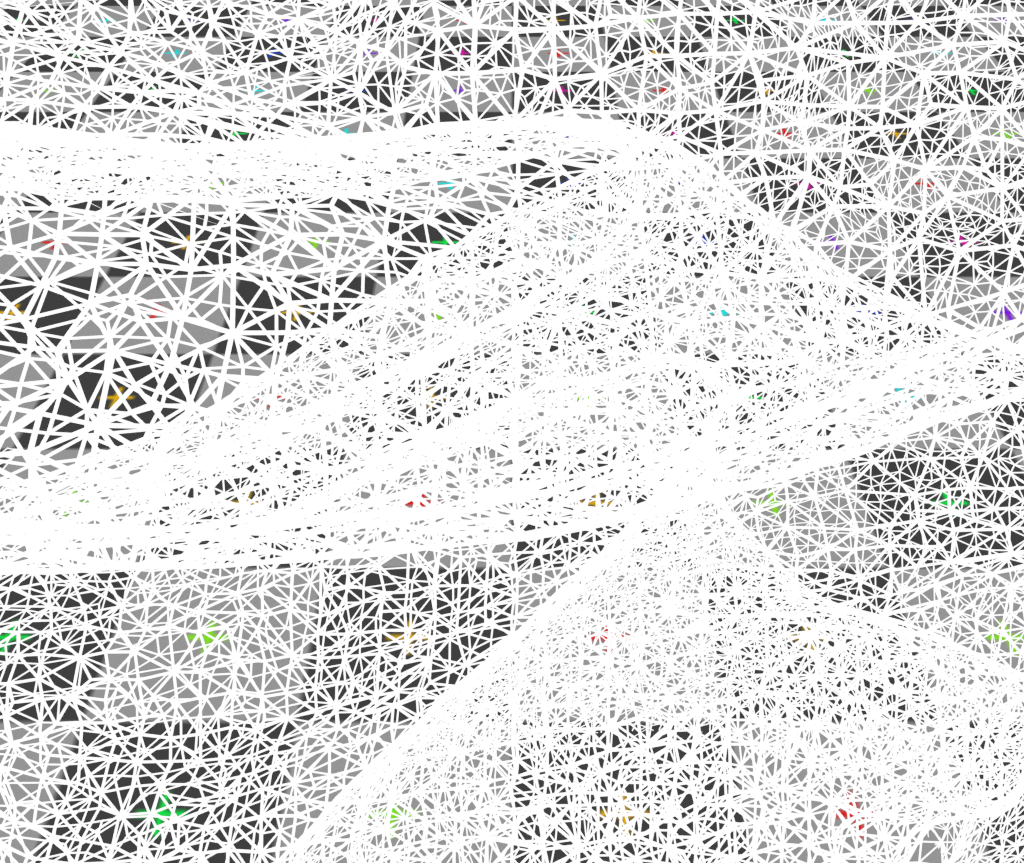

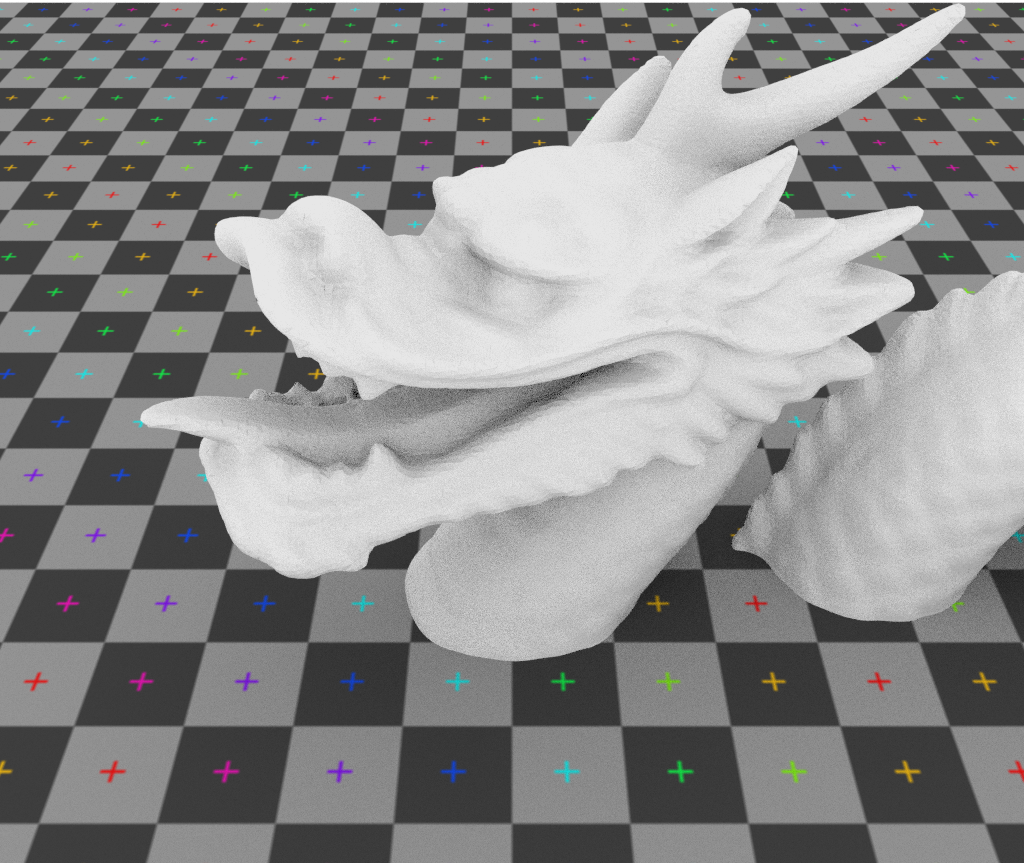

...maaaany polygons. (Stanford dragon: 200.000 triangles)

#5 Spheres

Parametrized shapes

real renderers use hierarchical structures
still: more geometry → longer render times
idea: some shapes can be computed

#5 Spheres

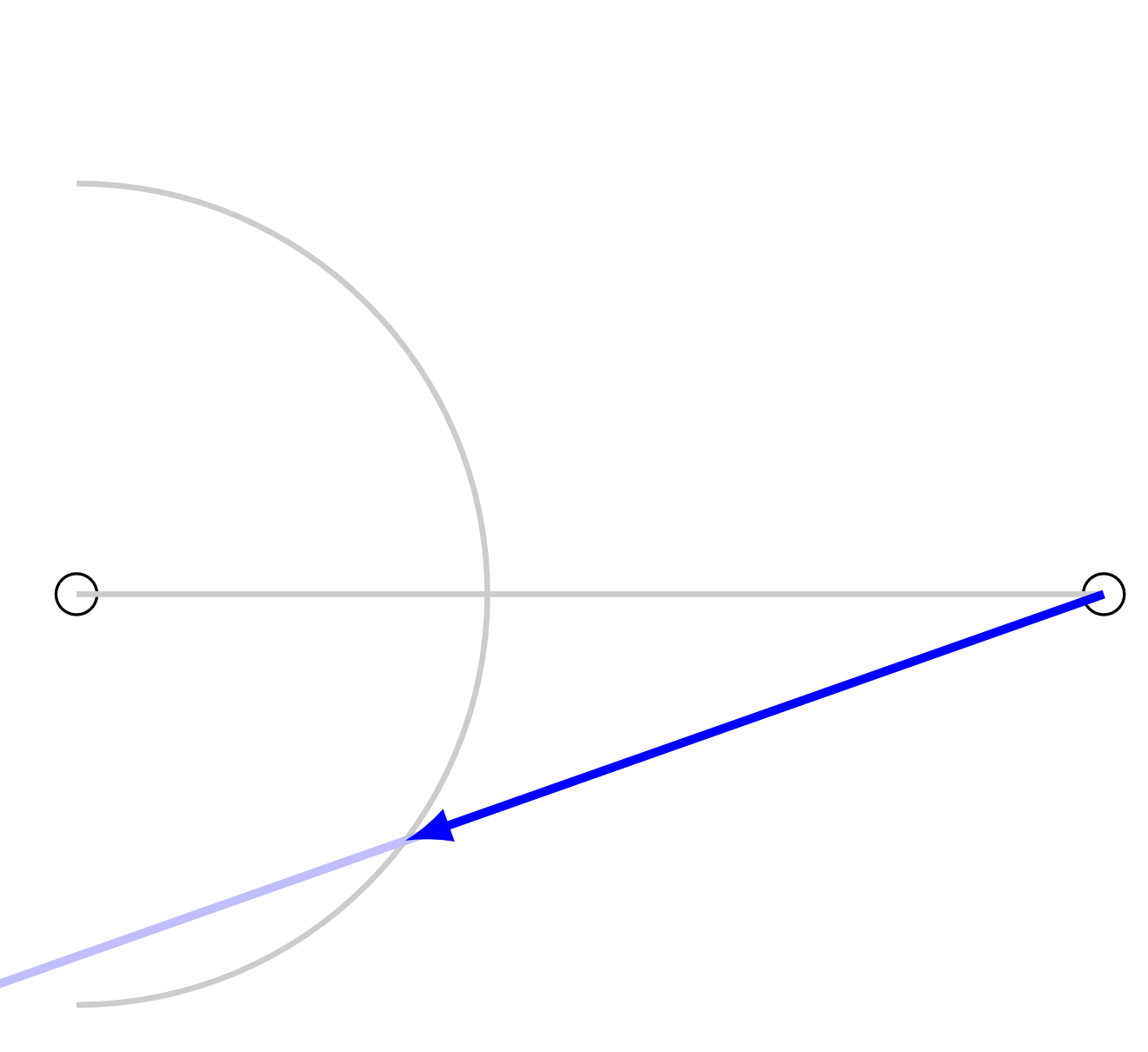

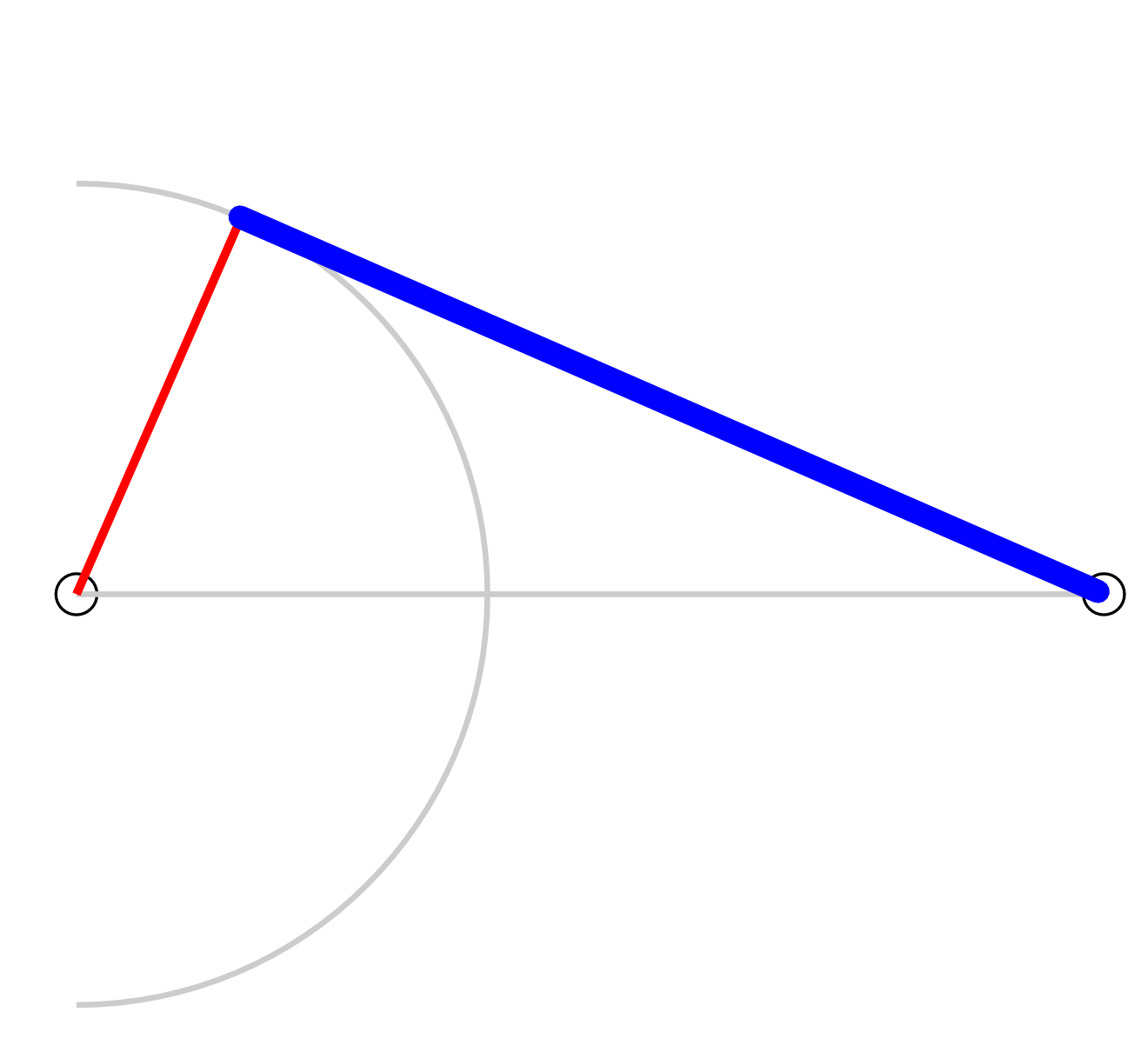

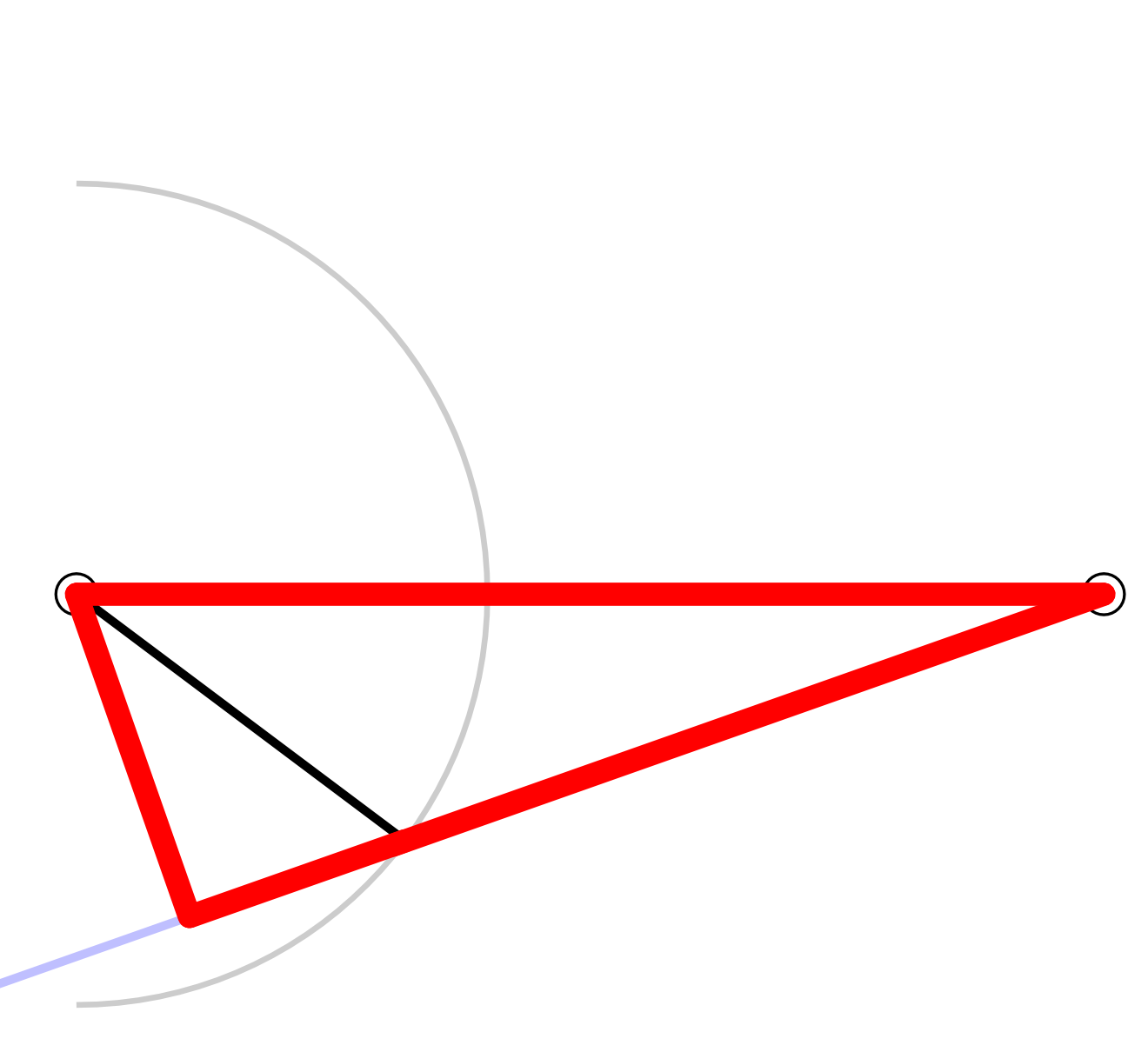

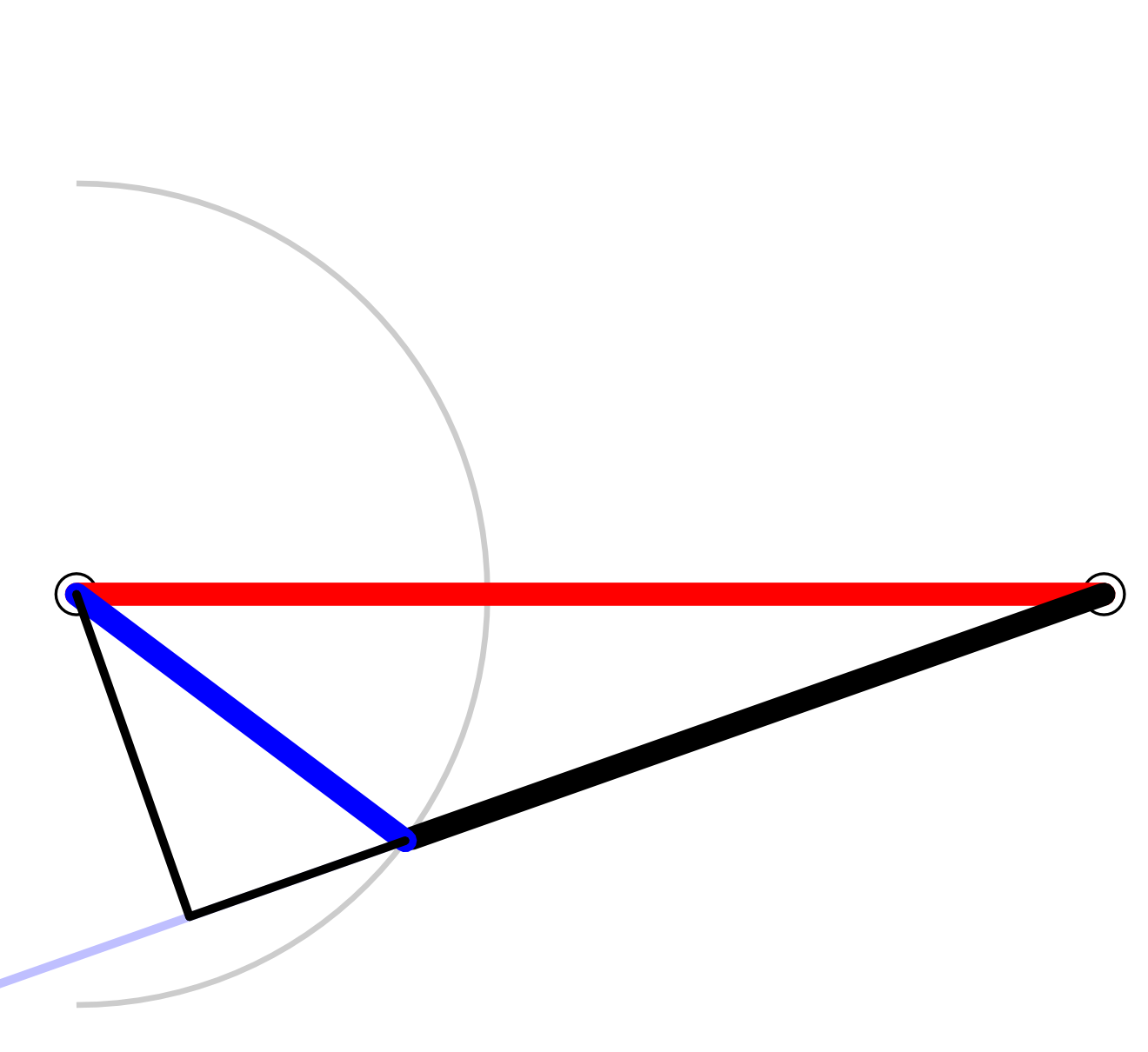

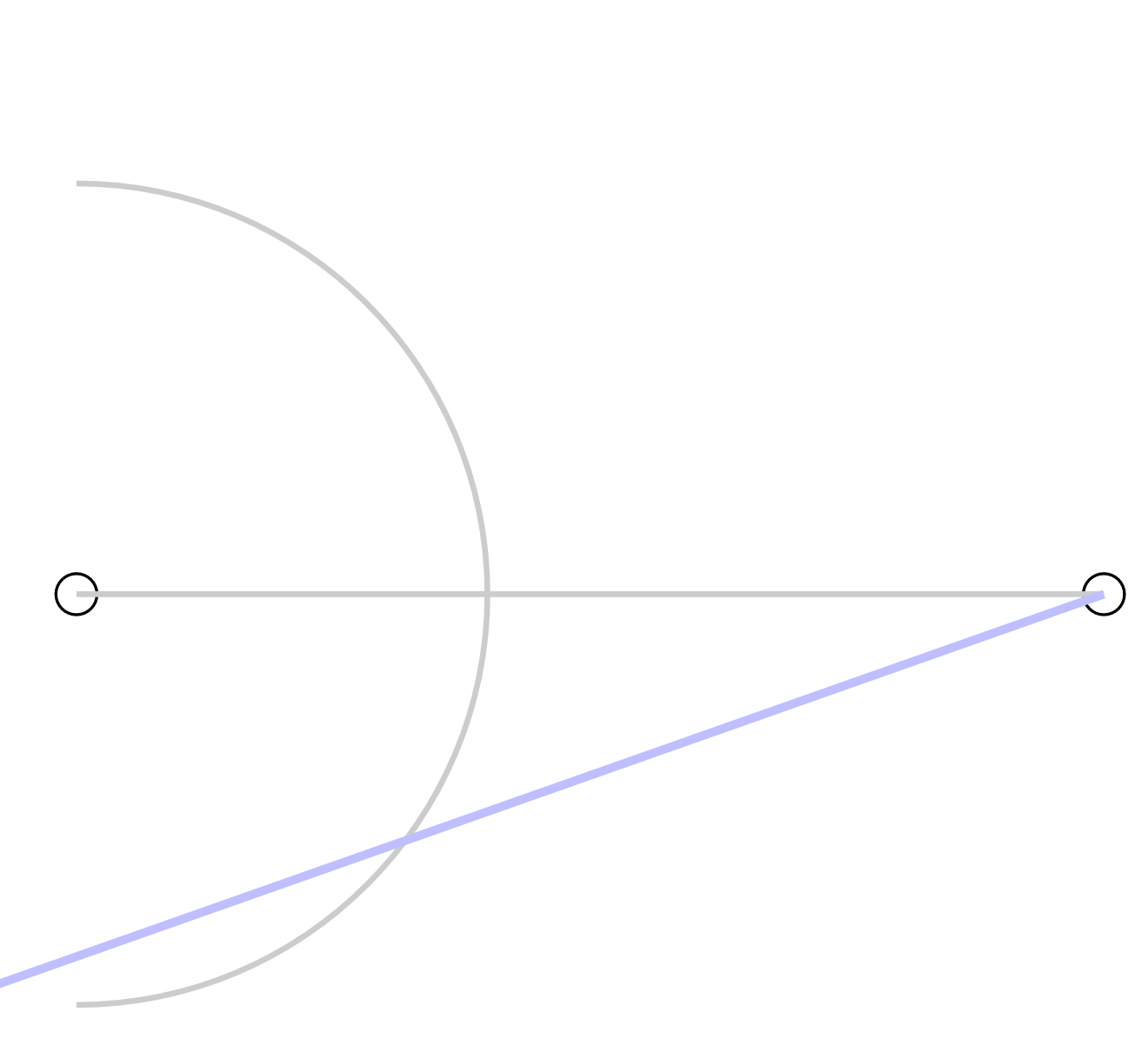

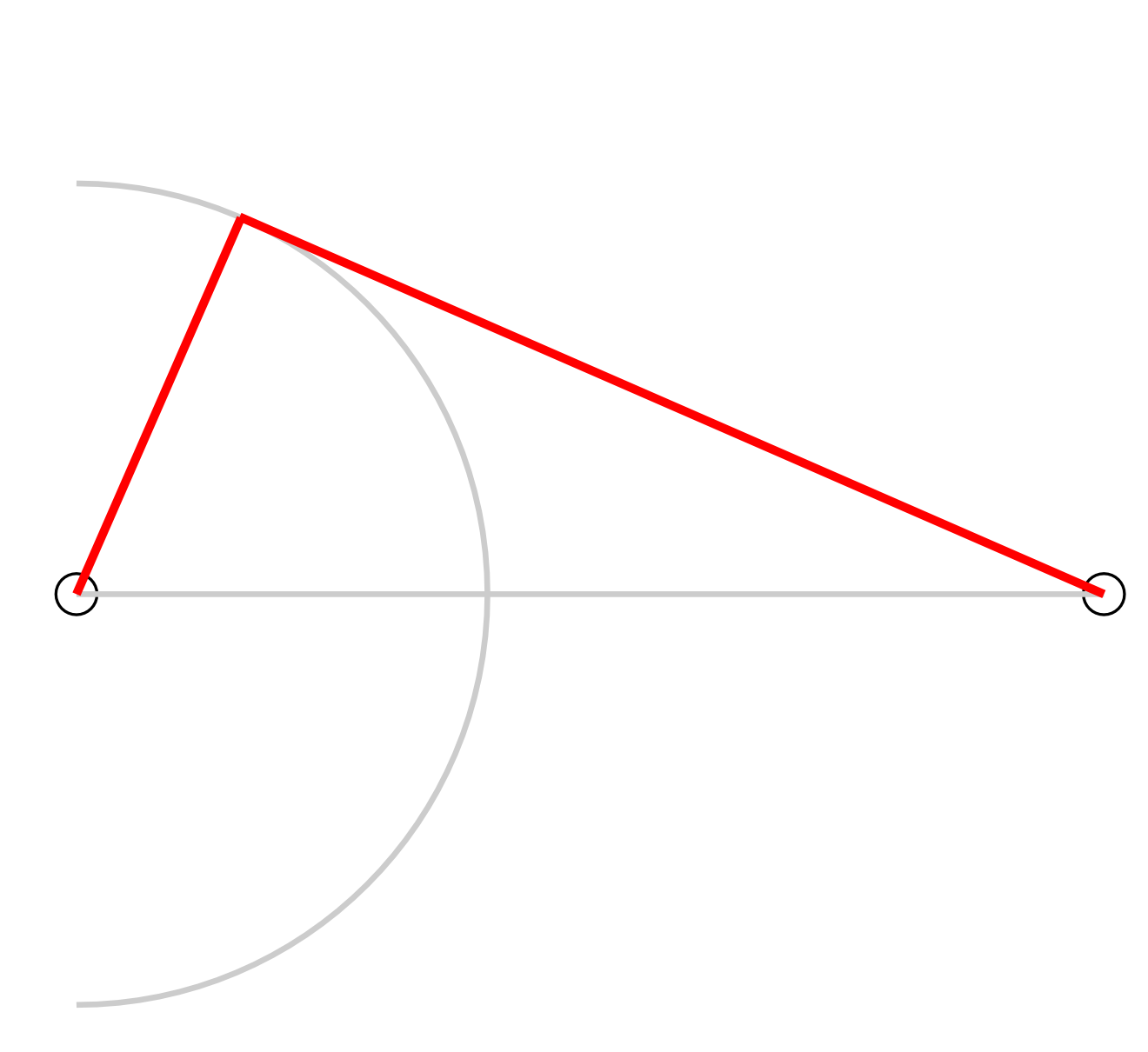

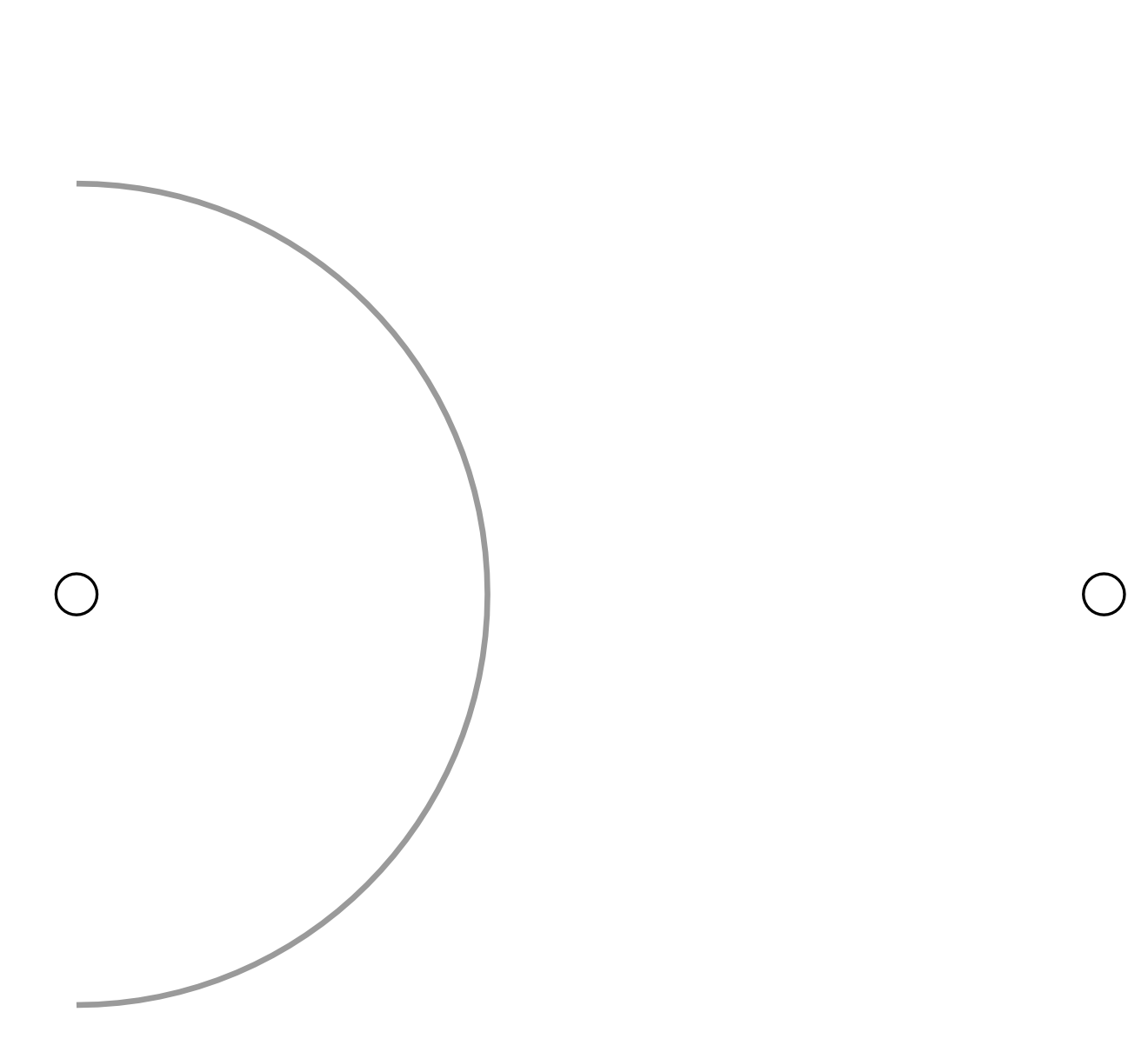

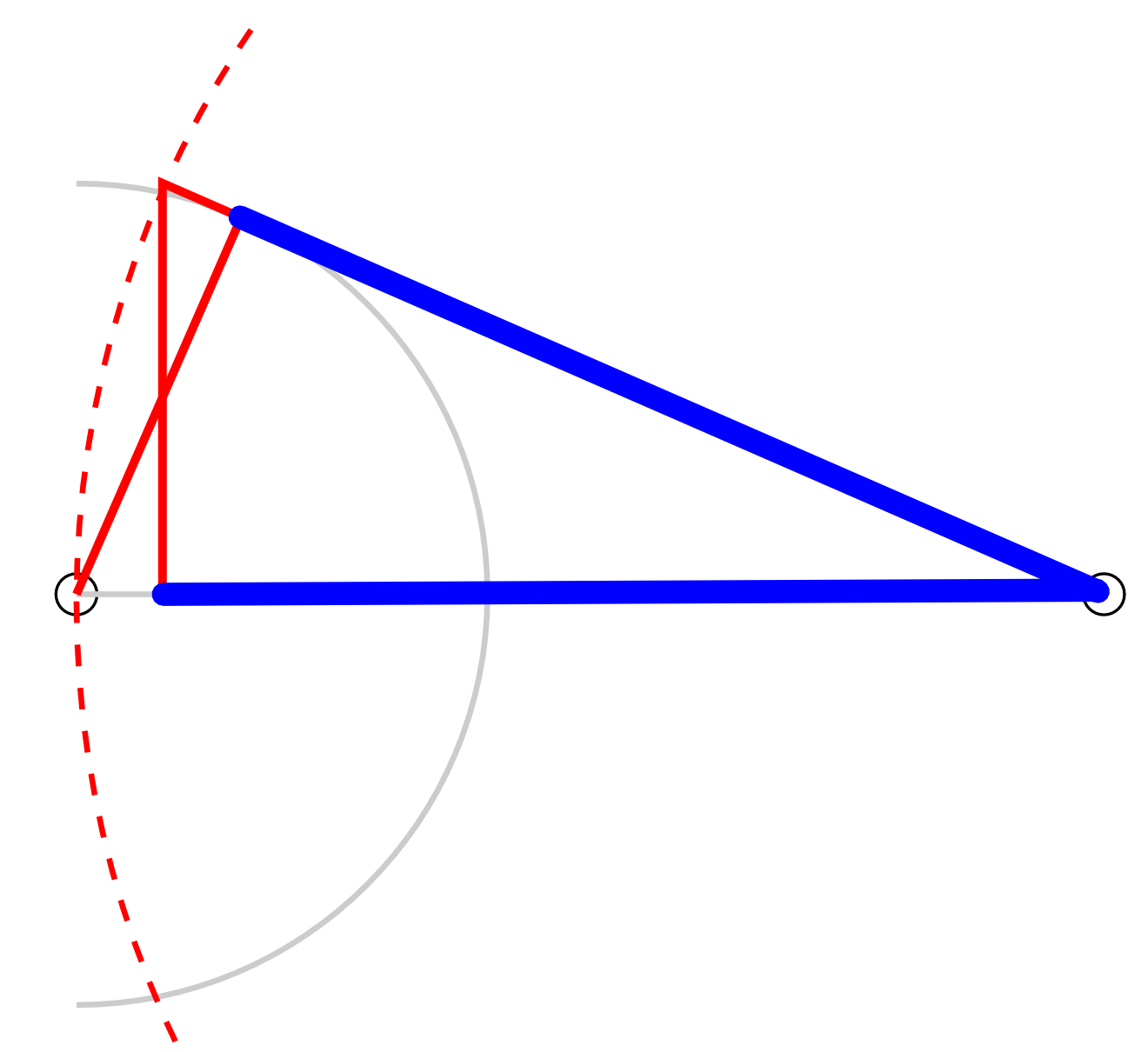

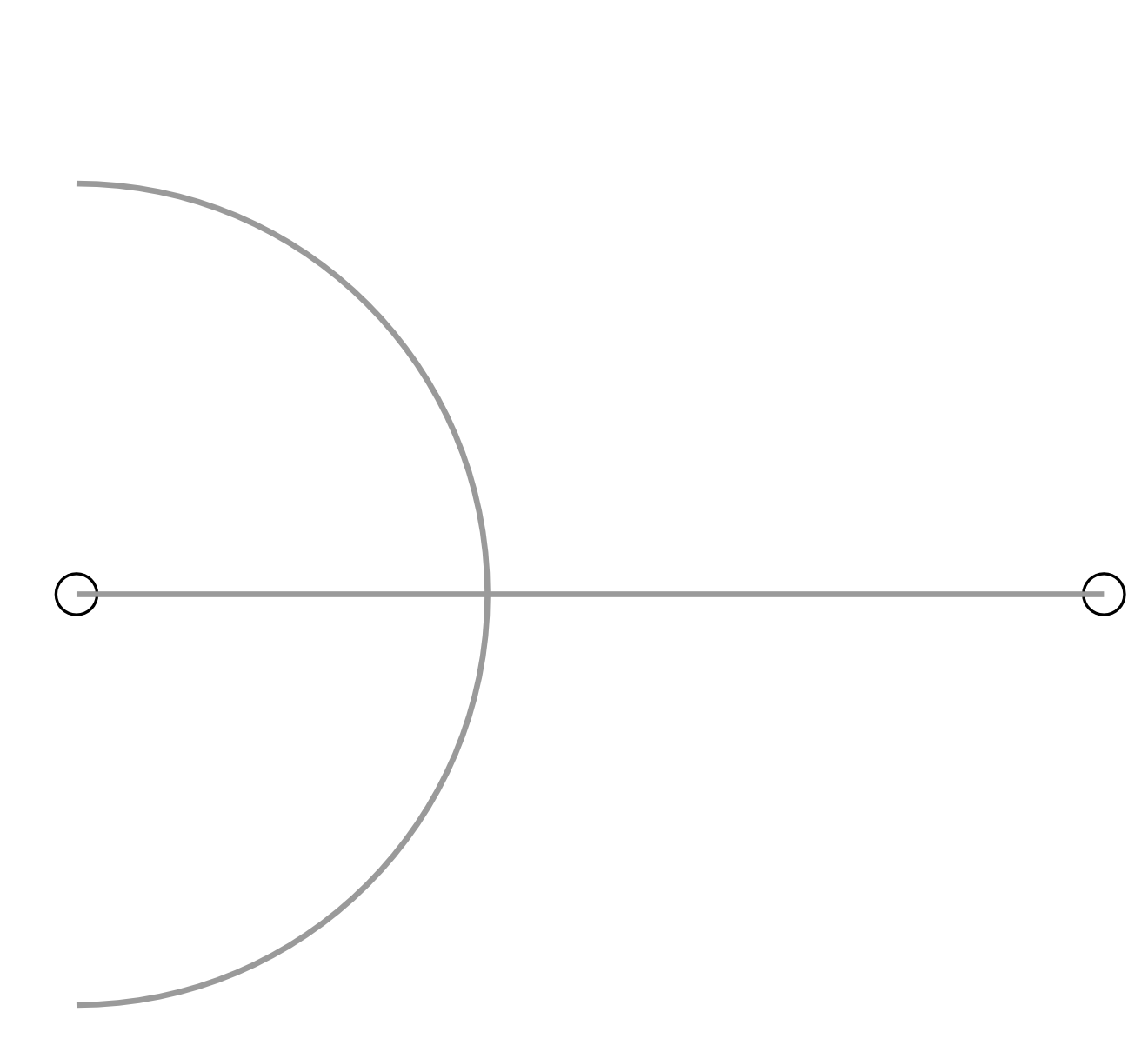

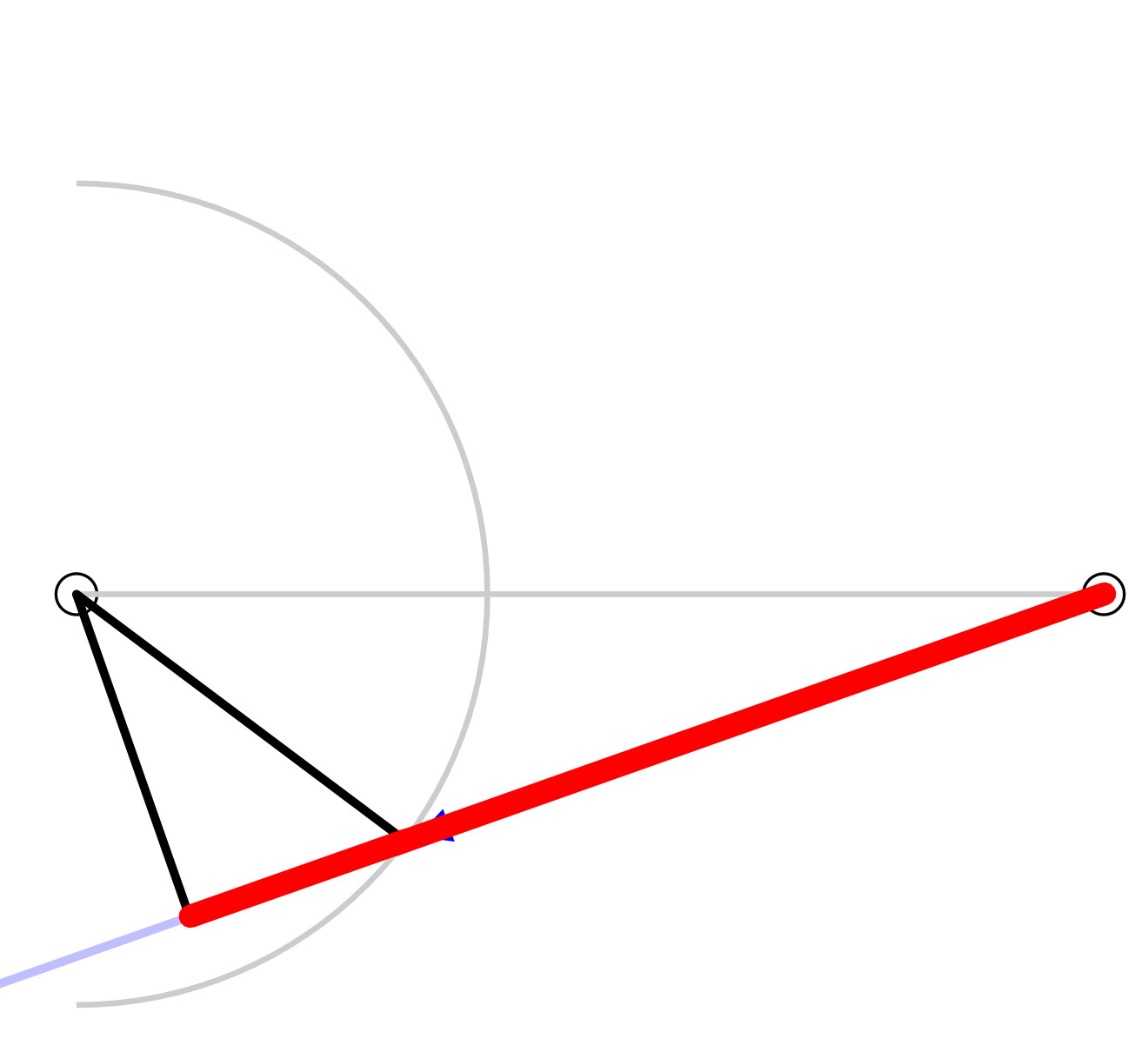

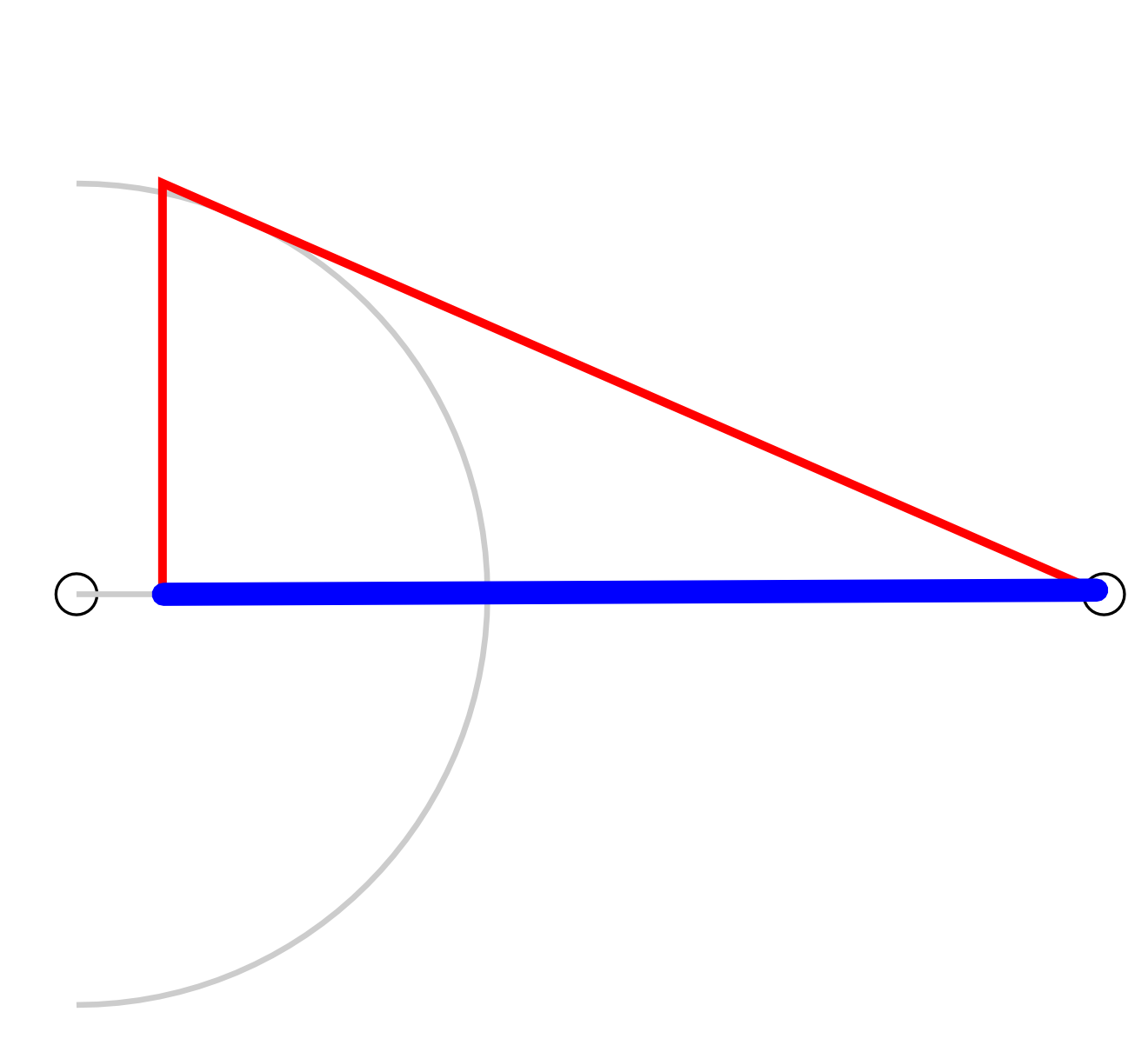

Intersection test

edge case: ray "grazes" sphere

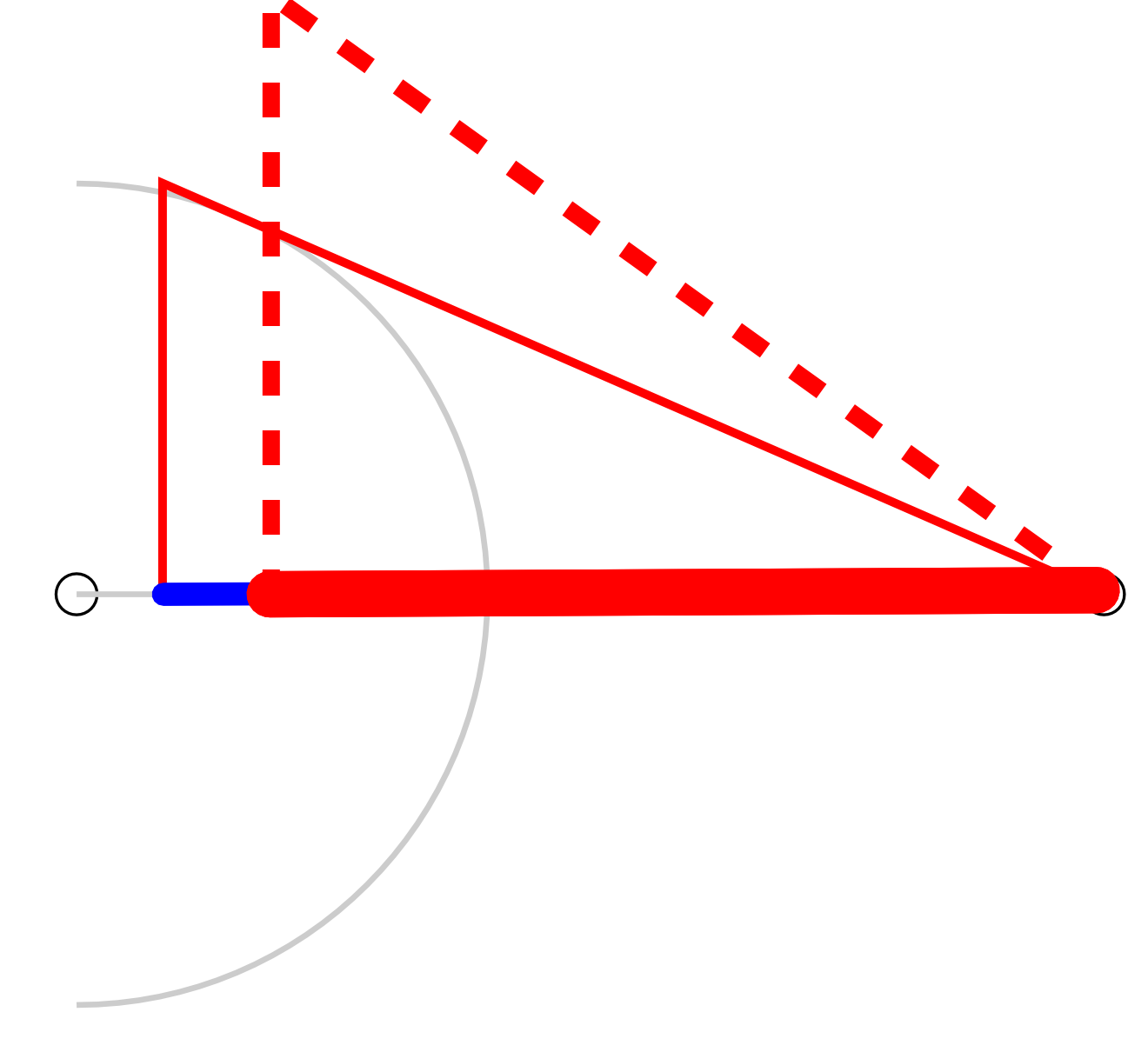

$\mathbf{p} = $ sphere center $-$ camera center; $r = $ radius
distance to hit point $ = \sqrt{\left(\mathbf{p}\cdot\mathbf{p}\right) + r^2} = \sqrt{||\mathbf{p}||^2 + r^2}$
$ = \mathbf{p} $ $ \cdot$ ray direction
(ray has length 1)
hit → longer
no hit → shorter
→ intersection test → \Ü/

#5 Spheres

Hack time

Sphere intersection test

#5 Spheres

Result

#5 Spheres

Debugging

$\mathbf{p}$ points from sphere center to camera center

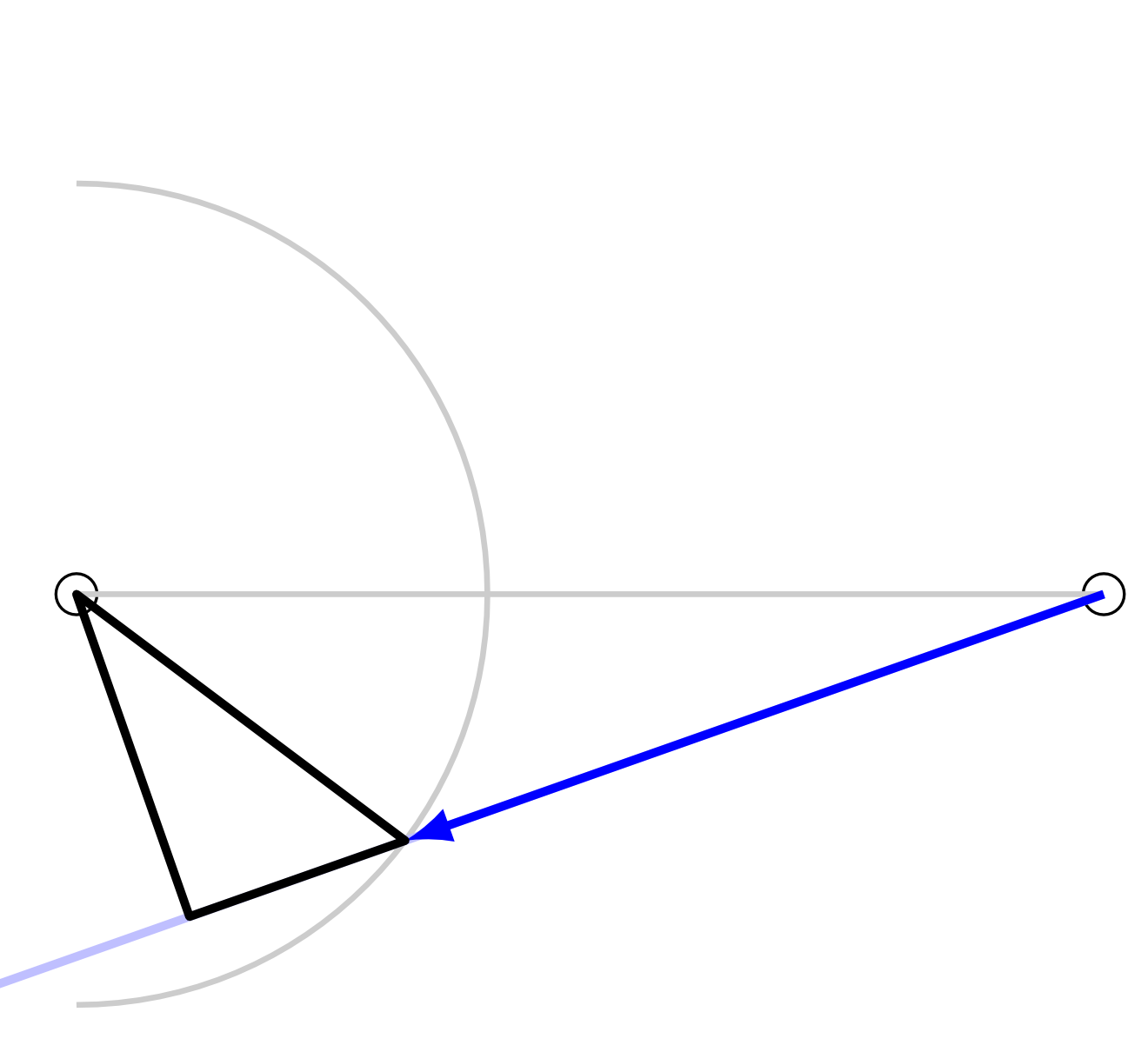

#5 Spheres

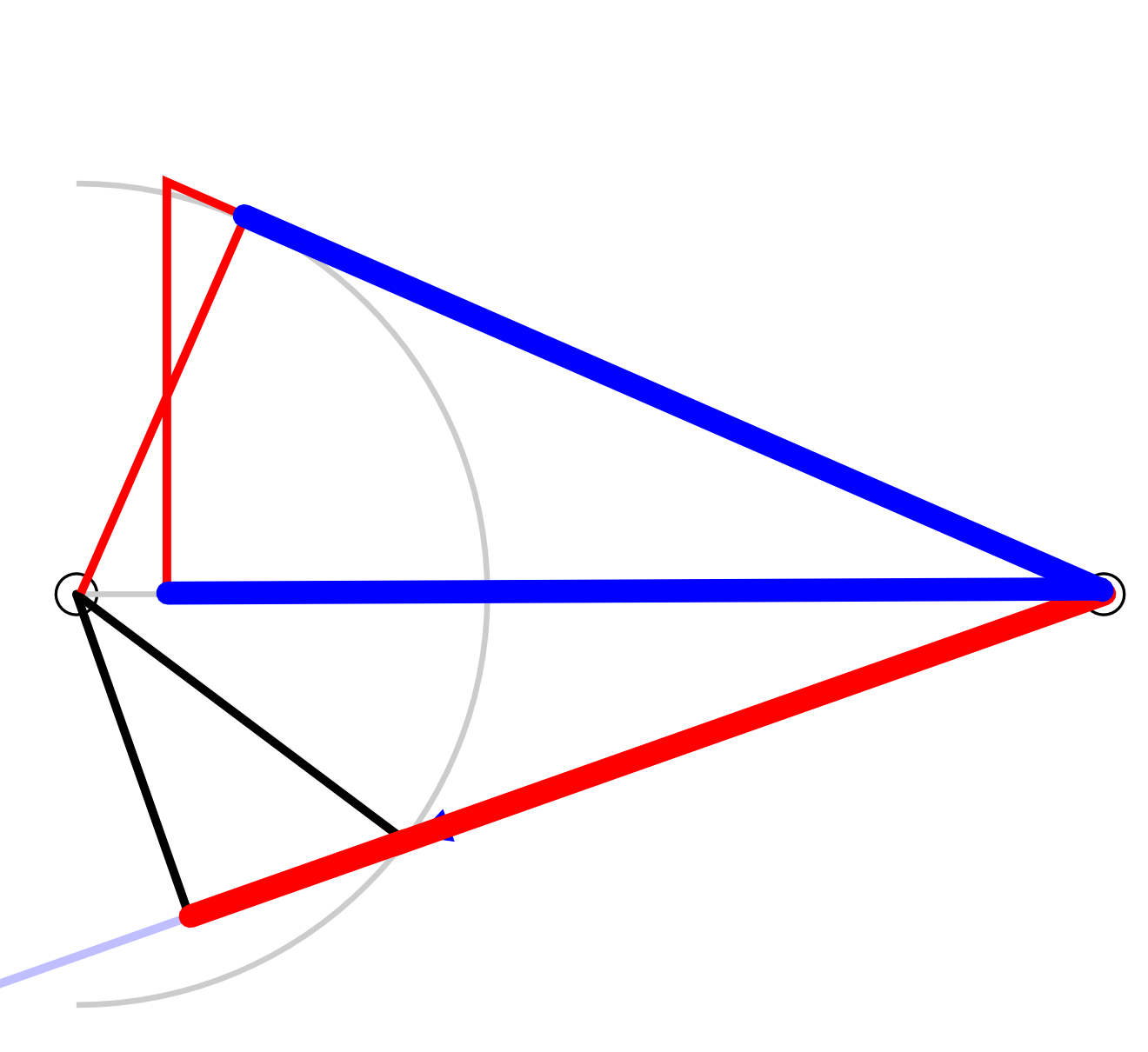

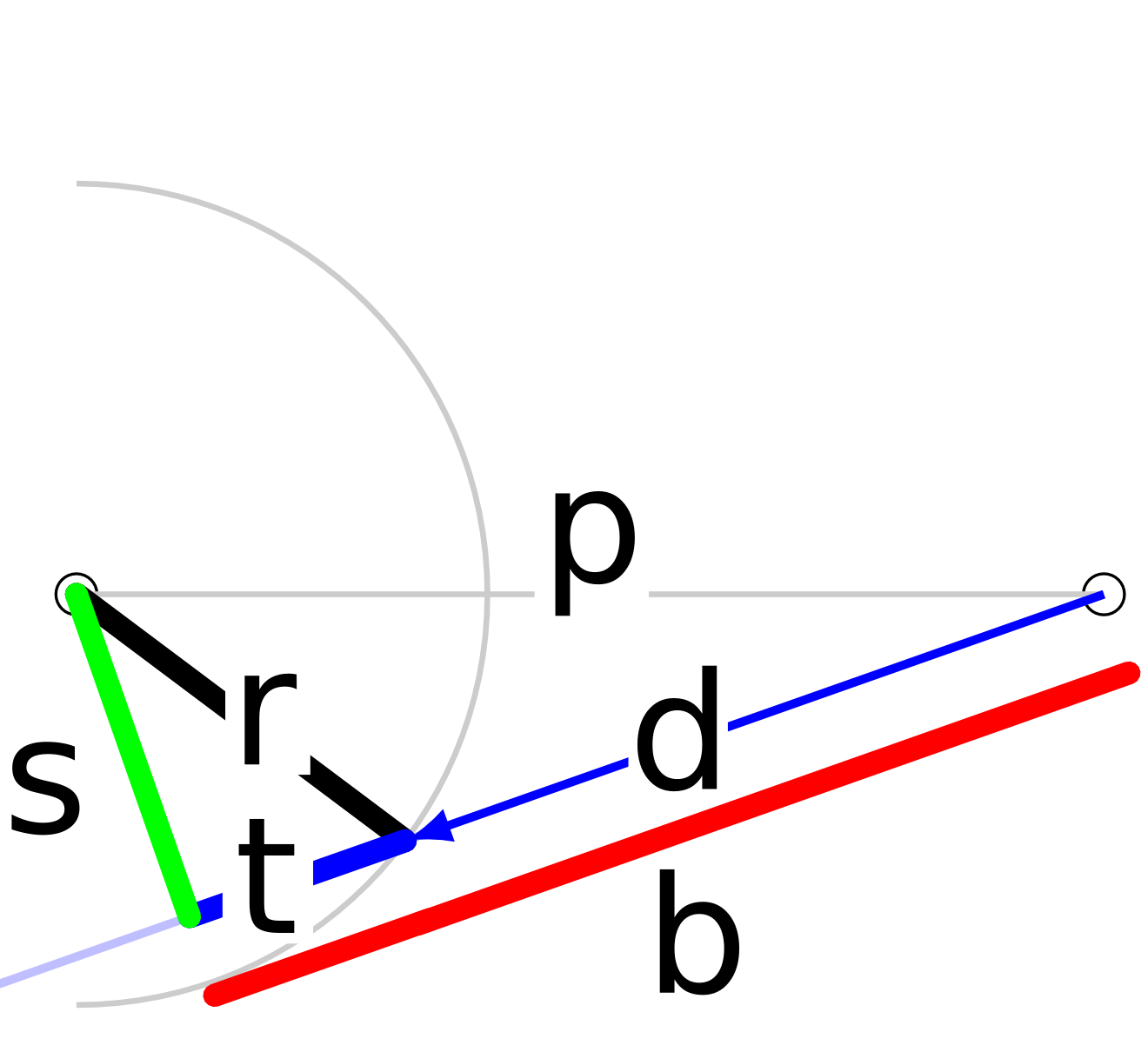

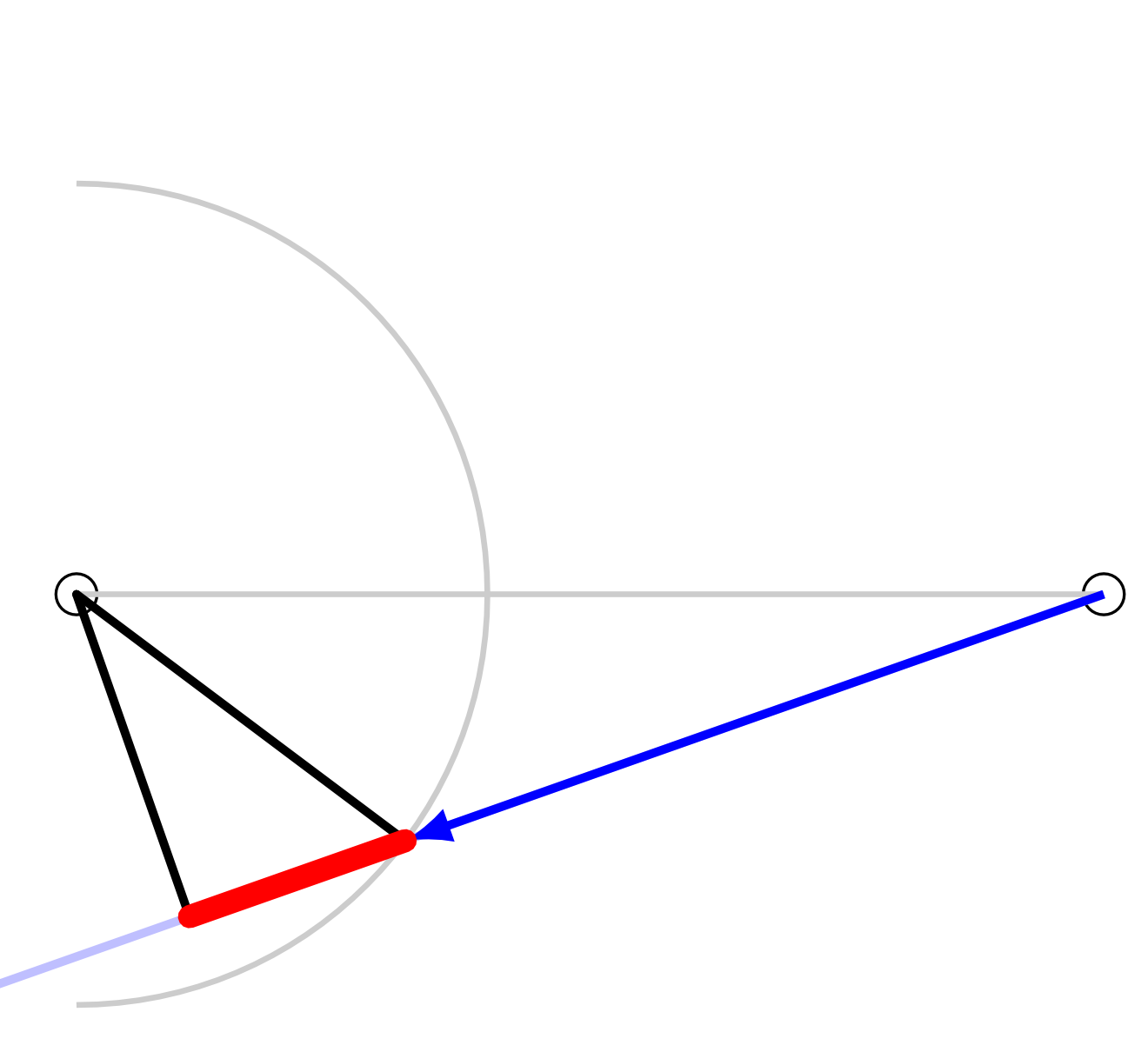

Distance computation

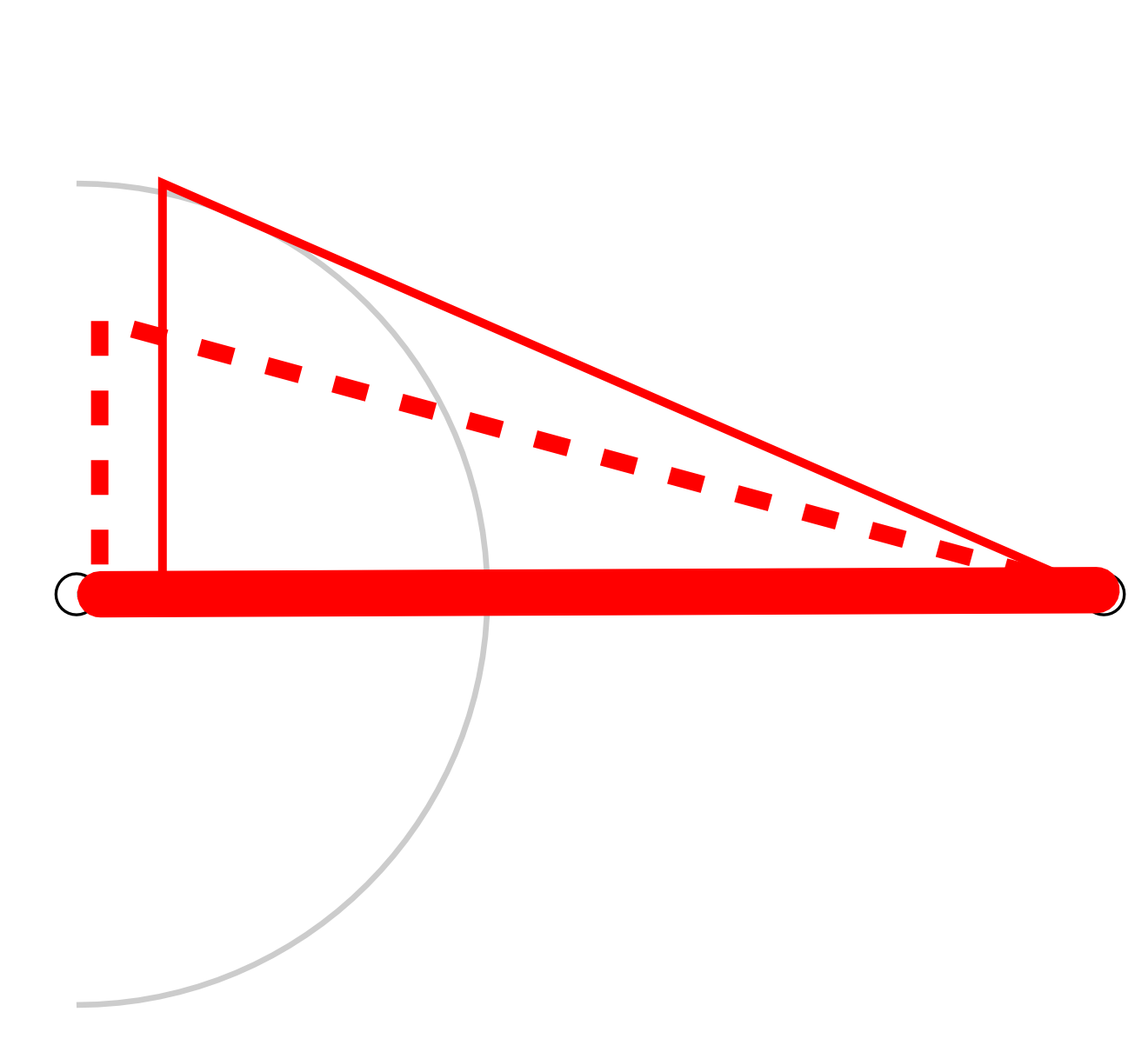

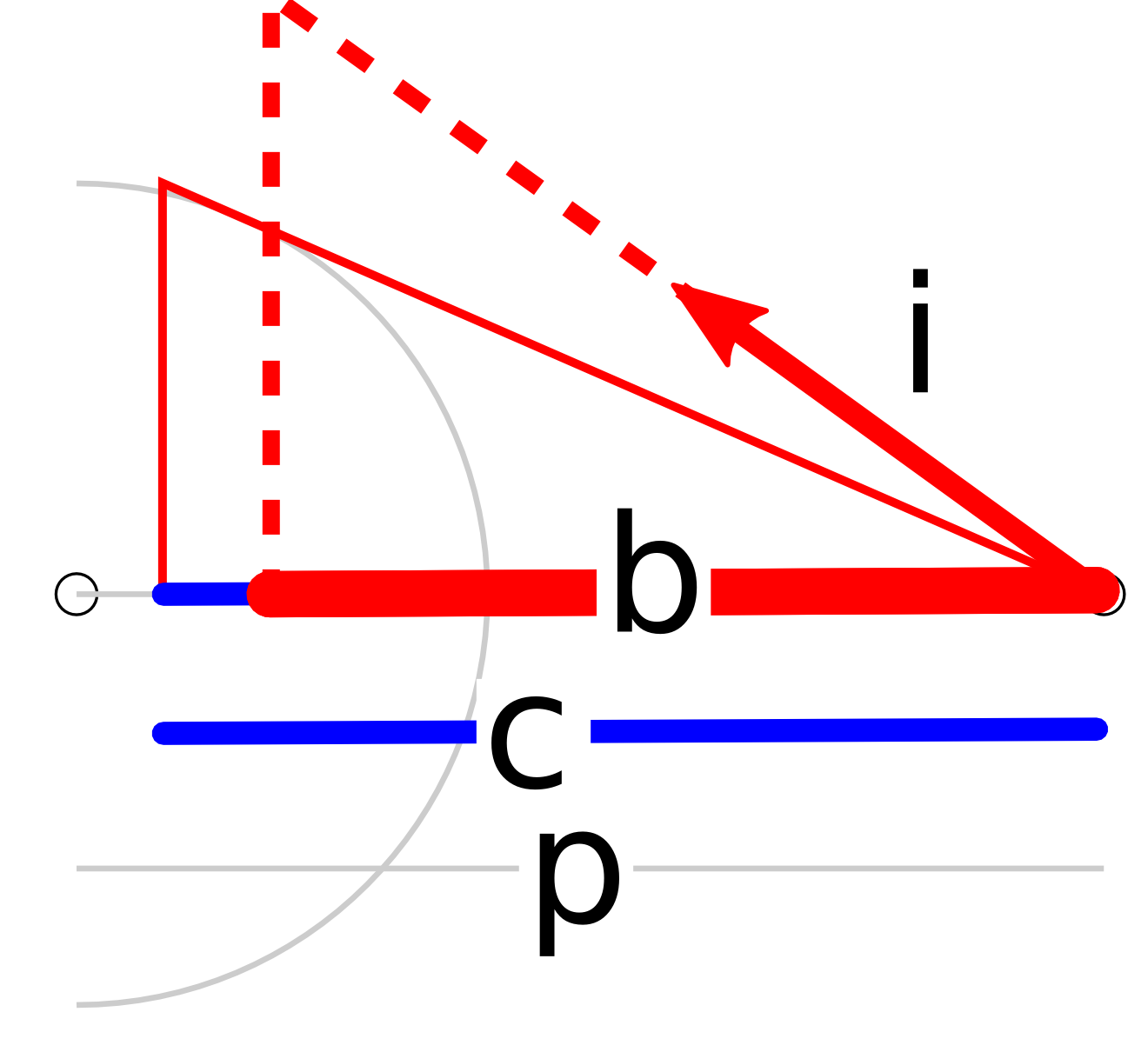

$\mathbf{p} = $ sphere center $-$ camera center; $r = $ radius
$b = \mathbf{p}$ $\cdot$ ray direction
$s = \sqrt{\left(\mathbf{p}\cdot\mathbf{p}\right) - b^2}$
$t = \sqrt{r^2 - s^2}$
$d = b - t$
→ distance → \Ü/

#5 Spheres

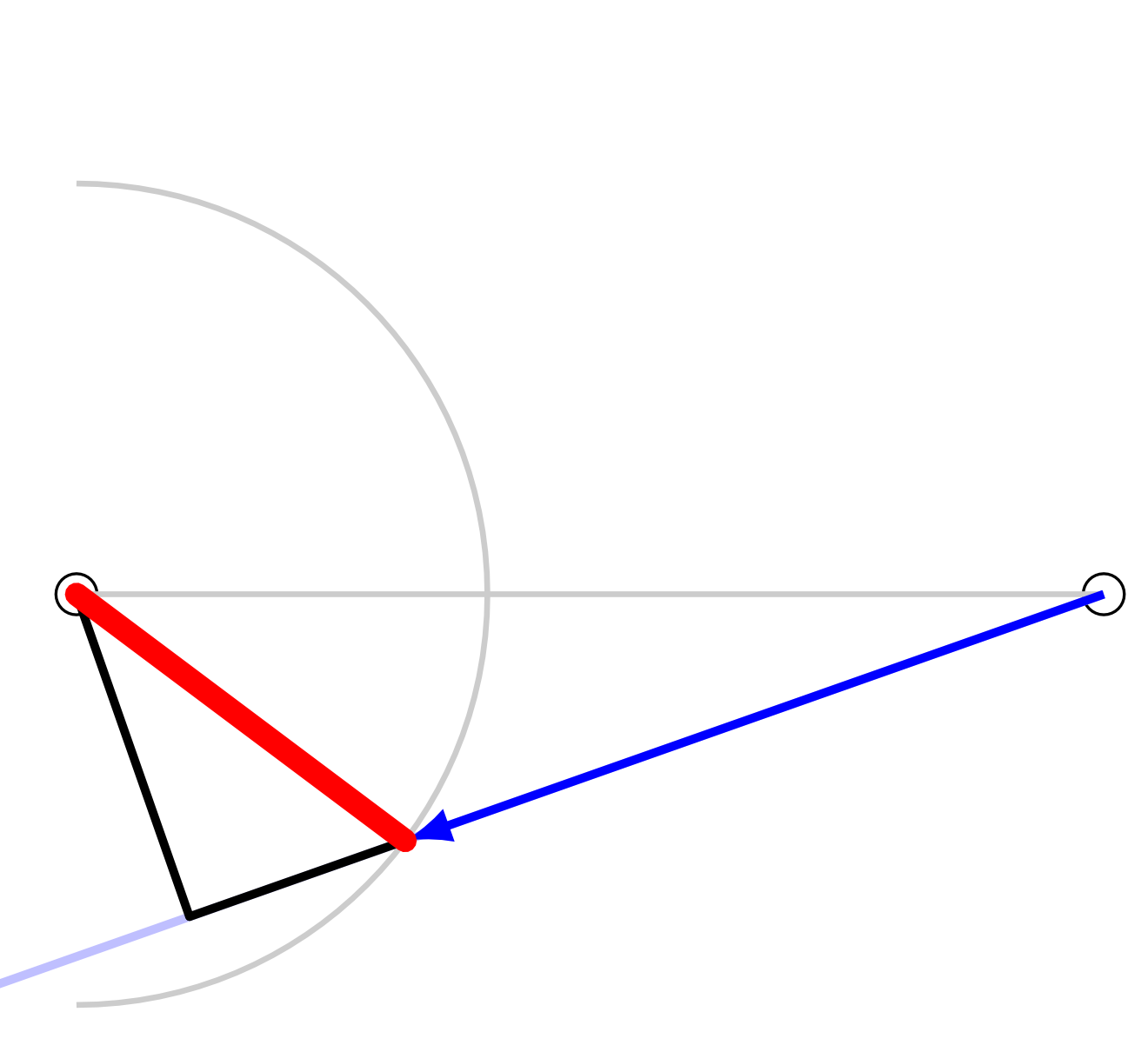

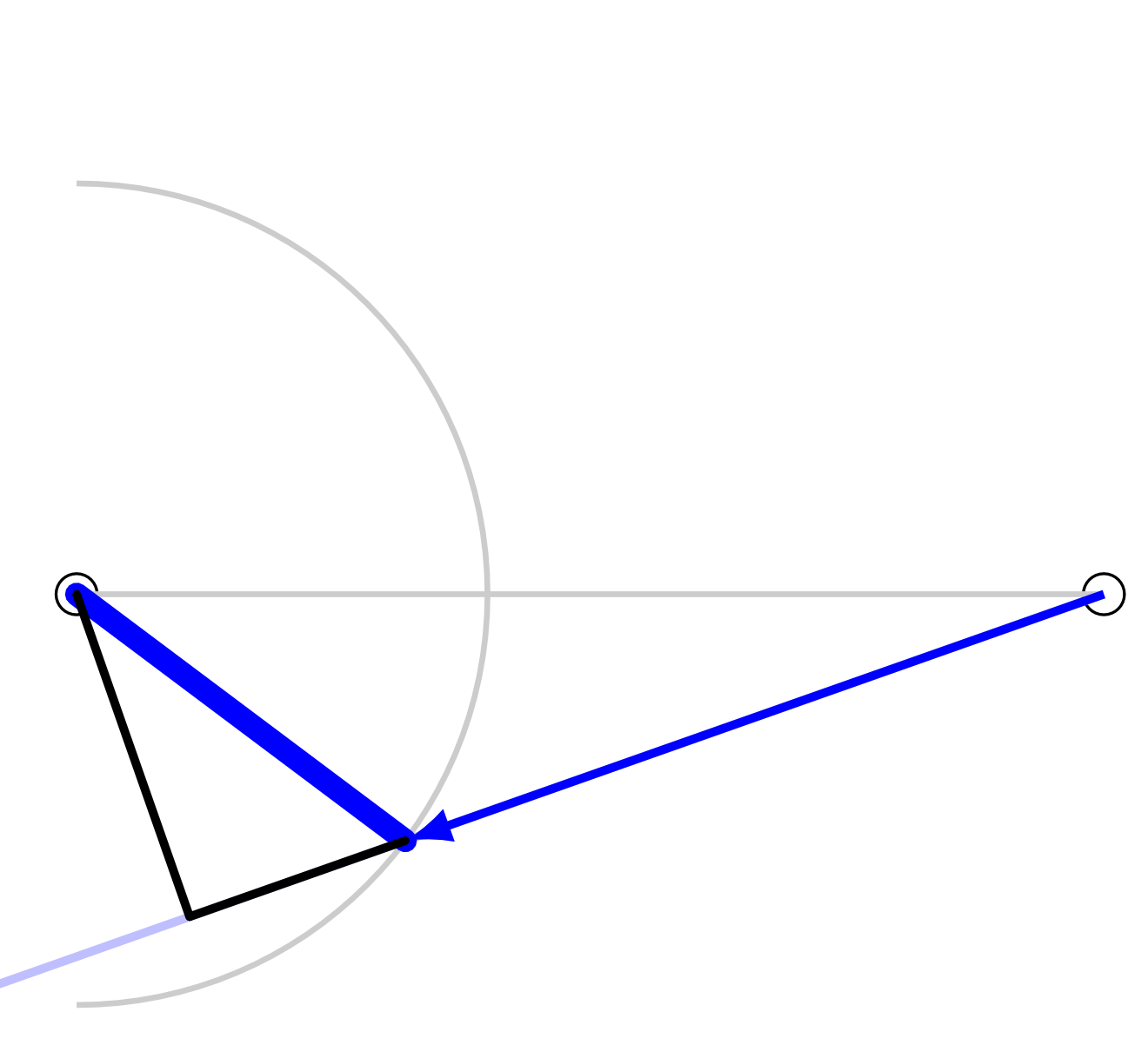

Normal vectors

$\mathbf{p} = $ sphere center $-$ camera center; $r = $ radius
normal vector $= -\mathbf{p} + d$ $\cdot$ ray direction
(scale normal vector to length 1!)

#5 Spheres

Hack time

Distance, normal vector

#5 Spheres

Result

#5 Spheres

Debugging

$\mathbf{p}$ points from sphere center to camera center
$\mathbf{b}$ has negative length

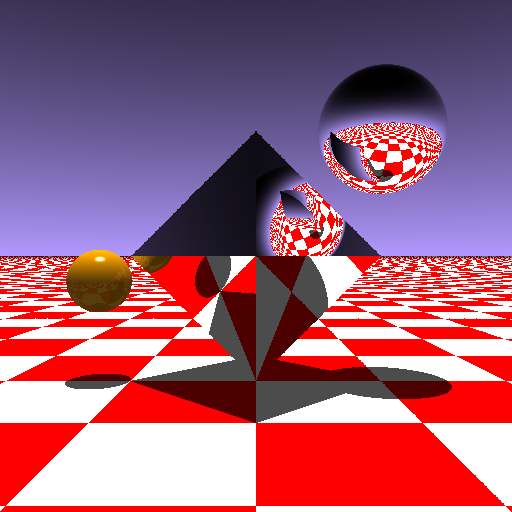

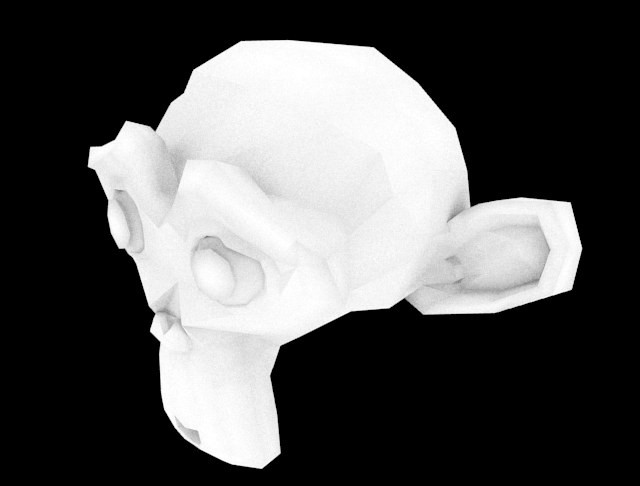

Level 6 — Light

#6 Light

Phong illumination model

perfect colors are boring
light generates shadows, reflections, shading...
"real" light simulation is infeasible
we use the Phong model (or something similar)
(not physically correct, but easy)
materials have coefficients per component

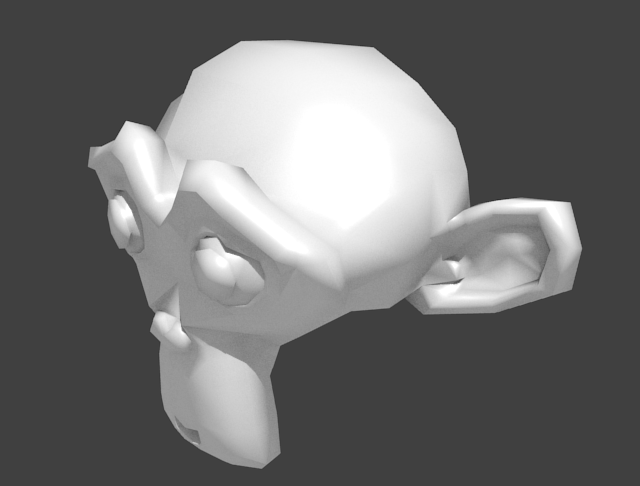

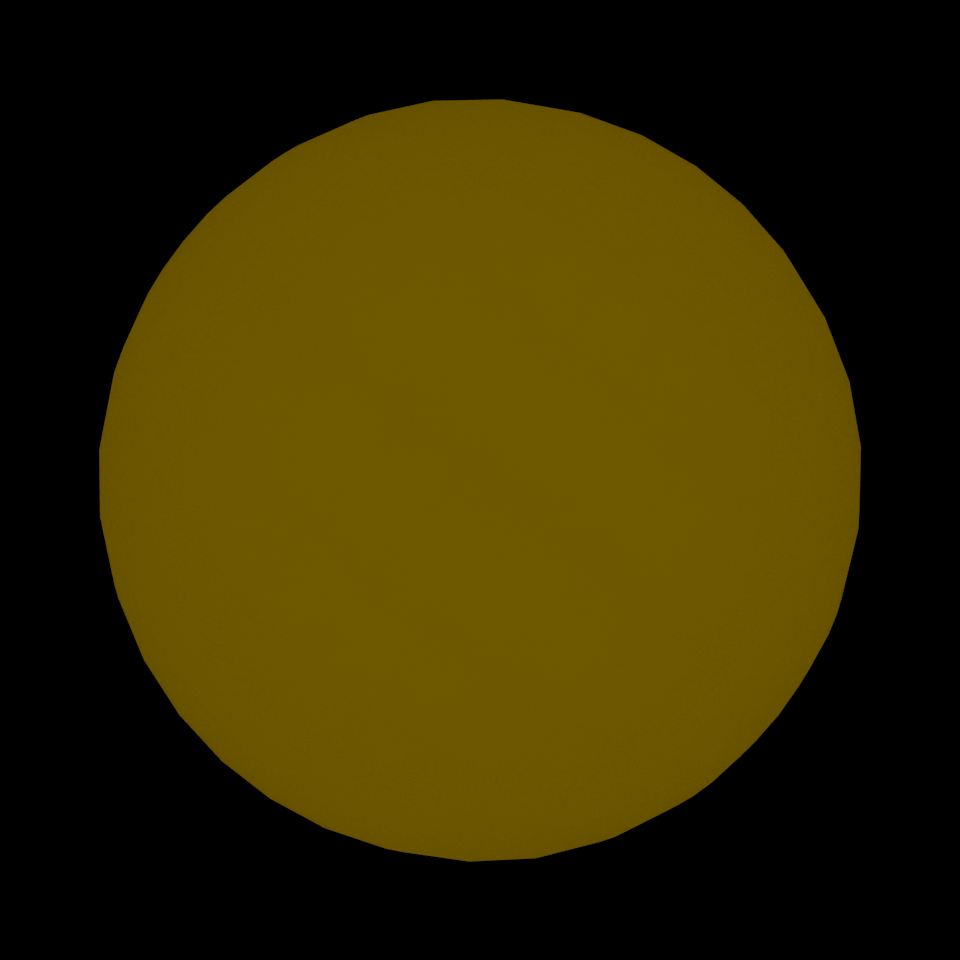

ambient	+ diffuse	+ specular	= Phong

#6 Light

Ambient light

constant light everywhere in the scene
independent of light sources
cheap imitation of global illumination
constant factor $k_\text{ambient}$, here: independent of material
($C_\text{material}$: material color) $$I_\text{ambient} = k_\text{ambient} \cdot C_\text{material}$$


ambient	+ diffuse	+ specular	= Phong

#6 Light

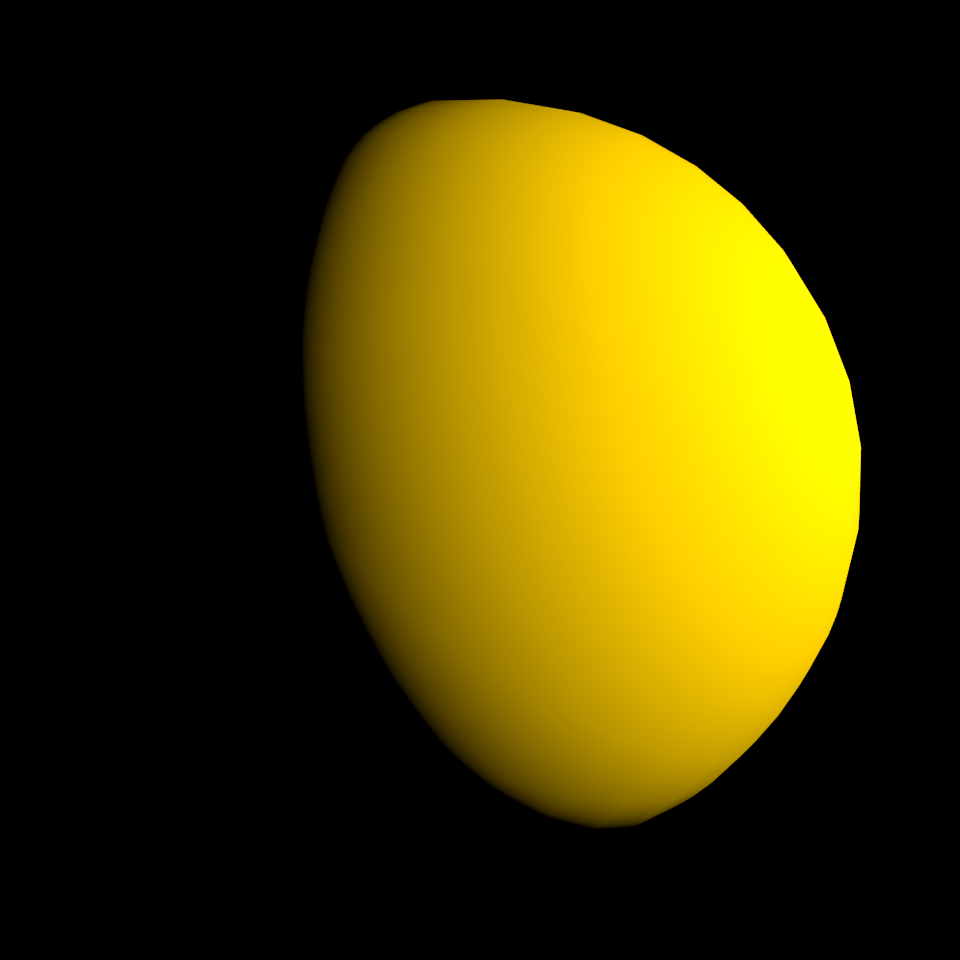

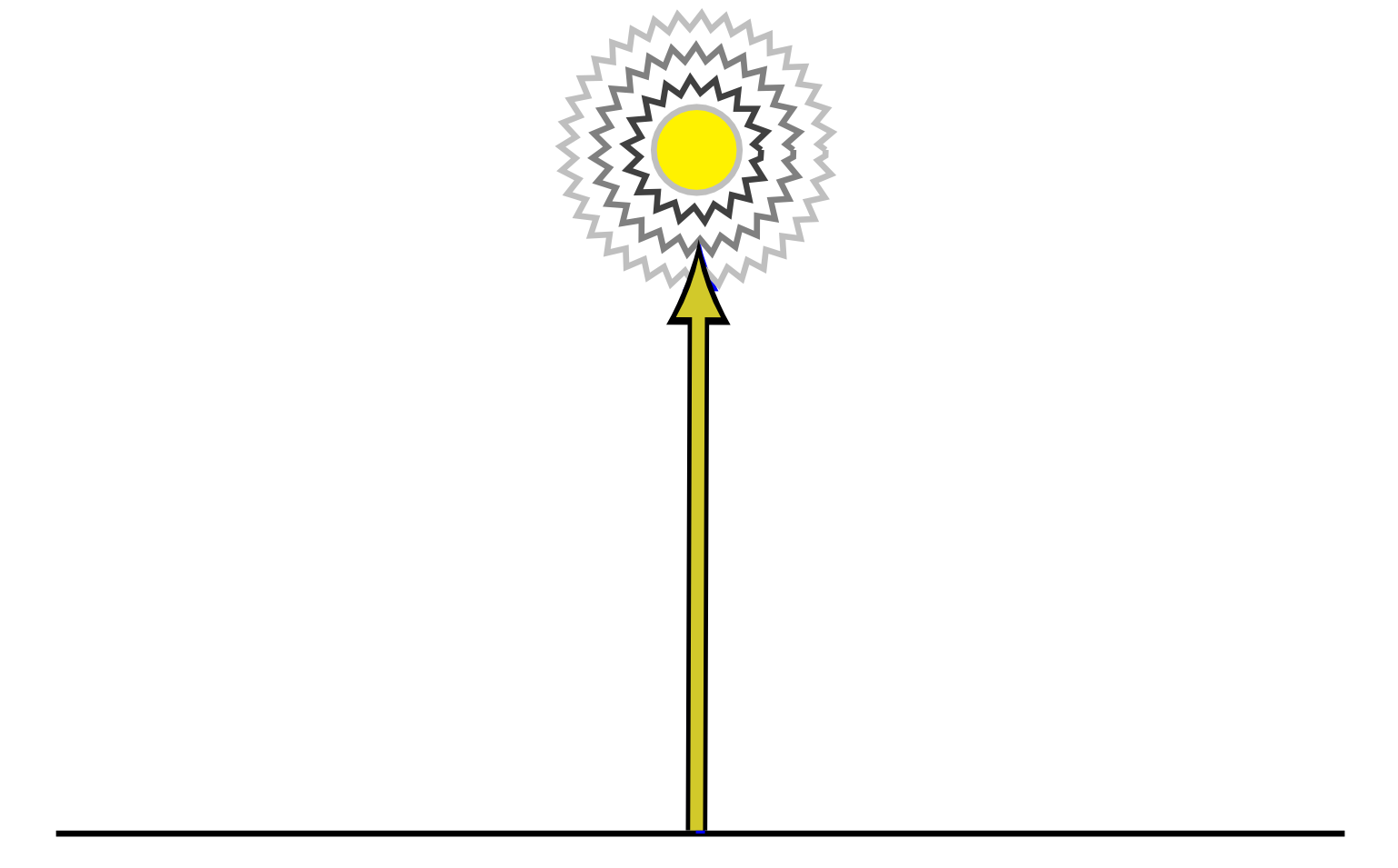

Diffuse light

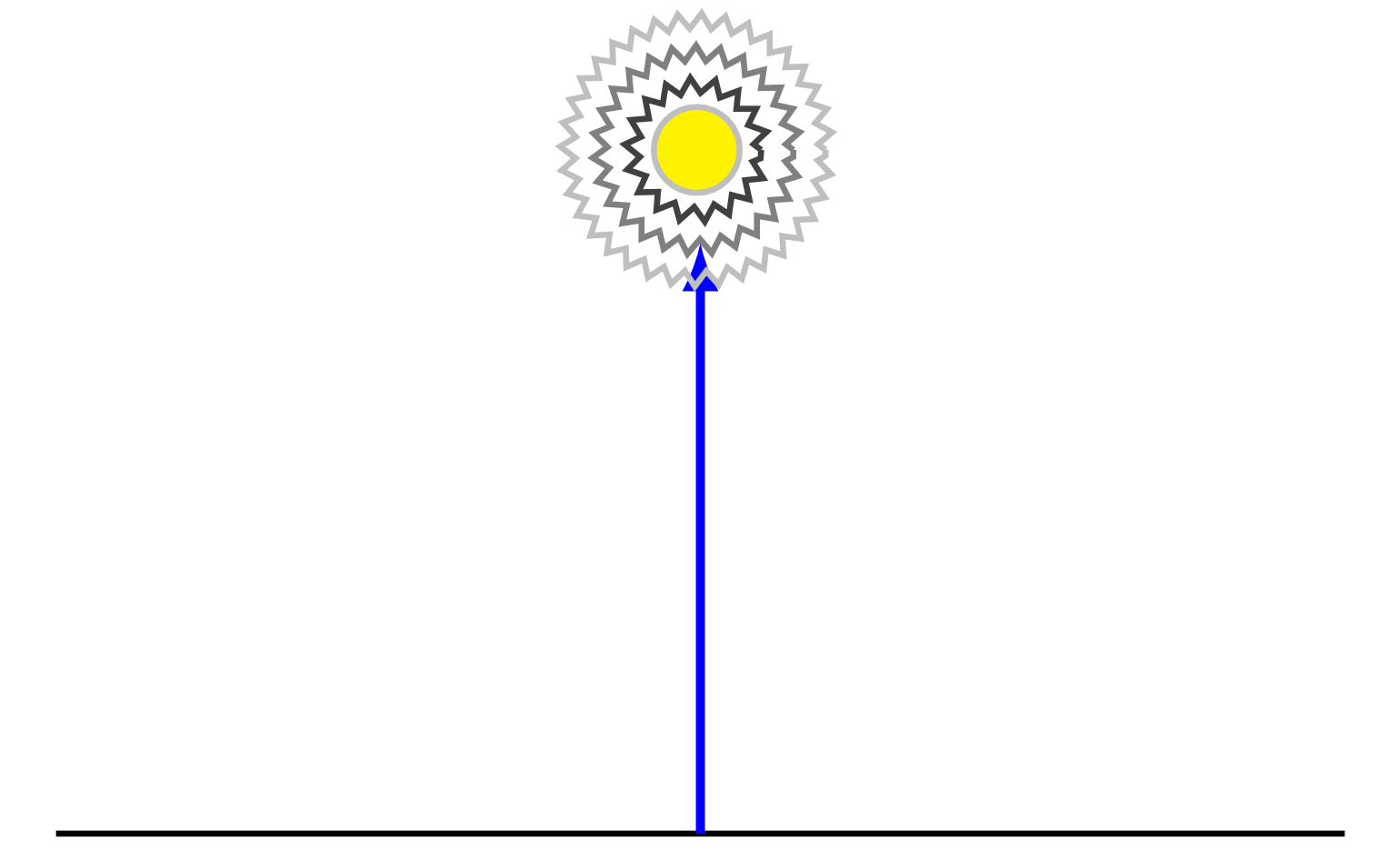

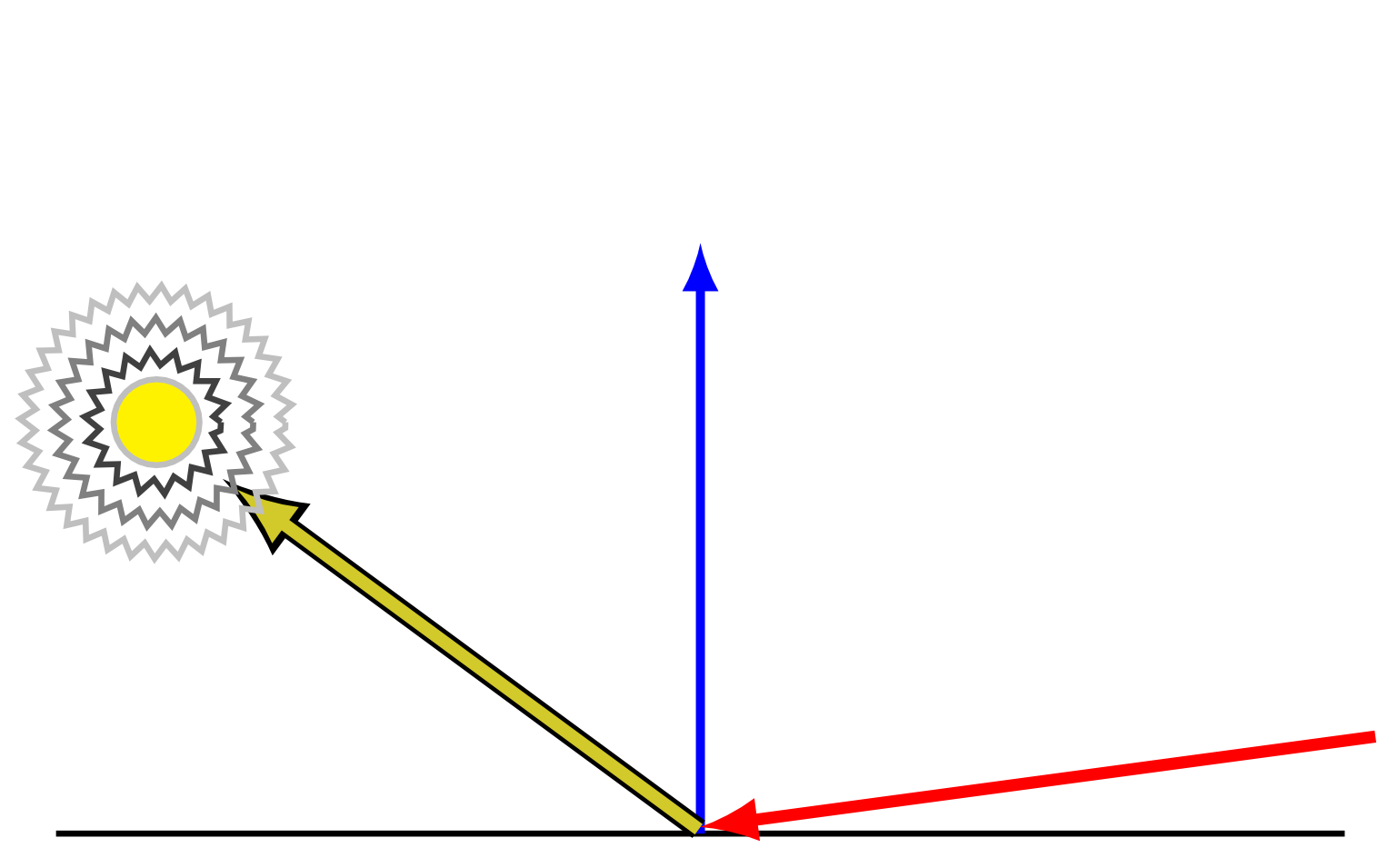

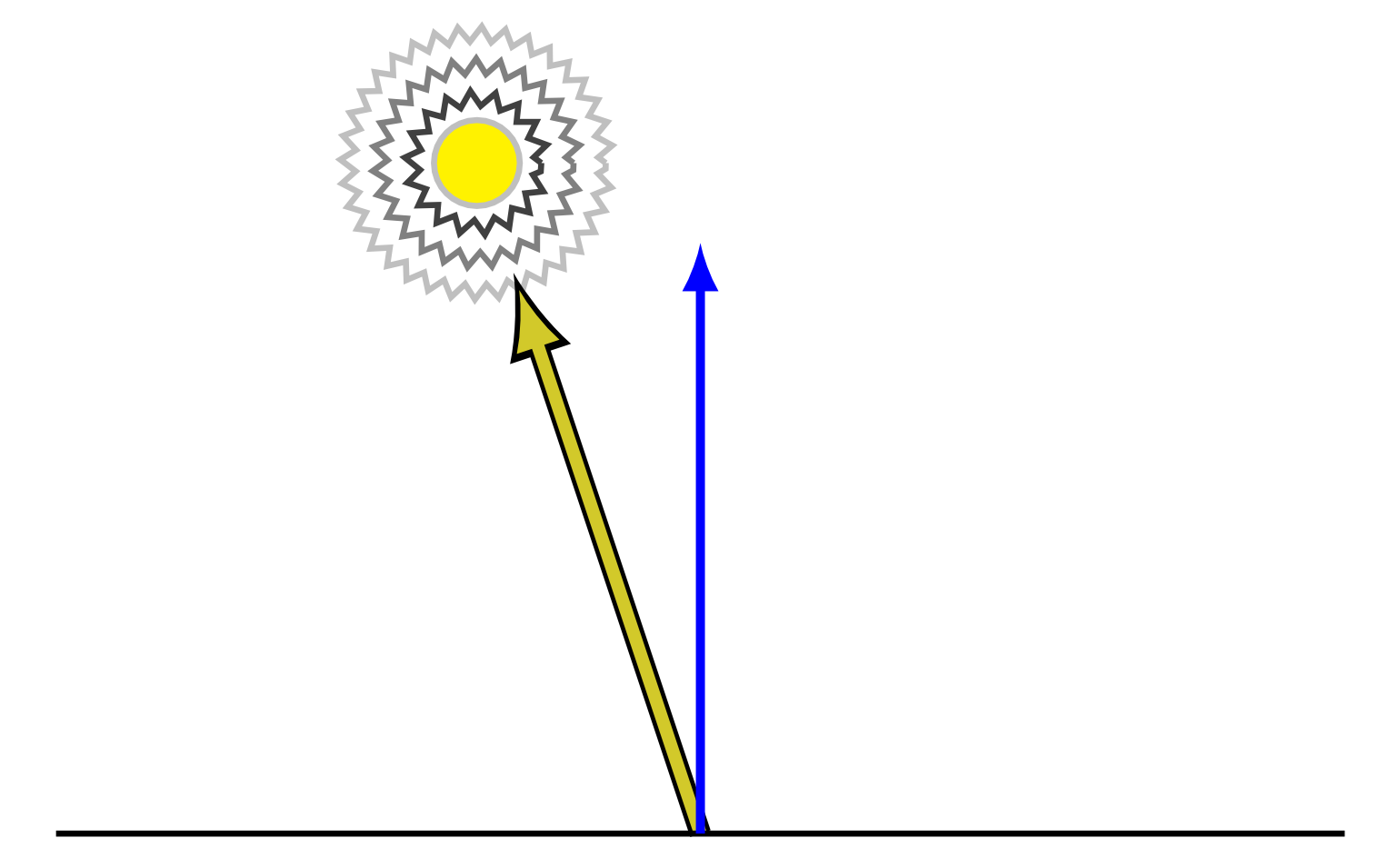

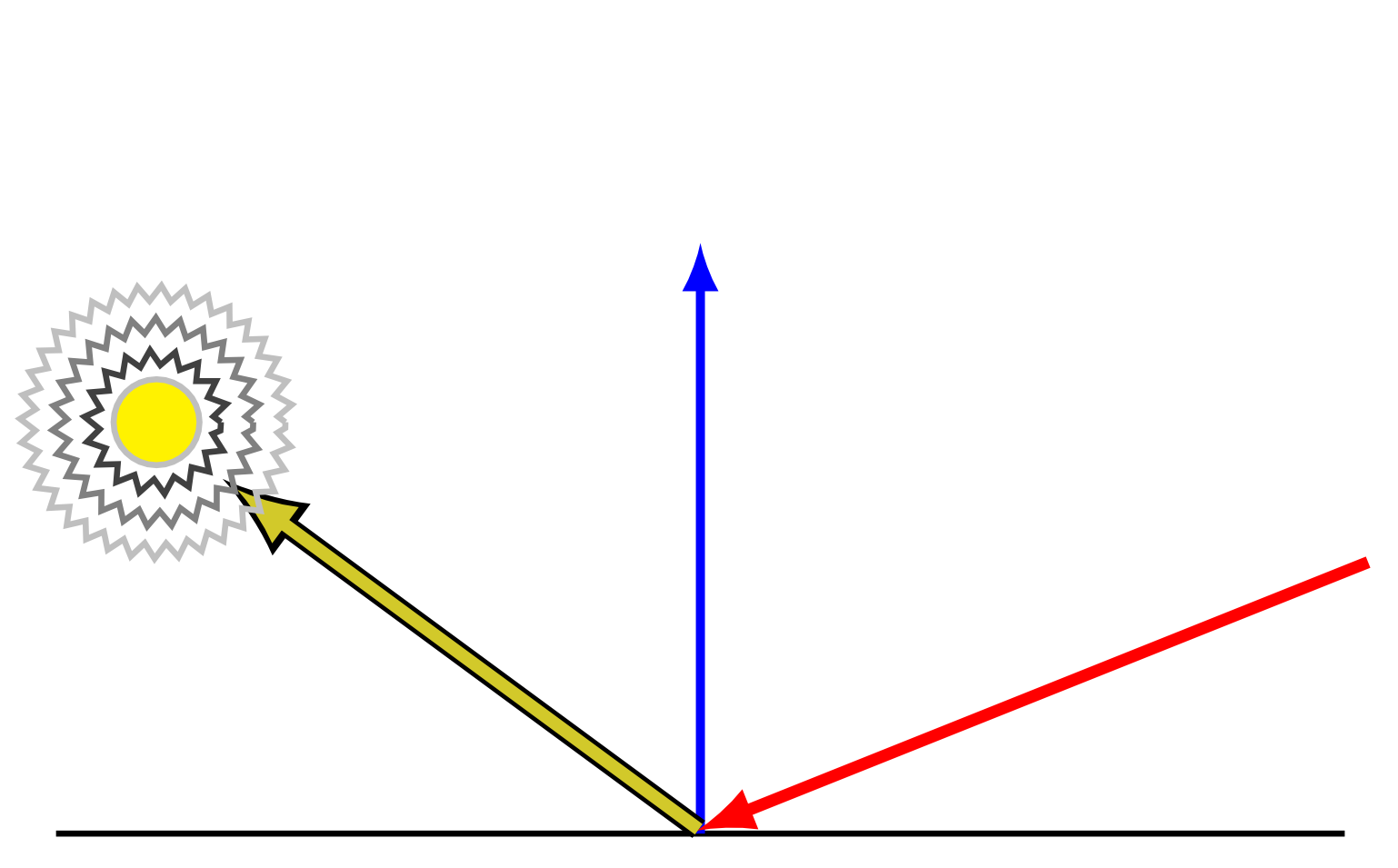

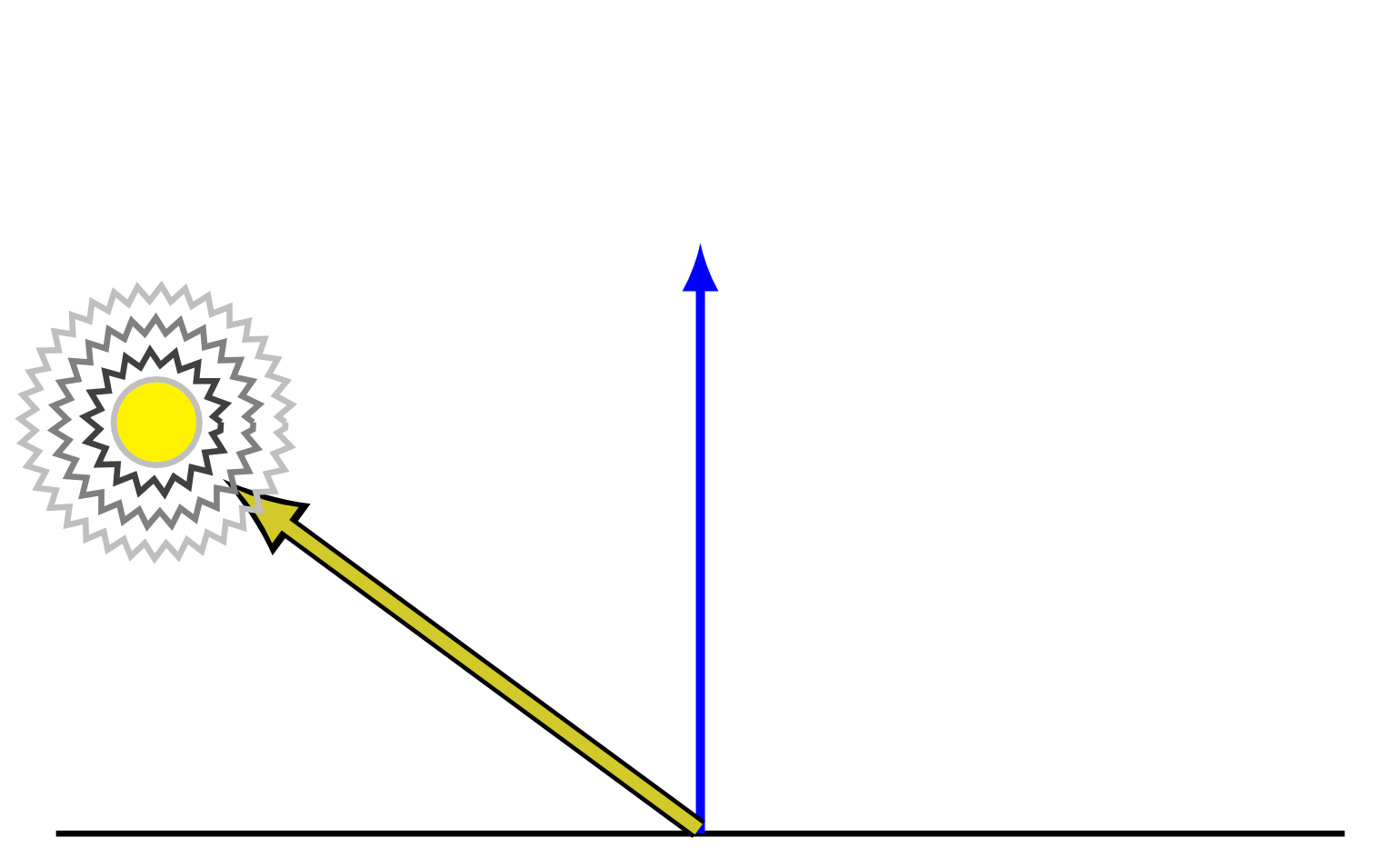

depends on direction "surface → light source"
→ local normal vector

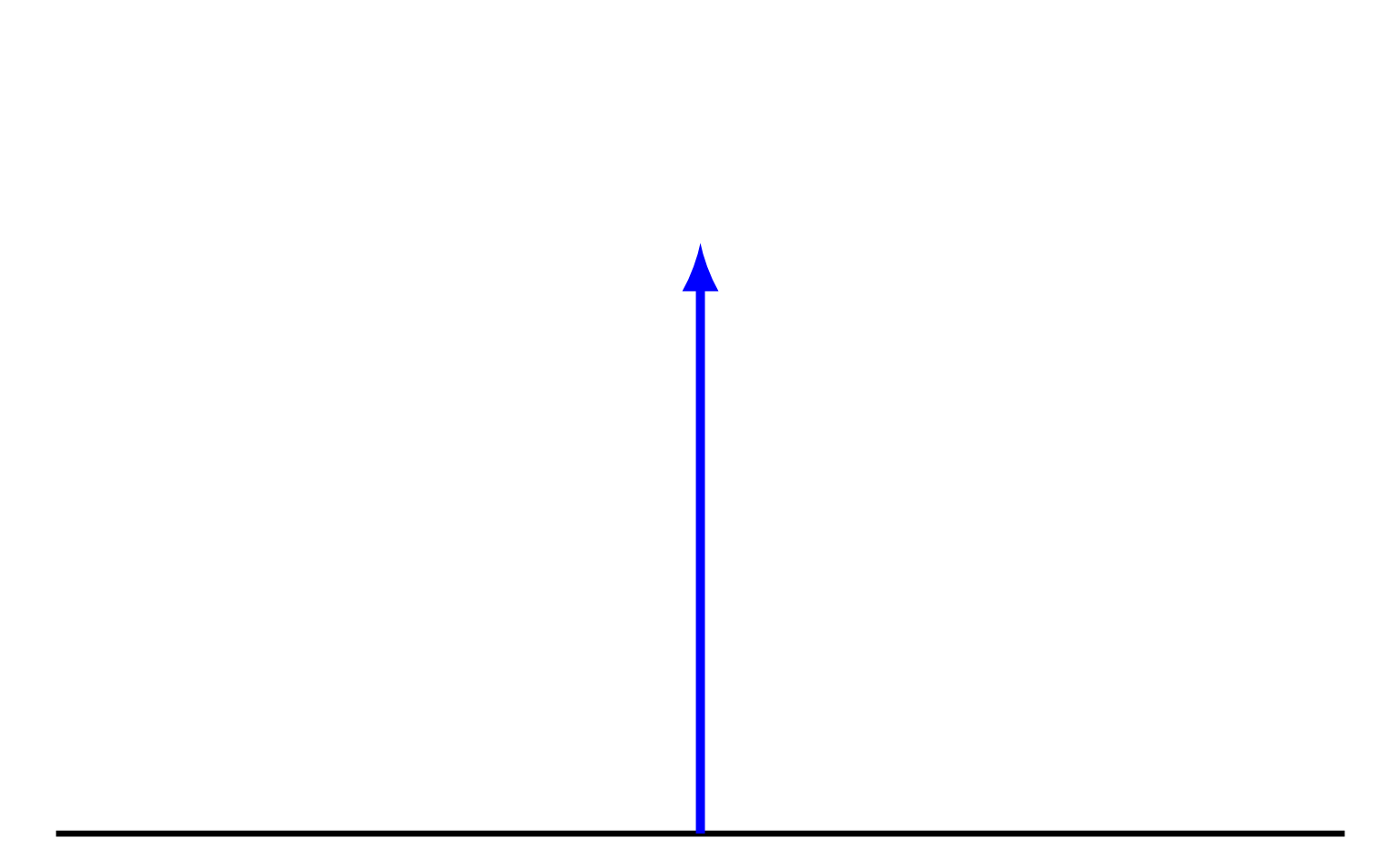

maximum: surface perpendicular to light → object color
minimum: surface parallel to light → black/nothing
perfect "Lambertian" material $$I_\text{diffuse} = f_\text{diffuse} \cdot k_\text{diffuse,material} \cdot C_\text{material}$$


ambient	+ diffuse	+ specular	= Phong

#6 Light

Diffuse light

illumination factor depends on surface orientation
$\mathbf{L} := $ surface → light source $$f_\text{diffuse} = \mathbf{n} \cdot \mathbf{L}$$
never $\leq 0$ !
(points that "look away" from the light are not lit)
→ no dependency on viewing direction!

#6 Light

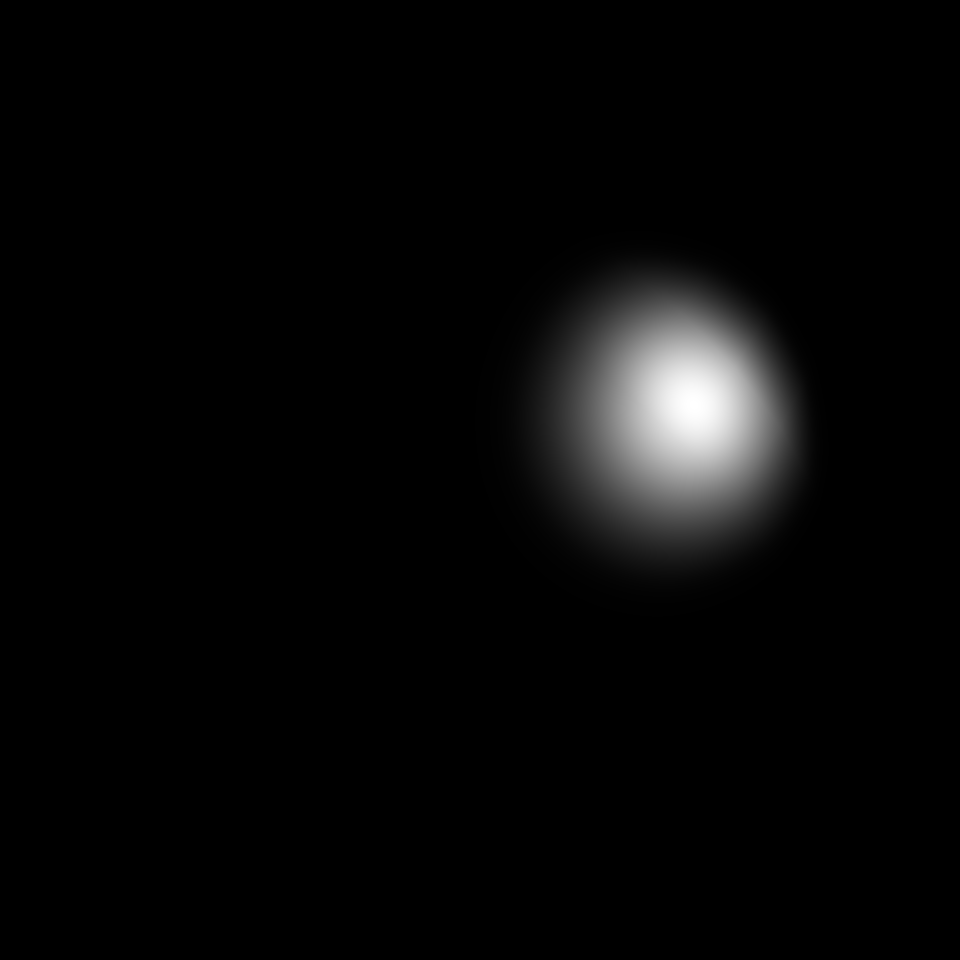

Specular light

depends on directions surface → light source
and camera → surface
"size" of highlight can be individual
→ "hardness"/"shininess"
light color instead of material color $$I_\text{specular} = f_\text{specular} \cdot k_\text{specular,material} \cdot C_\text{light}$$


ambient	+ diffuse	+ specular	= Phong

#6 Light

Specular light

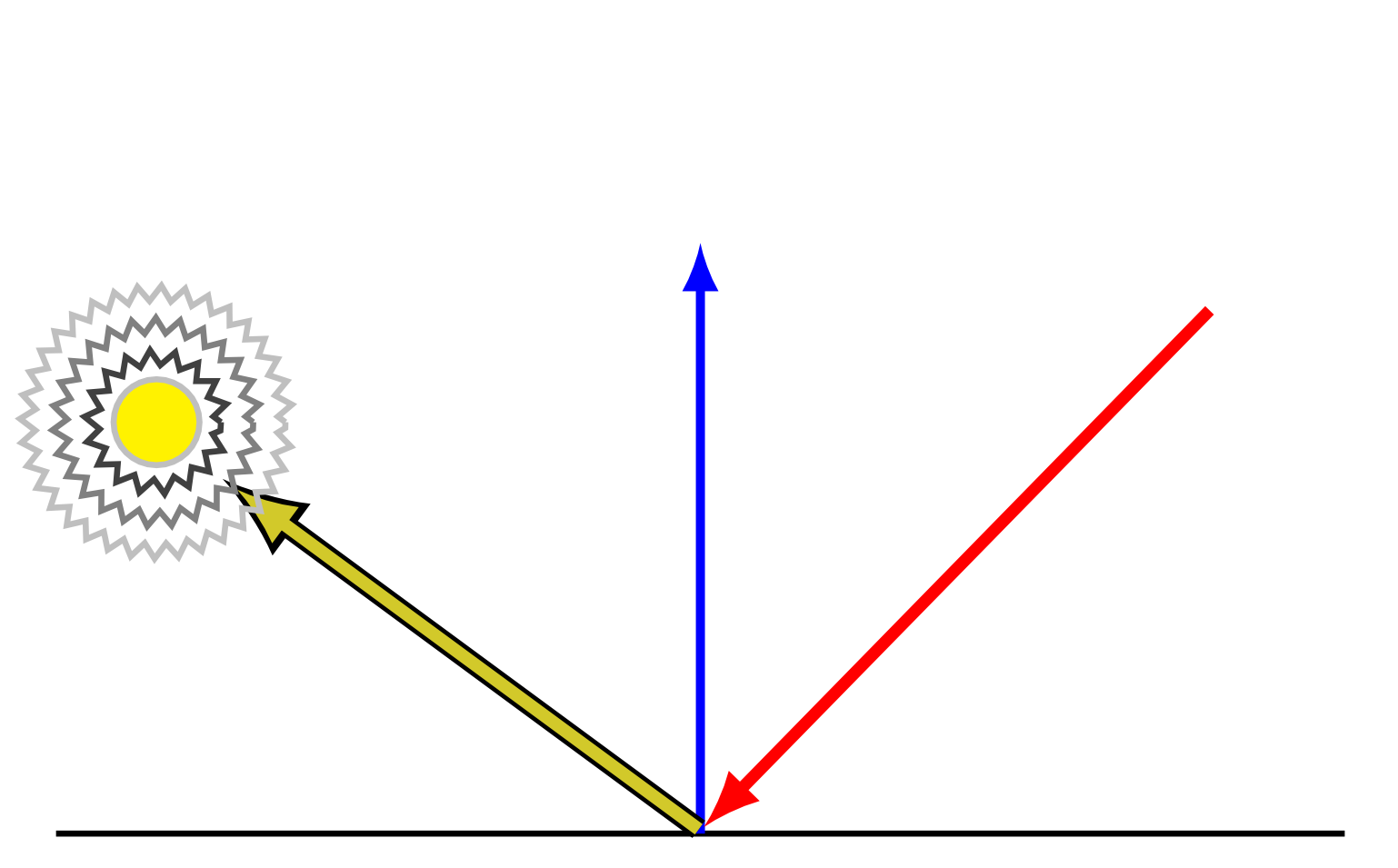

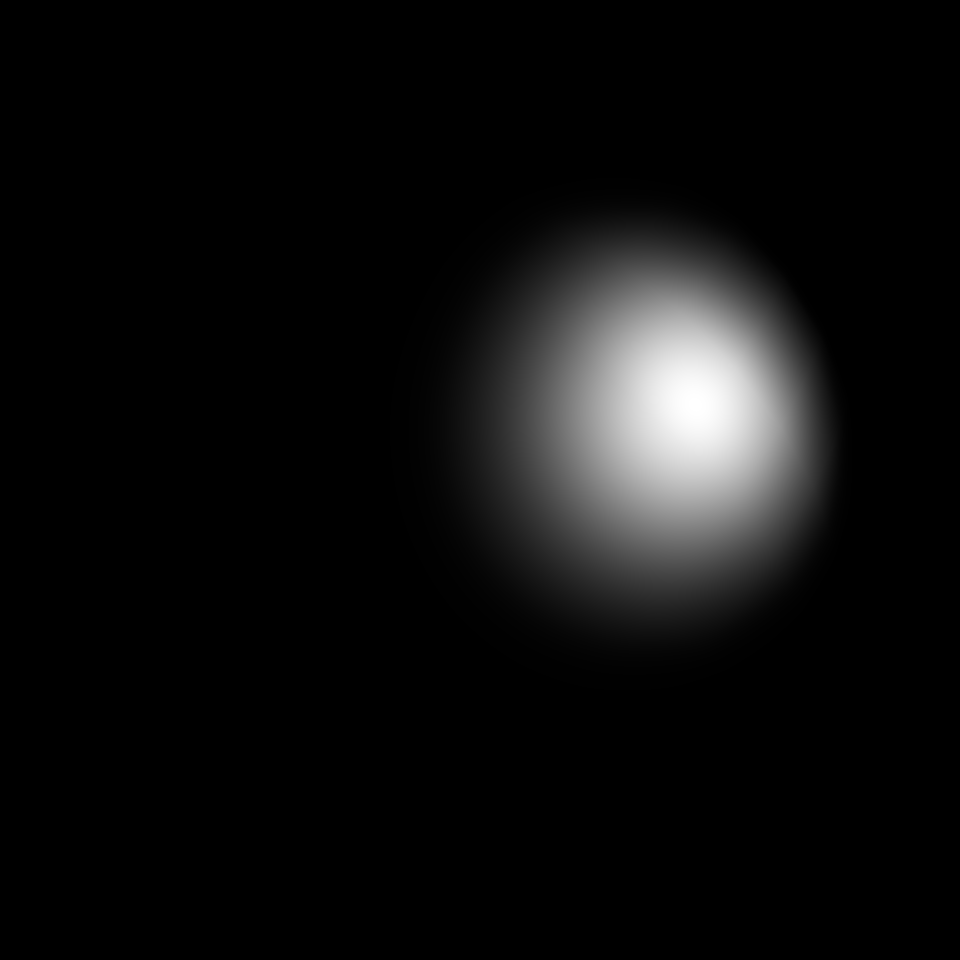

highlight = light source reflection on surface
maximum = "surface → light = reflected ray"
"harder"/"shinier" material → highlight more focused

$$f_\text{specular} = \left(\mathbf{L}\cdot\mathbf{R}\right)^\text{hardness}$$

#6 Light

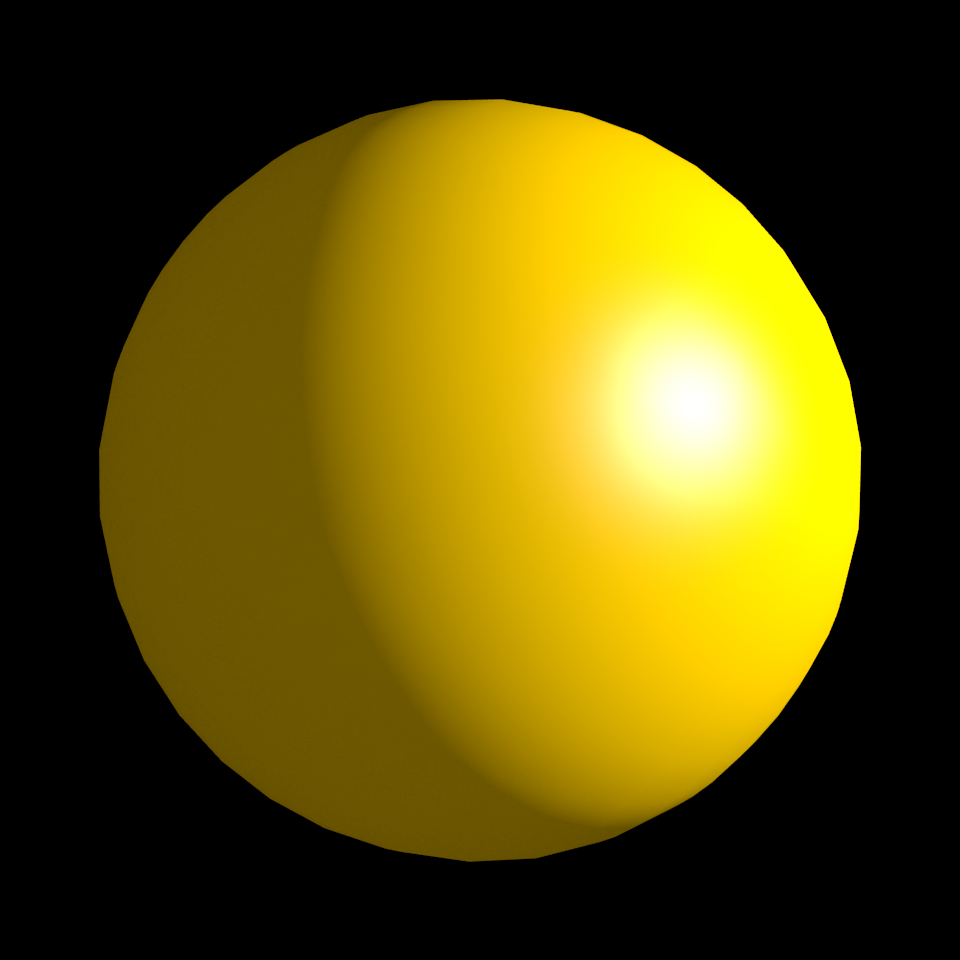

Full lighting

$$ I = I_\text{ambient} + I_\text{diffuse} + I_\text{specular} $$ $$ I = \left( k_\text{ambient} + f_\text{diffuse} \right) \cdot k_\text{diffuse,material} \cdot C_\text{material} + \\ f_\text{specular} \cdot k_\text{specular,material} \cdot C_\text{light} $$ $$ I = \left( k_\text{ambient} + \mathbf{n}\cdot\mathbf{L} \right) \cdot k_\text{diffuse,material} \cdot C_\text{material} + \\ \left( \mathbf{L}\cdot\mathbf{R} \right)^\text{hardness} \cdot k_\text{specular,material} \cdot C_\text{light} $$


ambient	+ diffuse	+ specular	= Phong

#6 Light

Hack time

Illumination

#6 Light

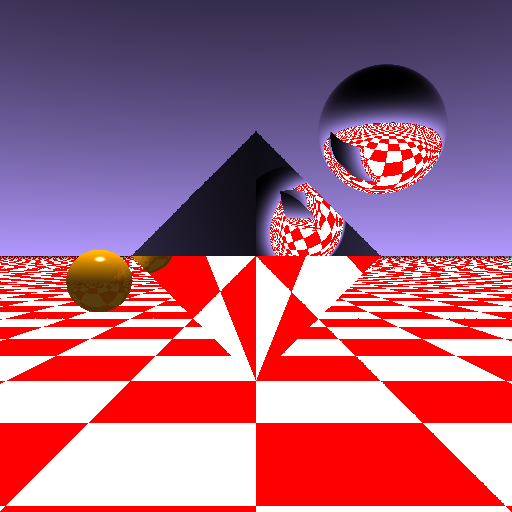

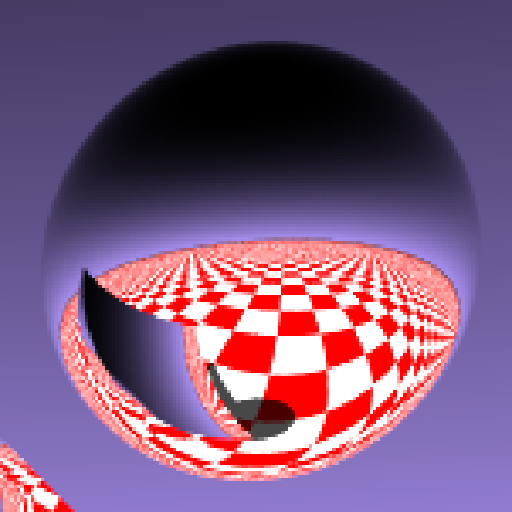

Result

#6 Light

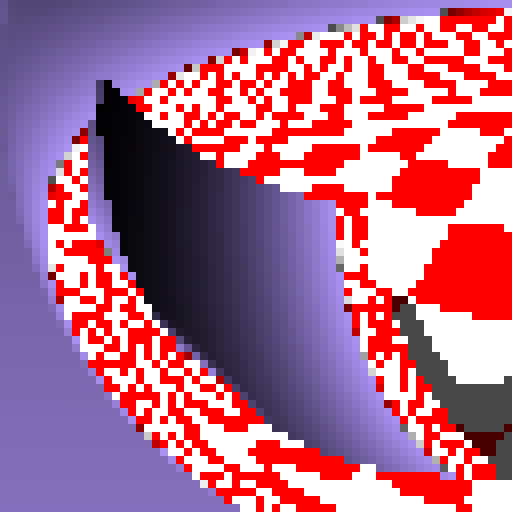

Debugging

$\mathbf{L}$: surface → light
$\mathbf{R}$: surface → ...

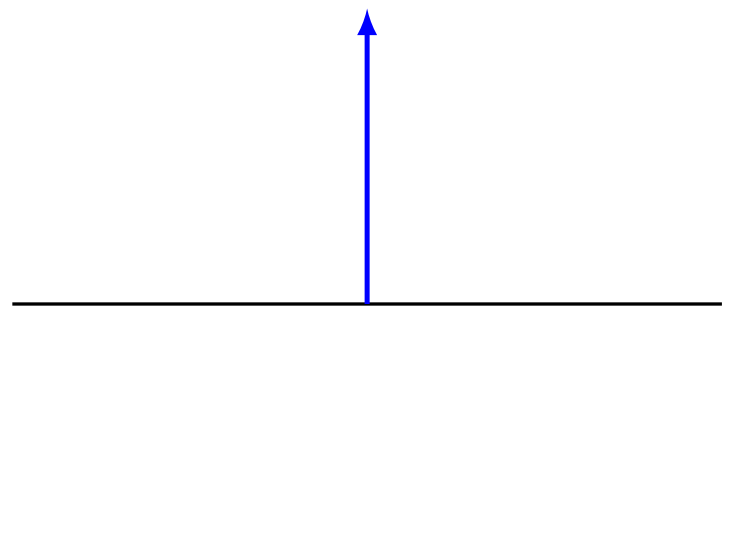

$\mathbf{n}$: surface → ...
$0 \leq f_\text{diffuse}, f_\text{specular} \leq 1$
→ unit length

Level 7 — Shadows

#7 Shadows

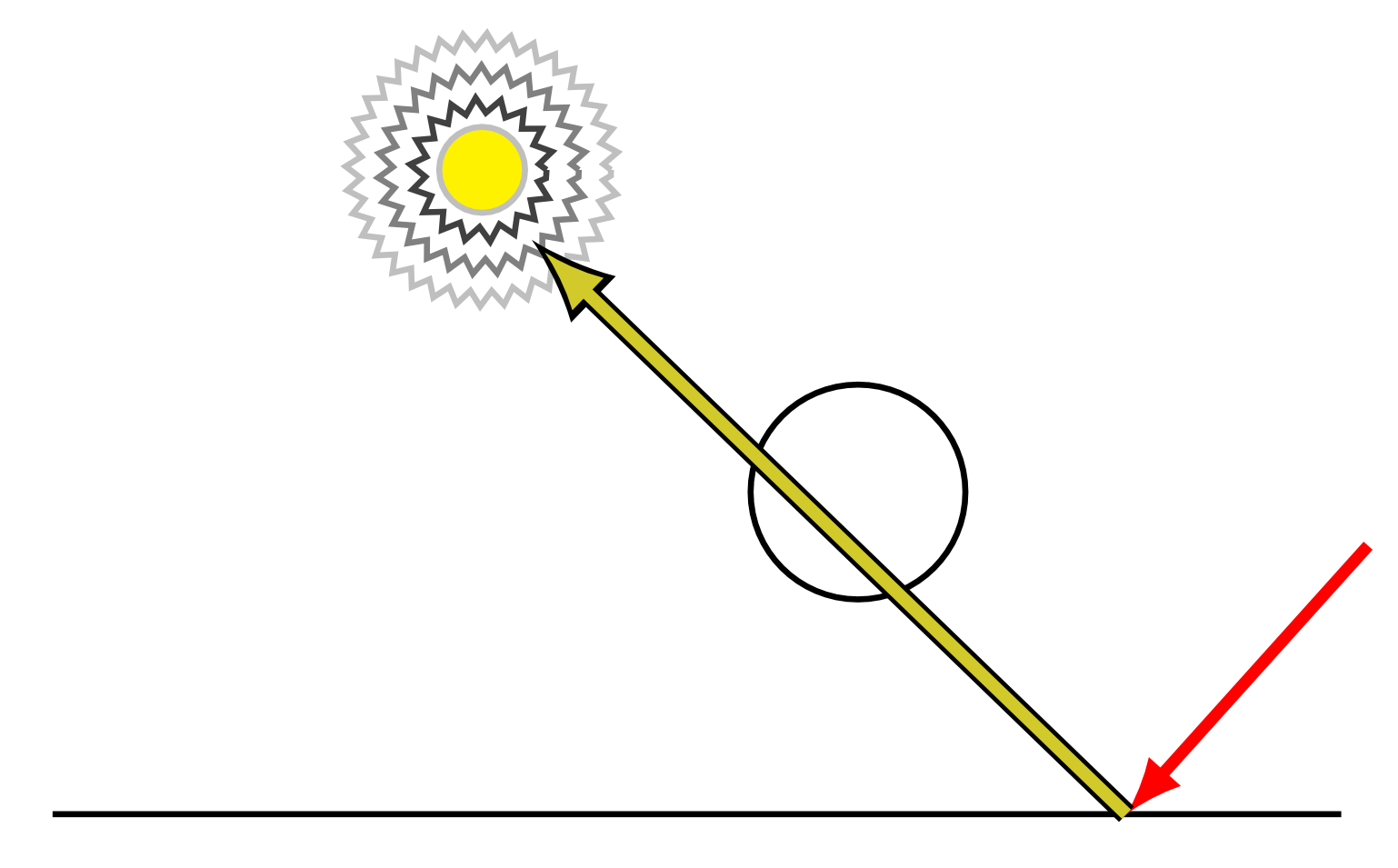

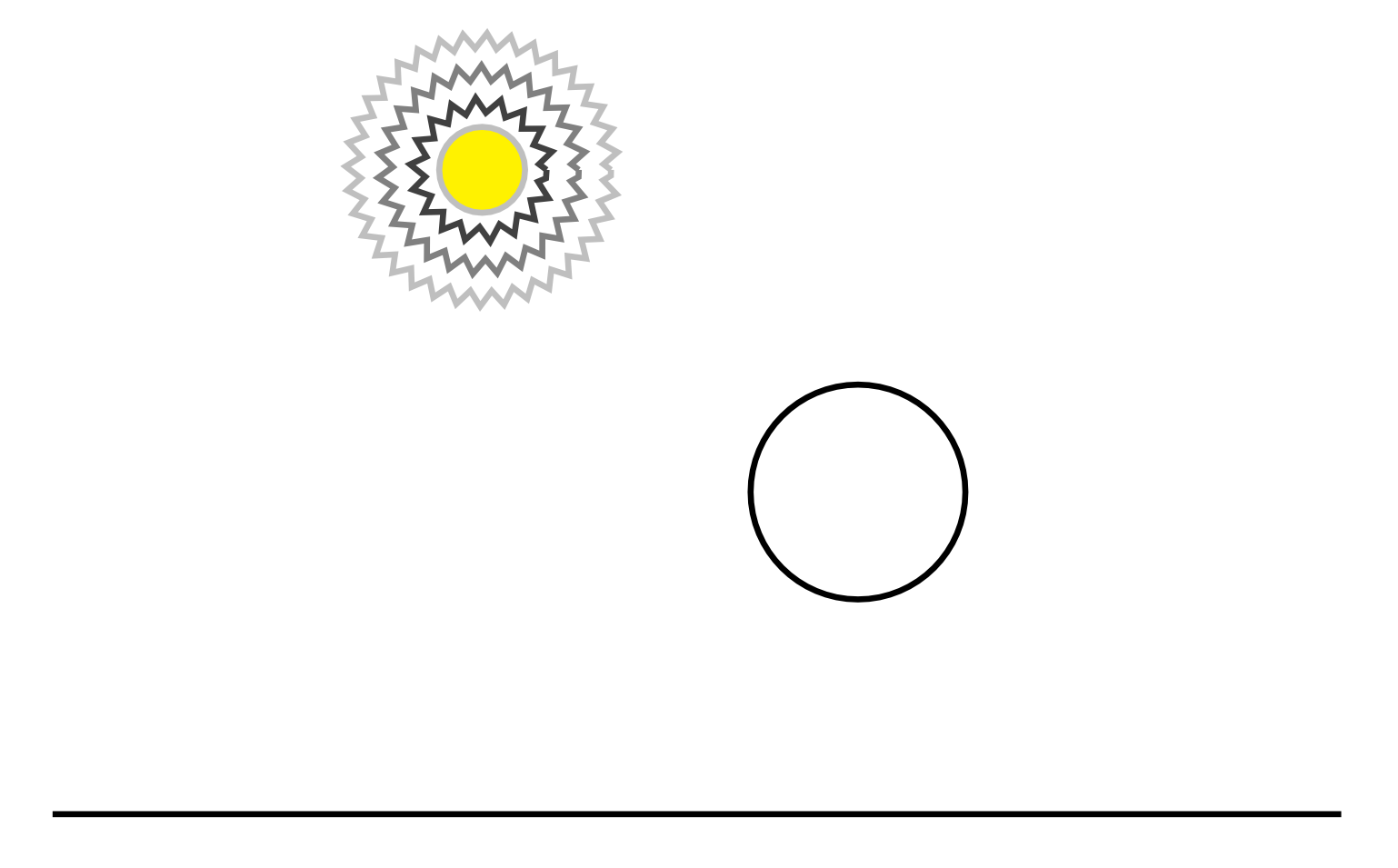

Shadows

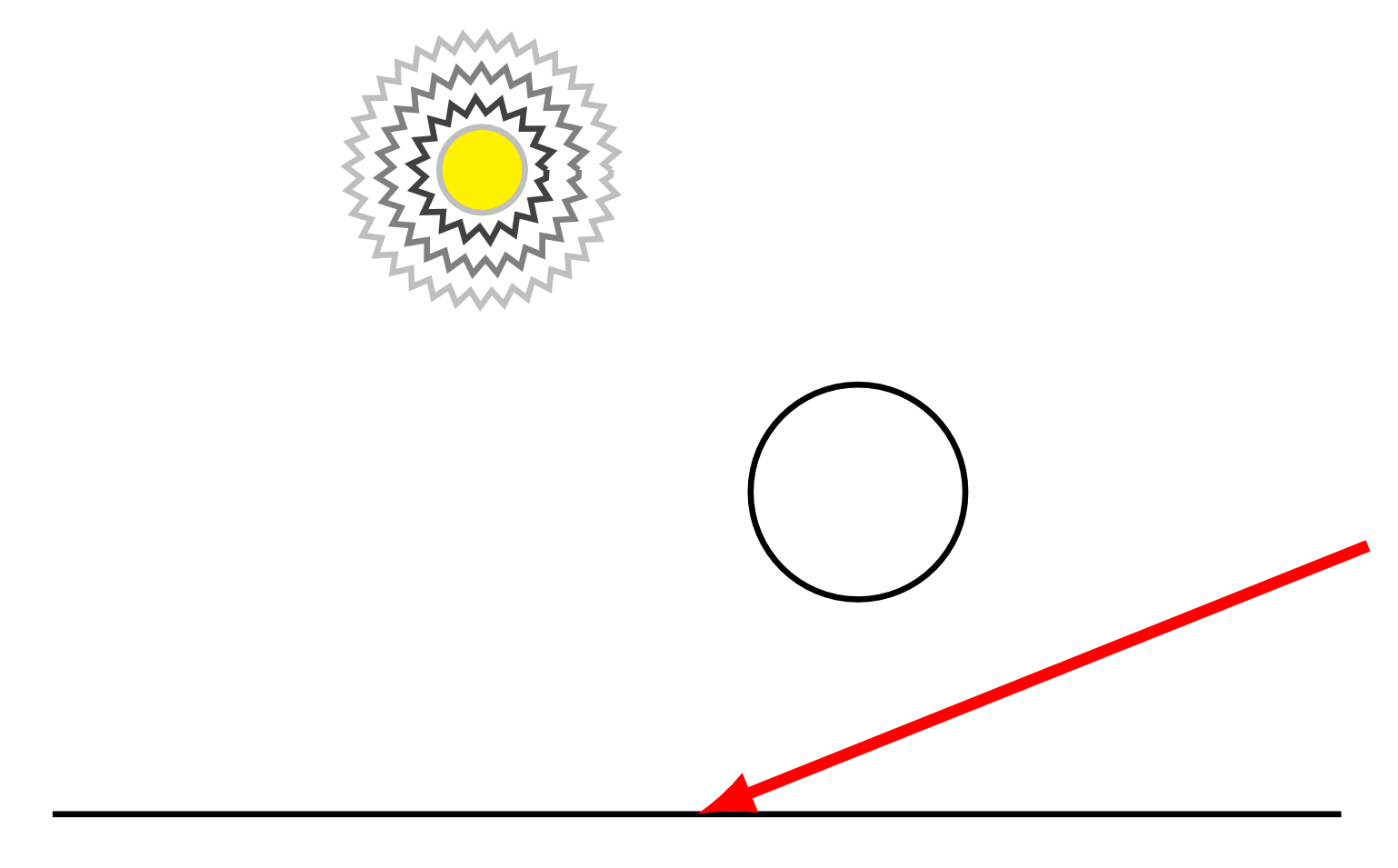

we have shading but no shadows
what is in shadow?

what is not in the light

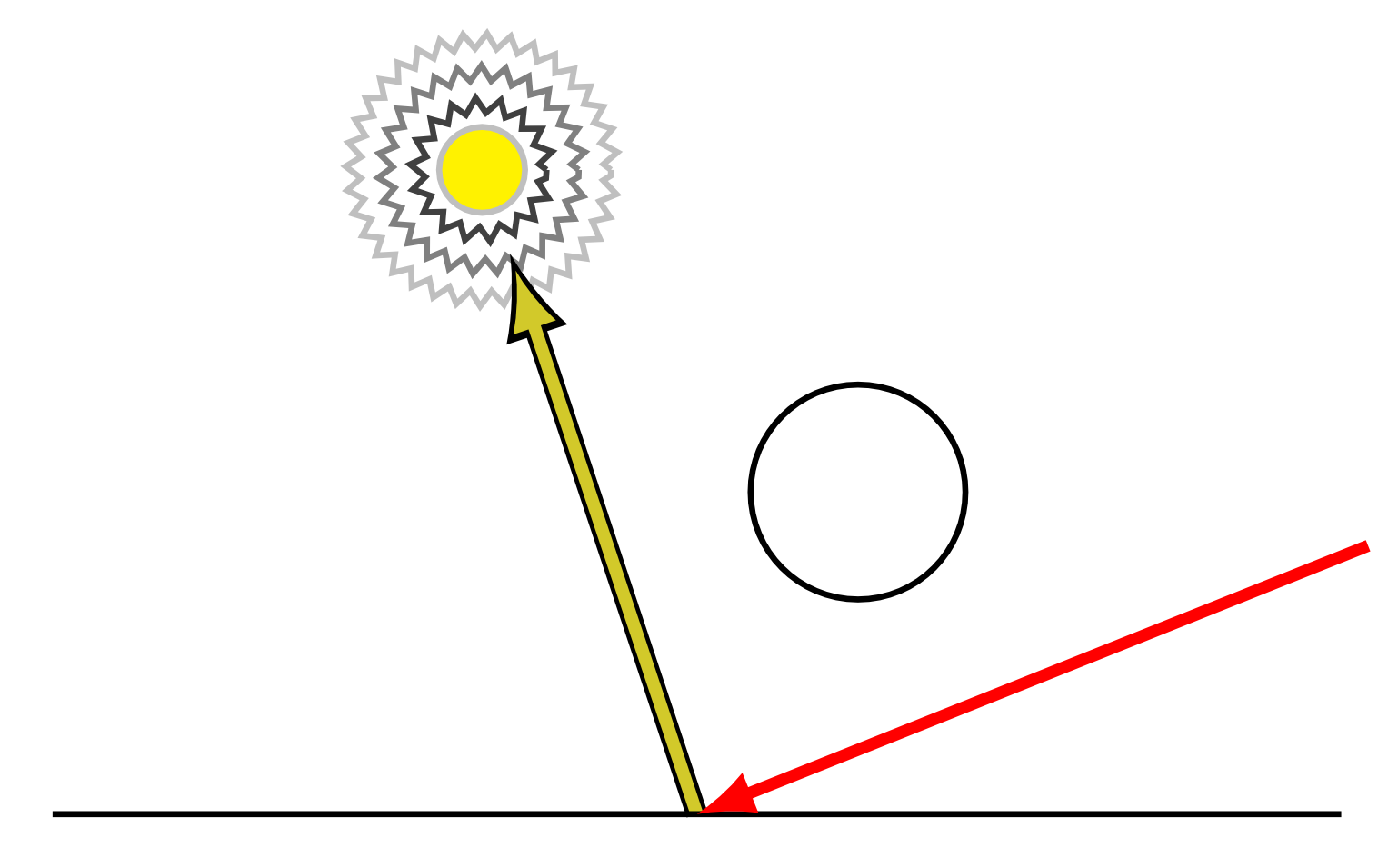

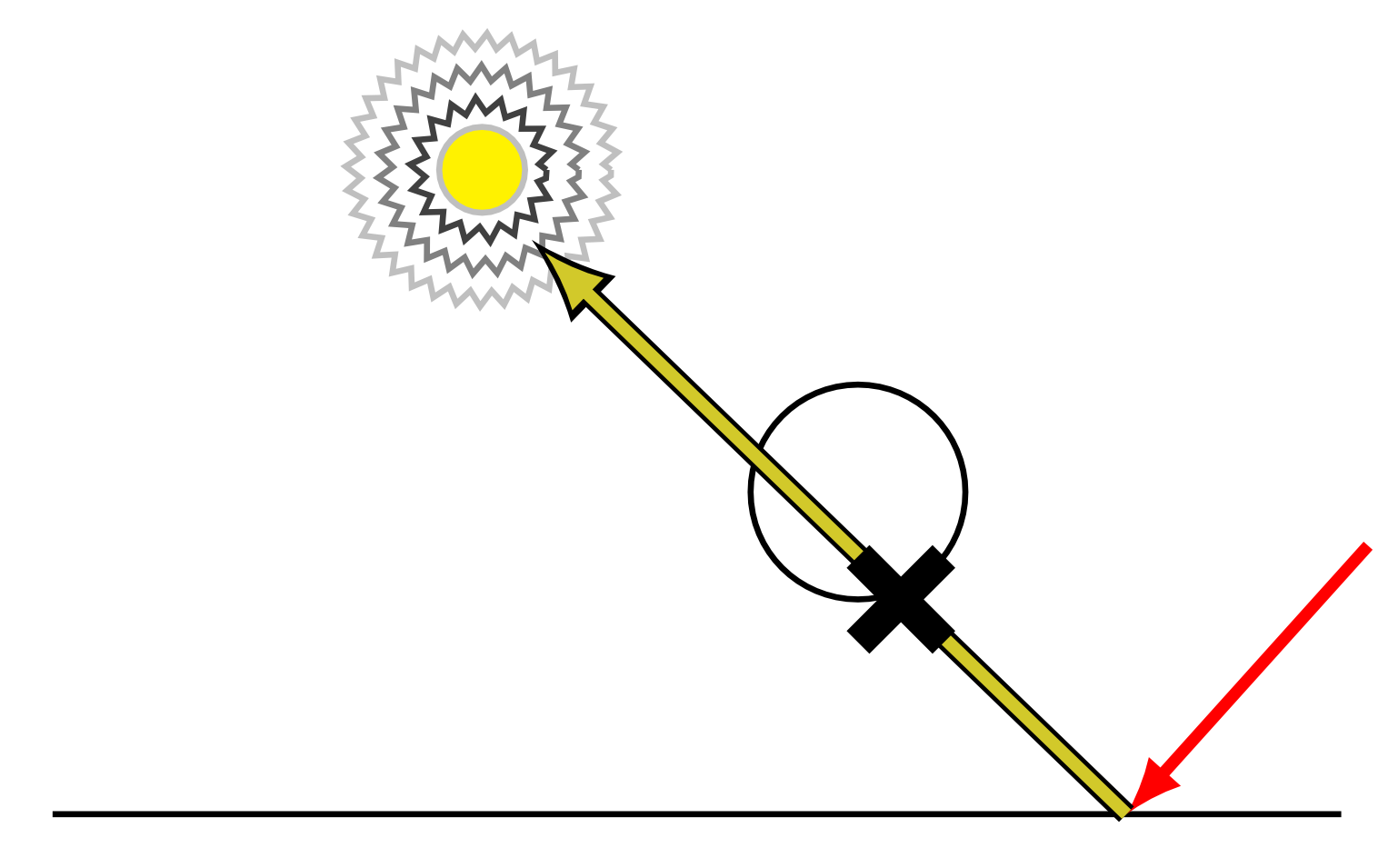

= points which do not "see" the light
= points with an object between them and the light
→ Raytracing + intersection tests!

→ we have all of that! \Ü/
even in shadow:
ambient light!

#7 Shadows

Hack time

Shadows

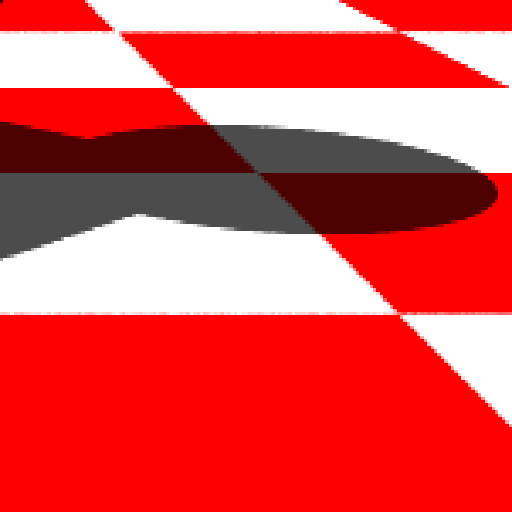

#7 Shadows

Result

#7 Shadows

Debugging

(cf. #6 Light)

Level 8 — Random stuff

#8 Random stuff

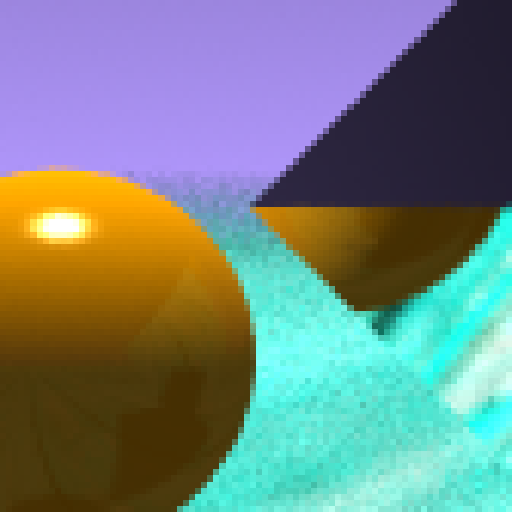

anti-aliasing
matte surfaces
soft shadows
depth of field

#8 Random stuff

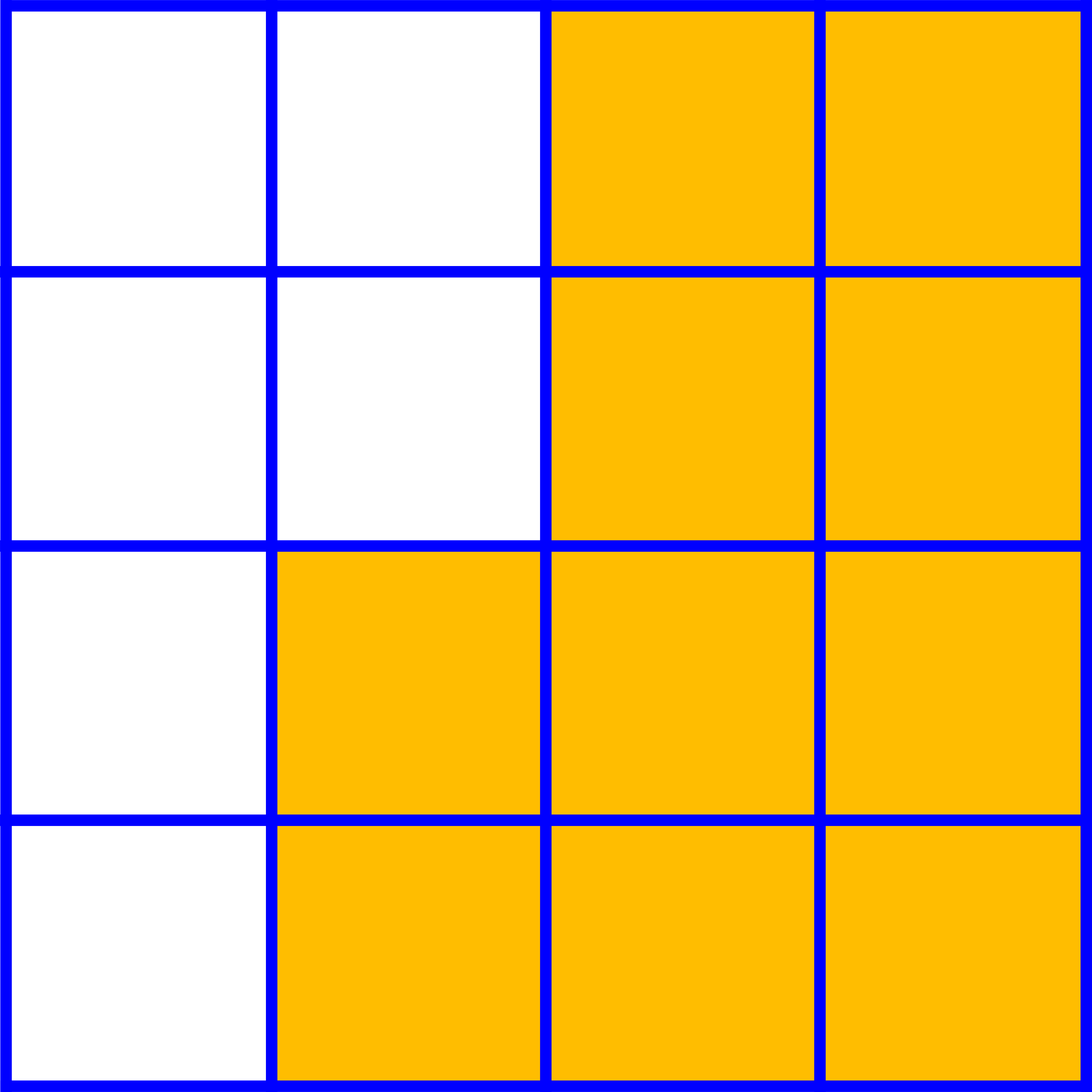

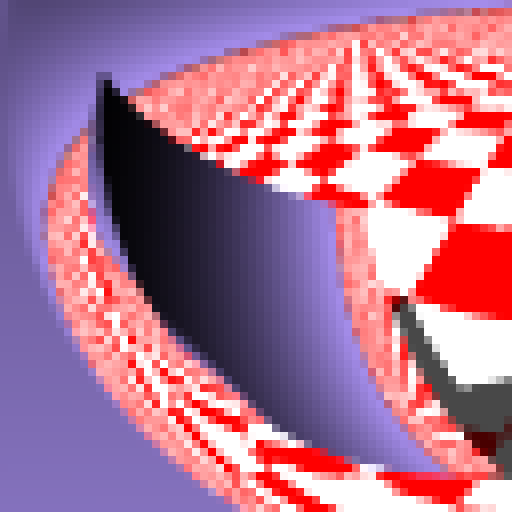

Aliasing

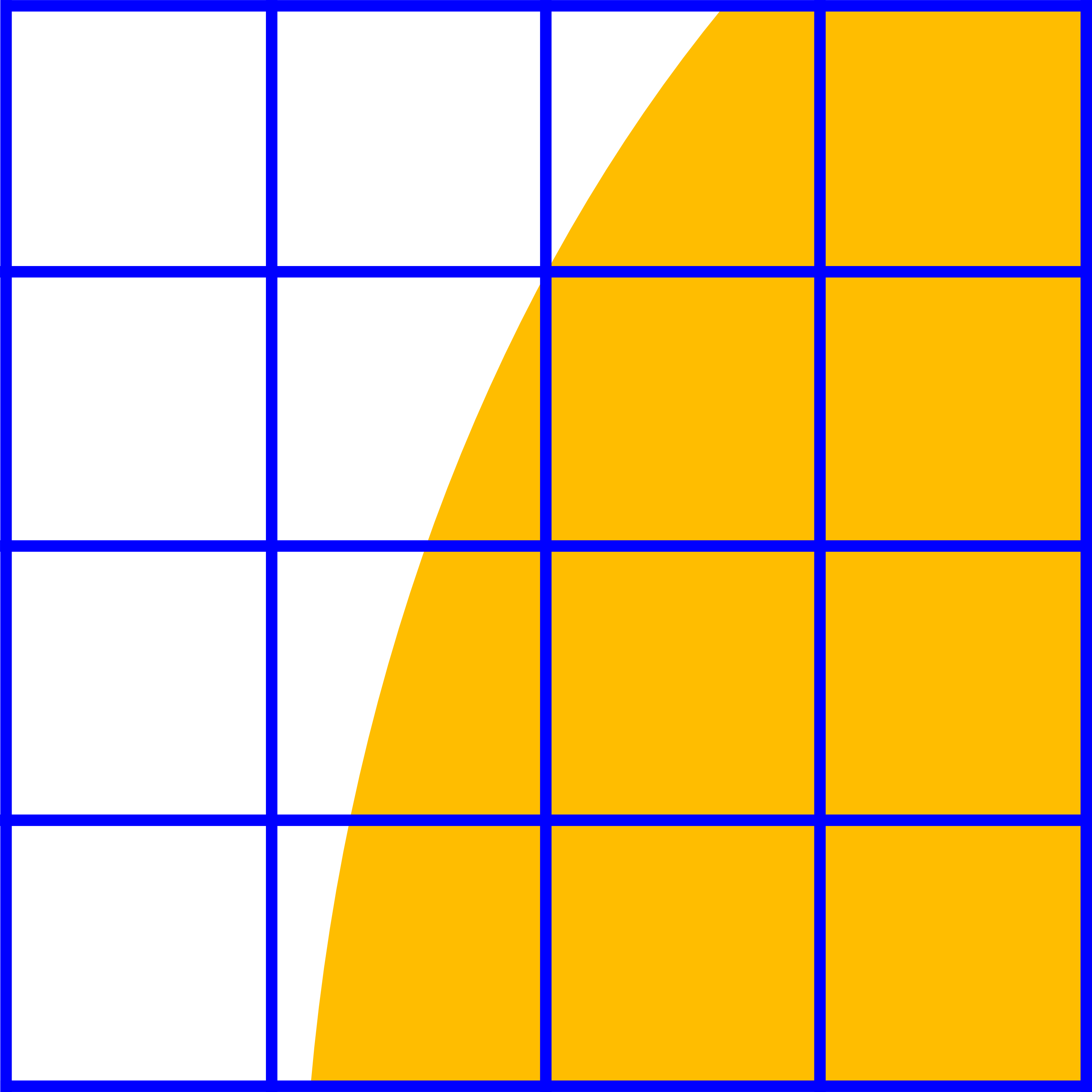

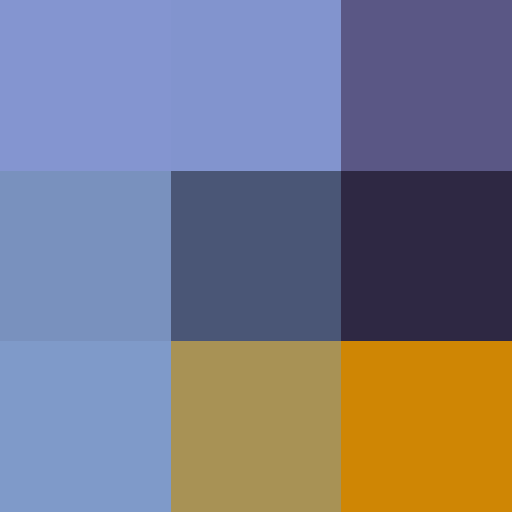

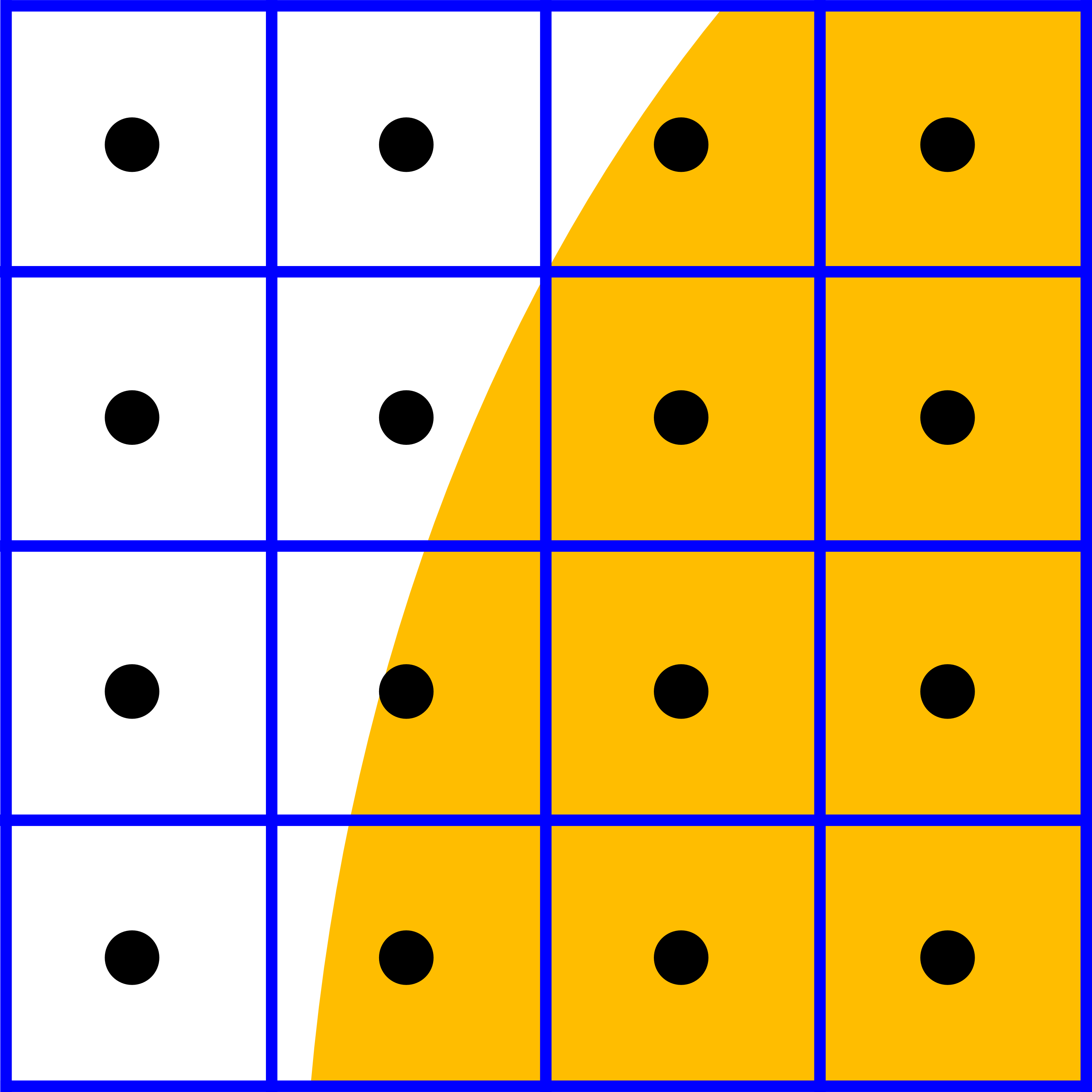

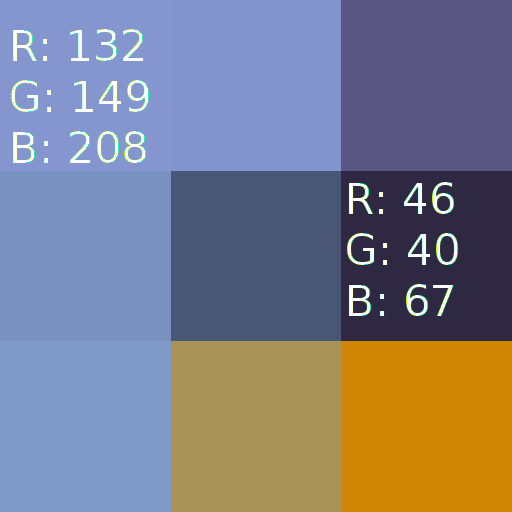

sensor grid: resolution $X$
real world: resolution $\infty$
imaging = discretization
one ray = one measurement
single ray → aliasing

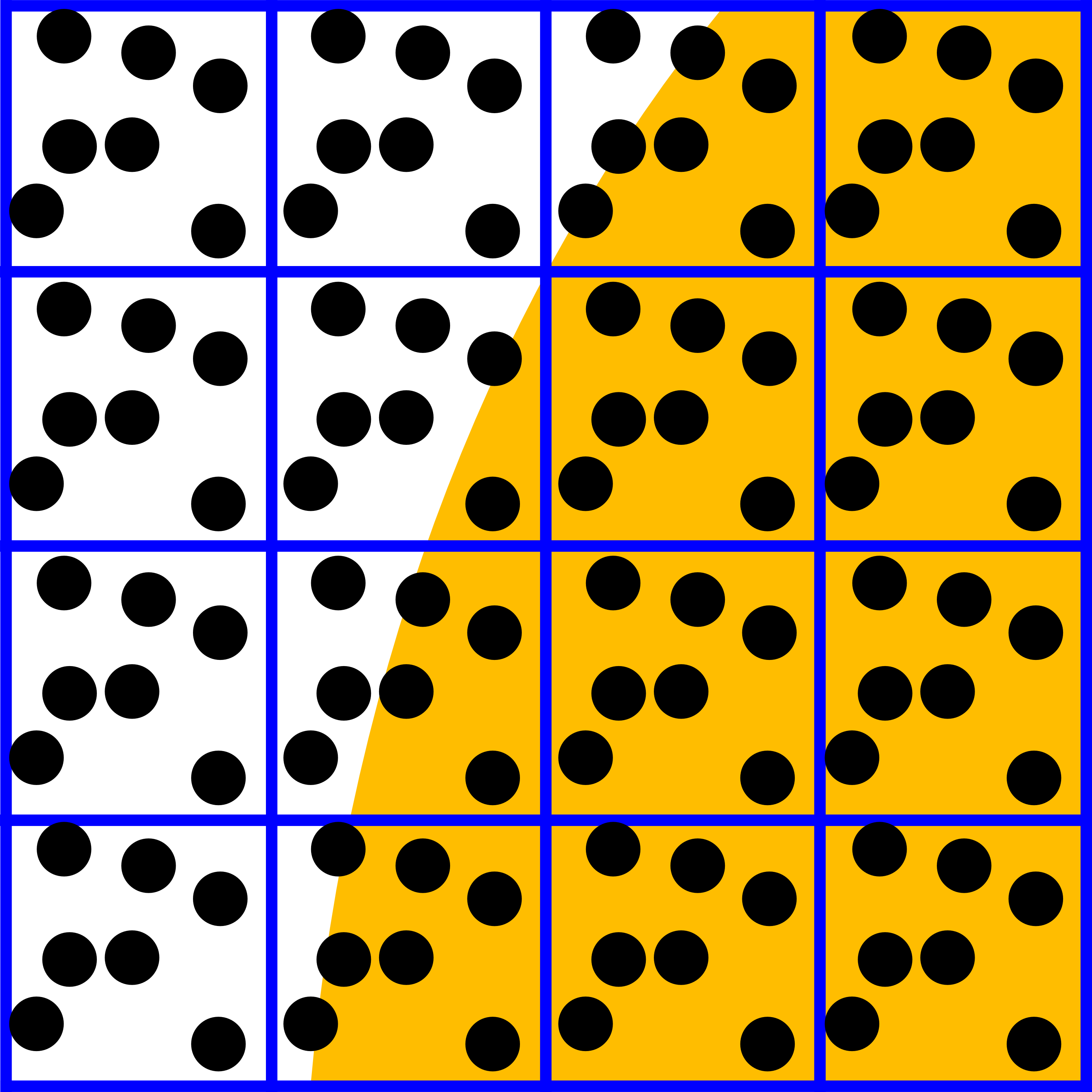

#8 Random stuff

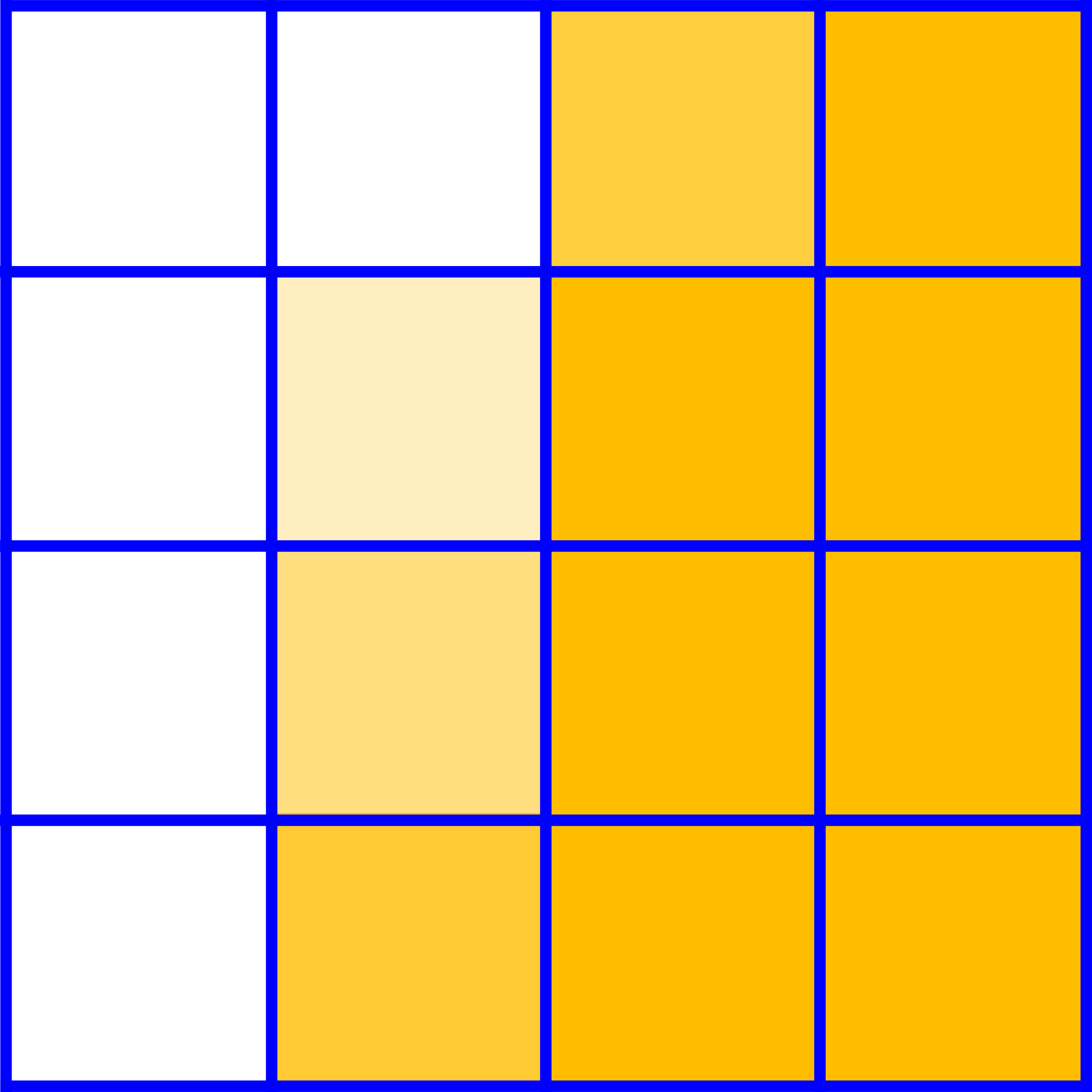

Anti-aliasing

one ray = one measurement
→ multiple measurements
→ average

#8 Random stuff

Hack time

Anti-aliasing

#8 Random stuff

Result

#8 Random stuff

Debugging

random offset $\in [-0.5, 0.5]^2$
(one of the limits should really be excluded)

#8 Random stuff

Surface structure

up to now:

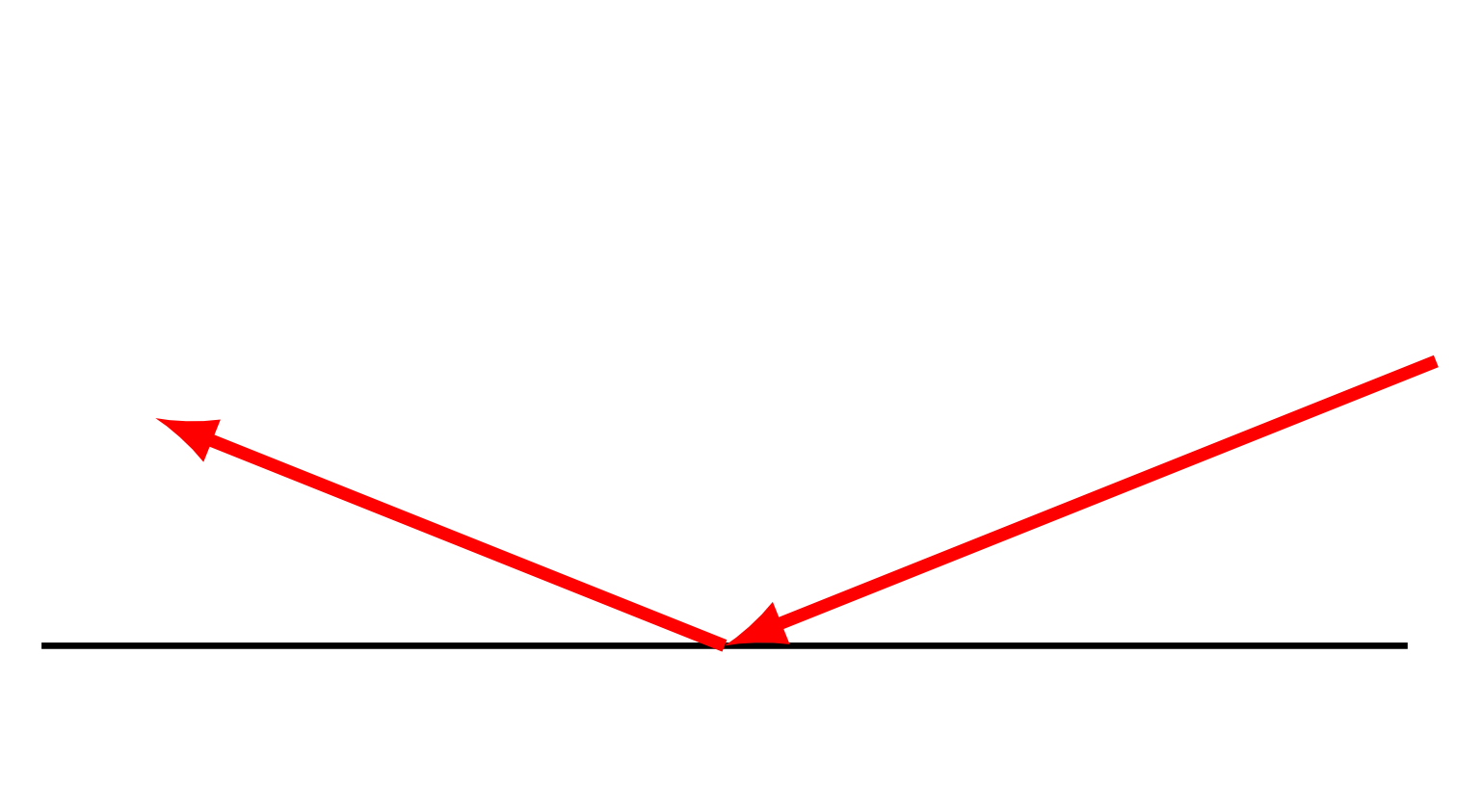

perfect reflection

no reflection

mirroring

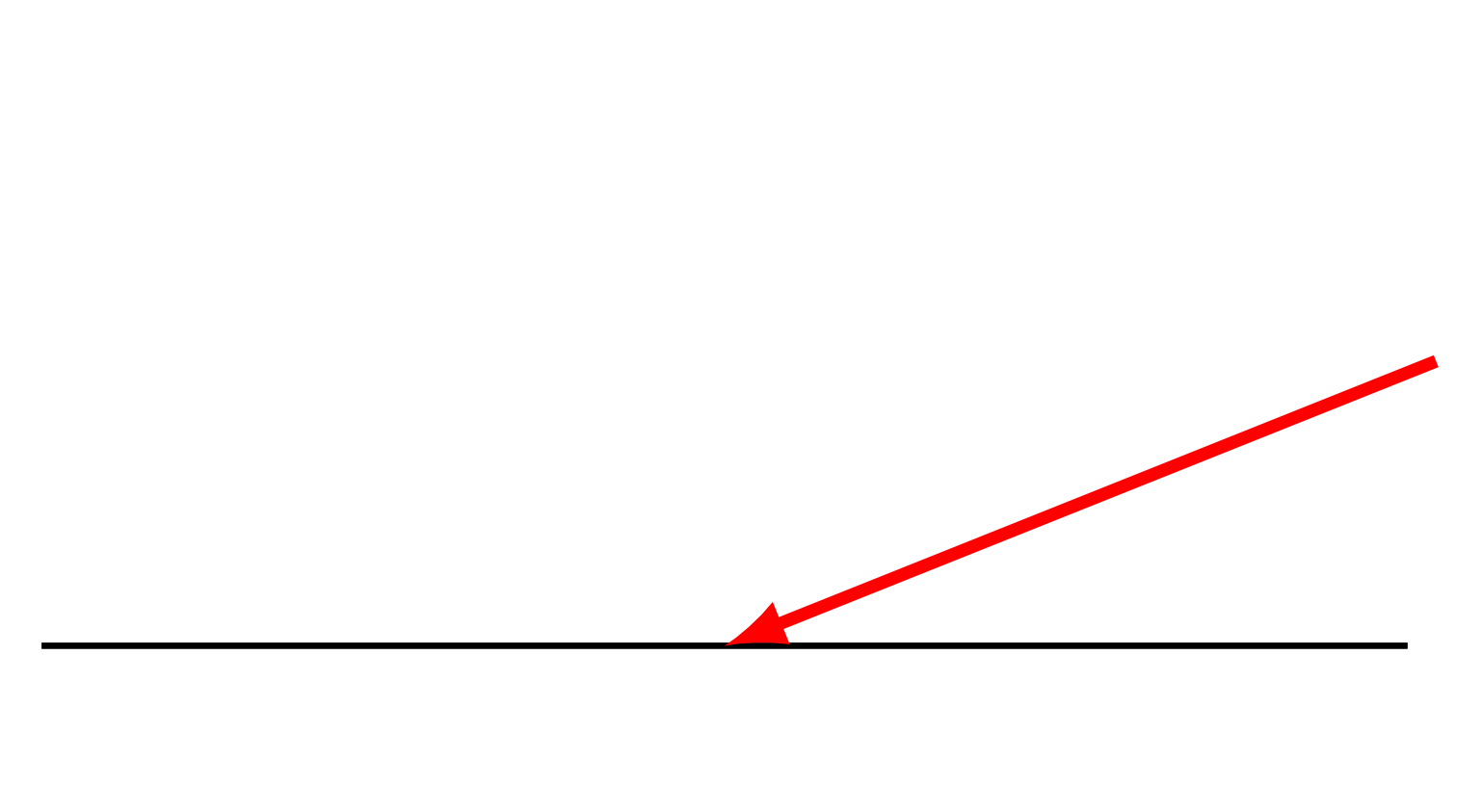

absorbing

#8 Random stuff

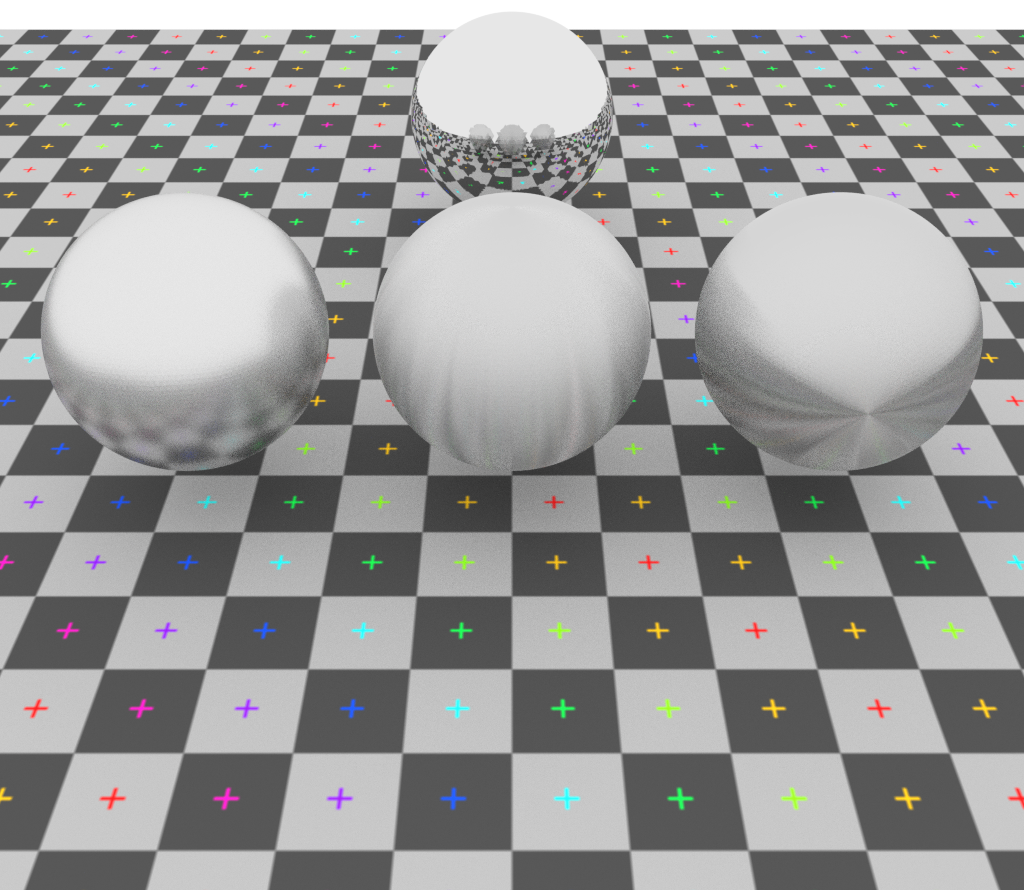

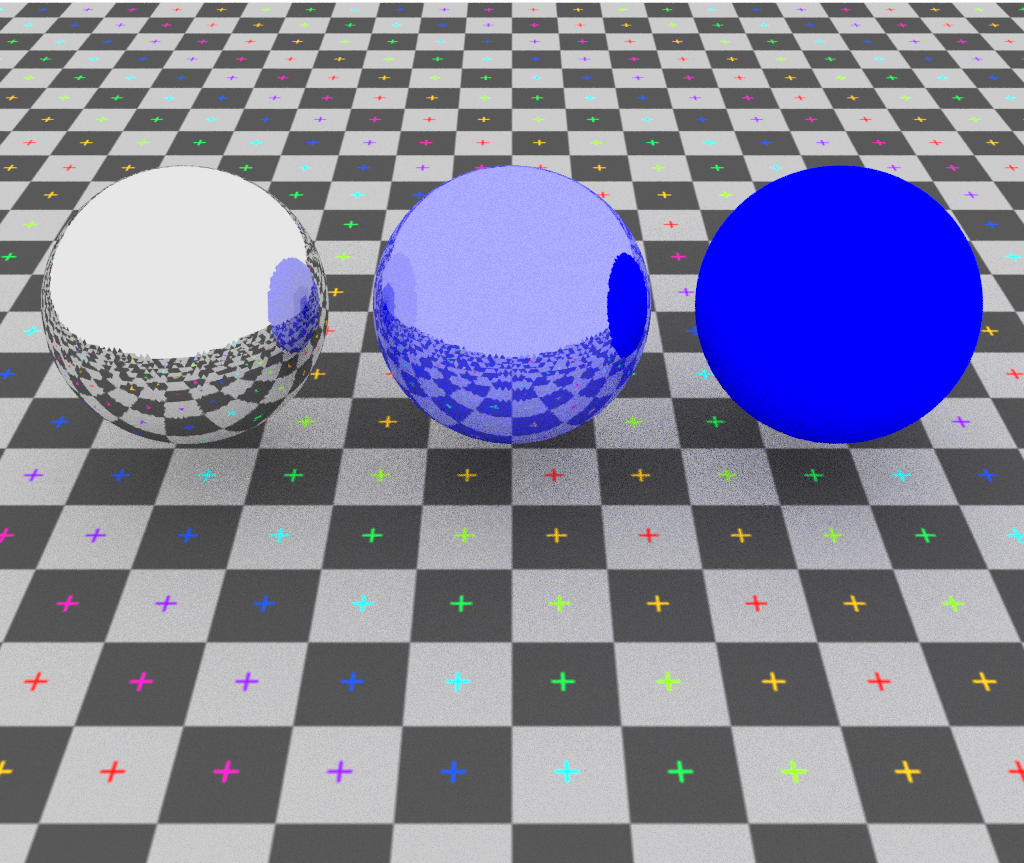

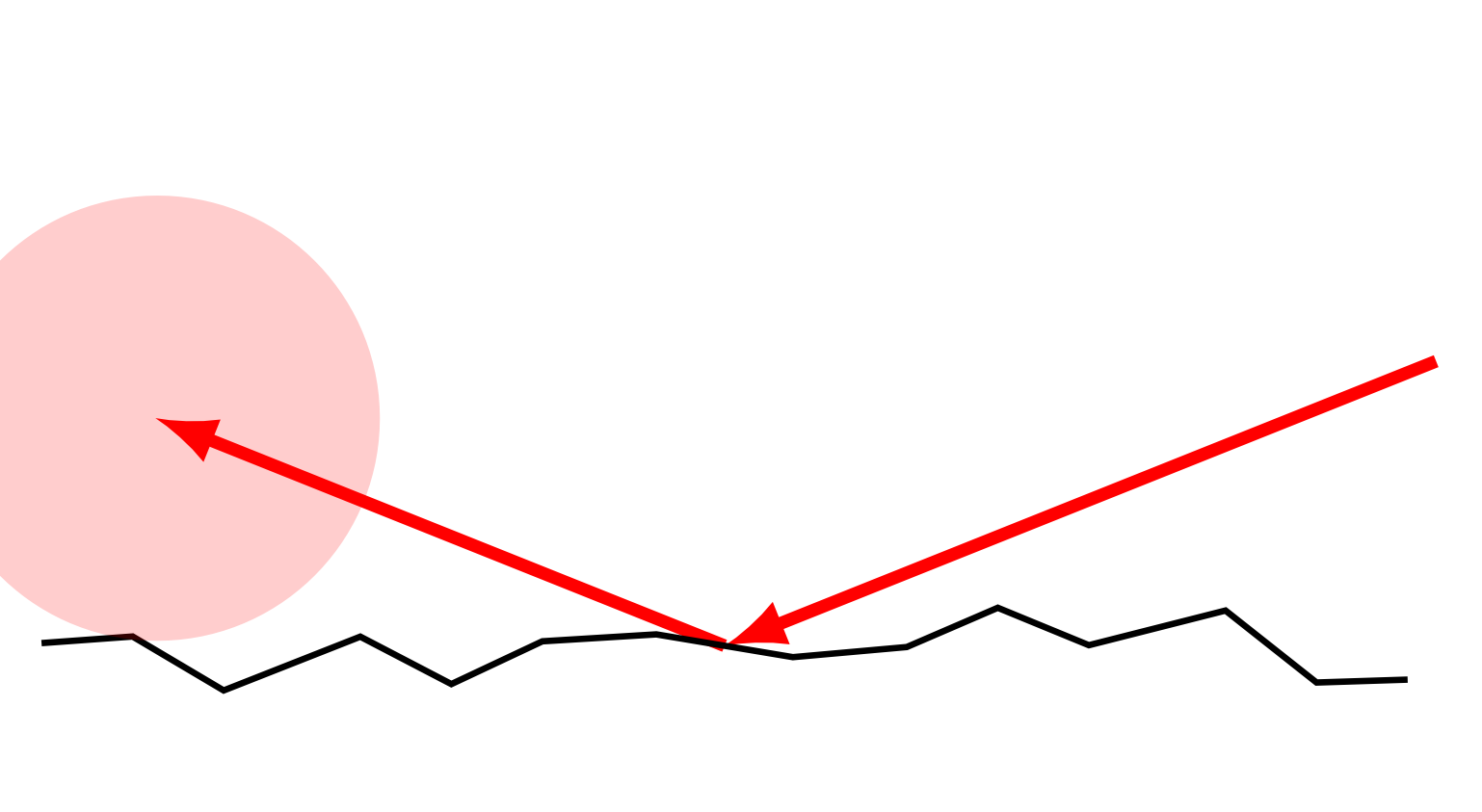

matte surfaces

matte objects are like "bad mirrors"
(example: polished vs. sandblasted metal)

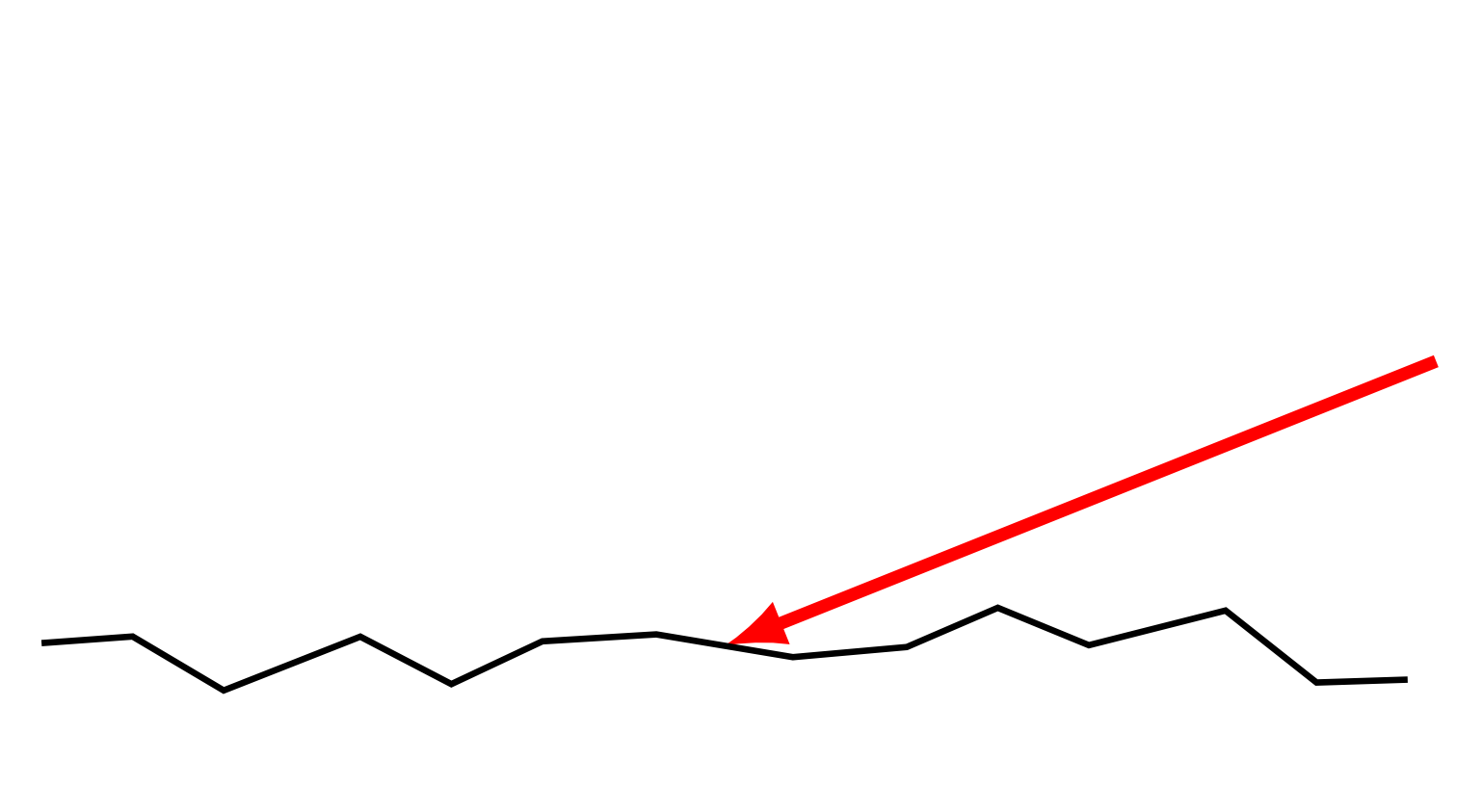

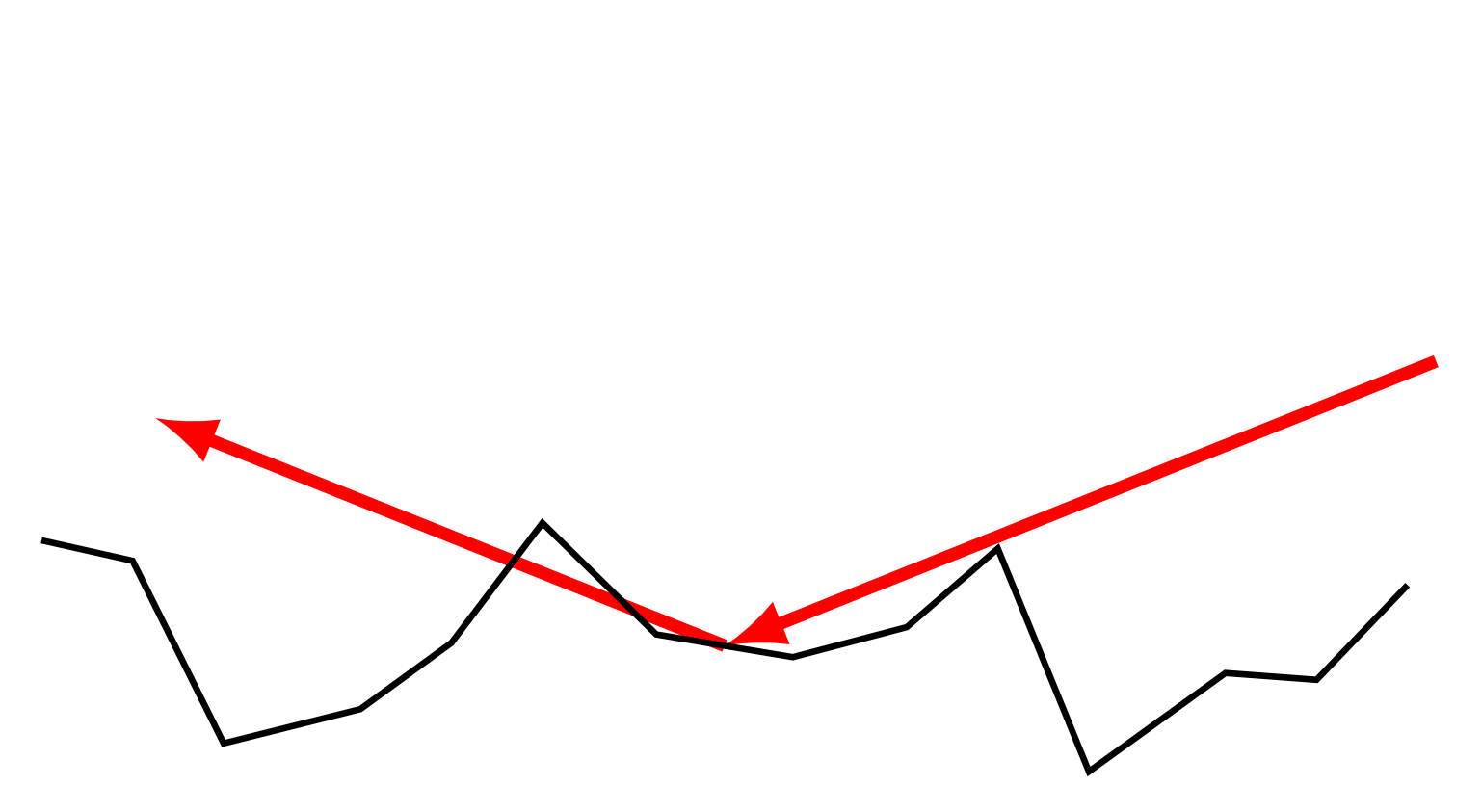

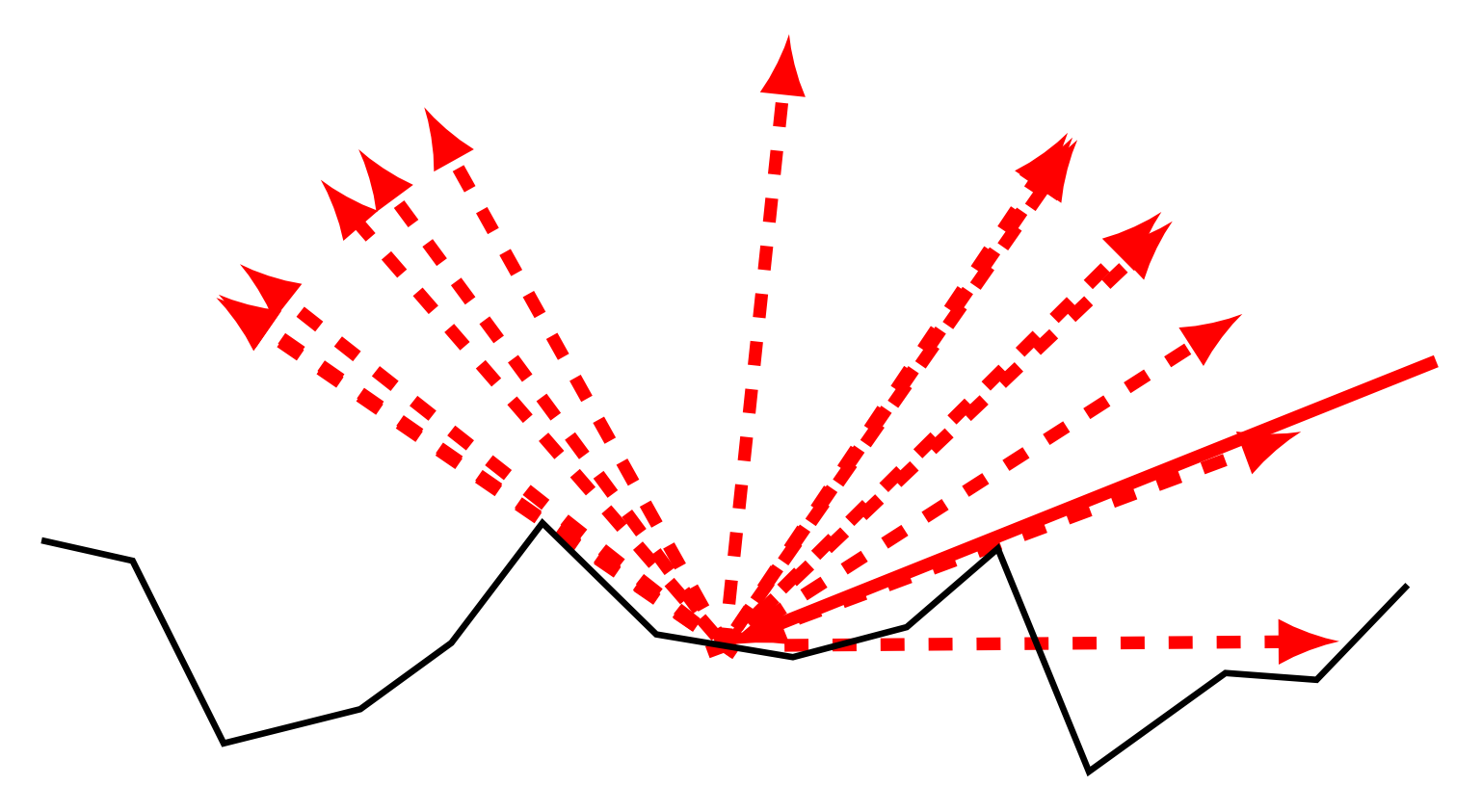

matte surfaces are rough surfaces

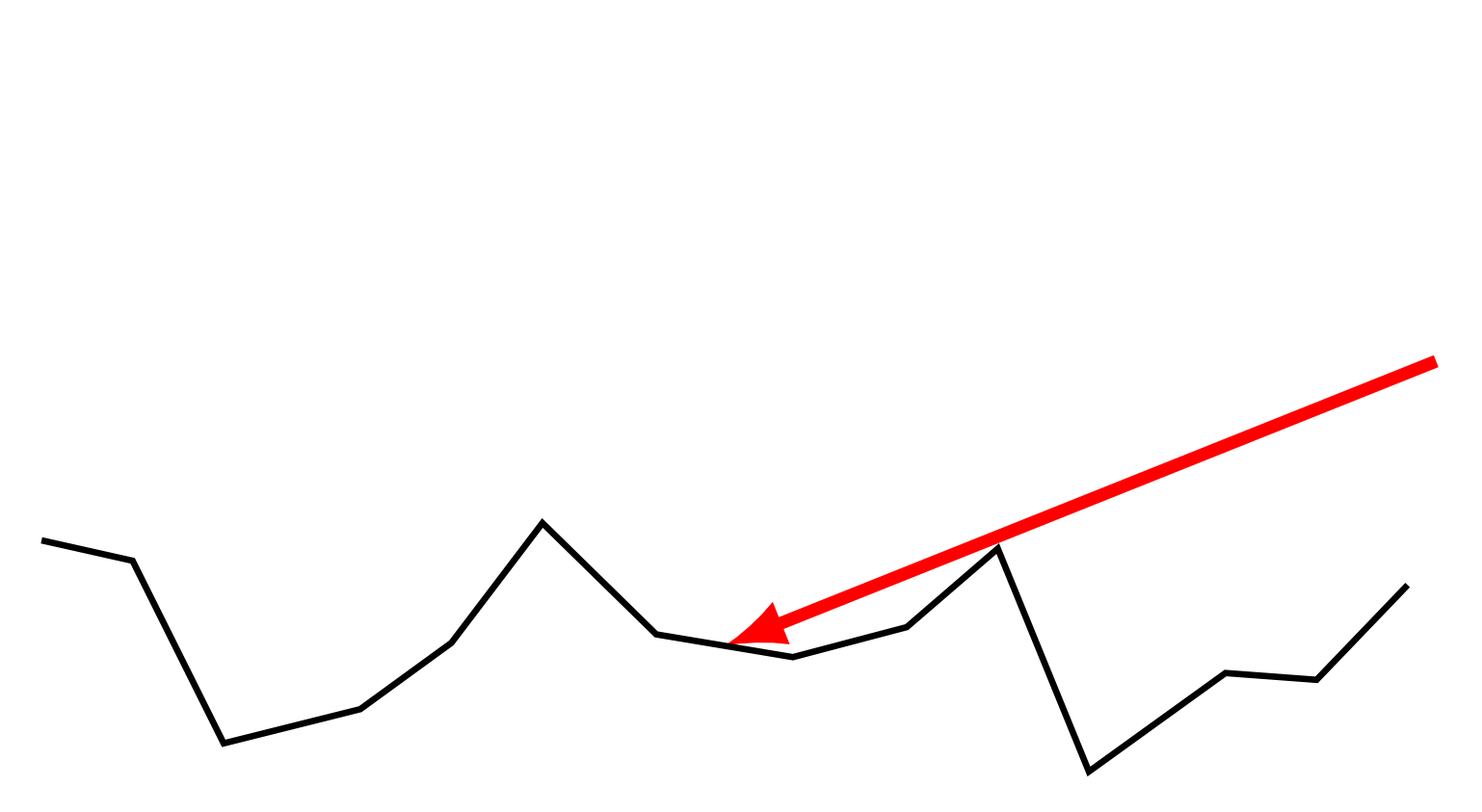

rough surfaces' normals are random
grade of randomness = roughness

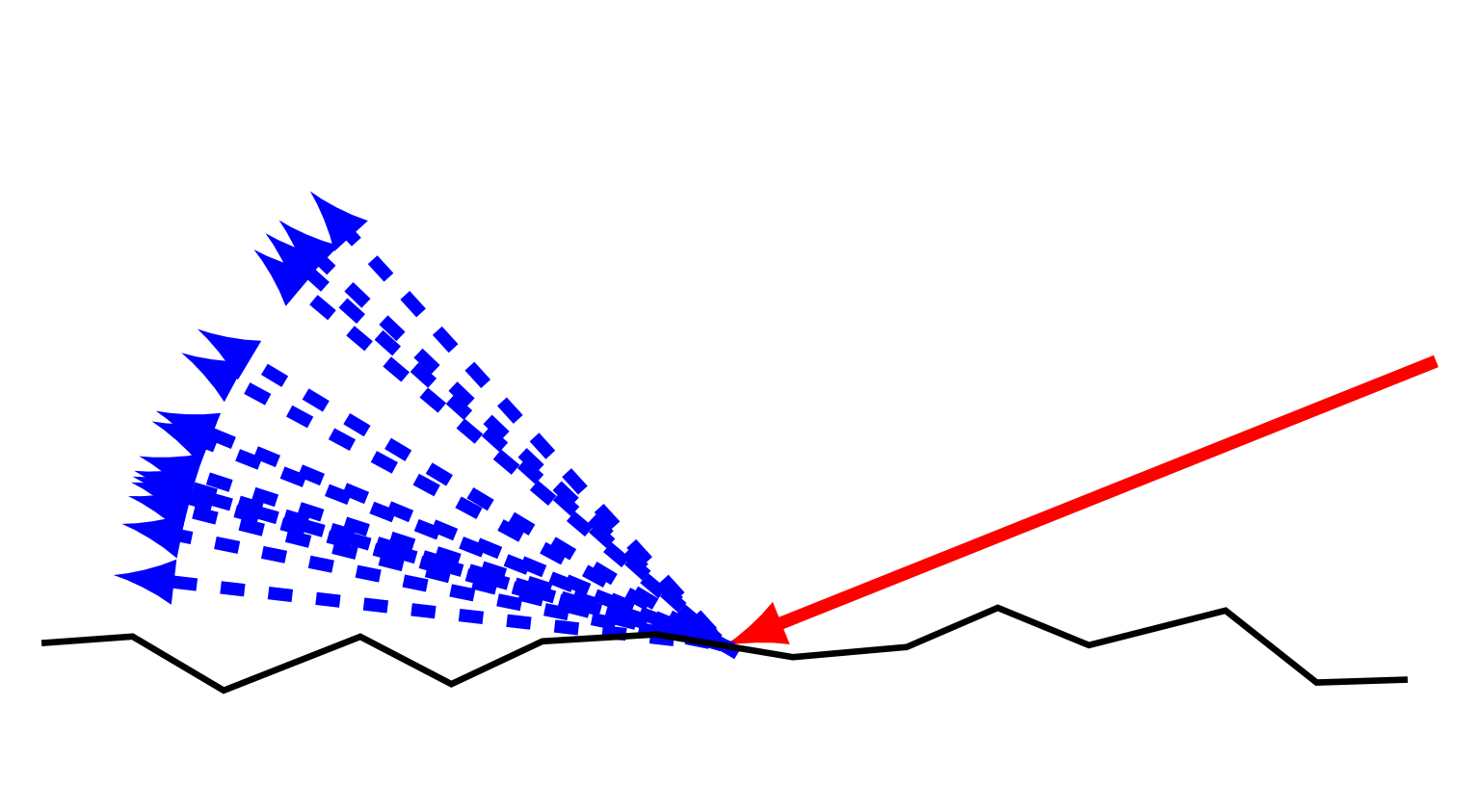

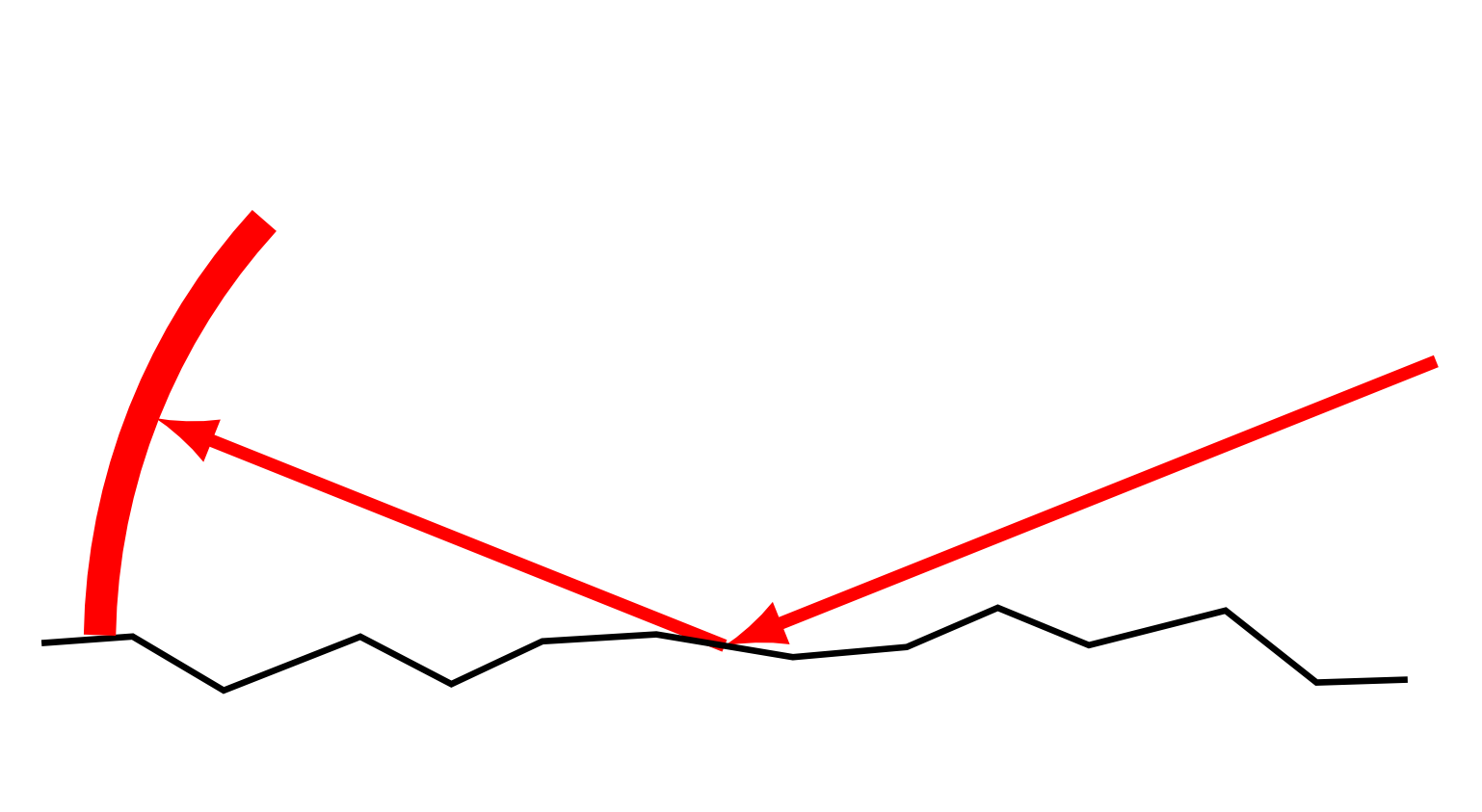

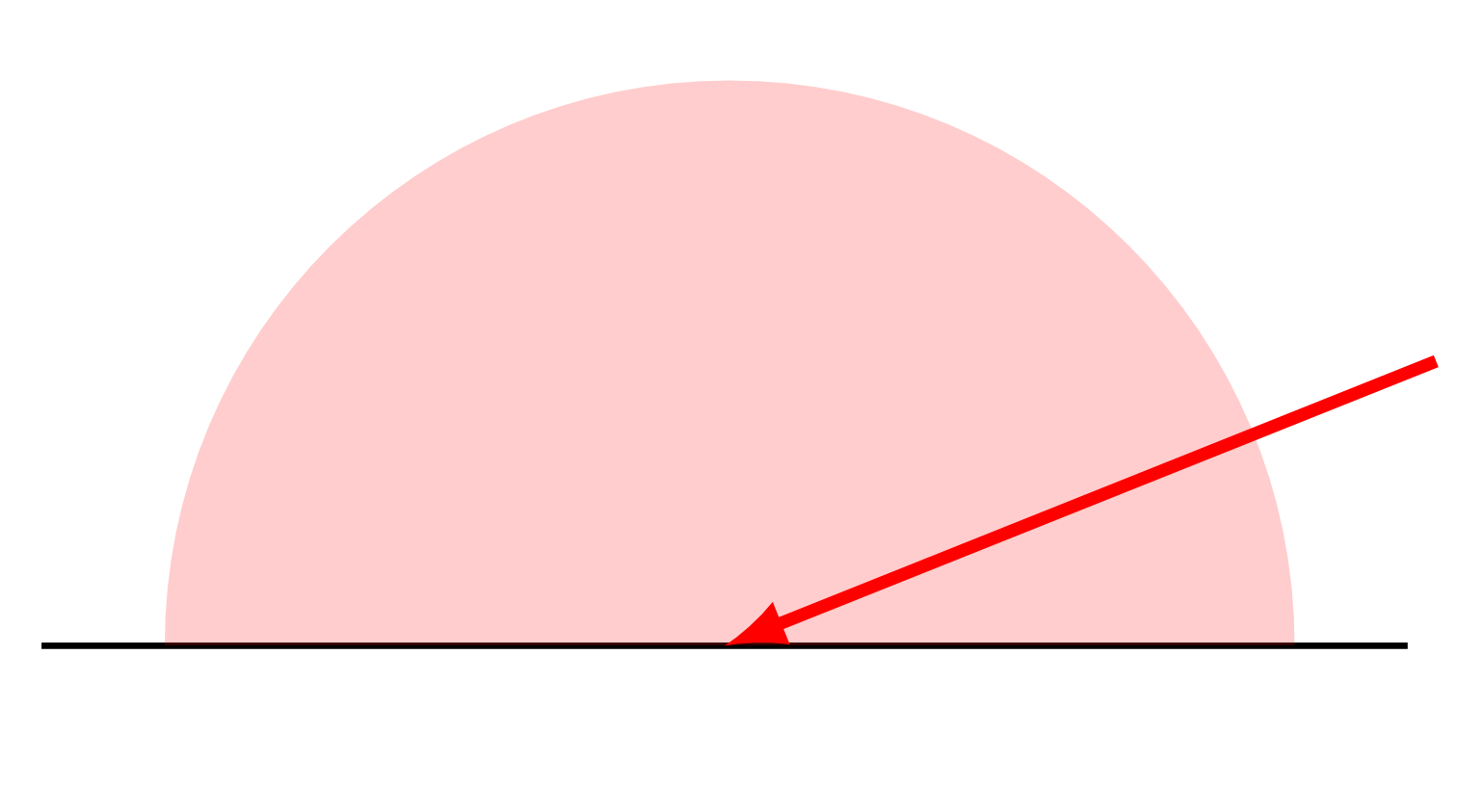

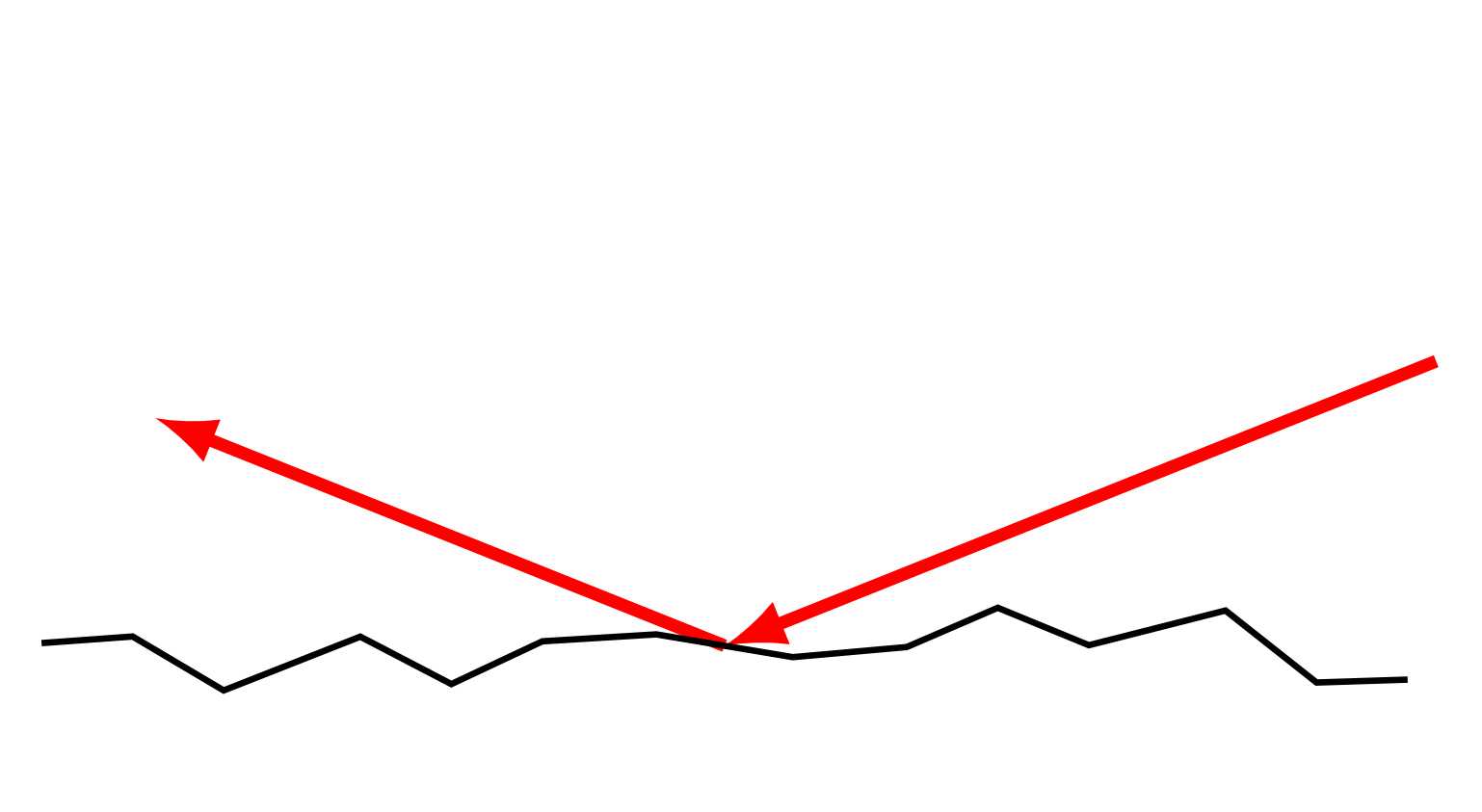

simulation: take perfect reflection and add random offset vector

#8 Random stuff

Implementation

why don't we add to the normal vector?

would be more elegant, but turned out to be harder

avoid impossible reflections $$\mathbf{n}\cdot\mathbf{R} < 1 \Rightarrow \mathbf{R'} := \mathbf{R} + \mathbf{n}\cdot 2 \cdot\left(\mathbf{n}\cdot-\mathbf{R}\right)$$
(same reflection formula as in "#3 Raytracing")
after the change: recompute effective normal $$\mathbf{n'} := \mathbf{R'}-\mathbf{V}$$

#8 Random stuff

Hack time

matte surfaces

#8 Random stuff

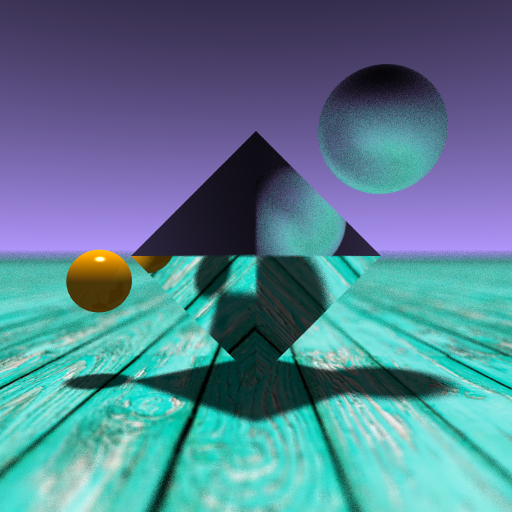

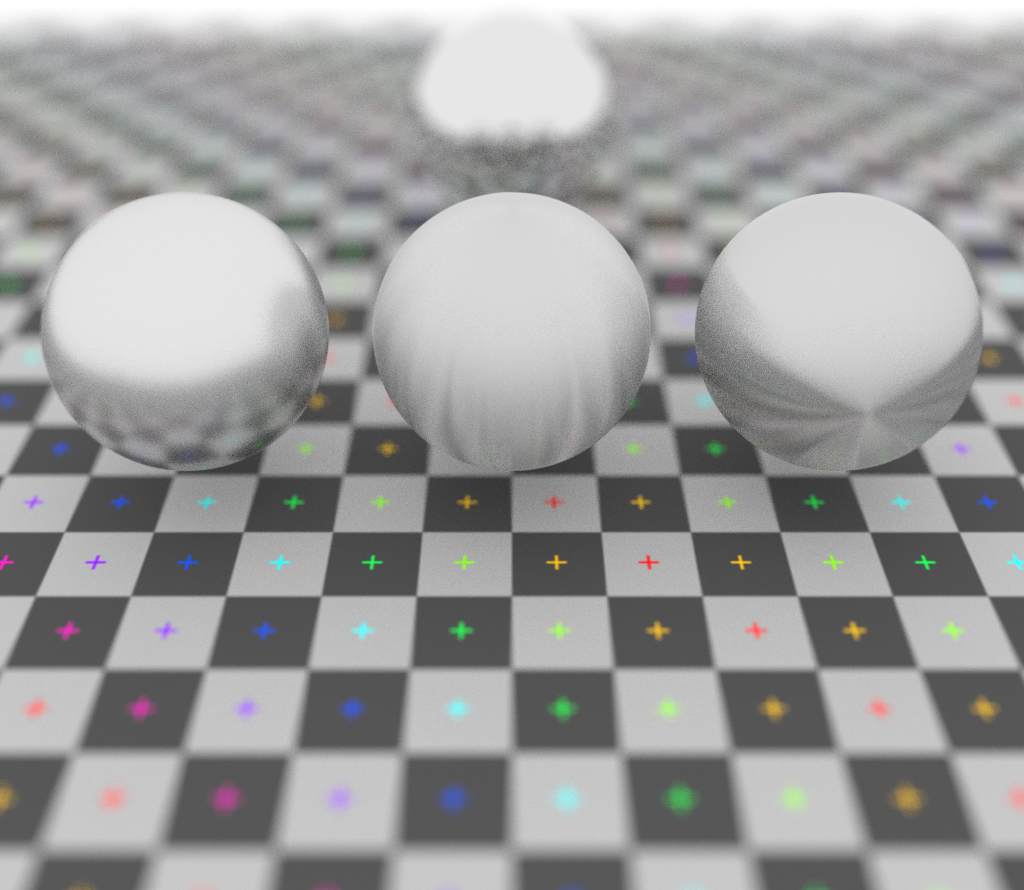

Result

#8 Random stuff

Debugging

reflection, normal, random offset → unit length

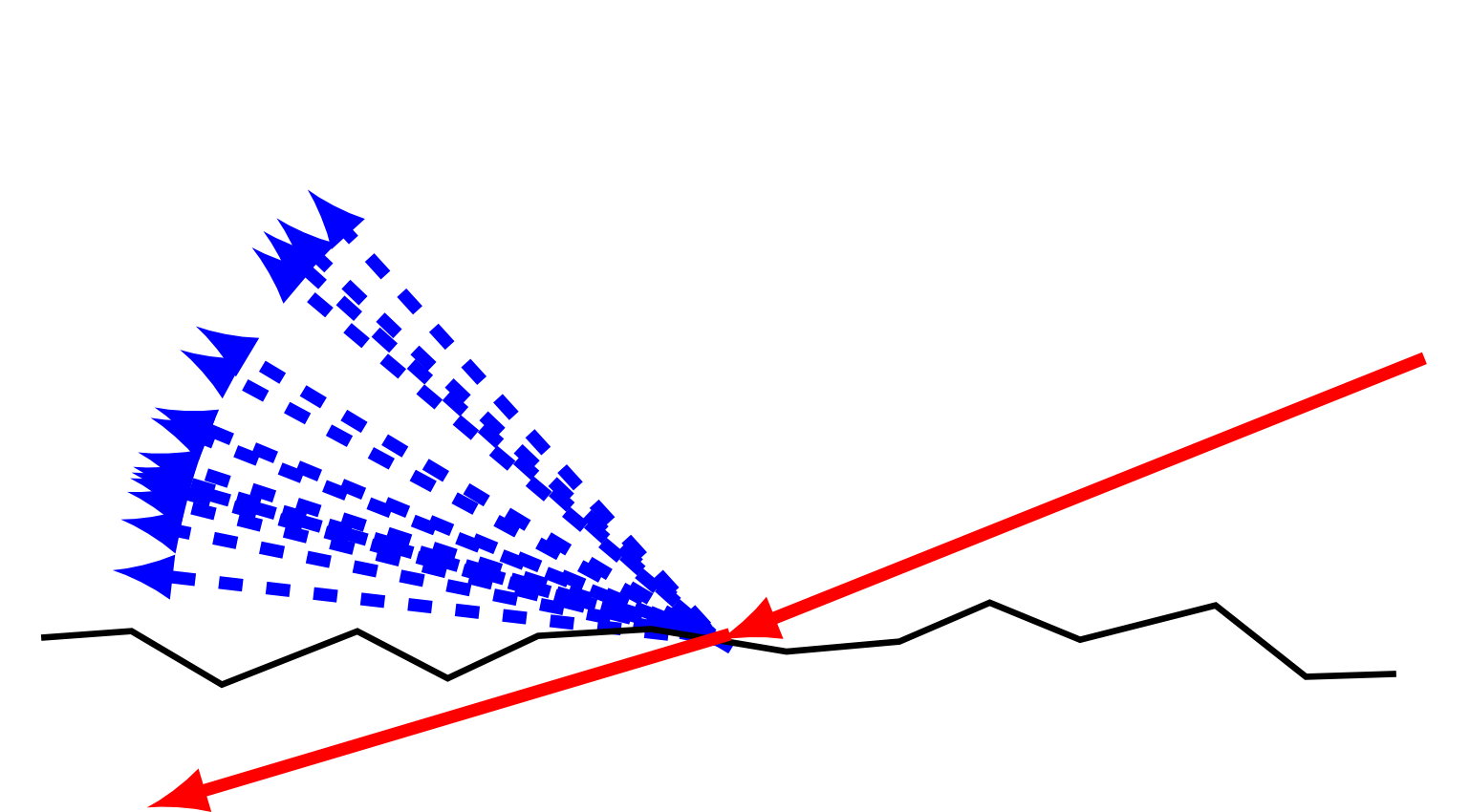

$\mathbf{R}\cdot\mathbf{n} \leq 0$ → invalid reflection → flip

#8 Random stuff

Ideas

matte surfaces

better models: e.g. microfacets

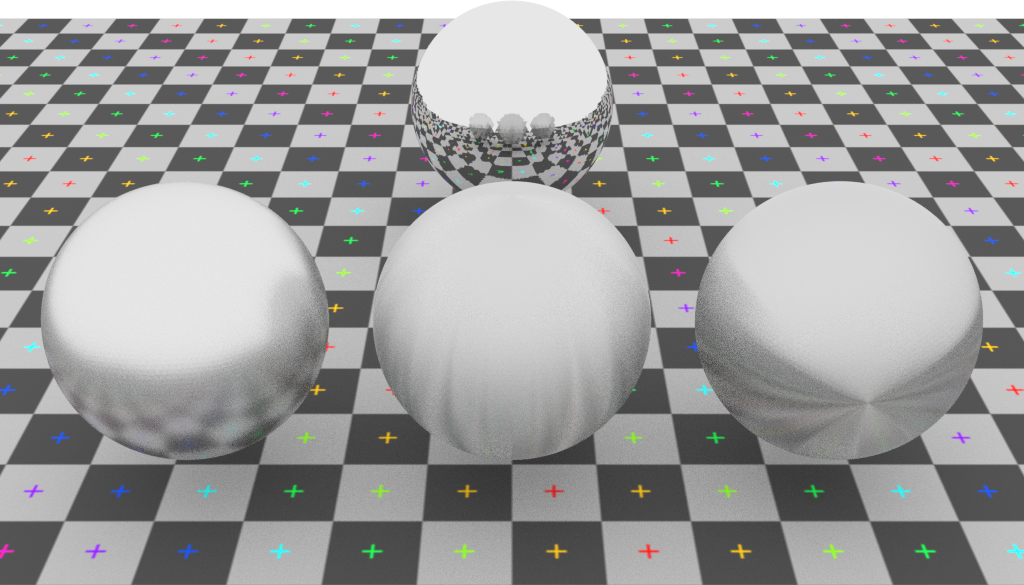

anisotropic roughness: brushed metal (bottoms of cooking pots)
normal mapping: change normals according to a special texture

#8 Random stuff

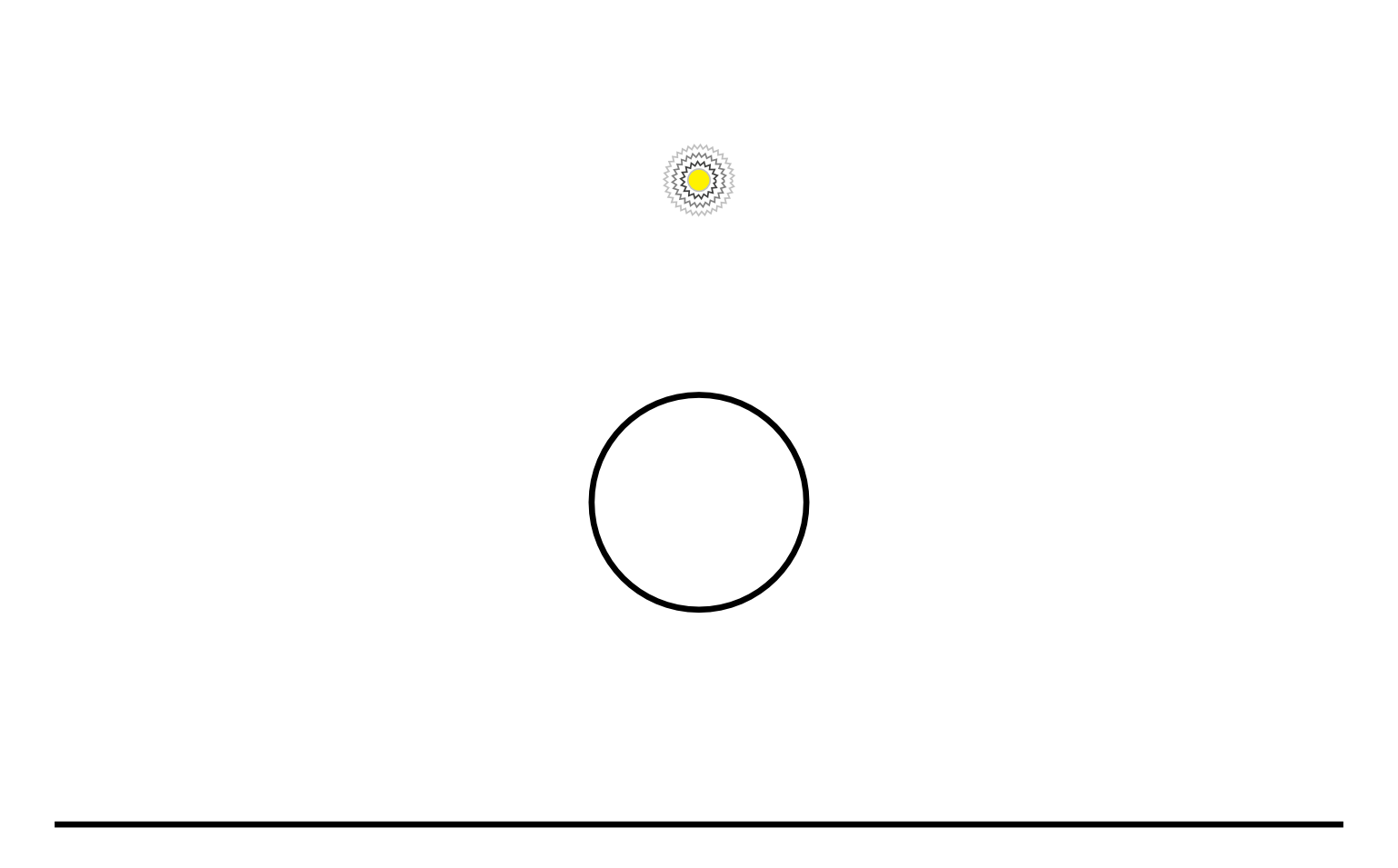

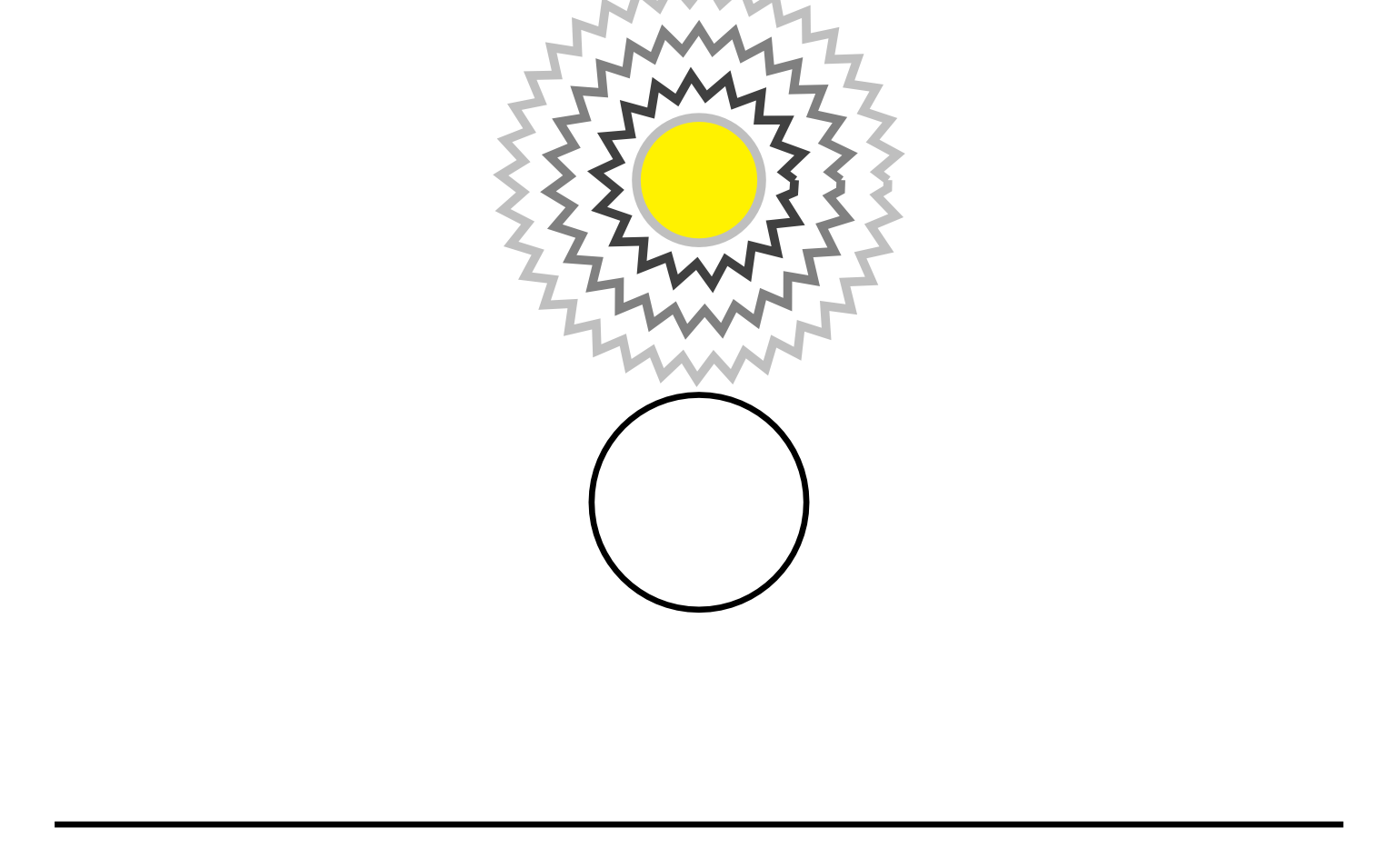

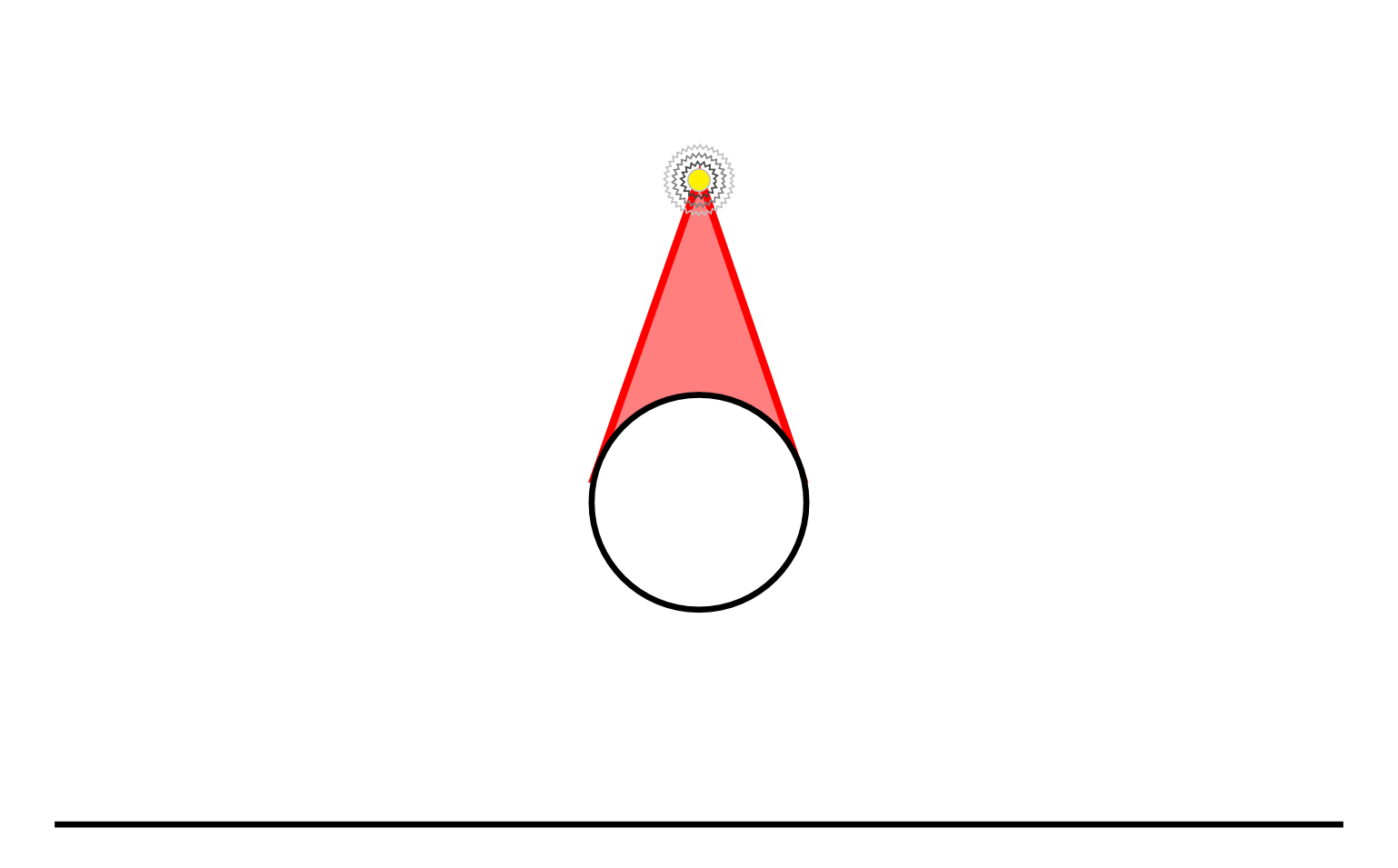

Soft shadows

perfect shadows are boring

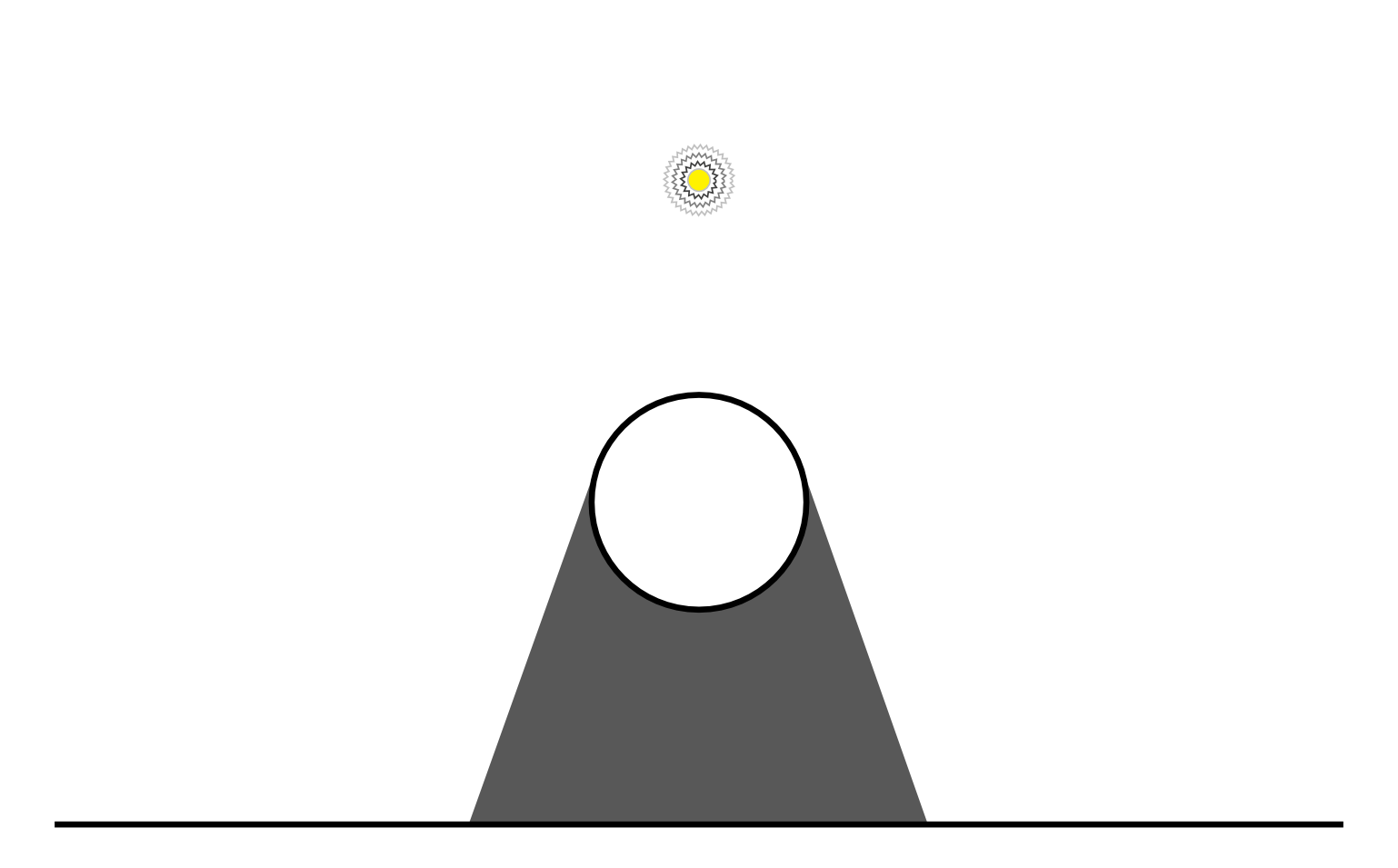

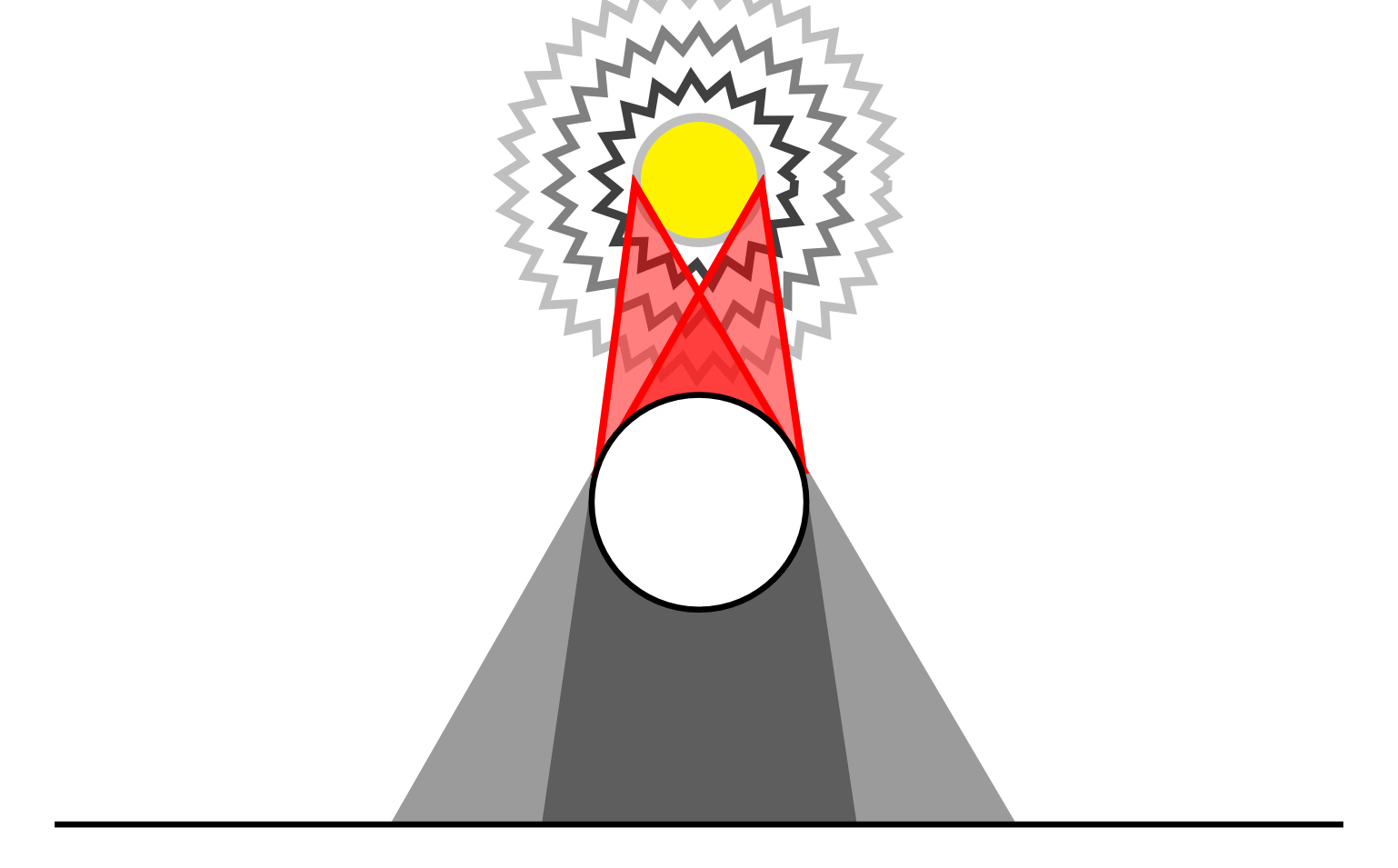

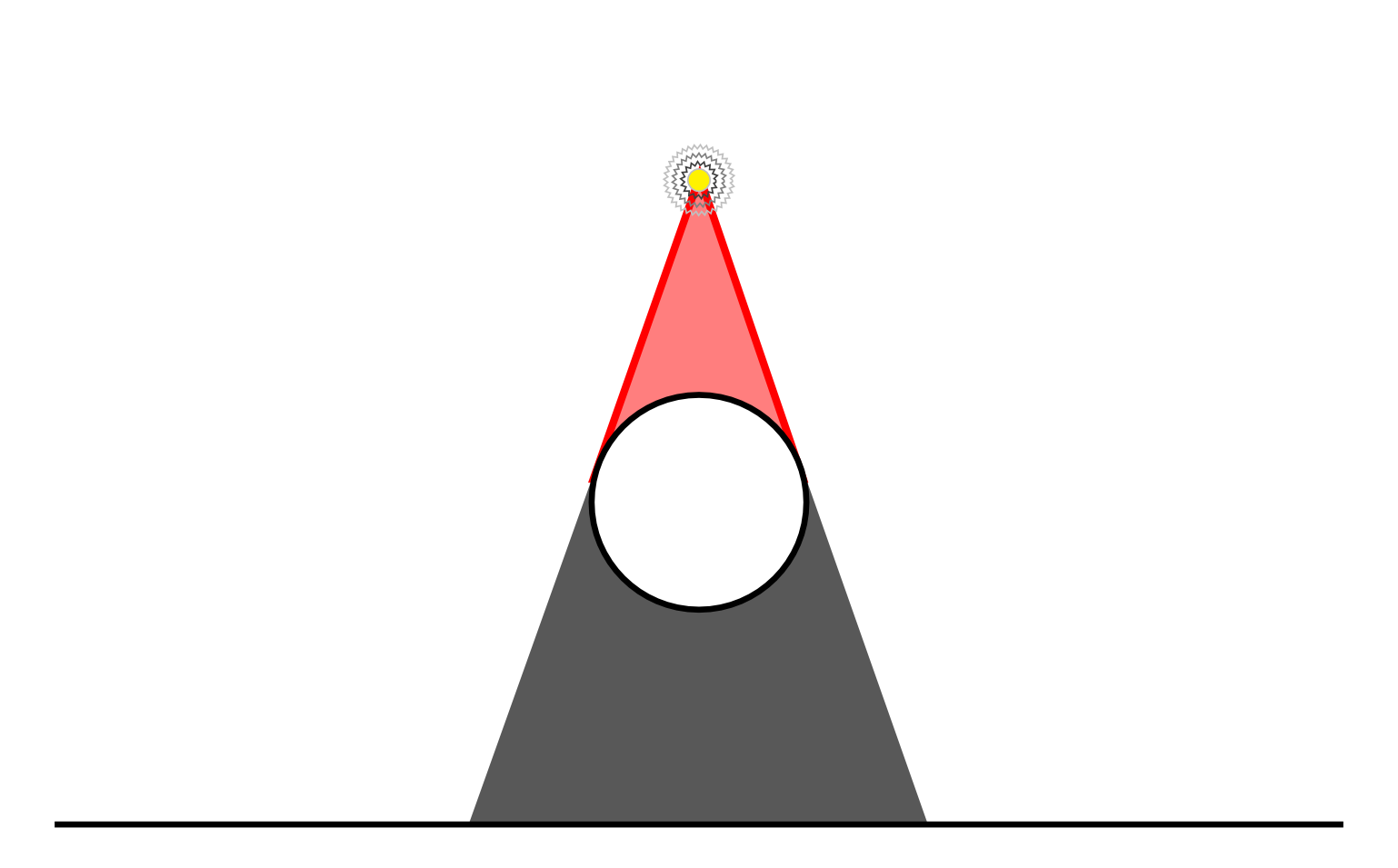

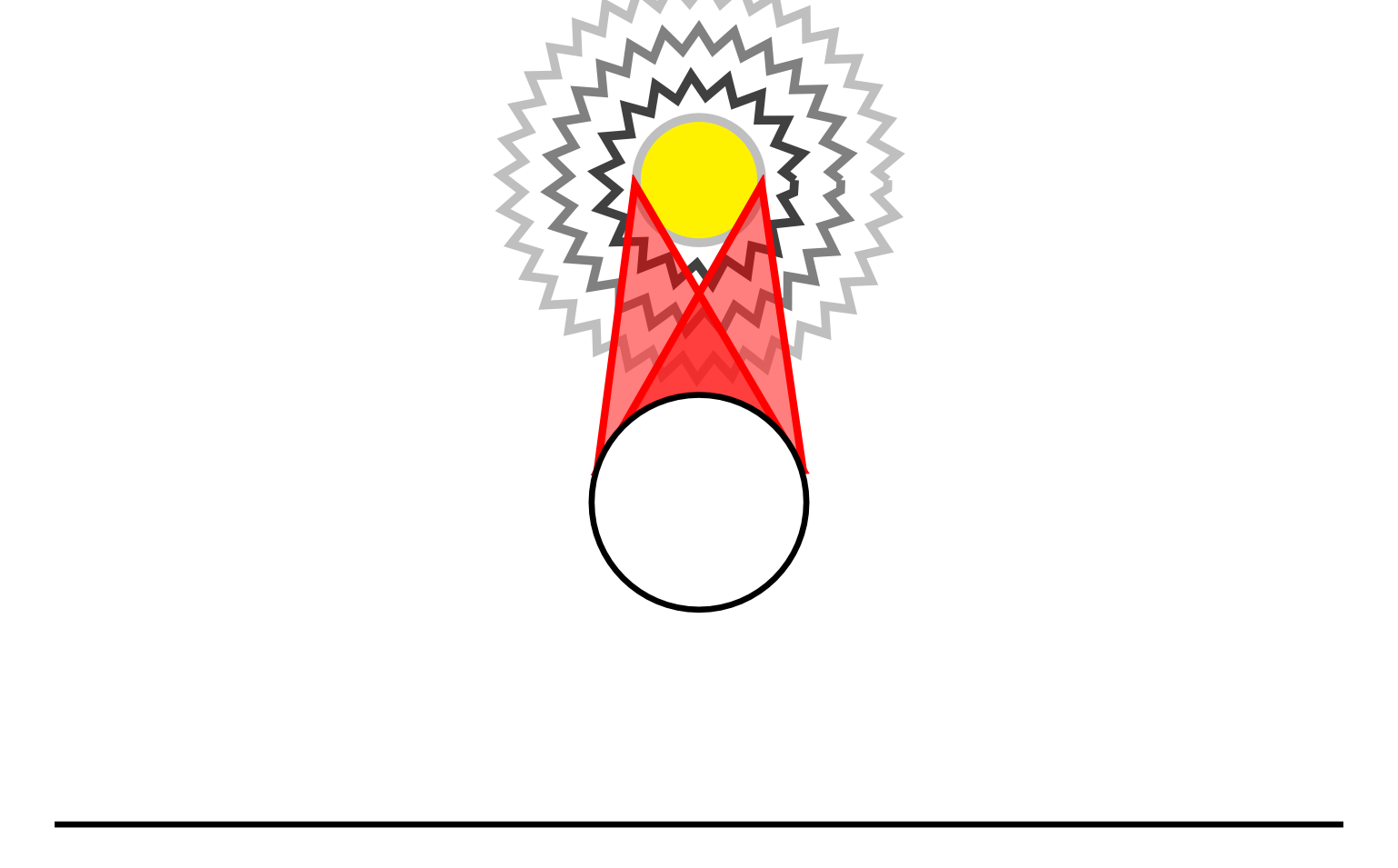

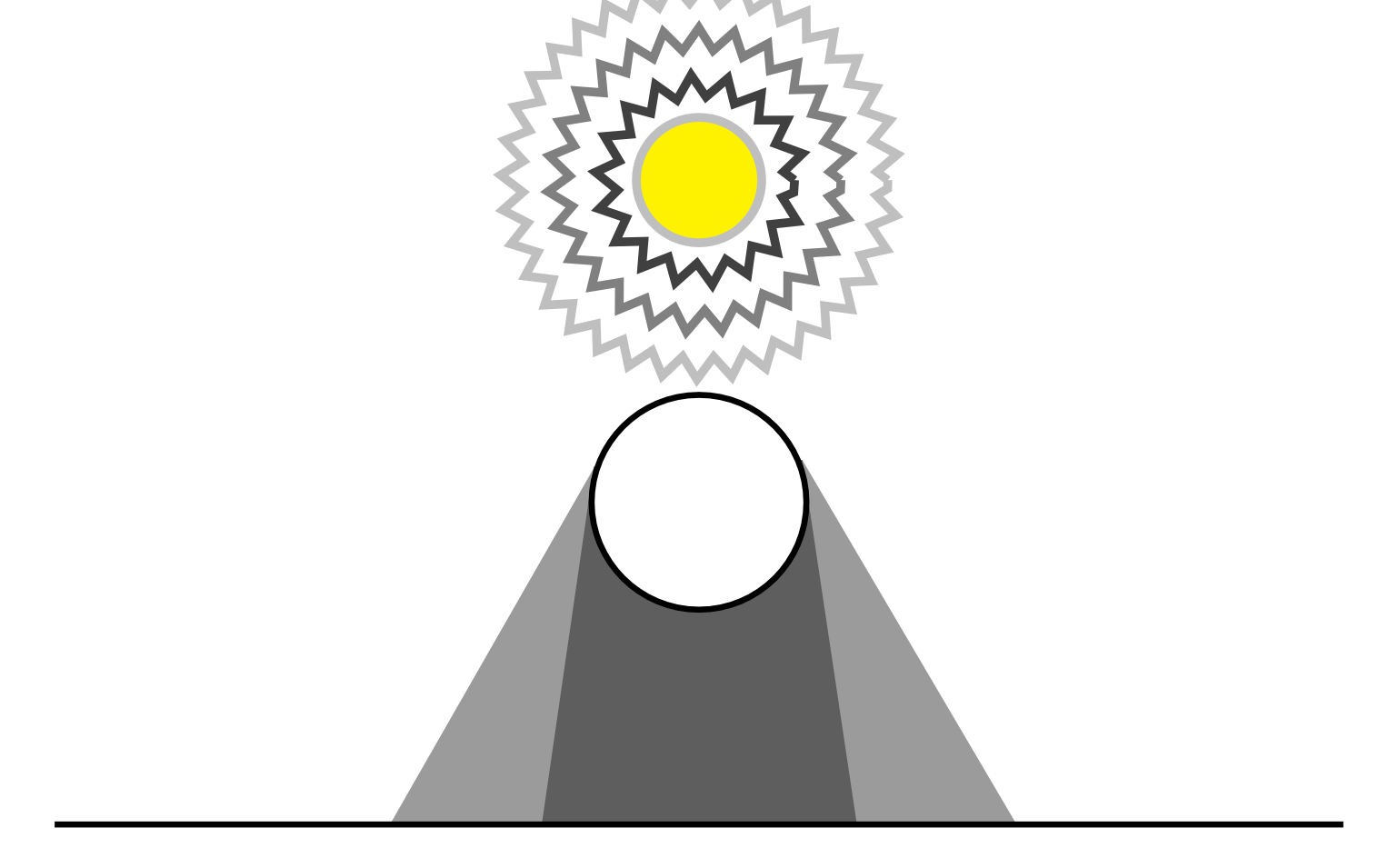

where do soft shadows come from?
- atmospheric scattering (→ volume tracing...)
- non-point light sources

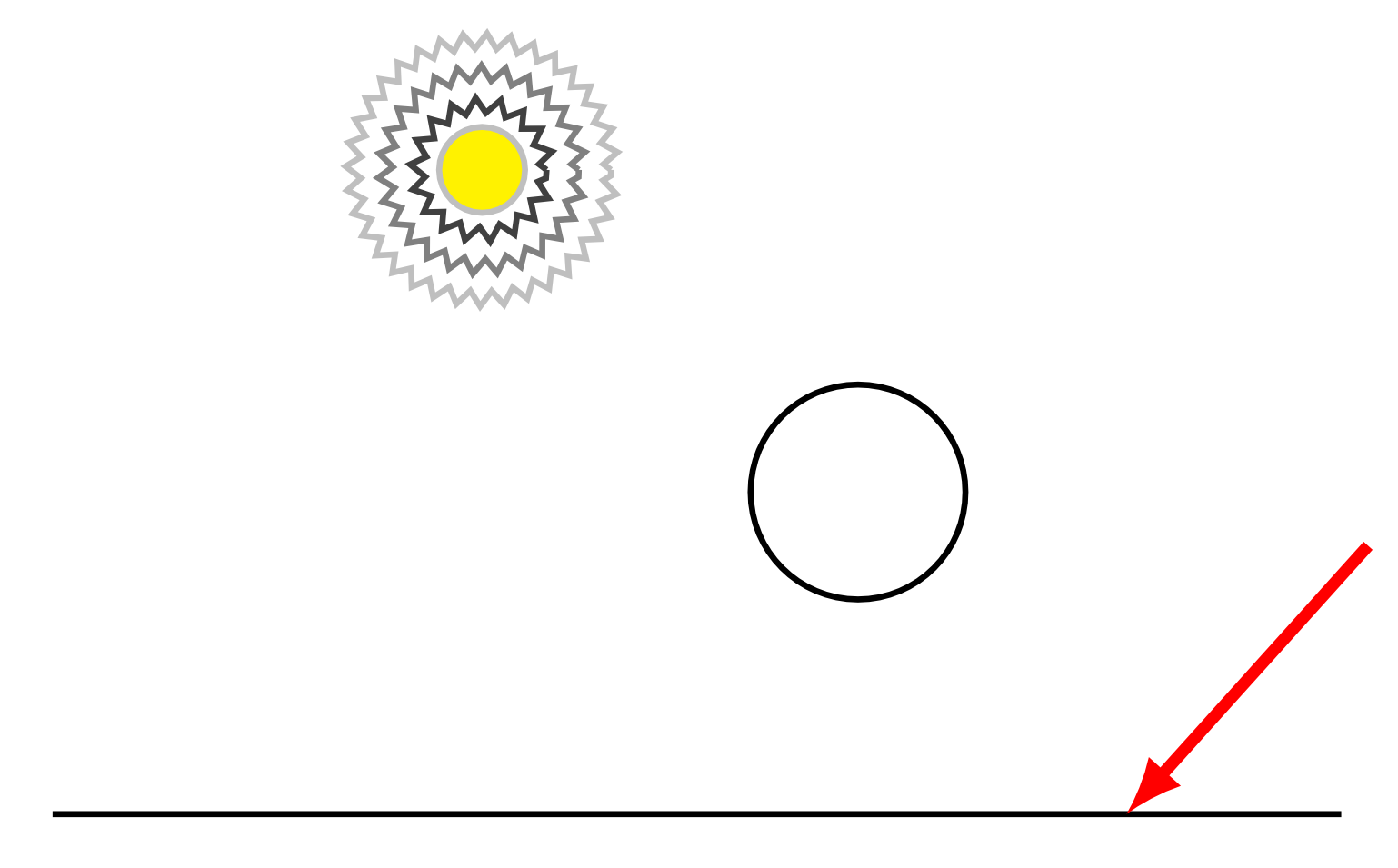

→ light with random position
→ we already have that \Ü/

#8 Random stuff

Hack time

Soft shadows

#8 Random stuff

Result

#8 Random stuff

Debugging

which position dimensions of the light source are randomized?
noisy shadows? → more samples!

#8 Random stuff

Depth-of-field

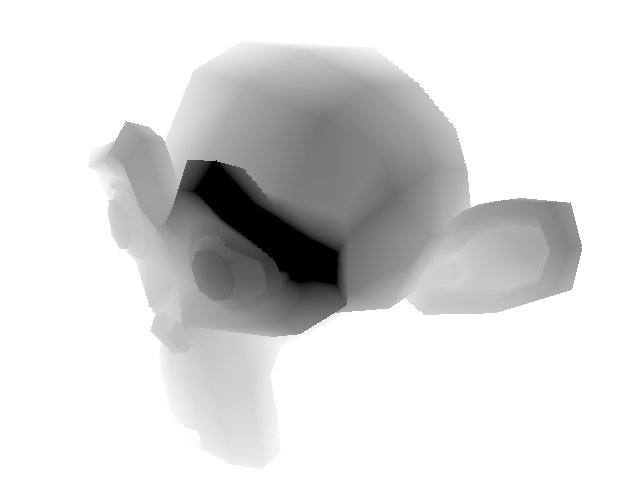

up to now: perfect focus (pinhole camera)
→ unrealistic and boring
real cameras: blur by aperture (diaphragm opening)

#8 Random stuff

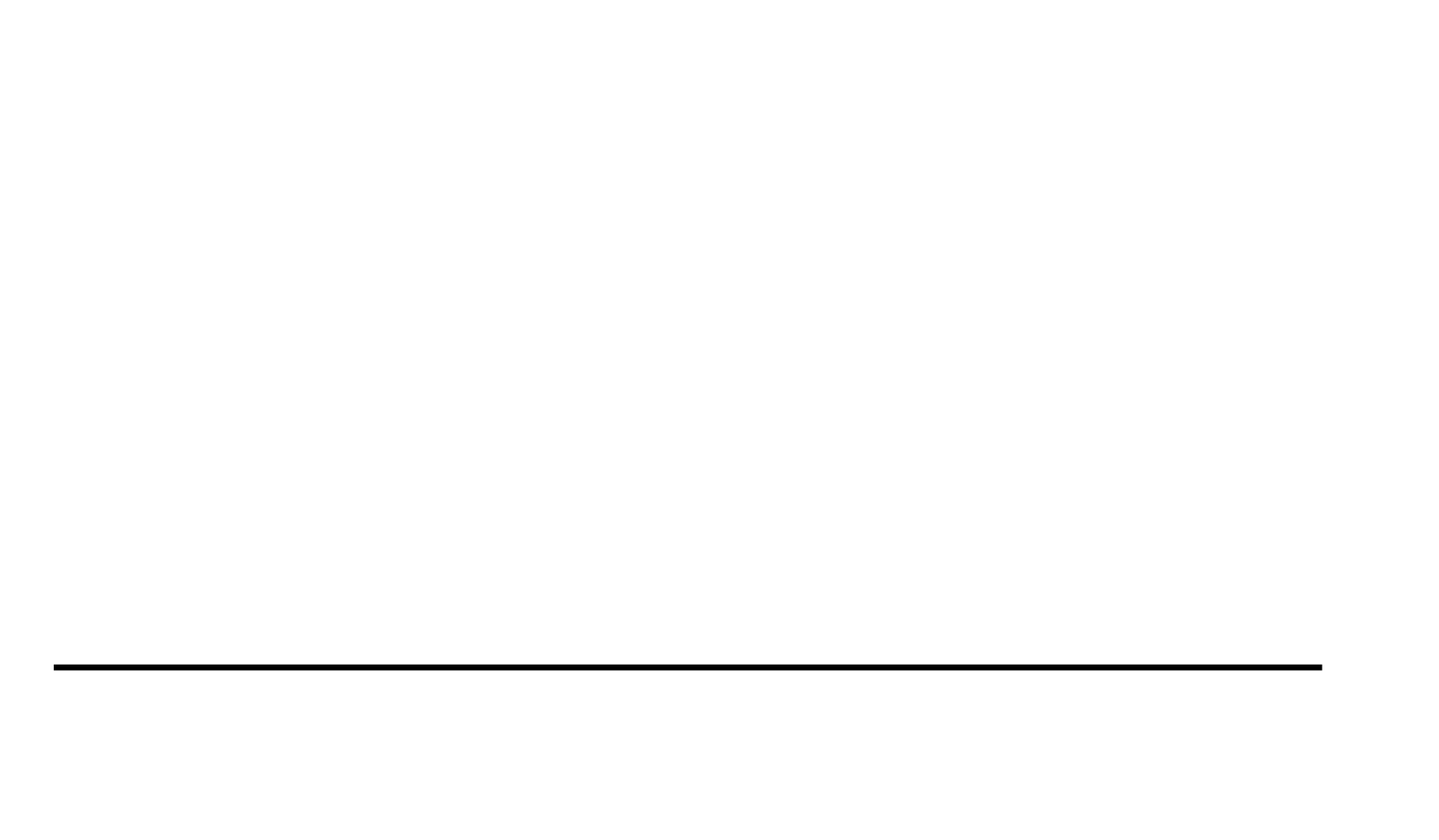

Depth-of-field

we have neither a lens nor a diaphragm

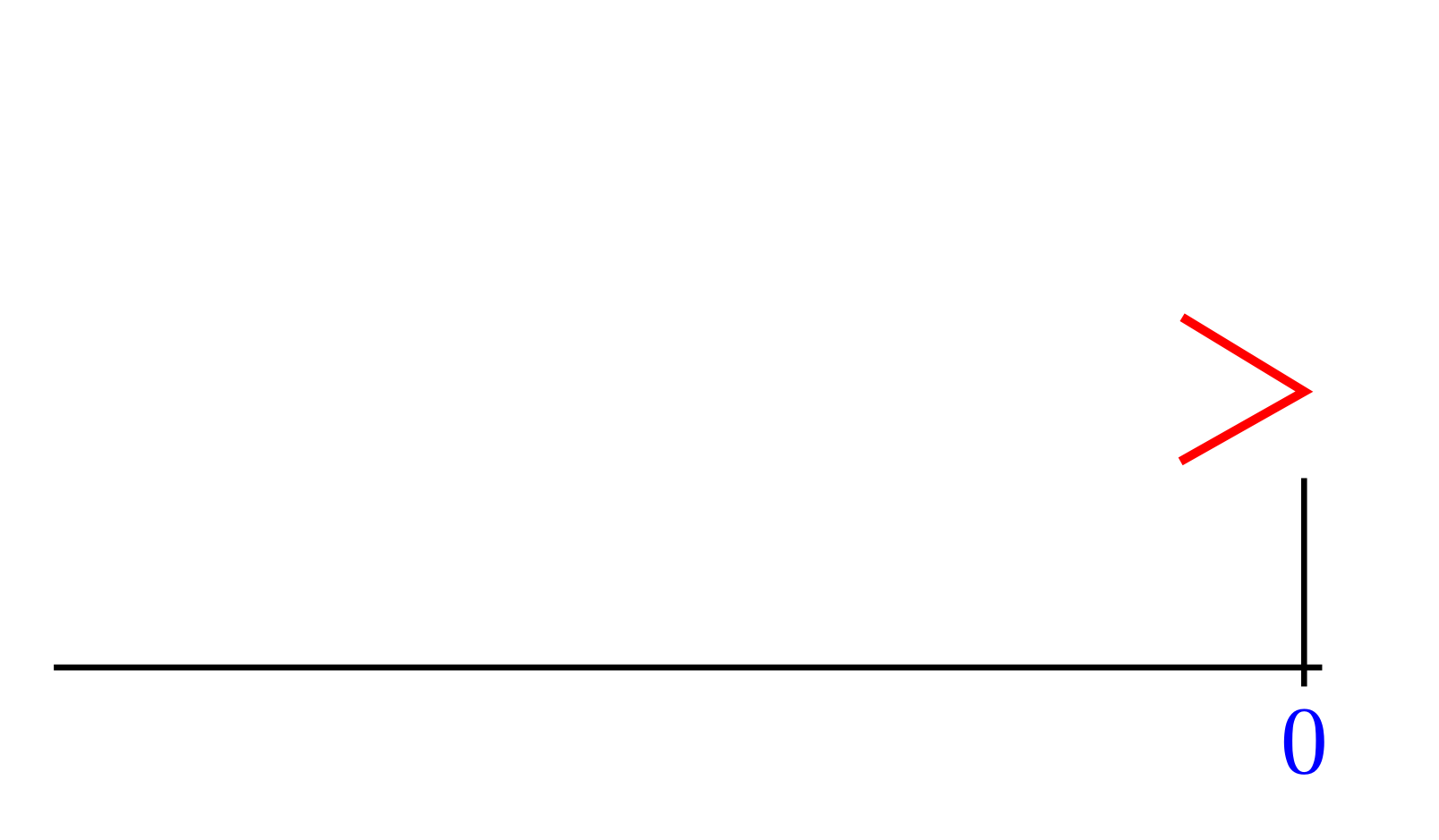

→ simulation by "sensor shift"
geometric construction
focal distance $f$, camera shift vector $\mathbf{s}$
$\Rightarrow$ ray shift vector $= \frac{1}{d}\cdot \left(-\mathbf{s}\right)$

#8 Random stuff

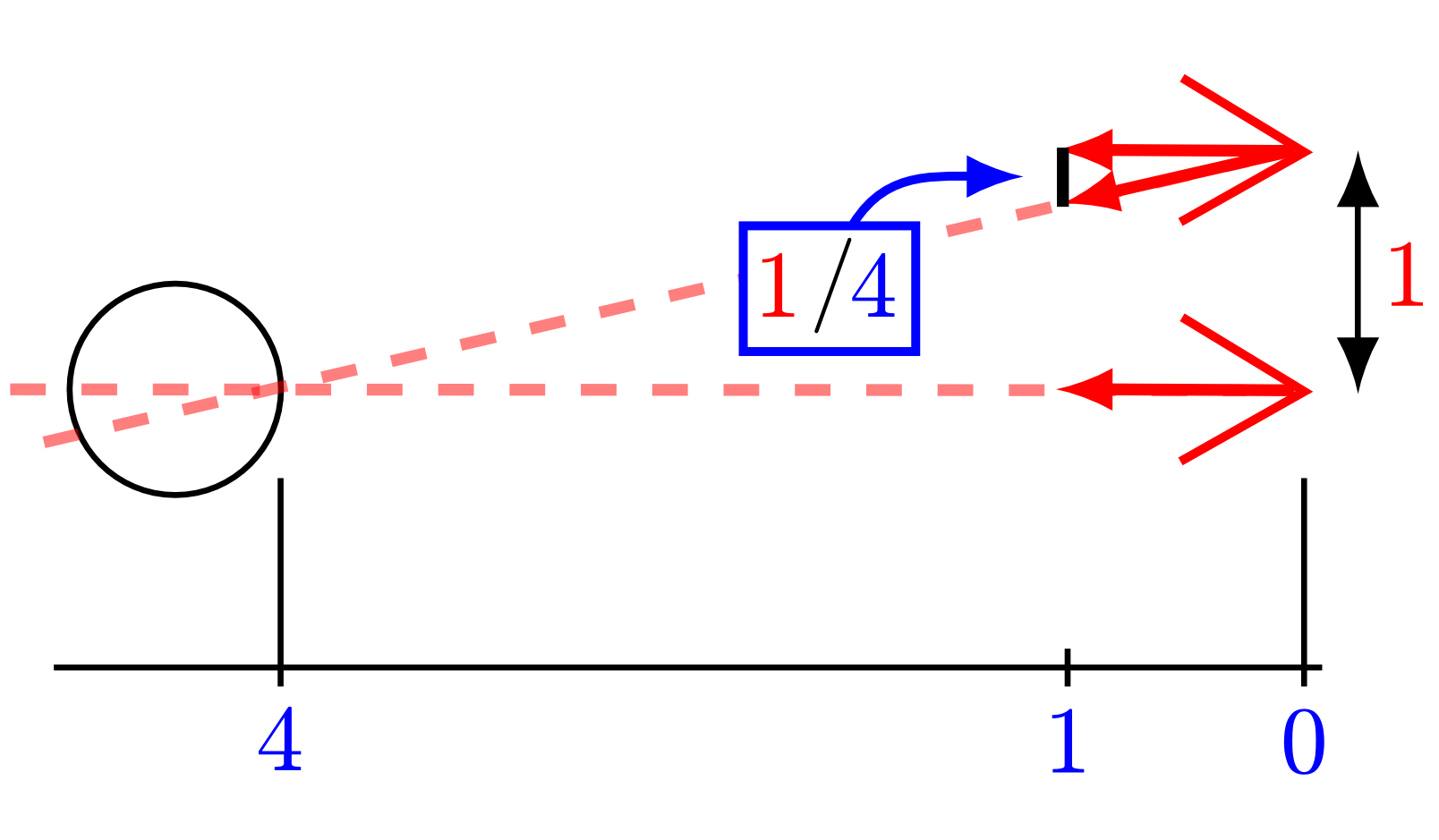

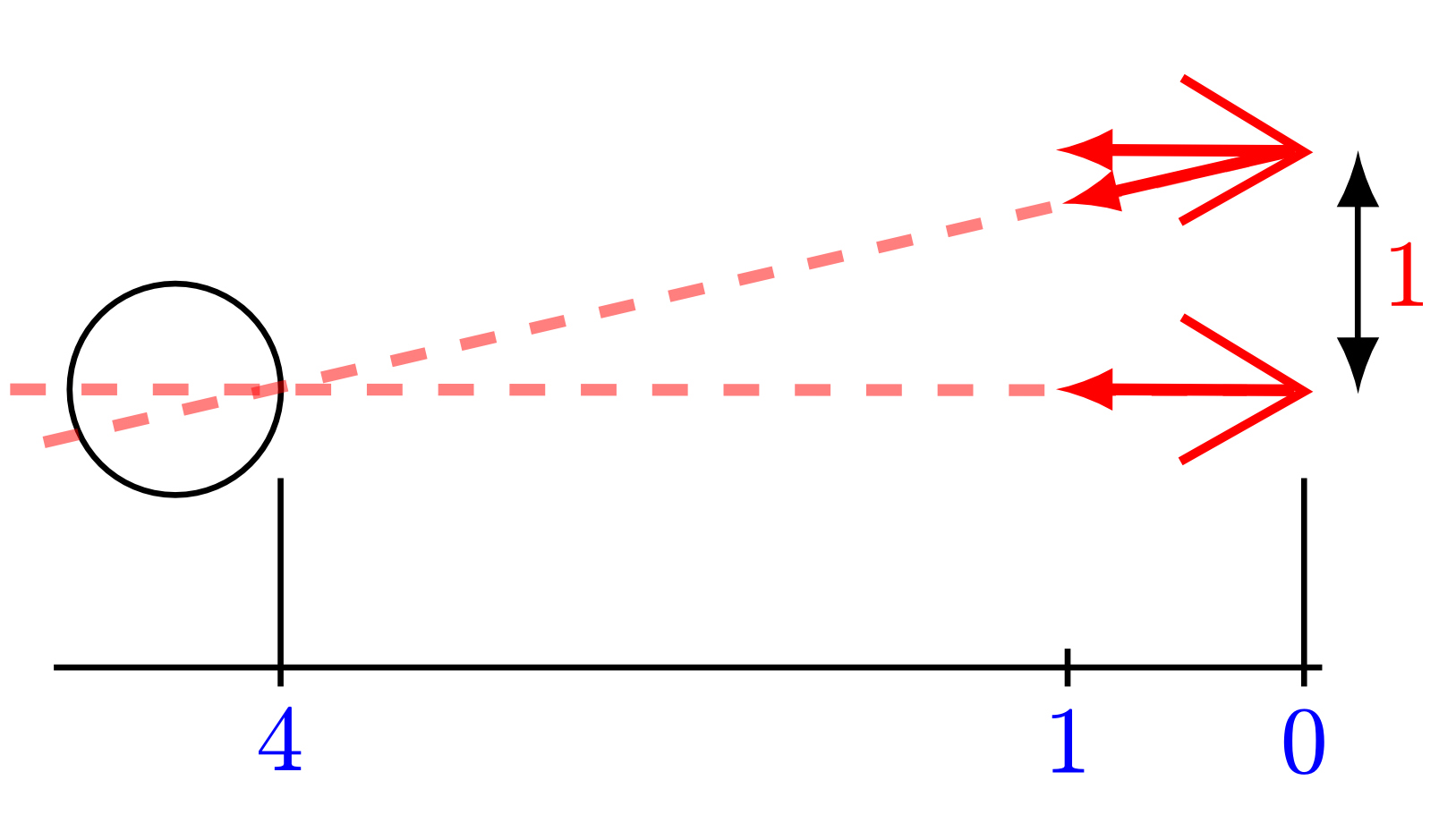

Depth-of-field

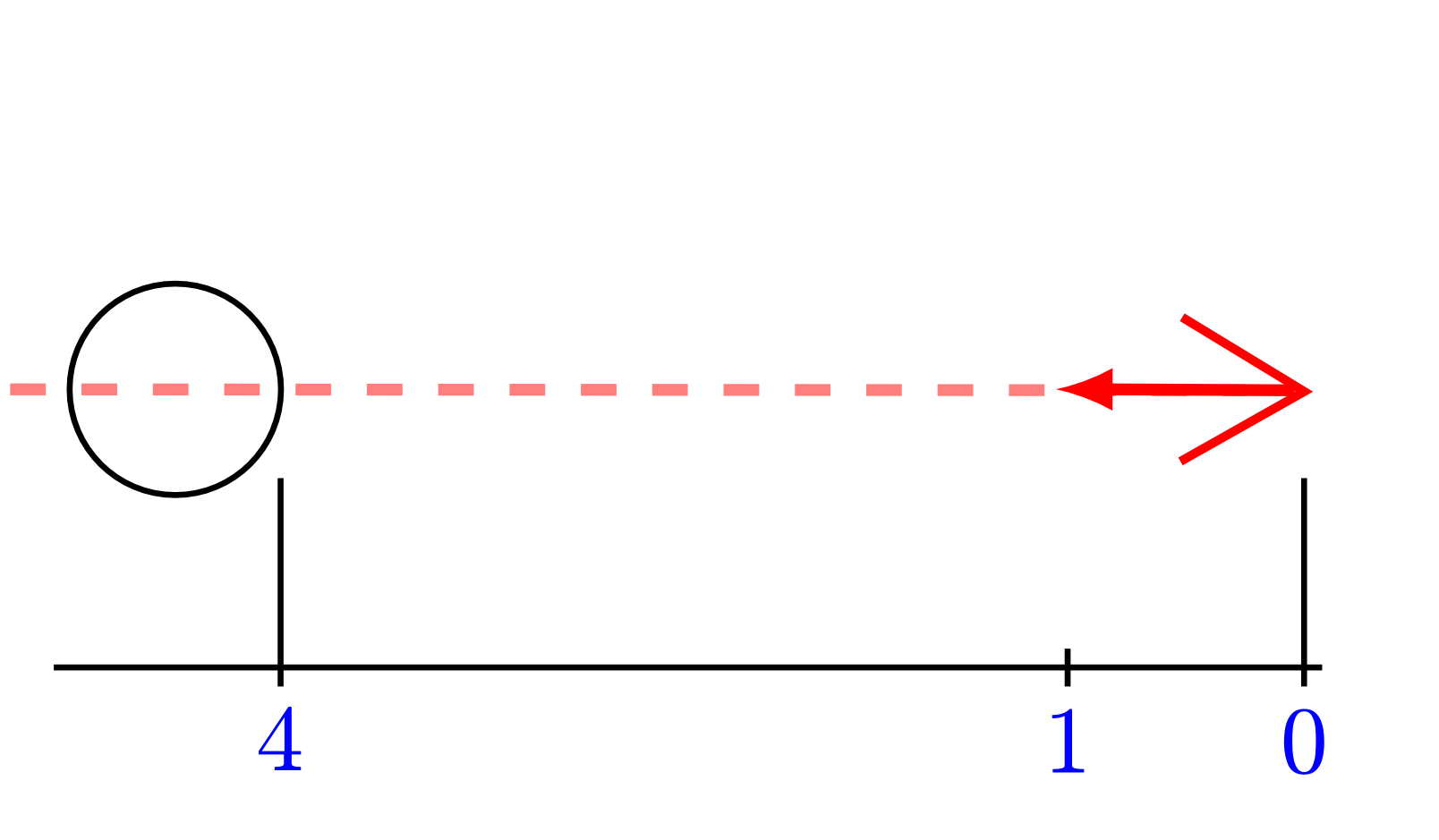

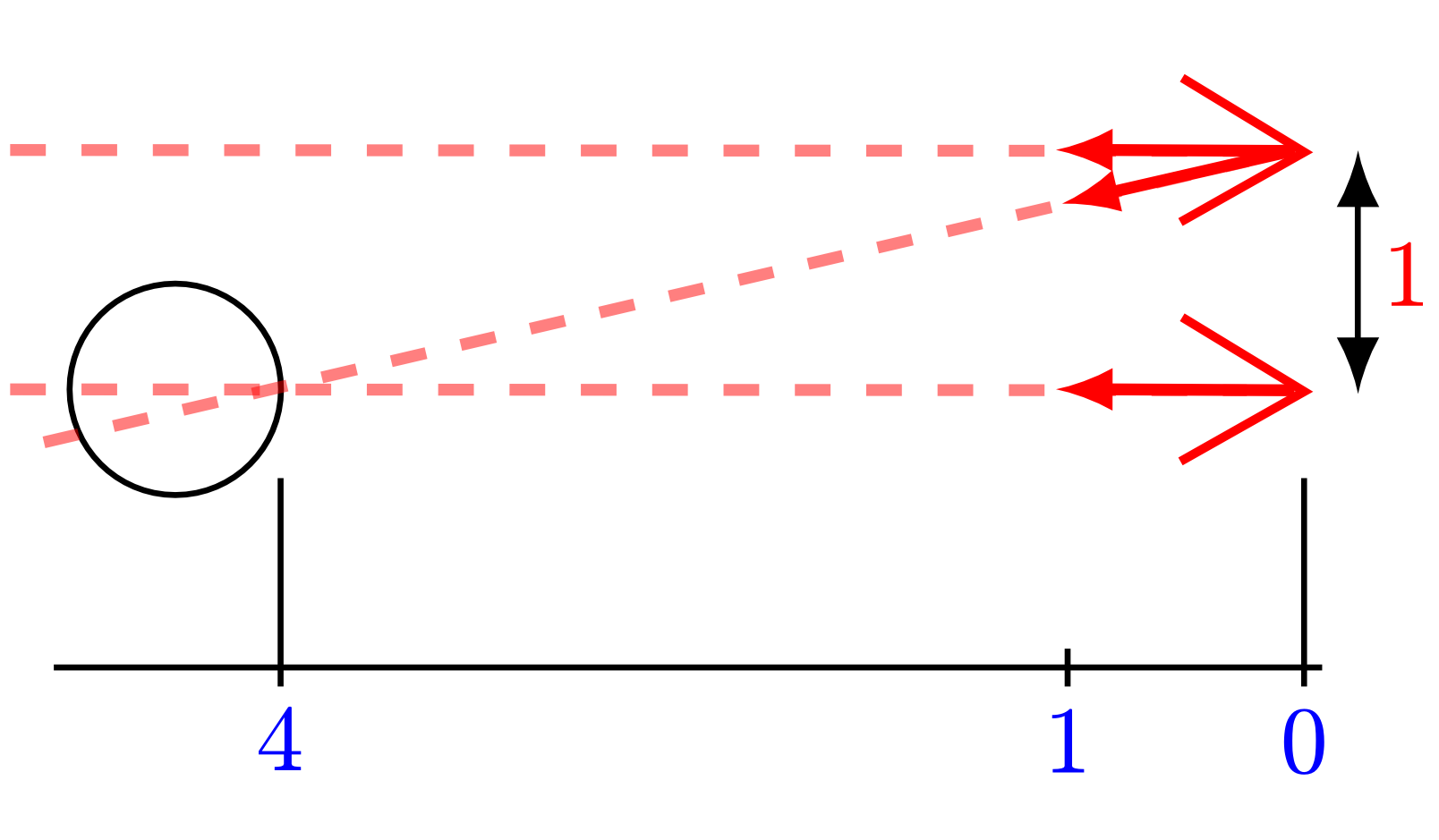

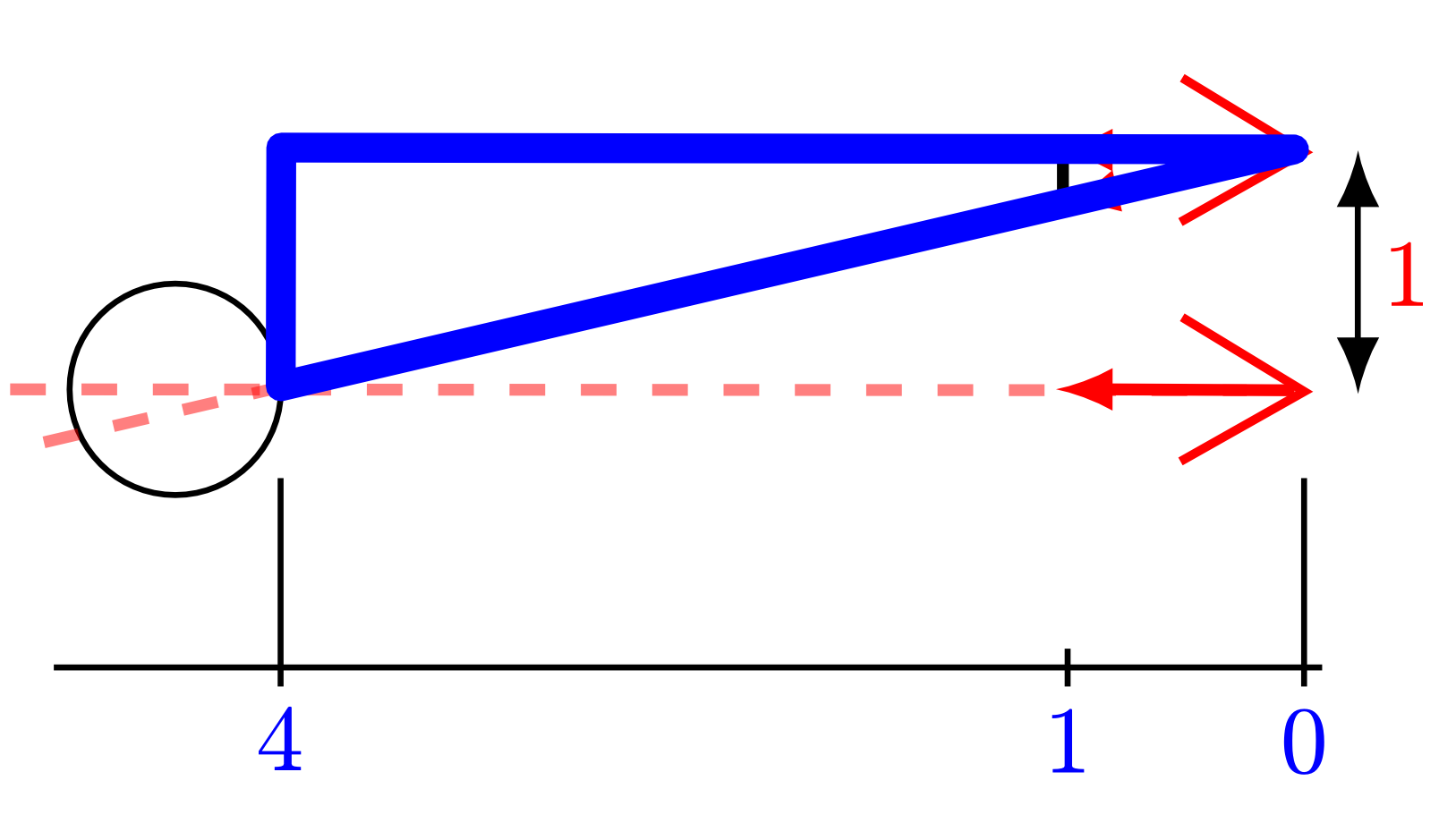

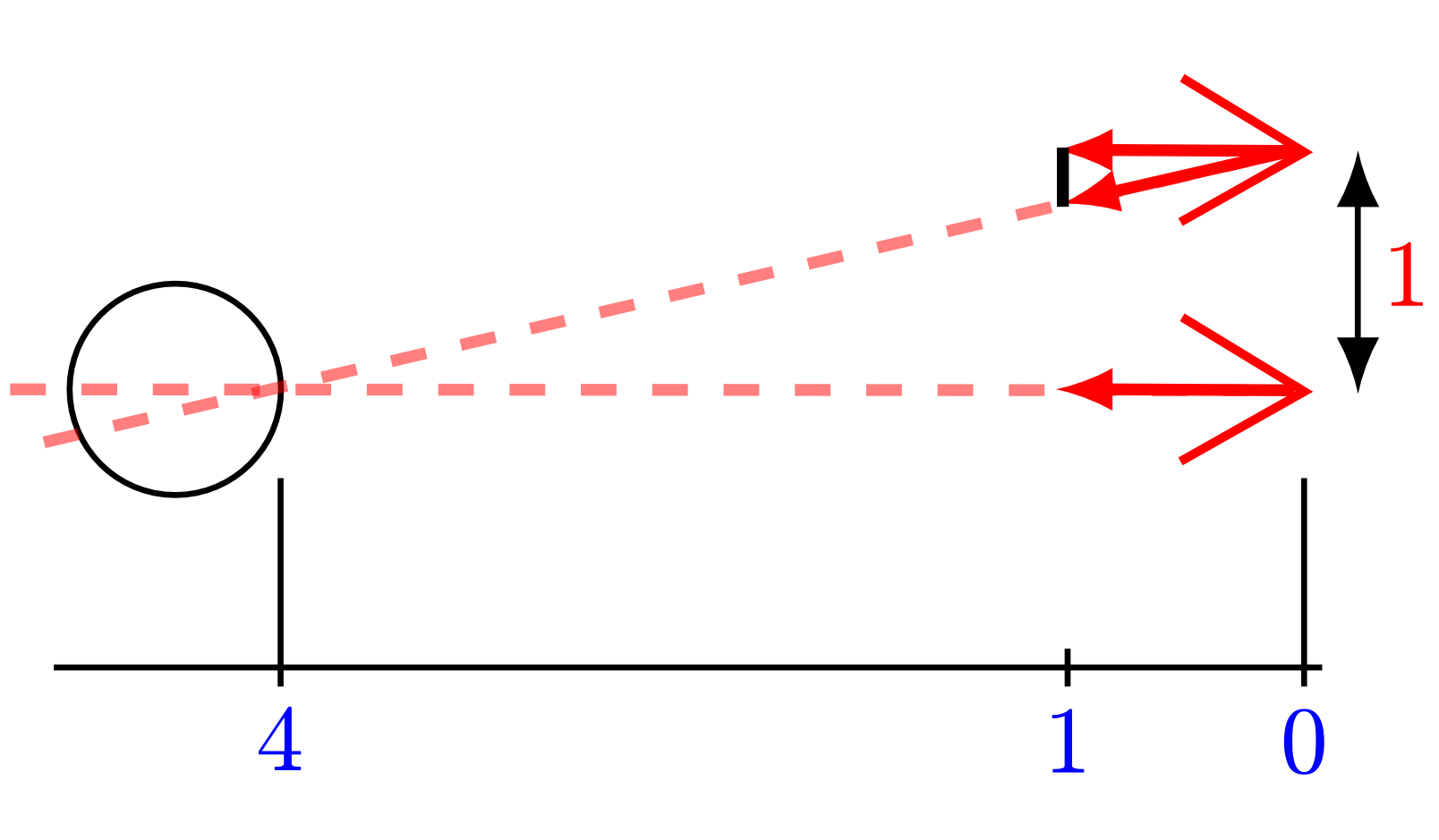

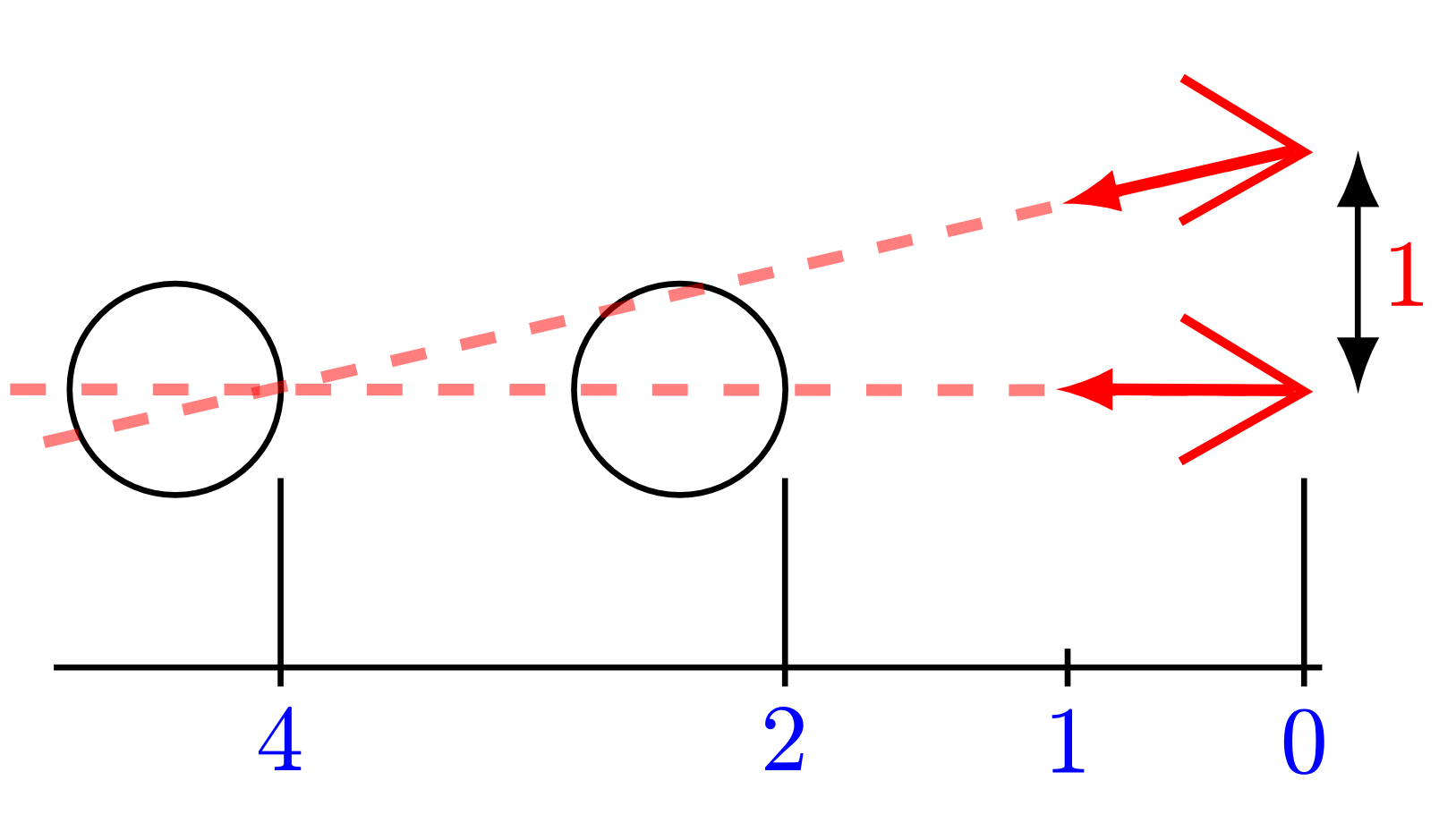

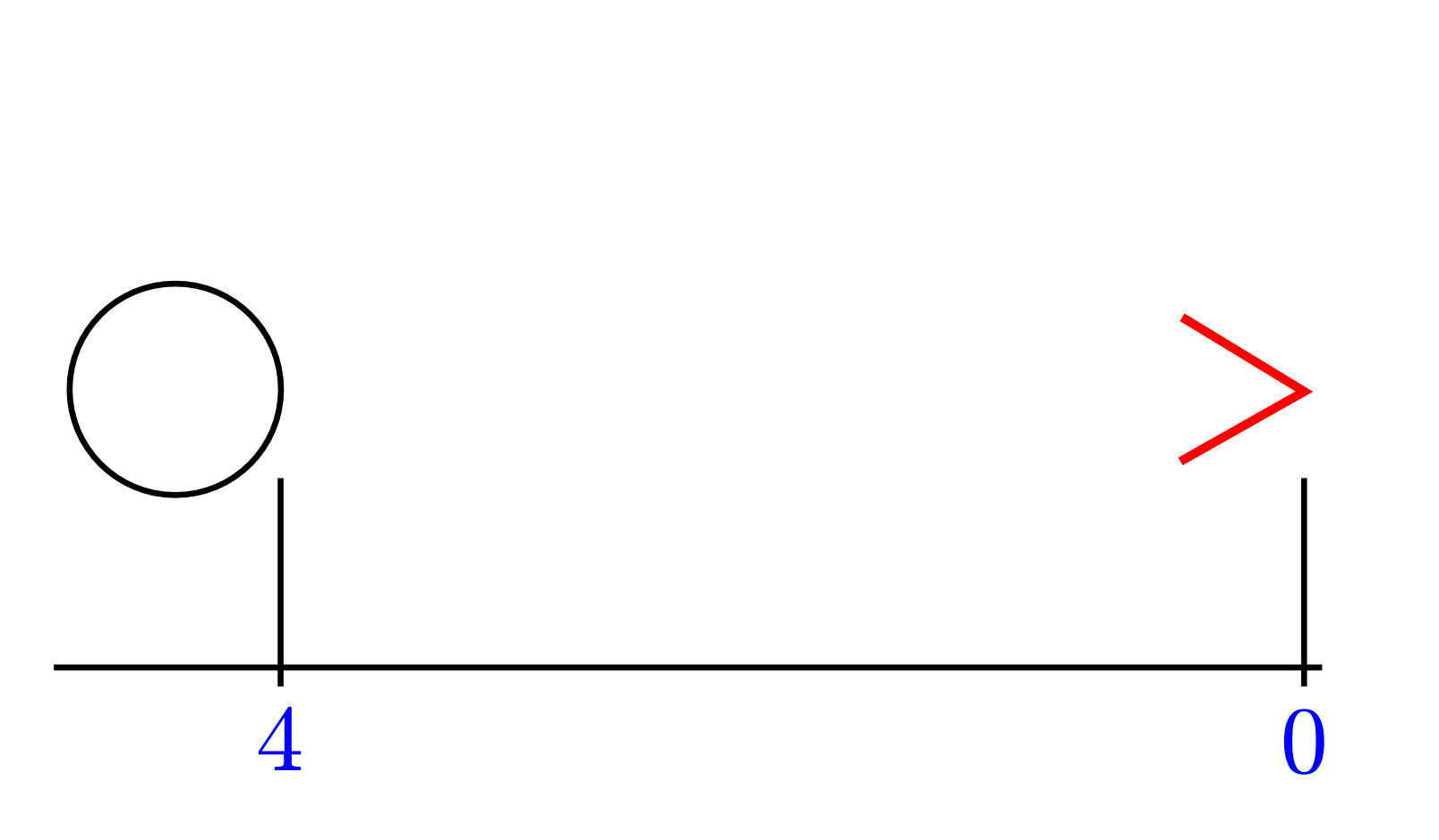

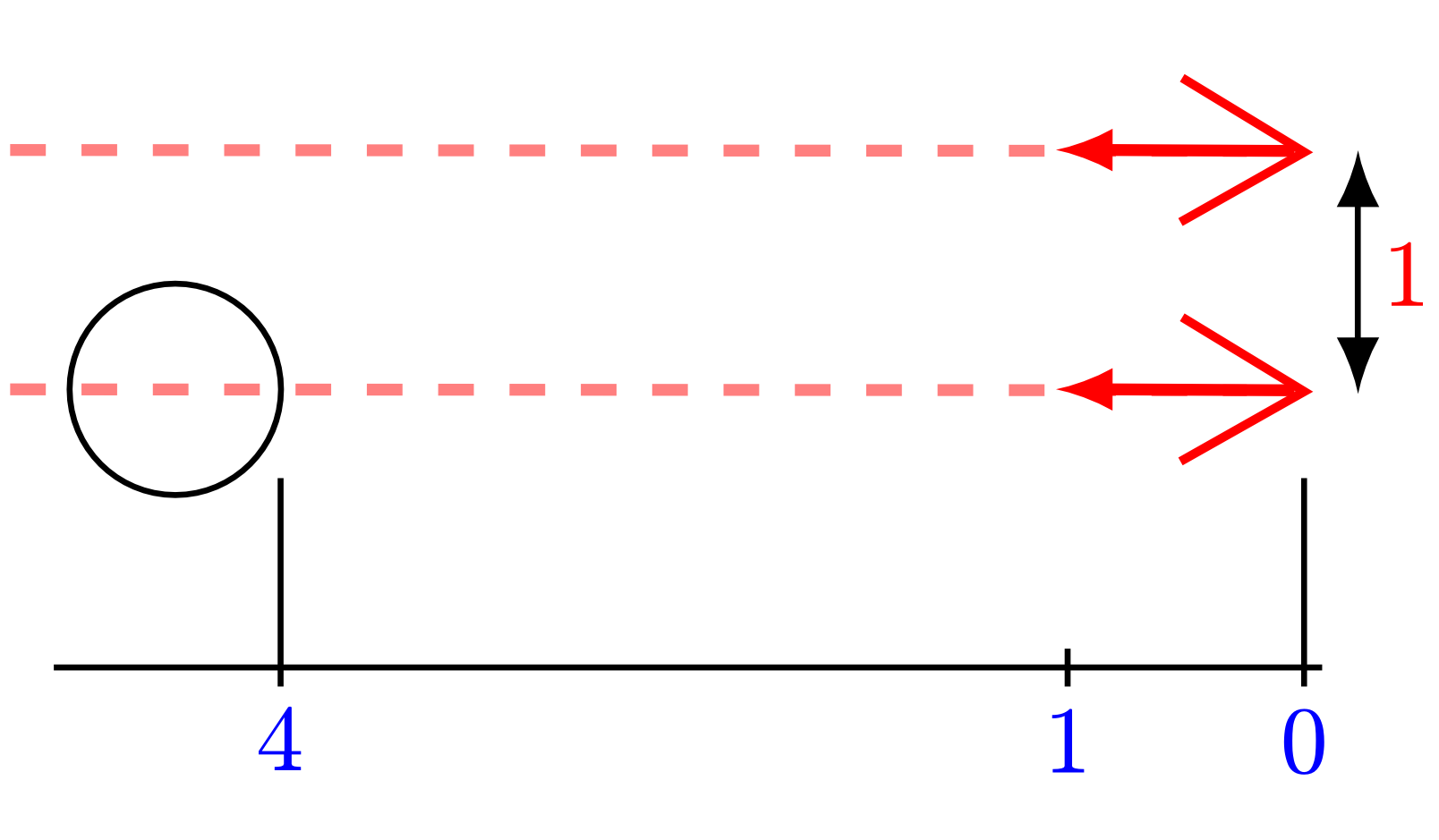

points at distance $d$ (here: $4$) are rendered "sharp"
(rays from different cam positions → same point)

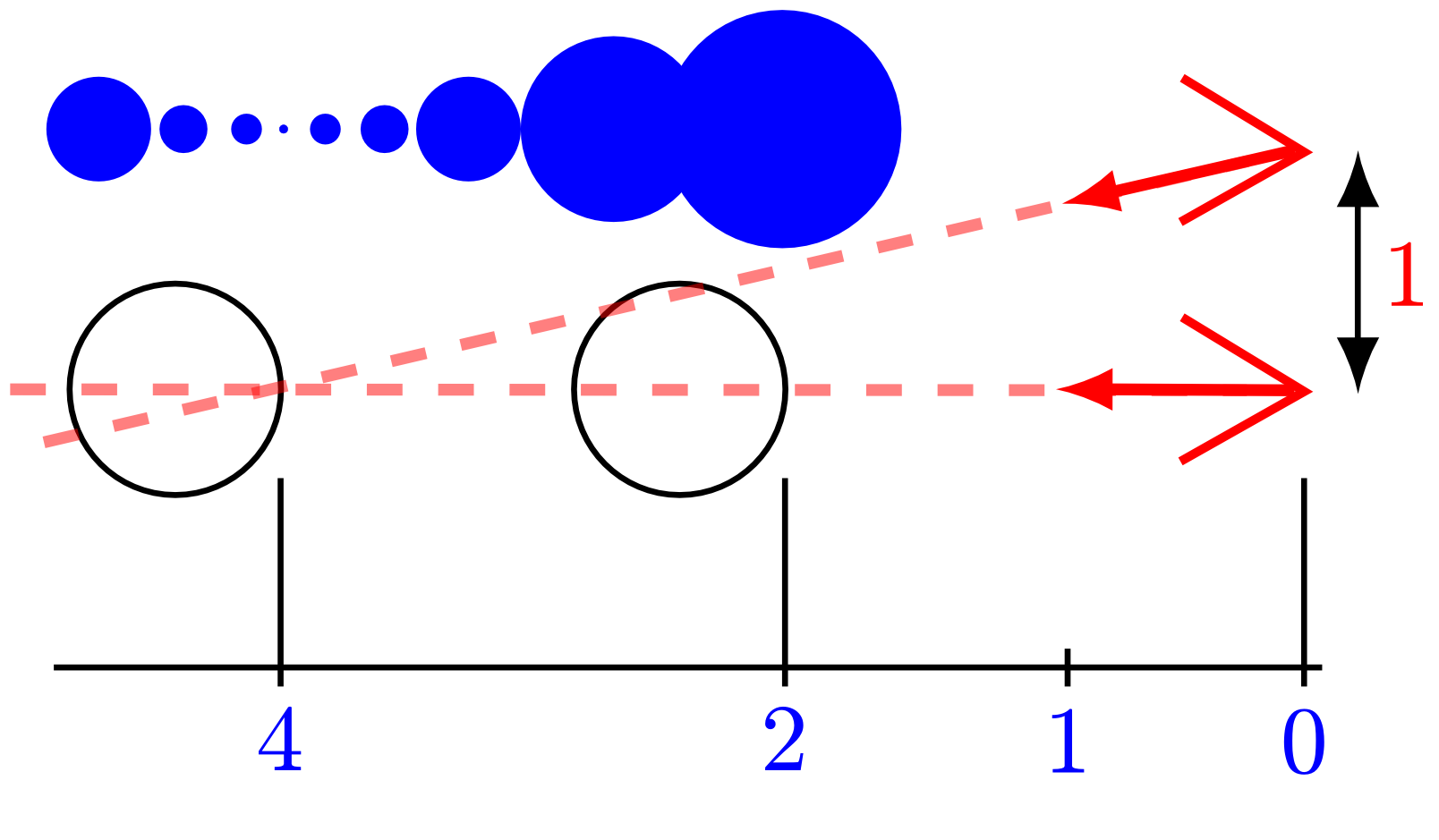

closer or farther points are blurry
(shifted cams's rays hit different points)
→ Depth-of-field

#8 Random stuff

Hack time

Depth-of-field

#8 Random stuff

Result

#8 Random stuff

Debugging

focal distance $f$, camera shift vector $\mathbf{s}$
$\Rightarrow$ ray shift vector $= \frac{1}{d}\cdot \left(-\mathbf{s}\right)$
cam shift along sensor axes (here: X, Y)
ray normalization after shift-addition
(ray must always have unit length!)

#8 Random stuff

Ideas

anti-aliasing
matte surfacesen
soft shadows
depth of field
more:
- motion blur
- → randomized object or cam position
- zoom blur
- → random RIGHT/UP vectors
- cheap object transparency
- → randomized hit test
- aperture shapes ("bokeh")
- tilt-shift! ("Scheimpflug principle")

Level 9 — Textures

#9 Textures

Concept

monochrome objects are boring
so are procedural textures (checkerboard)
→ textures

like "wallpapers", "gift wrap"
image → object color
which image pixel → which 3D point?
→ we need a mapping

image texture

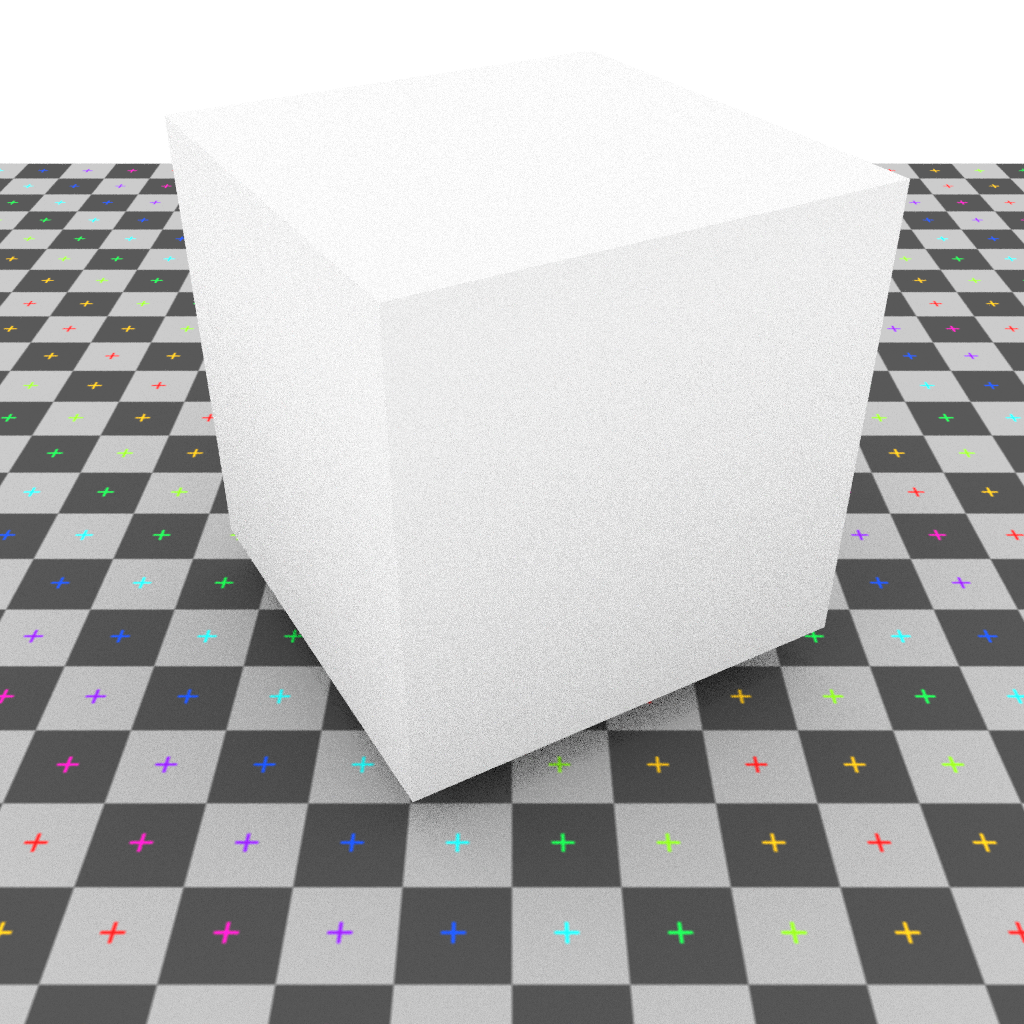

#9 Textures

Texture

(texture.ppm found in this repository)

#9 Textures

Reading PPM images

$ vim texture.ppm

P6
600 400
255
f± jÕËyÙÕ<99>äßI<93><8e> [...]

P6 binary PPM (1 byte per color channel, 3 bytes per pixel)
600 400 → resolution 600x400
header size: "P6 600 400 255 " → 15 bytes
data size: 600 · 400 · 3 = 720000 bytes
expected file size: 15 + 720000 = 720015 bytes
$ du -b texture.ppm: 720016 bytes!
difference?

#9 Textures

Intermezzo: reading binary files

$ xxd texture.ppm | head -n3

0000000: 5036 0a36 3030 2034 3030 0a32 3535 0a66  P6.600 400.255.f
0000010: b1a0 6ad5 cb79 d9d5 99e4 df49 938e 75d7  ..j..y.....I..u.
0000020: d36d d2cc 85db d697 e2dd 6dd4 cc55 c9bf  .m........m..U..

0a is a newline
20 is a whitespace

$ xxd texture.ppm | tail -n3

00afc60: bfad 20cc bb11 b1a0 03b3 9d02 a991 0452  .. ............R
00afc70: 430a 0a09 212e 2818 9c88 16af a241 cac2  C...!.(......A..
00afc80: 3cd3 cb33 d3cd 3fd5 d016 d1ca 30d4 ce0a  <..3..?.....0...

extra newline at the end...
→ can be ignored \Ü/

#9 Textures

Reading PPM images

in get_ground_color(..):

static unsigned char* texture_data{nullptr};
const int tex_w{600};
const int tex_h{400};
if (not texture_data) {
  std::ifstream texture("texture.ppm");
  texture_data = new unsigned char[tex_w*tex_h*3];
  texture.read(reinterpret_cast(texture_data), 15);  /* dummy read */
  texture.read(reinterpret_cast(texture_data), tex_w*tex_h*3);
}

#9 Textures

Hack time

Ground texture

#9 Textures

Result

#9 Texturen

Debugging

ground coordinates in the XZ plane
X = right, Z = "forwards"
scale up (X,Z) for image pixel coordinates

#9 Textures

Ideas

texture for:

color ✓
normal direction
$k_\text{diffuse,material}$, $k_\text{specular,material}$
roughness
transparency

texturehaven.com

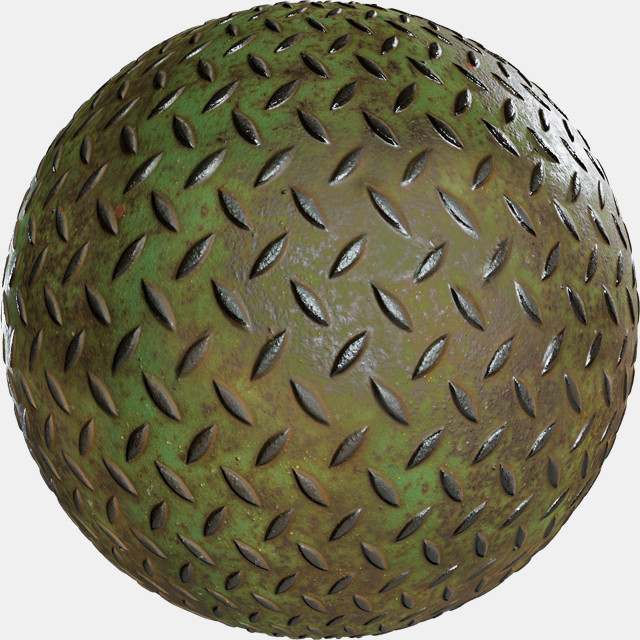

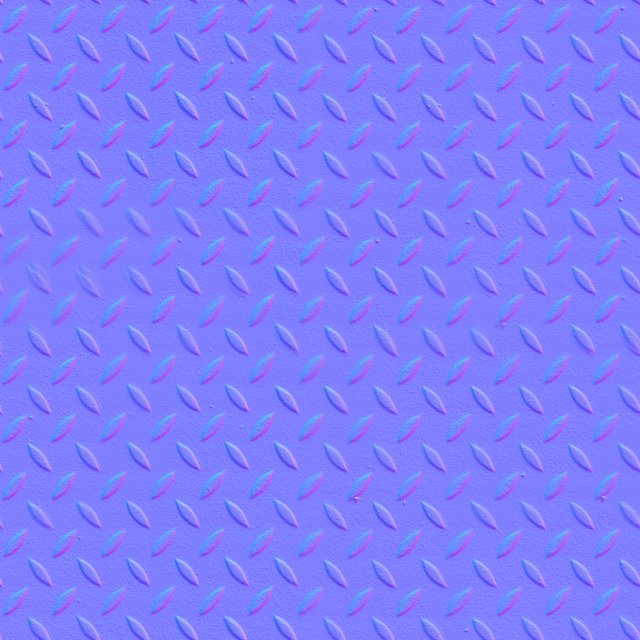

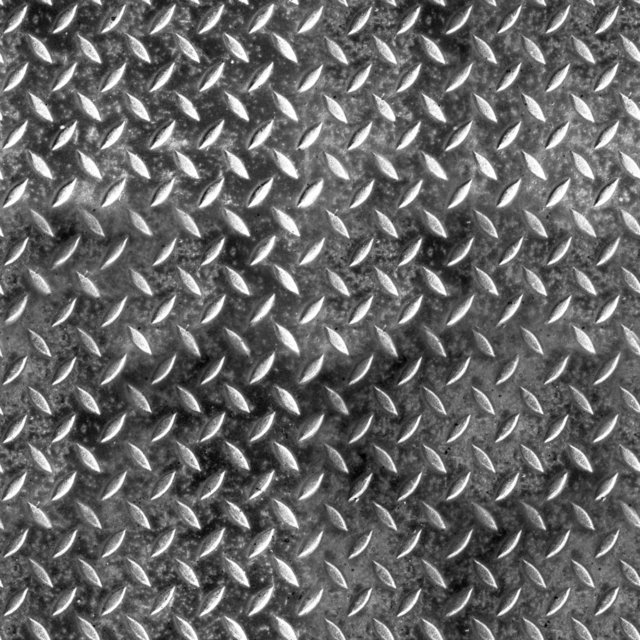

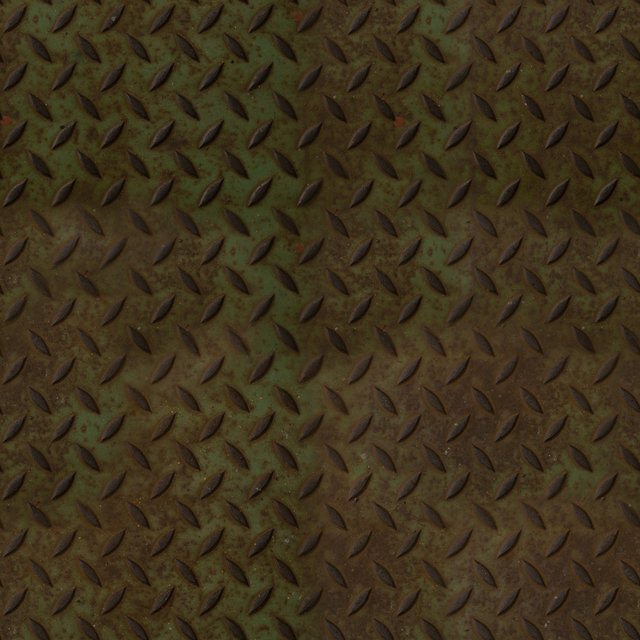

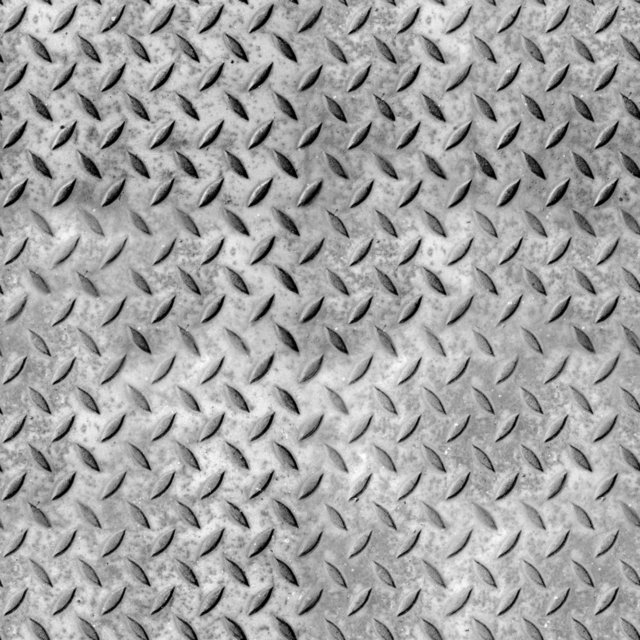

diffuse color	specularity	normal	roughness

BONUS LEVEL UNLOCKED

Level Ω — Rotation matrices

#Ω Rotation matrices

Wait, what?

up to now we can only shift objects
rotations are harder

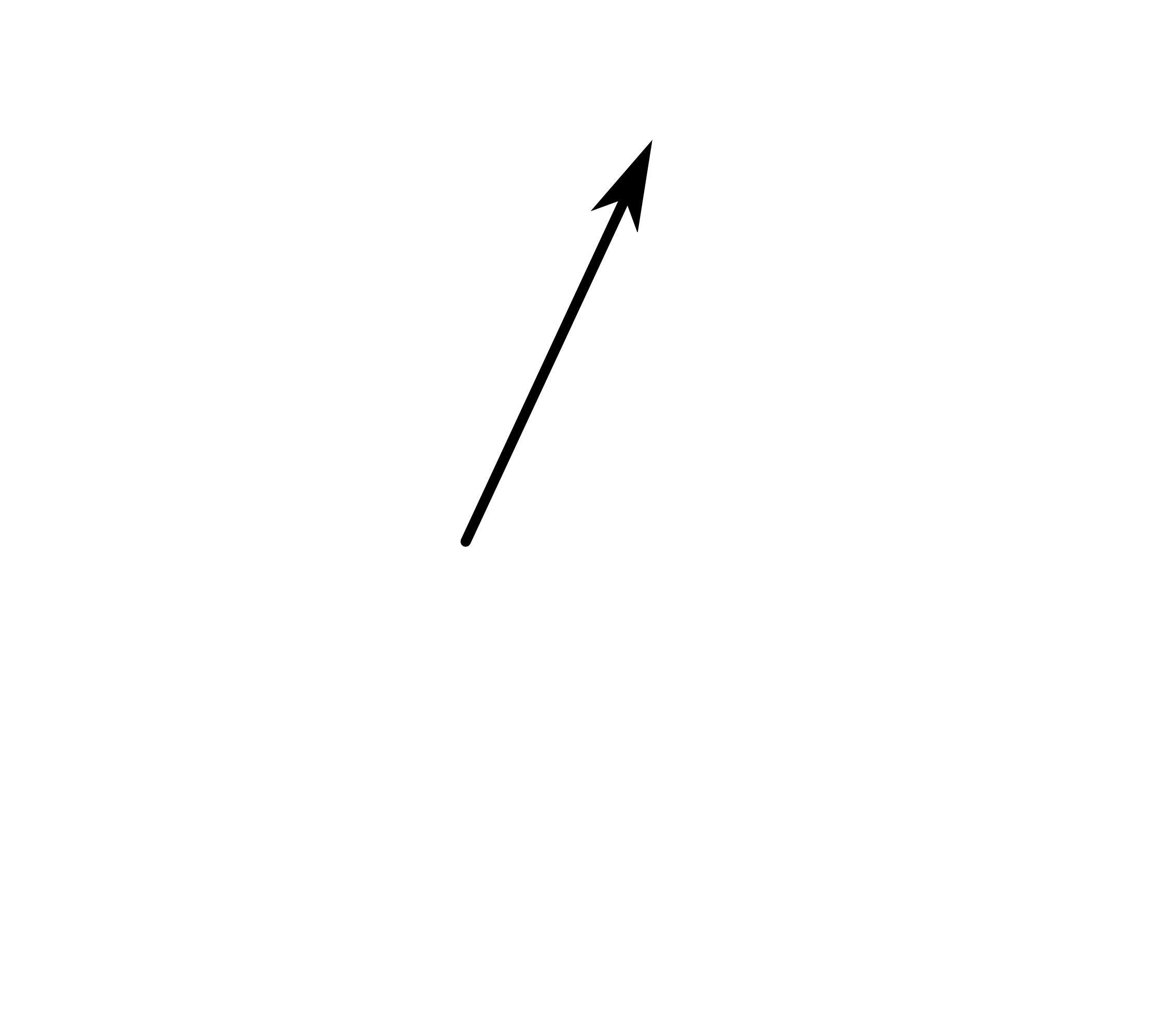

2D example:

vector $(x,y)$
unit length

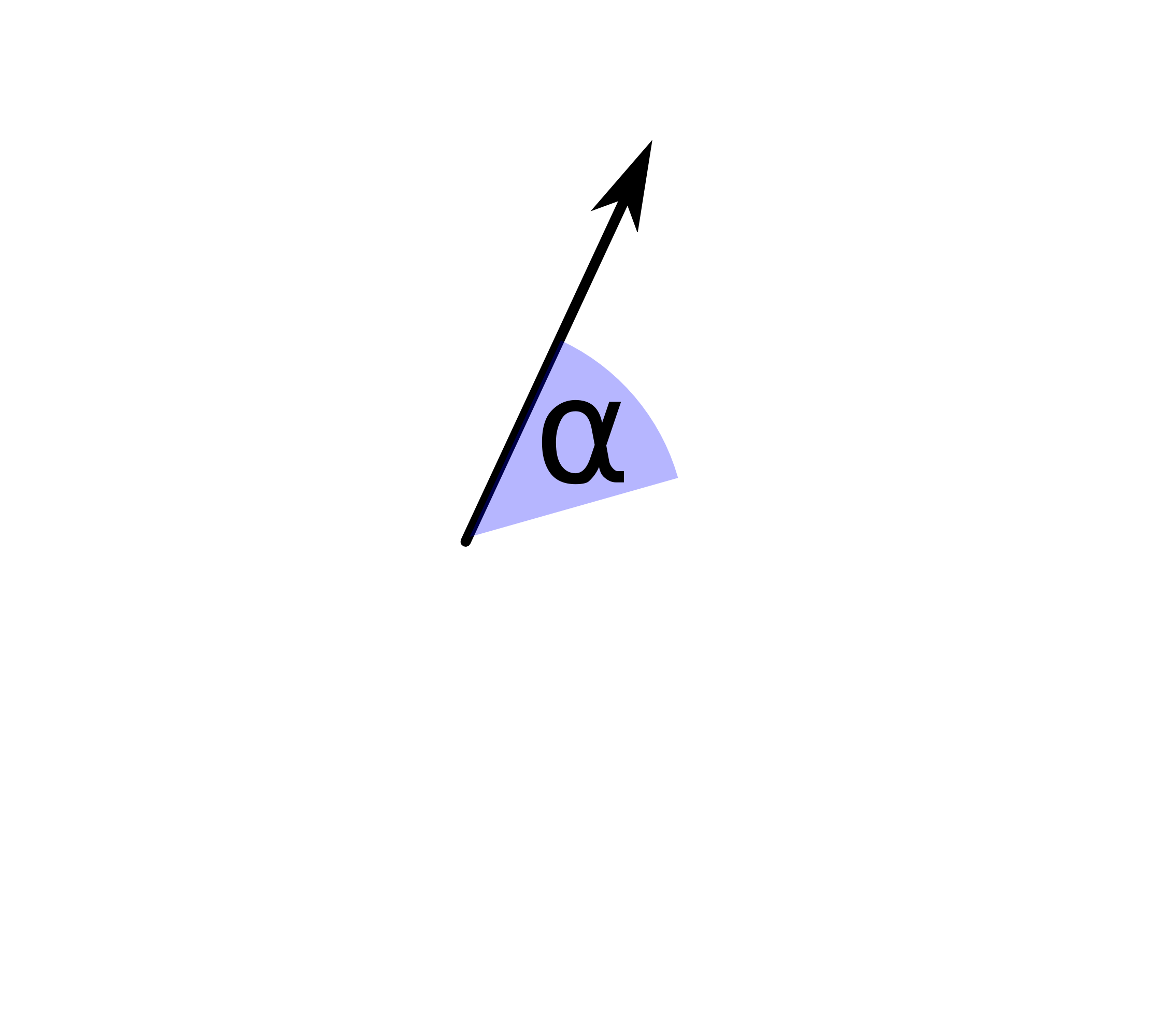

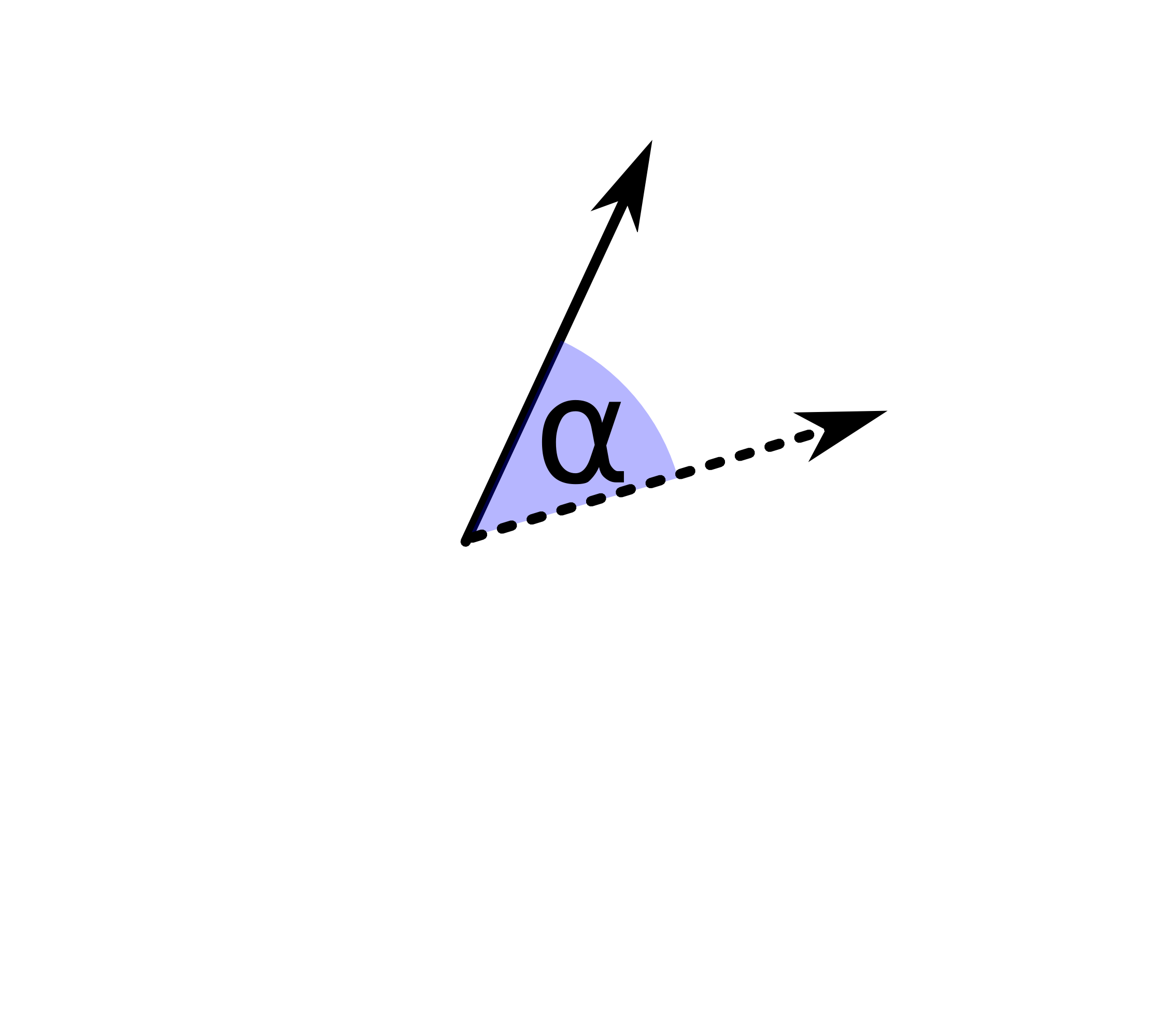

rotation by angle $\alpha$

#Ω Rotation matrices

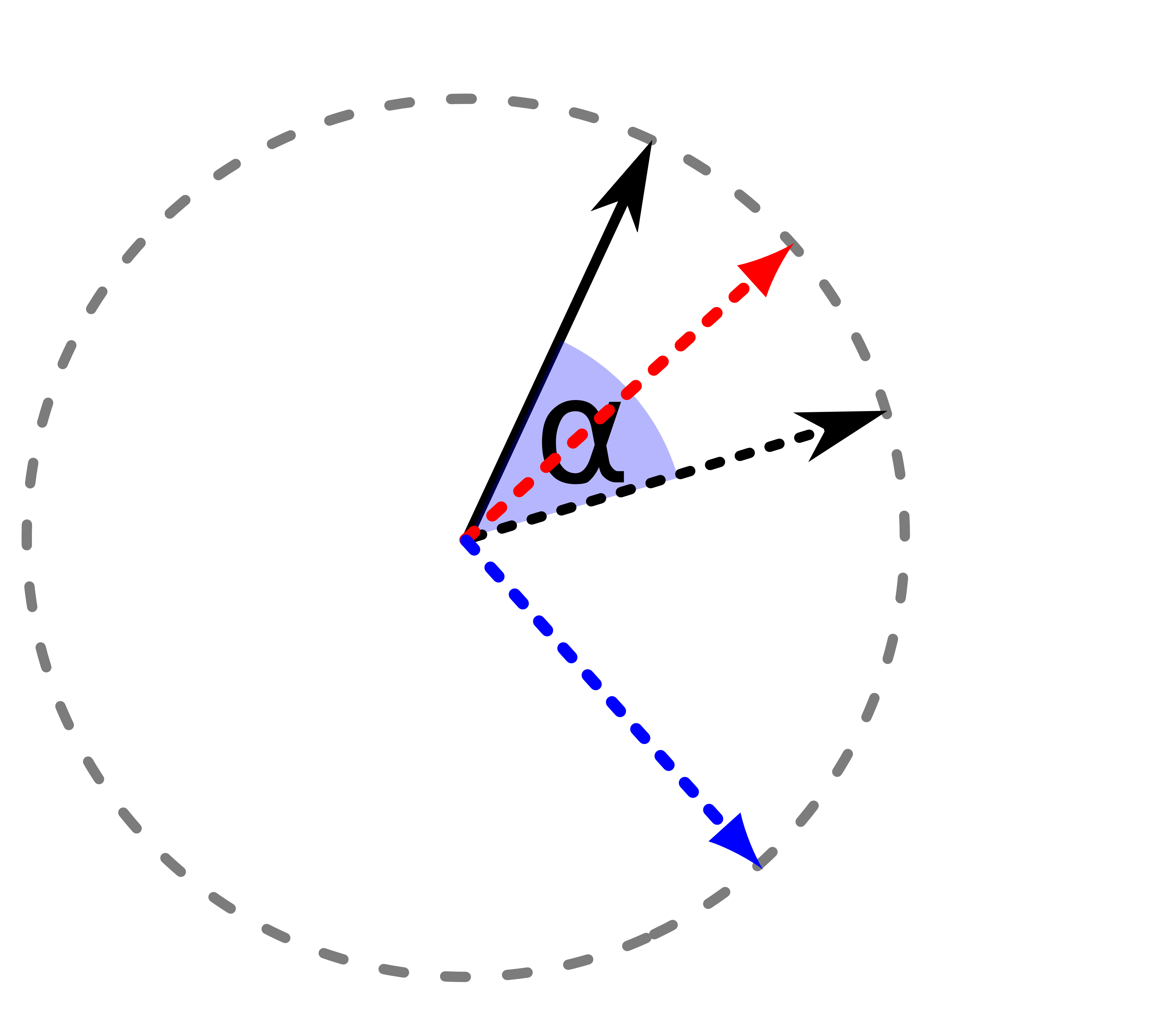

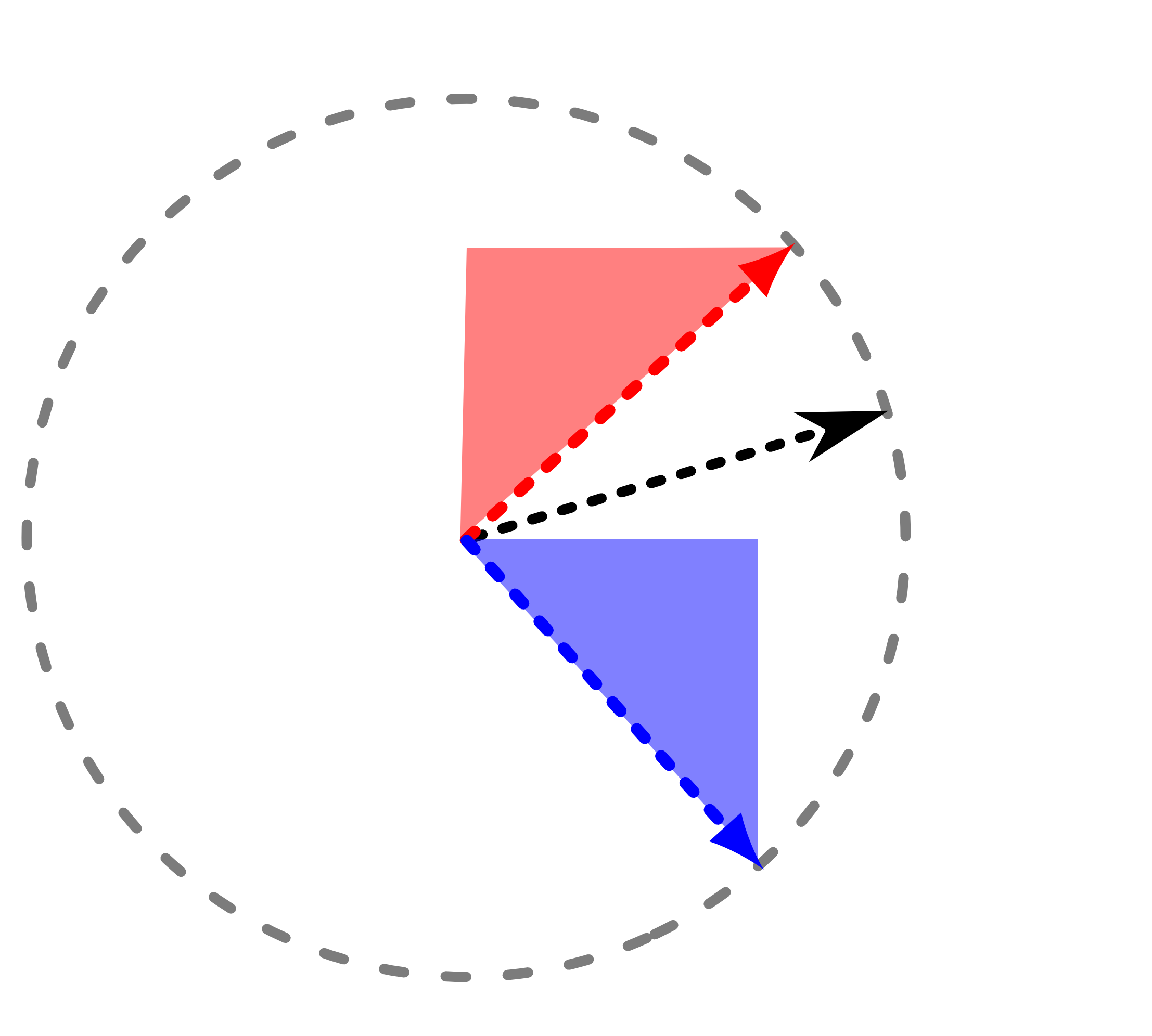

Rotation in 2D

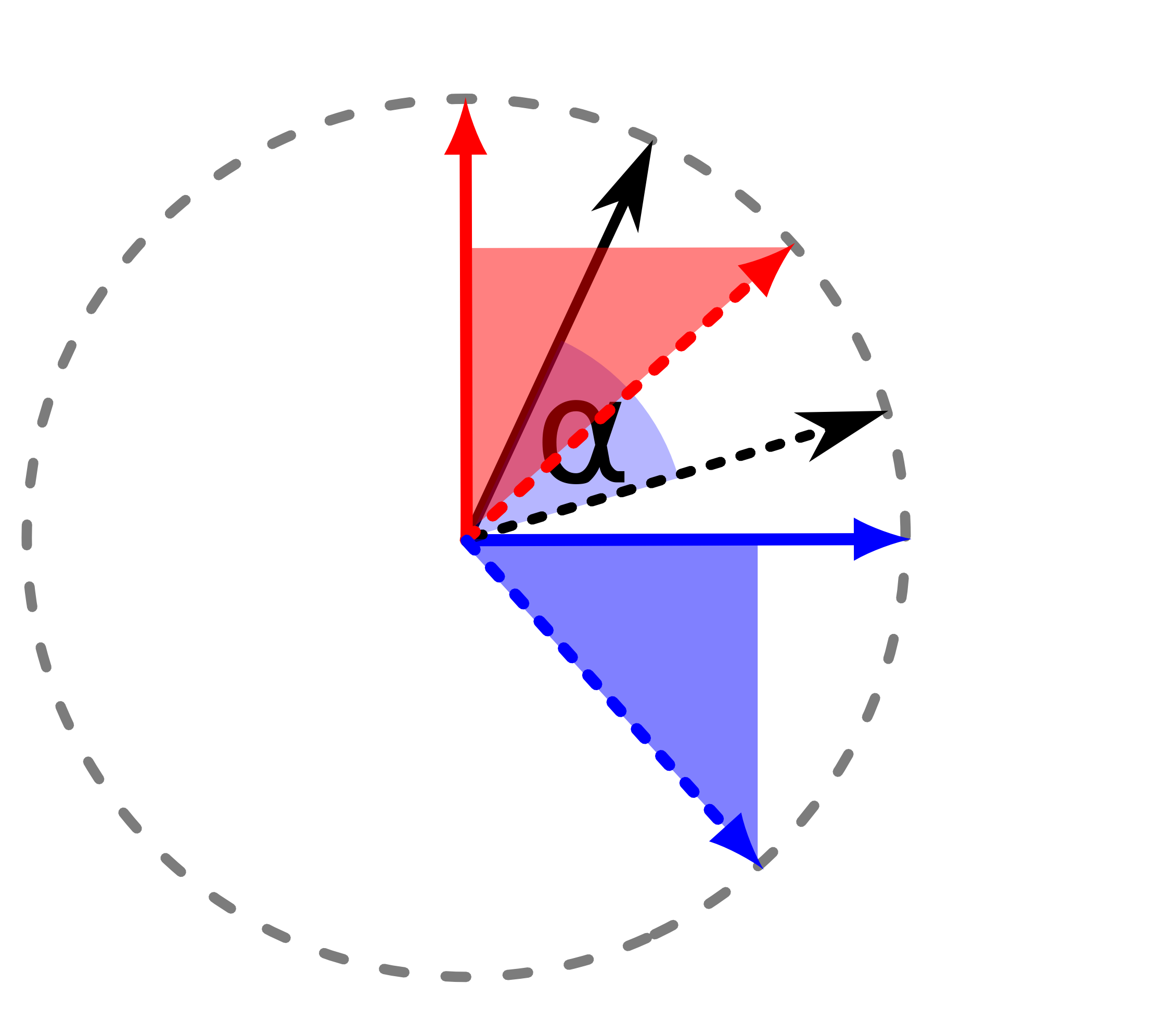

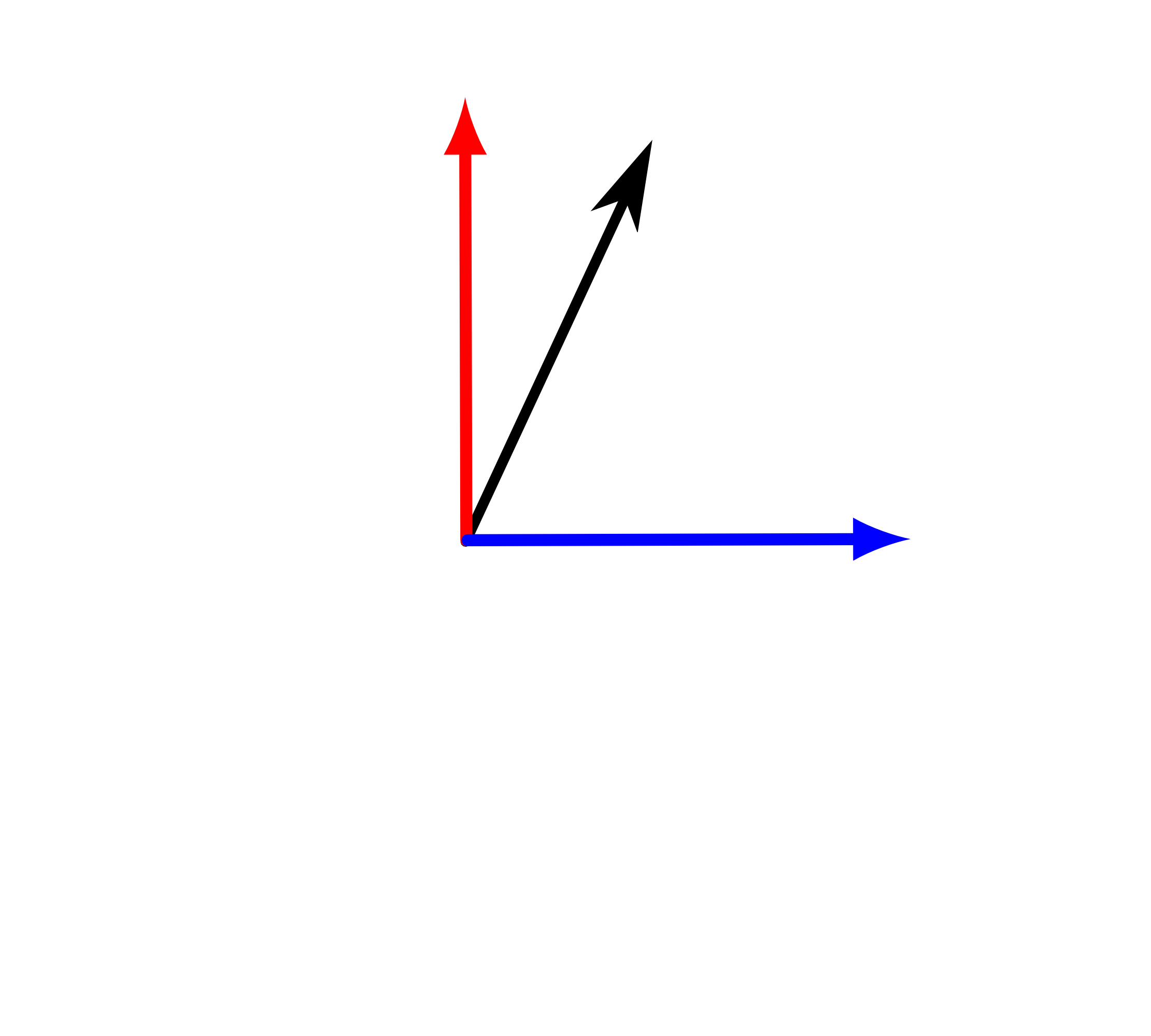

basis vectors: $$ \begin{pmatrix} 1 \\ 0 \end{pmatrix} \rightarrow \begin{pmatrix} \text{cos}(\alpha) \\ -\text{sin}(\alpha) \end{pmatrix}, \begin{pmatrix} 0 \\ 1 \end{pmatrix} \rightarrow \begin{pmatrix} \text{sin}(\alpha) \\ \text{cos}(\alpha) \end{pmatrix} $$

#Ω Rotation matrices

Rotation in 2D

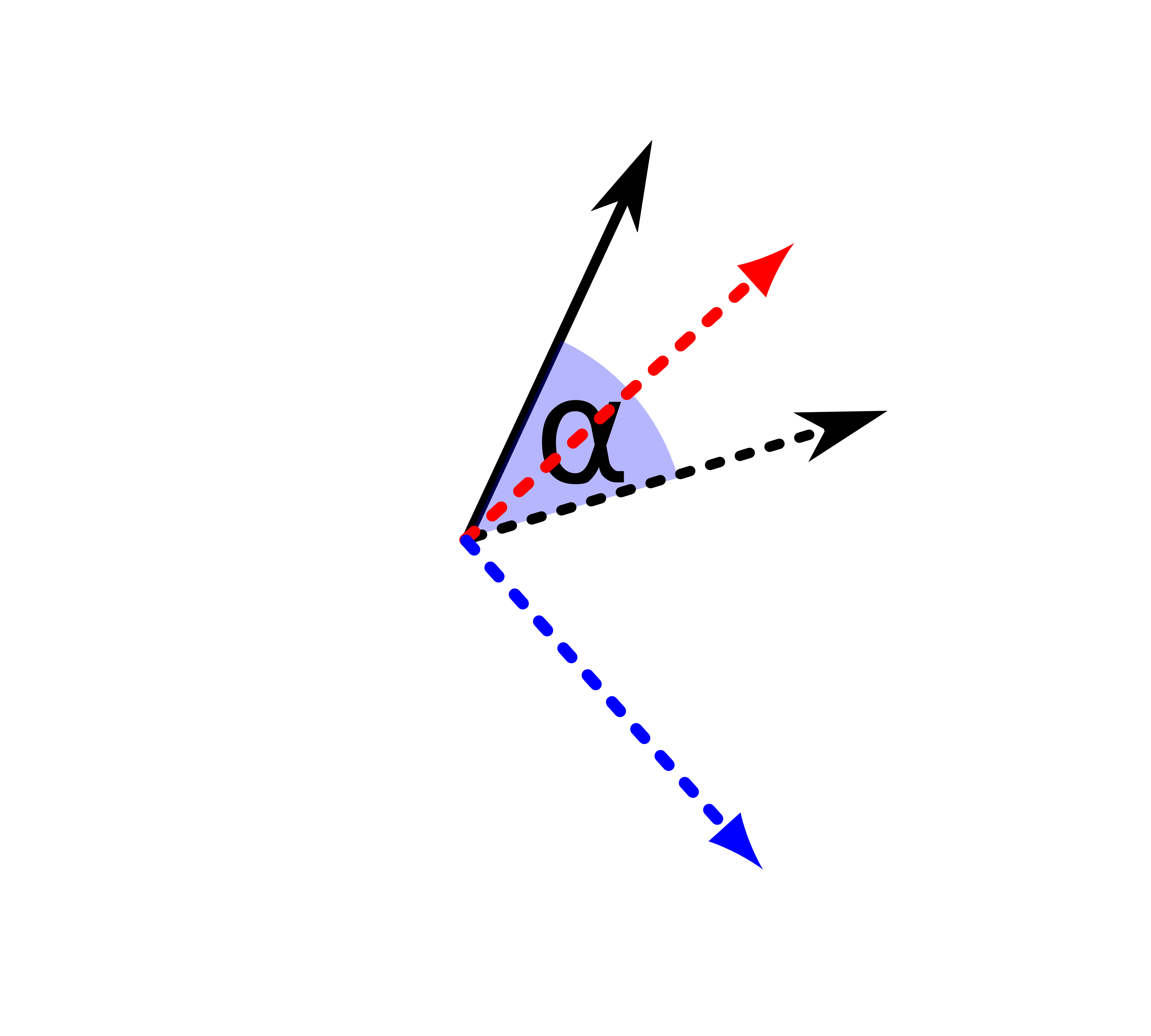

rotation: $$\begin{pmatrix} x'\\y' \end{pmatrix} = \begin{pmatrix} \text{cos}(\alpha) & -\text{sin}(\alpha) \\ \text{sin}(\alpha) & \text{cos}(\alpha) \end{pmatrix} \cdot \begin{pmatrix} x\\y \end{pmatrix}$$

#Ω Rotation matrices

Rotation in 3D

in 3D: rotation around Z-axis:

$$\begin{pmatrix} x'\\y'\\z' \end{pmatrix} = \begin{pmatrix} \text{cos}(\alpha) & -\text{sin}(\alpha) & 0 \\ \text{sin}(\alpha) & \text{cos}(\alpha) & 0 \\ 0 & 0 & 1 \end{pmatrix} \cdot \begin{pmatrix} x\\y\\z \end{pmatrix}$$
X, Y (signs follow from our world coordinate system):

$$\begin{pmatrix} 1 & 0 & 0 \\ 0 & \text{cos}(\alpha) & -\text{sin}(\alpha) \\ 0 & \text{sin}(\alpha) & \text{cos}(\alpha) \end{pmatrix}, \begin{pmatrix} \text{cos}(\alpha) & 0 & \text{sin}(\alpha) \\ 0 & 1 & 0 \\ -\text{sin}(\alpha) & 0 & \text{cos}(\alpha) \end{pmatrix}$$

#Ω Rotation matrices

Hack time

Rotation matrices

#Ω Rotation matrices

Result

#Ω Rotation matrices

Debugging

order of rotation Z-Y-X == matrices X·Y·Z·point
Euler angles → Gimbal lock in critical configurations

That's it!

More ideas

chromatic aberration
non-pinhole cameras (z.B. fisheye)
recursive raytracing
Fresnel effect
glass material (refraction)
wireframe material
multiple light sources
other illumination models (Blinn-Phong, Cook-Torrance)
HDRI illumination
more implicit forms (torus (="donut"))

Image sources

RGB cube: SharkD (Wikimedia)
metal texture: Texture Haven
wood texture: Maarten Deckers (Unsplash)

Let’s build a Raytracer

Why this course?

Overview

Introduction

"Computer graphics"

Introduction

Raytracing vs Rasterization

Introduction

Raytracing vs Rasterization

Introduction

Raytracing vs Rasterization

Introduction

Recommended reading

Introduction

Course structure

Level 0 — An empty image

#0 An empty image

What is an image?

#0 An empty image

The PPM image format

#0 An empty image

The code basis

#0 An empty image

Hack time

#0 An empty image

Result

#0 An empty image

Debugging

Level 1 — Heaven and earth

#1 Heaven and earth

What is a camera?

#1 Heaven and earth

World coordinate system

#1 Heaven and earth

Making rays

#1 Heaven and earth

Hack time

#1 Heaven and earth

Pixel offset

#1 Heaven and earth

Pixel offset

#1 Heaven and earth

Hack time

#1 Heaven and earth

Above and below

#1 Heaven and earth

Hack time

#1 Heaven and earth

Result

#1 Heaven and earth

Debugging

#1 Heaven and earth

Heaven 2.0

#1 Heaven and earth

Hack time

#1 Heaven and earth

Result

#1 Heaven and earth

Earth 2.0

#1 Heaven and earth

Earth 2.0

#1 Heaven and earth

Hack time

#1 Heaven and earth

Result

#1 Heaven and earth

Debugging

Level 2 — Triangles

#2 Triangles

Why triangles

#2 Triangles

What is a triangle?

#2 Triangles

Intersection ray/triangle

#2 Triangles

Lazy solving

#2 Triangles

Normal vectors

#2 Triangles

Back-face culling
